About the product
1. Clear sound quality --- The condenser microphone core, so that the sound reproduction of the instrument can reach 99%, and the microphone has a shock-absorbing spring, which effectively reduce 98% key tone of the flute .Stable signal transmission --- The signal transmission distance is 164ft (50m).

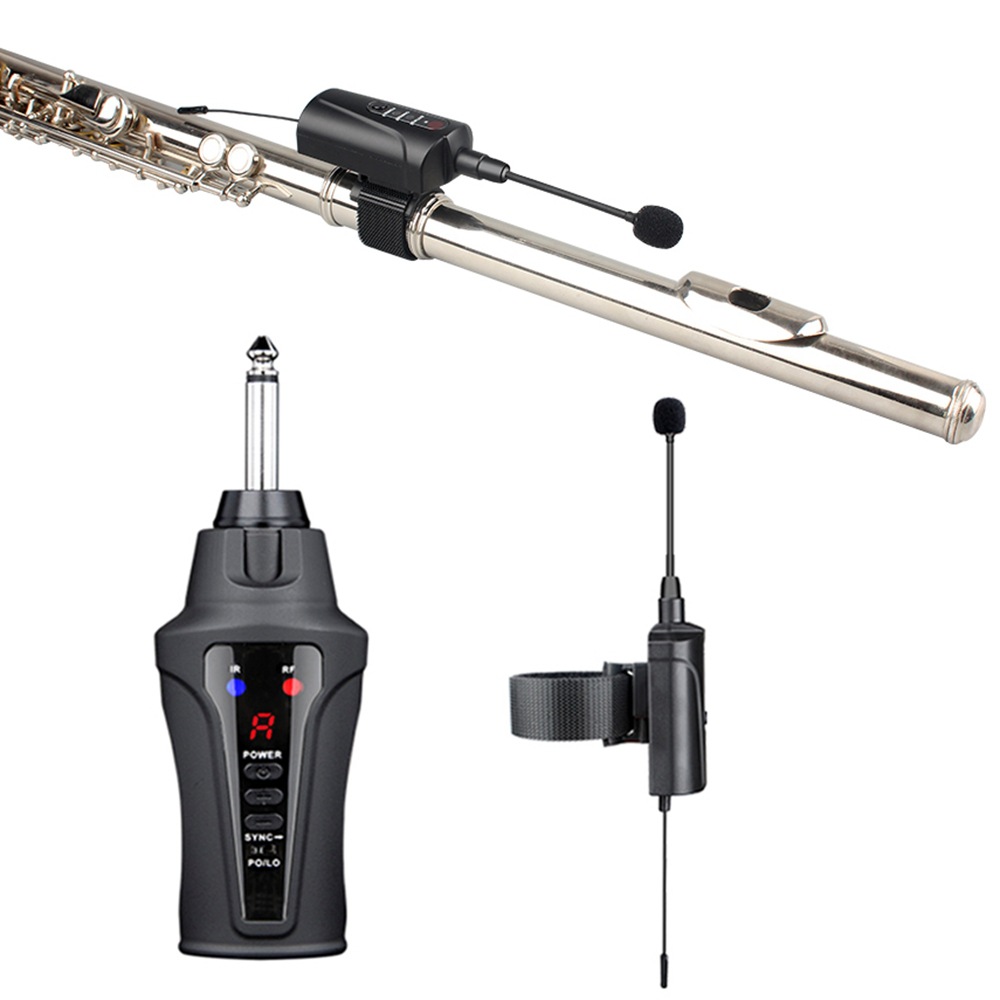

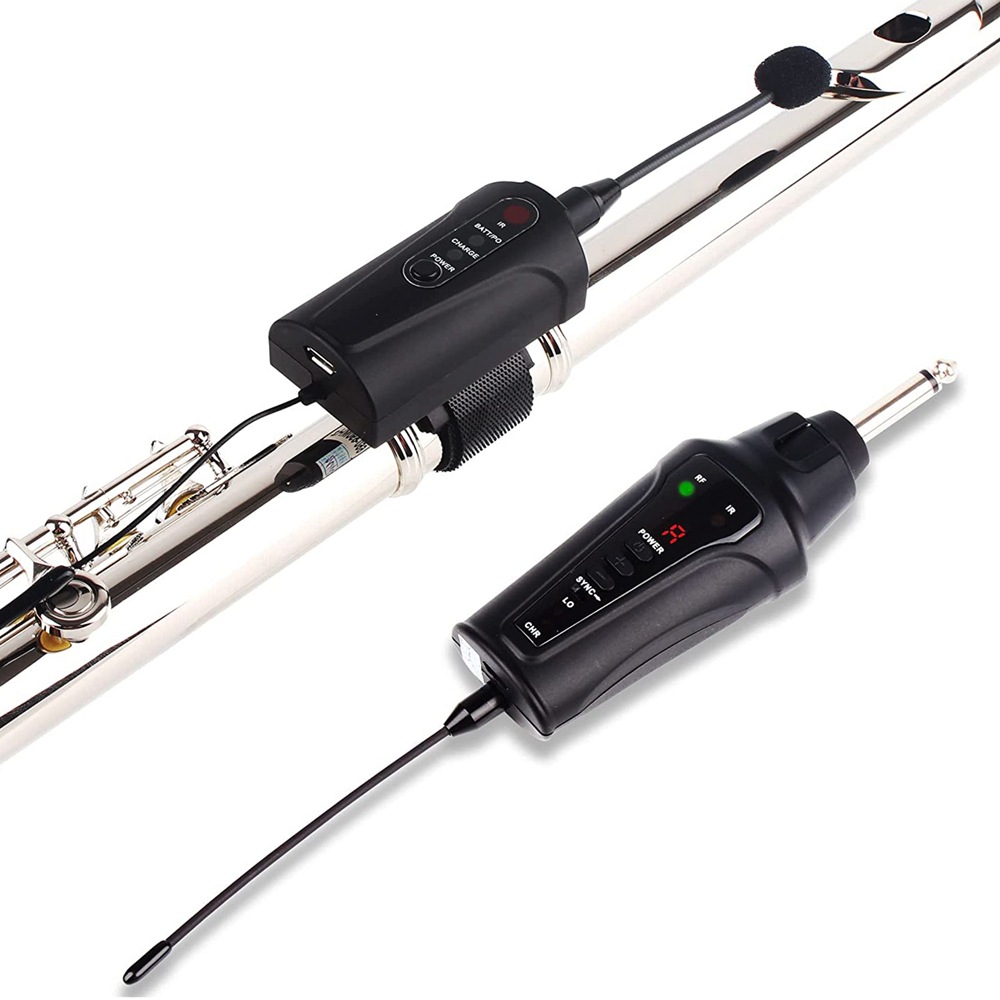

2. Easy to use --- Clamp the microphone directly on the mouth of the saxophone, plug the receiver into the MIC interface of the speaker, and then turn it on and use it . A total of 16 UHF channels can be selected, and 3-4 sets of microphone systems can be used at the same time without signal interference.
3. High-capacity lithium battery --- One divides into two charging cable to charge the receiver and transmitter at the same time, greatly reducing the charging time.The transmitter and receiver has built-in 750mAh battery, which can be recharged 2000 times, and can be used for 6 hours after 2 hours of charging.

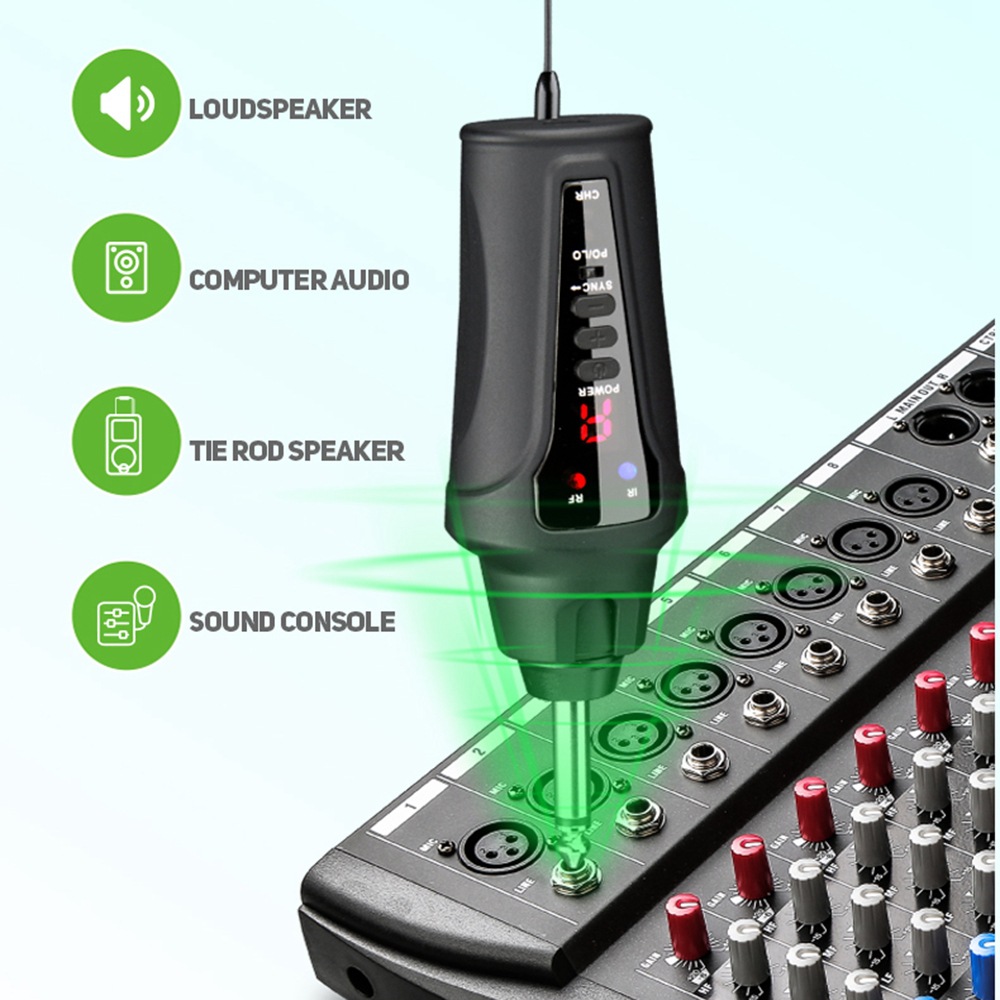

4. Widely Used --- This flute wireless microphone can be used in solo performance, accompaniment performance, personal entertainment, group performance. 6.35mm interface (Also added a 6.35 to 3.5mm interface) can be used to a variety of equipment, loudspeakers, computer audio, drawbar speakers, mixers, and so on.
5. Widely Used --- This brass instruments wireless microphone can be used in solo performance, accompaniment performance, personal entertainment, group performance. 1/4 inch plug (and give a 1/4 inch（6.35mm） to 1/8 inch（3.5mm） conversion plug) can be used to a variety of equipment, loudspeakers, computer audio, drawbar speakers, mixers, and so on.

Description:
Brand: ACEMIC

SPECIFICATION
UHF 600-952MHz frequency range (region dependant)
Digital wireless audio transmission
48KHz audio sampling mode
Pre-set 16 selectable frequencies
Digital ID code, completely solves frequency interference
IR sync downloading the frequency from receiver
Lithium battery power supply
Portable plug-on receiver, plug in the mixer or active speaker directly
Up to 60m line-of-sight operating range
Suitable for saxophone stage performances, street performances, etc.

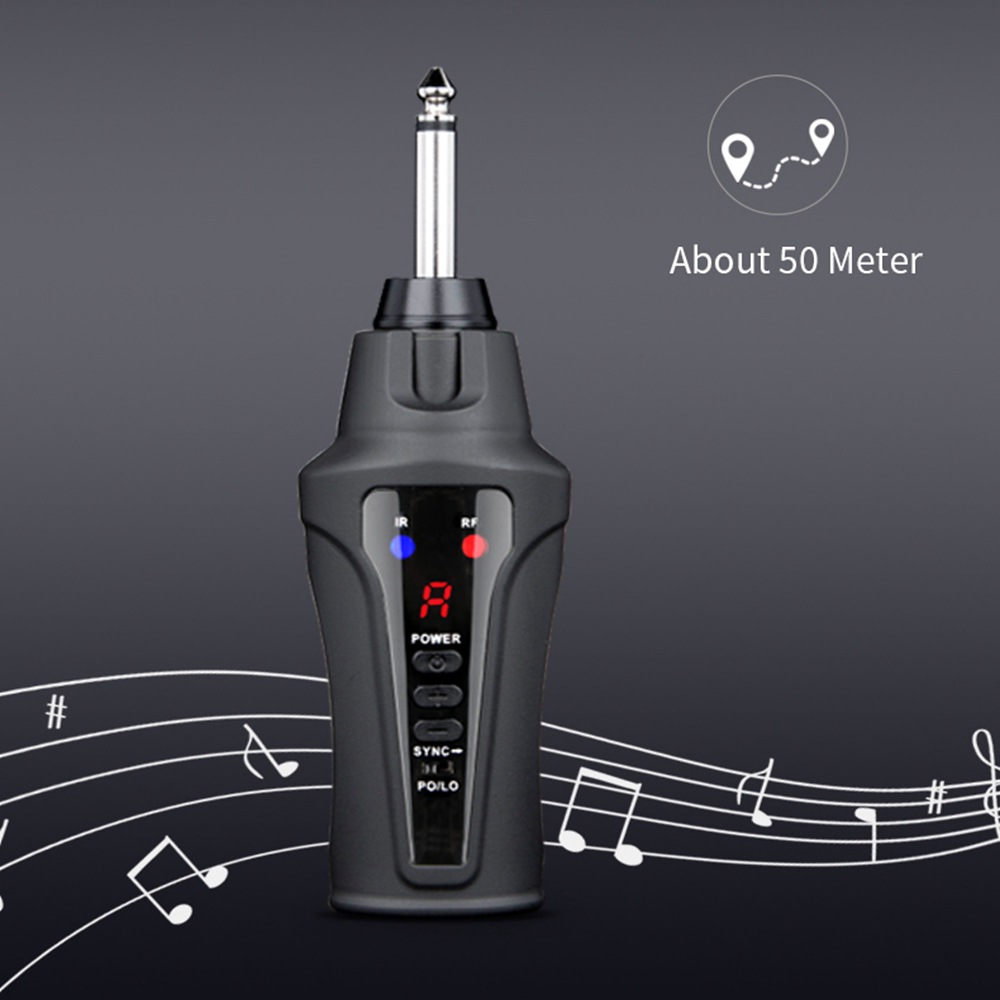

RECEIVER
Frequency range: 660-690MHz (region dependant)
Frequency: Pre-set 16 selectable channels
Modulation mode: pi/4 DQPSK
Latency: <6ms
Sampling: 48KHz
Frequency response: 60Hz - 15KHz ± 2dB
Total Harmonic Distortion: <0.8%(1KHz)
Signal/noise ratio: >92dB
Receiving sensitivity: -92dBm
Output: 6.35mm plug
Power supply: 3.7V Lithium battery
Power consumption: >6 hours continuosly using

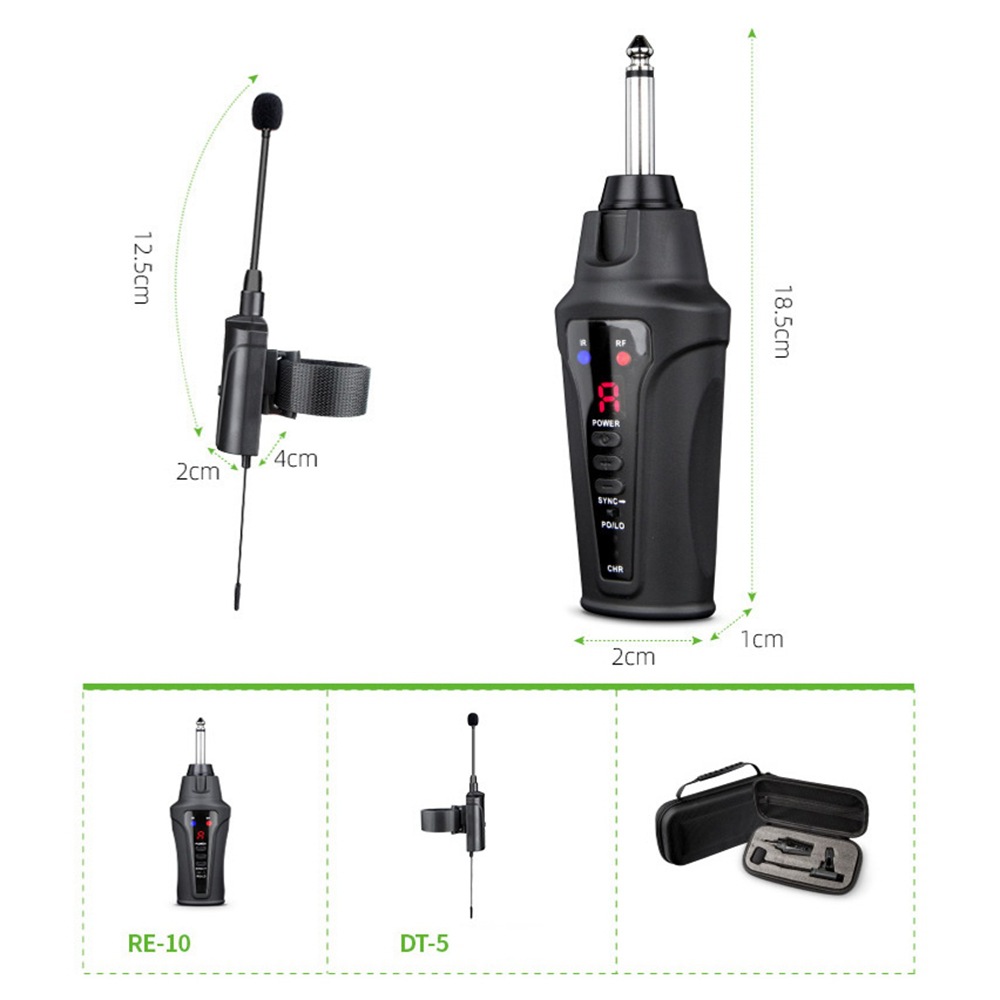

Dimensions: 185*20*10mm

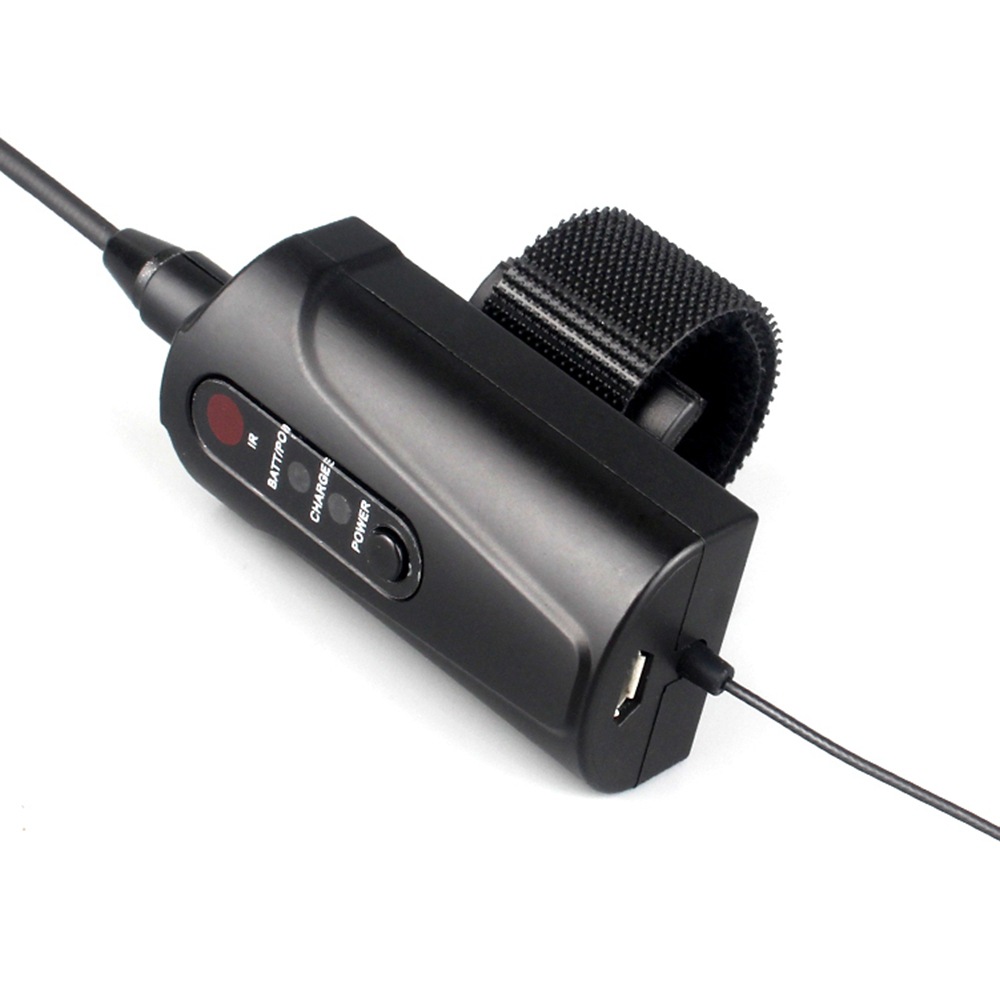

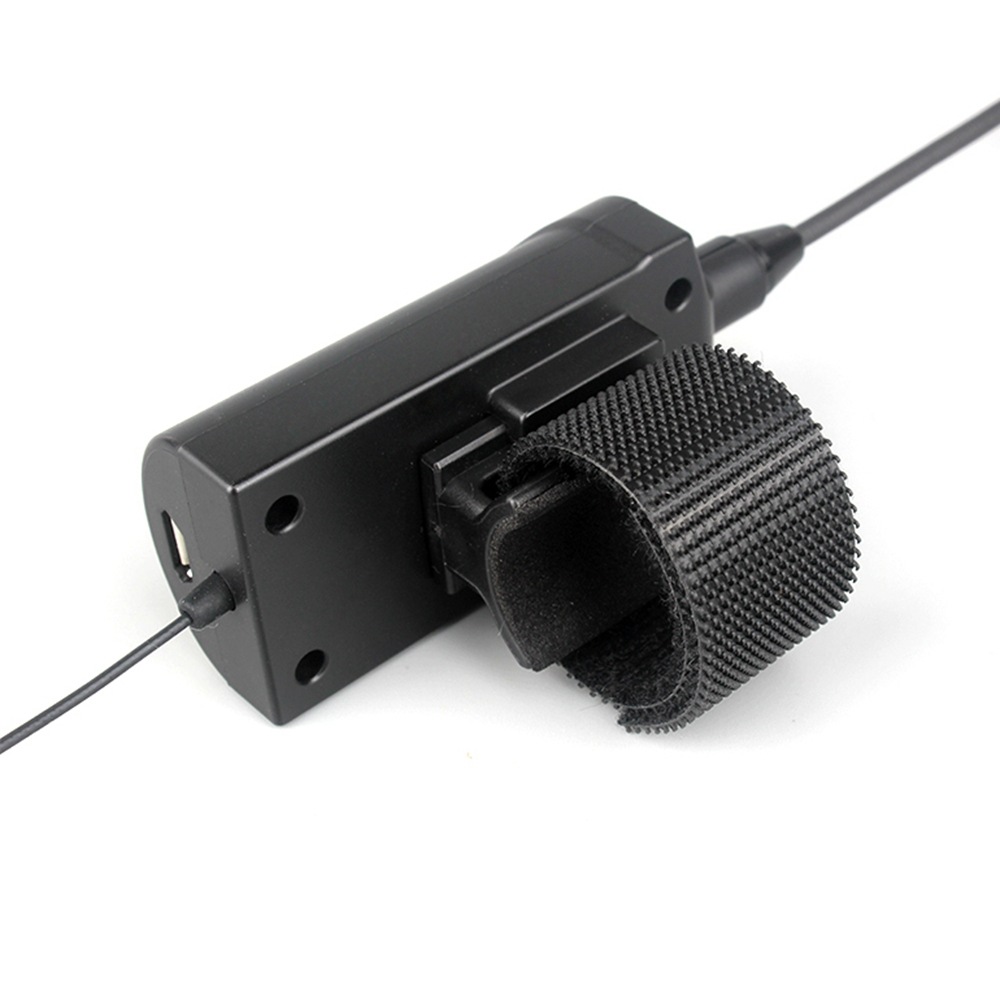

TRANSMITTER
Frequency range:660-690MHz (region dependant)
Modulation mode: pi/4 DQPSK
Transmitter power: 10mW
Sensitivity: -47 db±2dB
Frequency change: IR synch
Microphone type: Condenser
Microphone dimension: Φ4.0*1.5mm
Power supply: 3.7V lithium battery
Power consumption:>6 hours continuosly using
Dimension: 145*40*27mm

Package Include

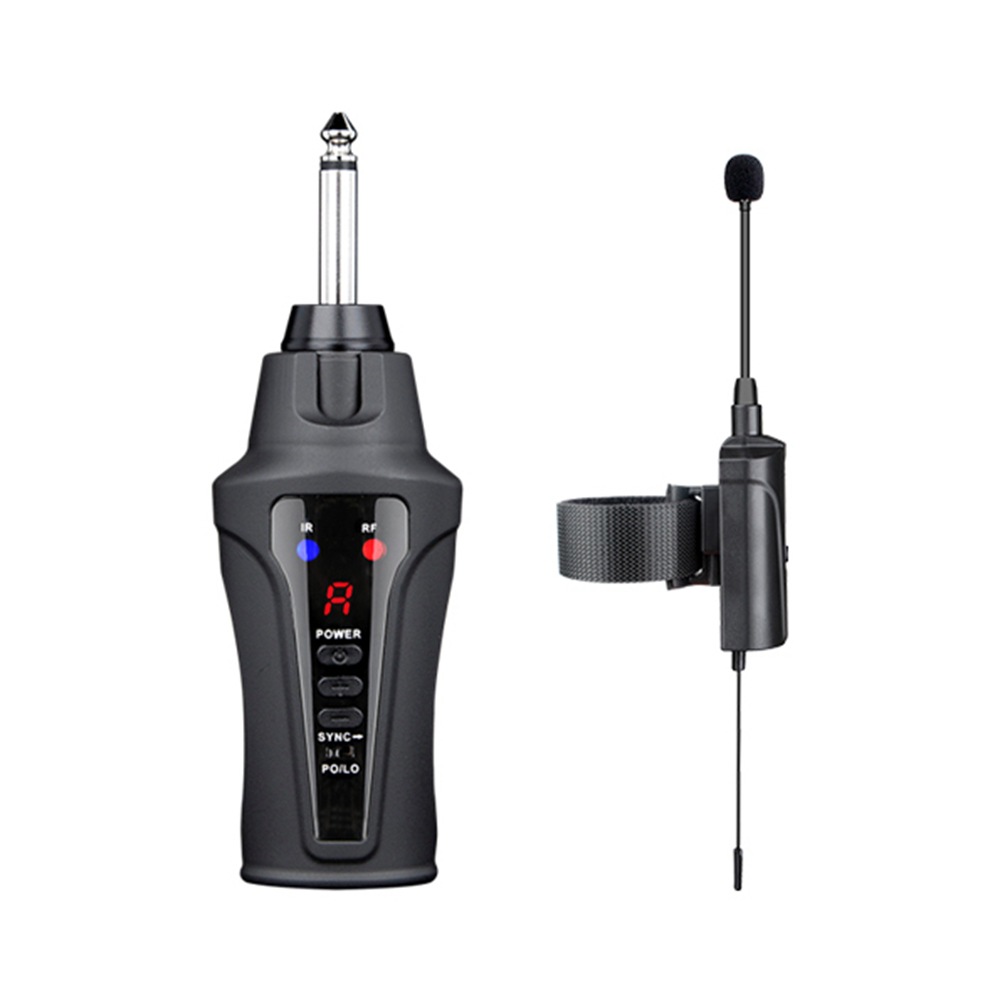

1x Receiver
1x Transmitter
1x USB Charging Plug
1x Charging Cable
1x 6.35mm to 3.5mm Conversion plug
1x Carry Bag
1x User Manual
