中文描述:
特点
1. 充电器利用自然阳光为您的设备充电,是绿色环保的无电池充电器,携带起来不会太重。

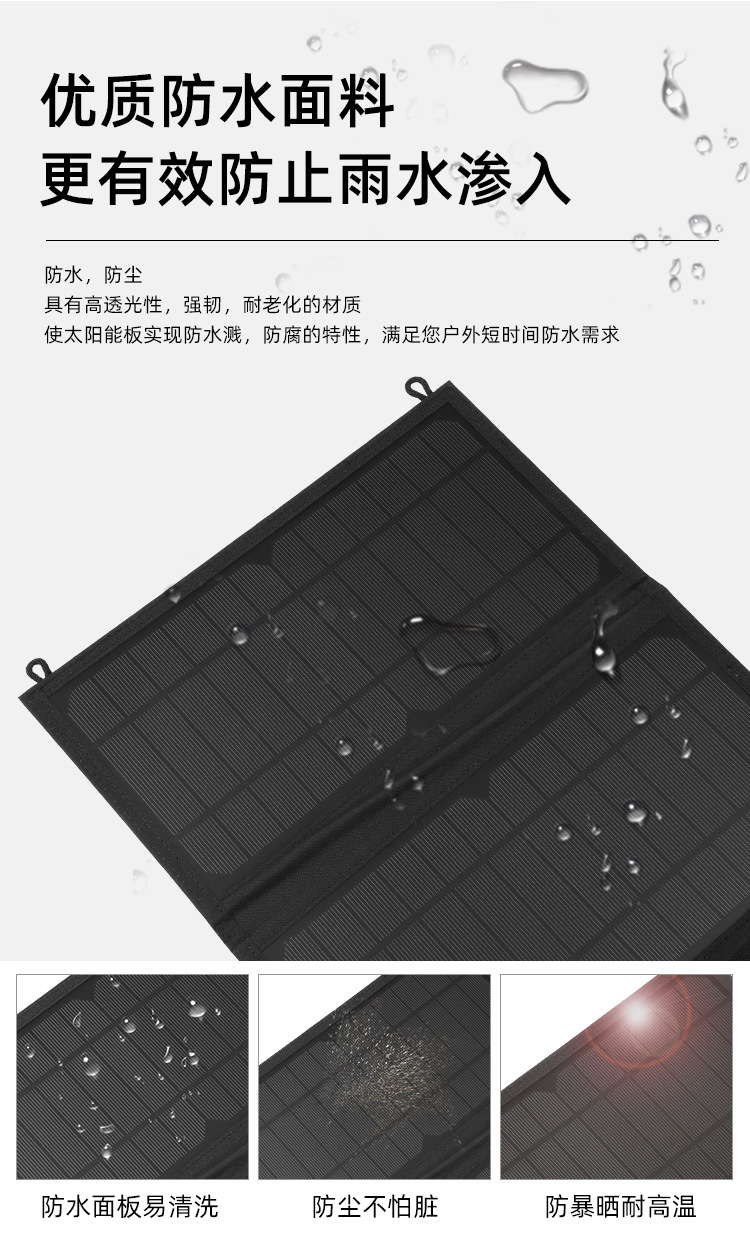

2. 采用表面防粘的ETFE材料,高防污易清洁,高效太阳能转换,稳定电压面板,无需担心损坏手机。
3. 输出端口为USB,可用于为智能手机、平板电脑或任何其他5V 设备充电。
4. 体积小巧轻便,按扣可折叠设计,易于存放,非常适合露营、远足、野餐和其他户外活动。
5. 边缘有2个孔,可以挂起来使用,非常方便。
6. 功能支持:
- 内置MOS开关大功率管
- 智能负载识别,轻载自动进入待机
- 内置 14 位 ADC 和电量计
- 智能识别LED电量显示
- 支持线路补偿
7. 保护功能:输入过压、欠压保护; 输出过流、过压、短路保护; 电池过充、过放、过流保护; IC过温保护
参数
1. 外壳材料: ABS

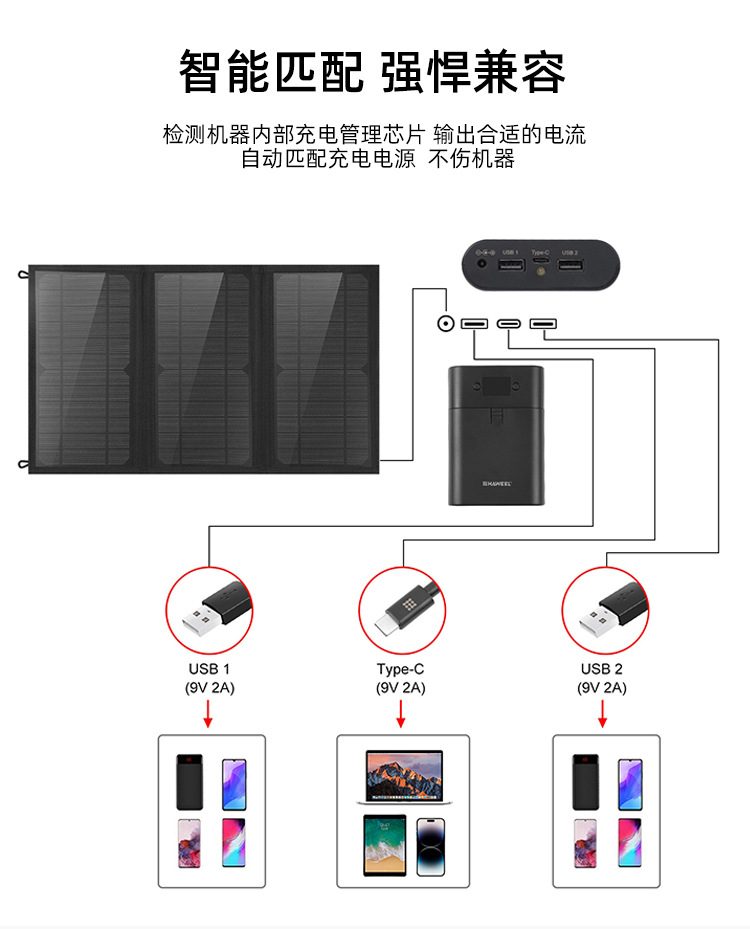

2. USB1输出: 5V 3.1A, 9V 2A, 12V 1.5A
3. Type-C输出: 5V 3.1A, 9V 2A, 12V 1.5A
4. USB2输出: 5V 3.5A
5. DC口规格: 4.0 x 1.7mm
6. DC输入: 5.5V 5A
7. Type-C输入: 5V 3.1A, 9V 2A, 12V 1.5A
9. 功率: 18W(6W x 3)
10. 支持快充协议: QC 2.0 / QC 3.0 / FCP / AFC / SFCP / SCP / VOOC / MTK PE+1.1&2.0 / USB C DRP / BC 1.2 / PD

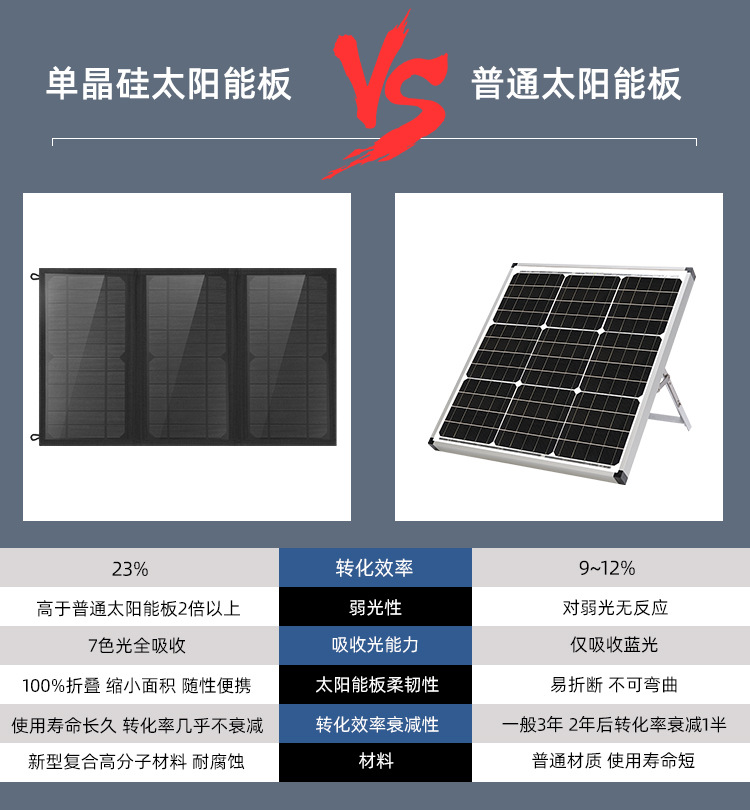

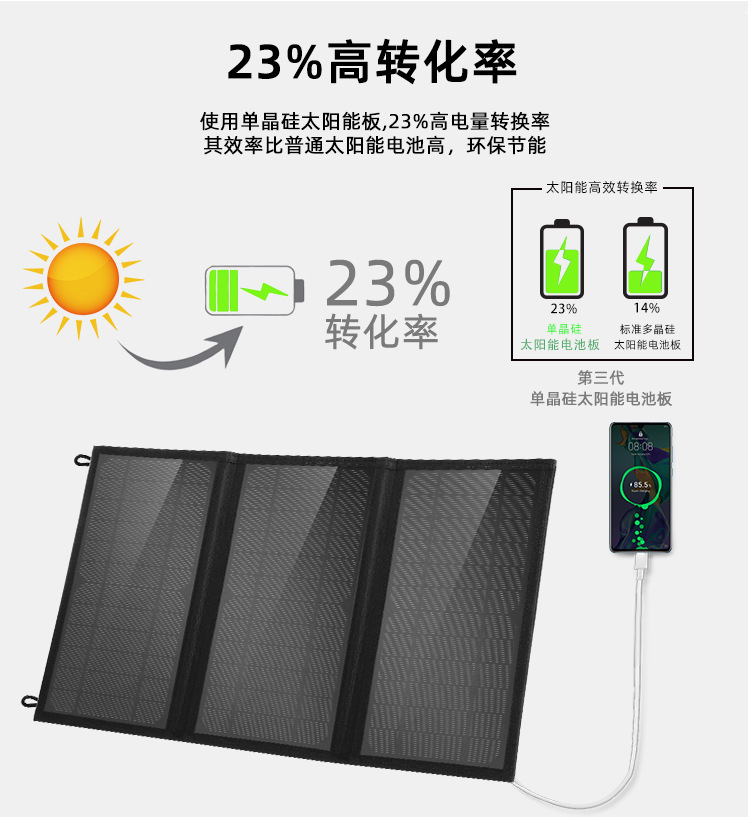

11. 太阳能板类型:单晶硅
12. 空载输出电压: 6.6V; 额定输出电压:6V

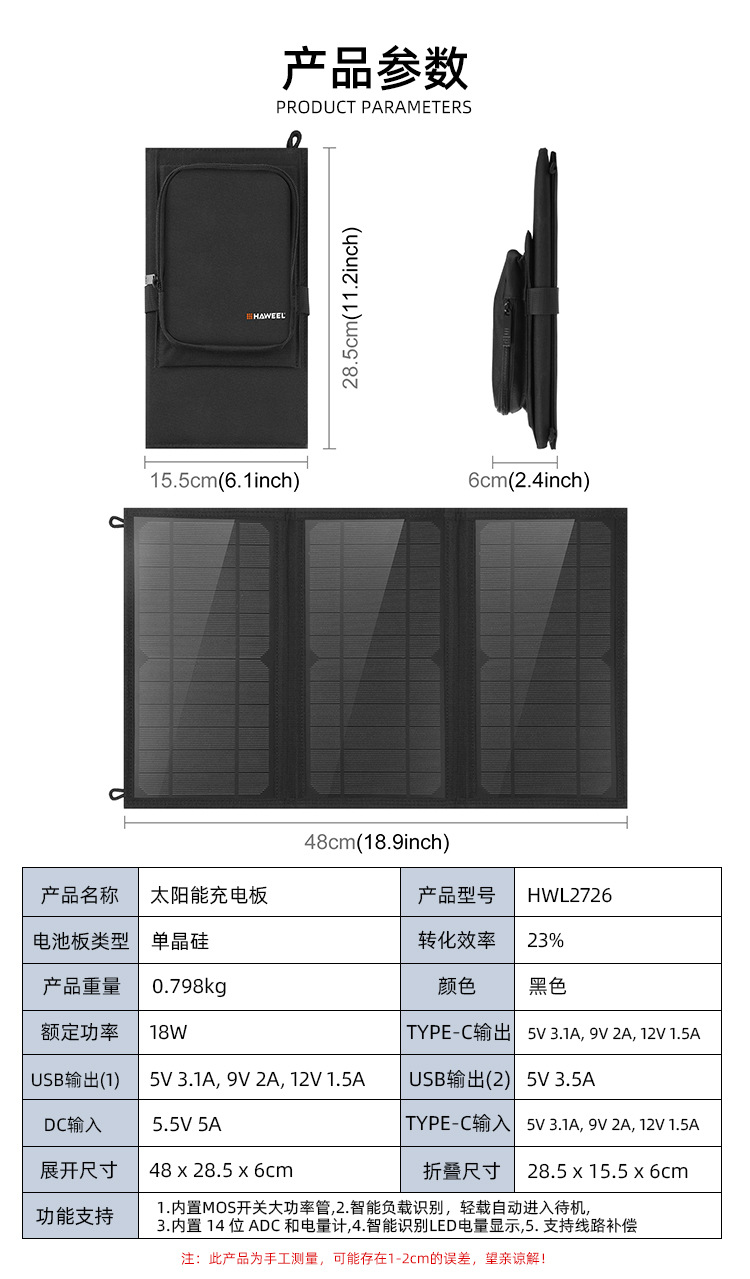

13. 尺寸: 折叠 28.5 x 15.5 x 6cm; 展开 48 x 28.5cm
Features

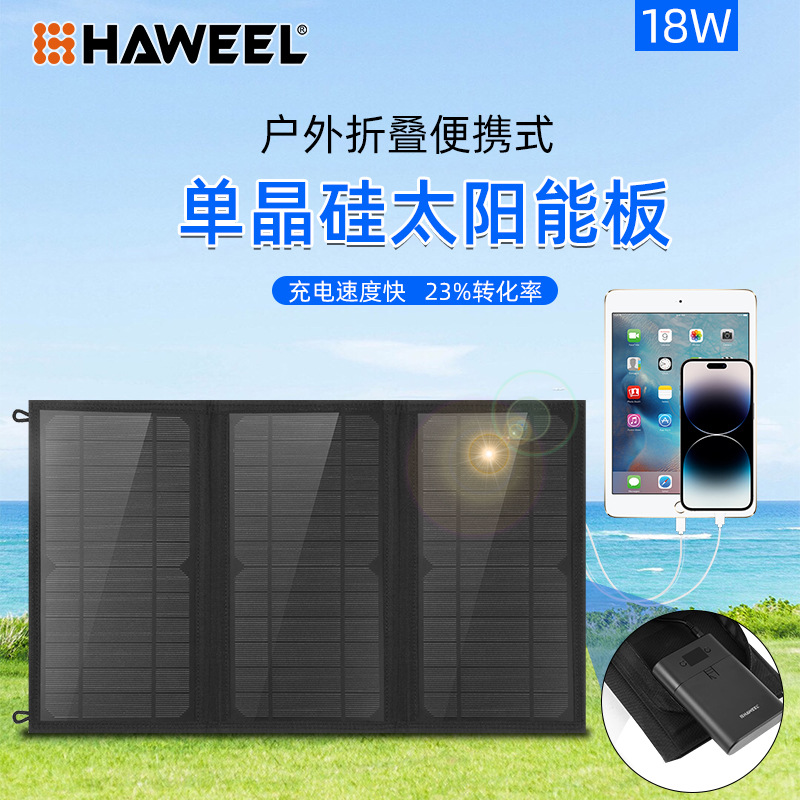

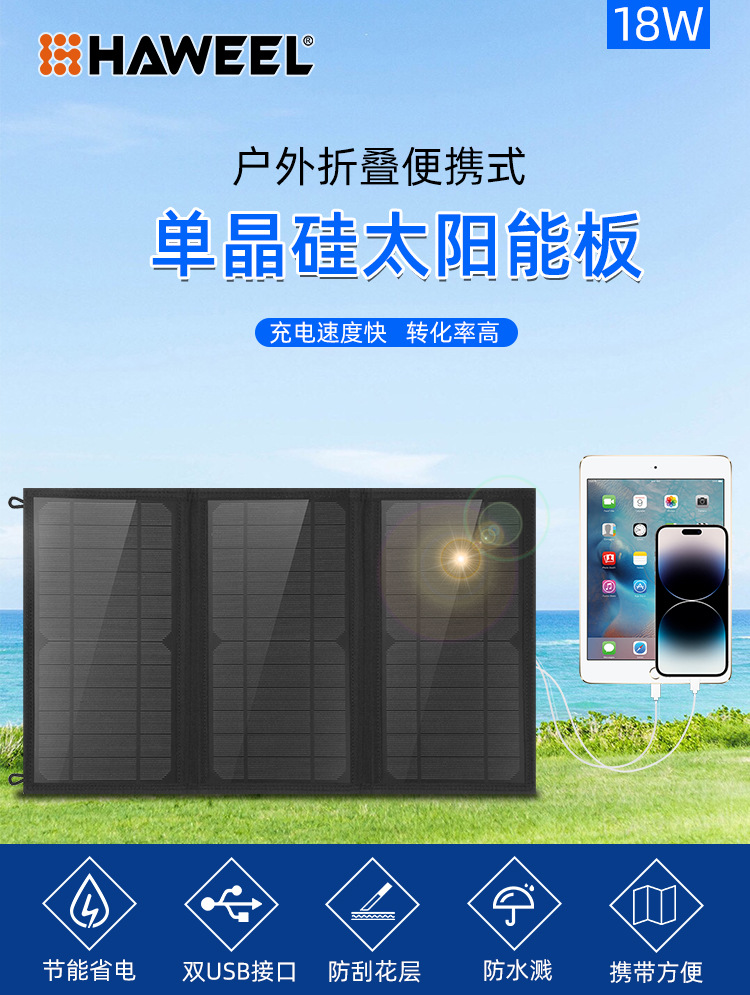

1. The charger utilizes natural sunlight to charge your device, It is a green charger without battery and not too heavy to carry.
2. Adopt ETFE material with anti-adhesive surface, high anti-fouling and easy to clean, highly efficient sun power transformation, stability voltage panel, no need to worry damaging your phone.
3. The output port is USB, it can be used to charge smartphones, tablets, or any other 5V devices.
4. Compact size and lightweight, press buckle foldable design, easy to store, great for camping, hiking, picnics, and other outdoor activities.

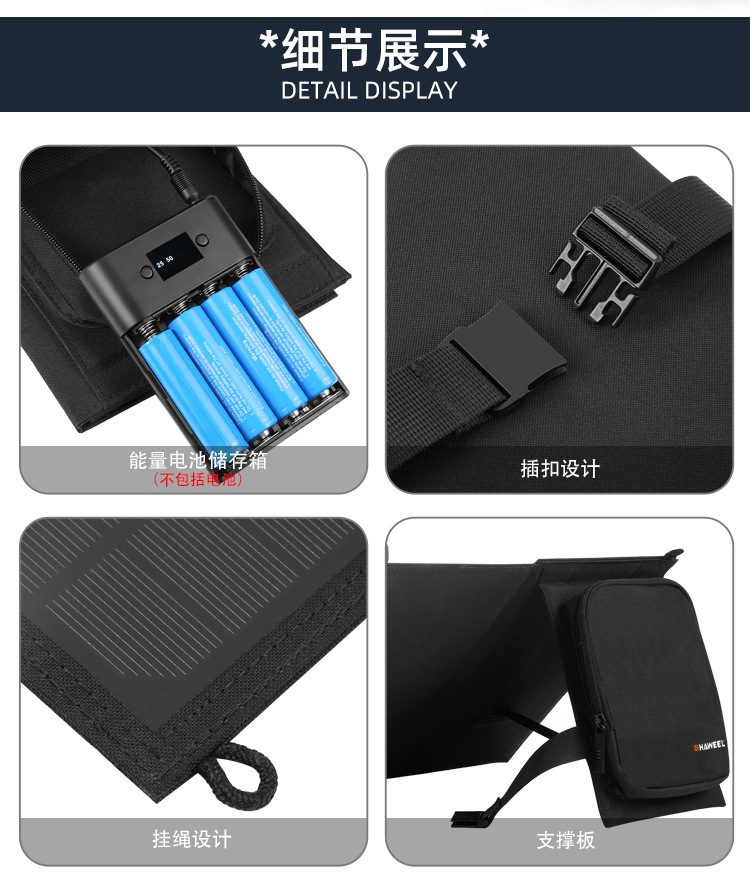

5. With 2 holes on the edge, can hang to use, very convenient.
6. Function support:
- Built-in MOS switch high power tube
- Intelligent load identification, light load automatically enters standby
- Built-in 14bit ADC and fuel gauge
- Intelligent identification LED power display
- Support line compensation
7. Protection function: input overvoltage, undervoltage protection; output overcurrent, overvoltage, short circuit protection; battery overcharge, overdischarge, overcurrent protection; IC overtemperature protection
Specifications
1. Shell material: ABS
2. USB1 output: 5V 3.1A, 9V 2A, 12V 1.5A
3. Type-C output: 5V 3.1A, 9V 2A, 12V 1.5A
4. USB2 output: 5V 3.5A
5. DC port specification: 4.0 x 1.7mm
6. DC input: 5.5V 5A
7. Type-C input: 5V 3.1A, 9V 2A, 12V 1.5A
9. Power: 18W(6W x 3)
10. Support fast charging protocol: QC 2.0 / QC 3.0 / FCP / AFC / SFCP / SCP / VOOC / MTK PE+1.1&2.0 / USB C DRP / BC 1.2 / PD

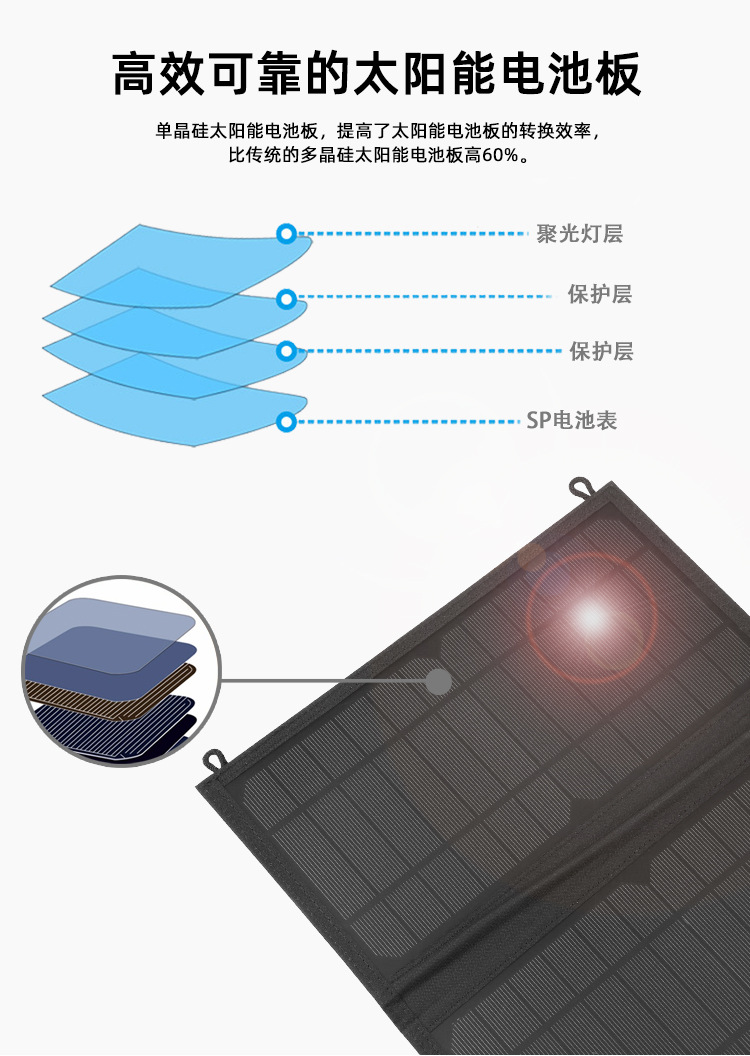

11. Solar panel type: monocrystalline silicon
12. No-load output voltage: 6.6V; rated output voltage: 6V
13. Dimensions: Folded 28.5 x 15.5 x 6cm; unfolded 48 x 28.5cm
