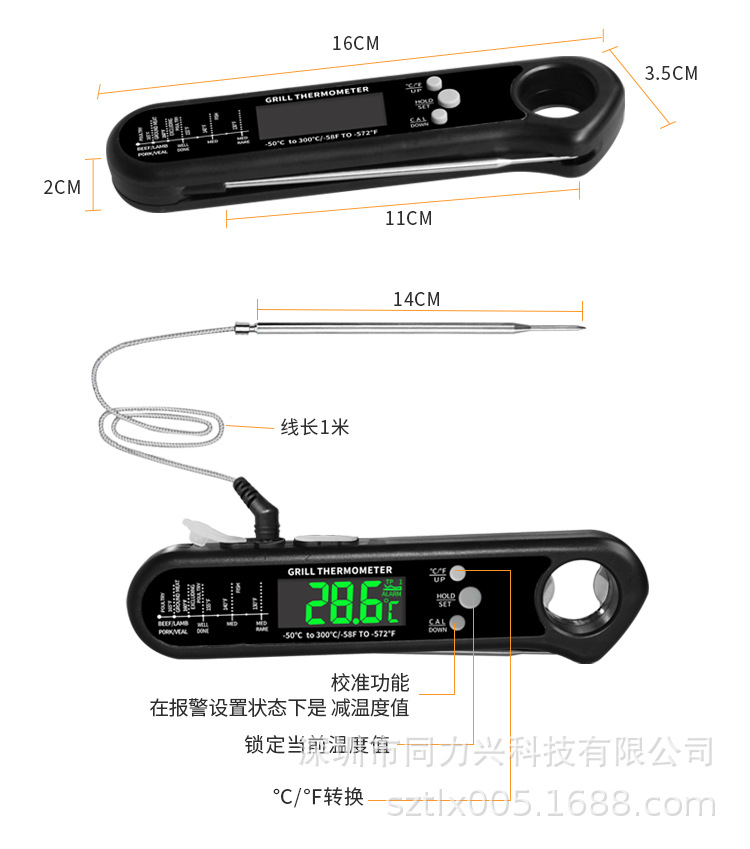

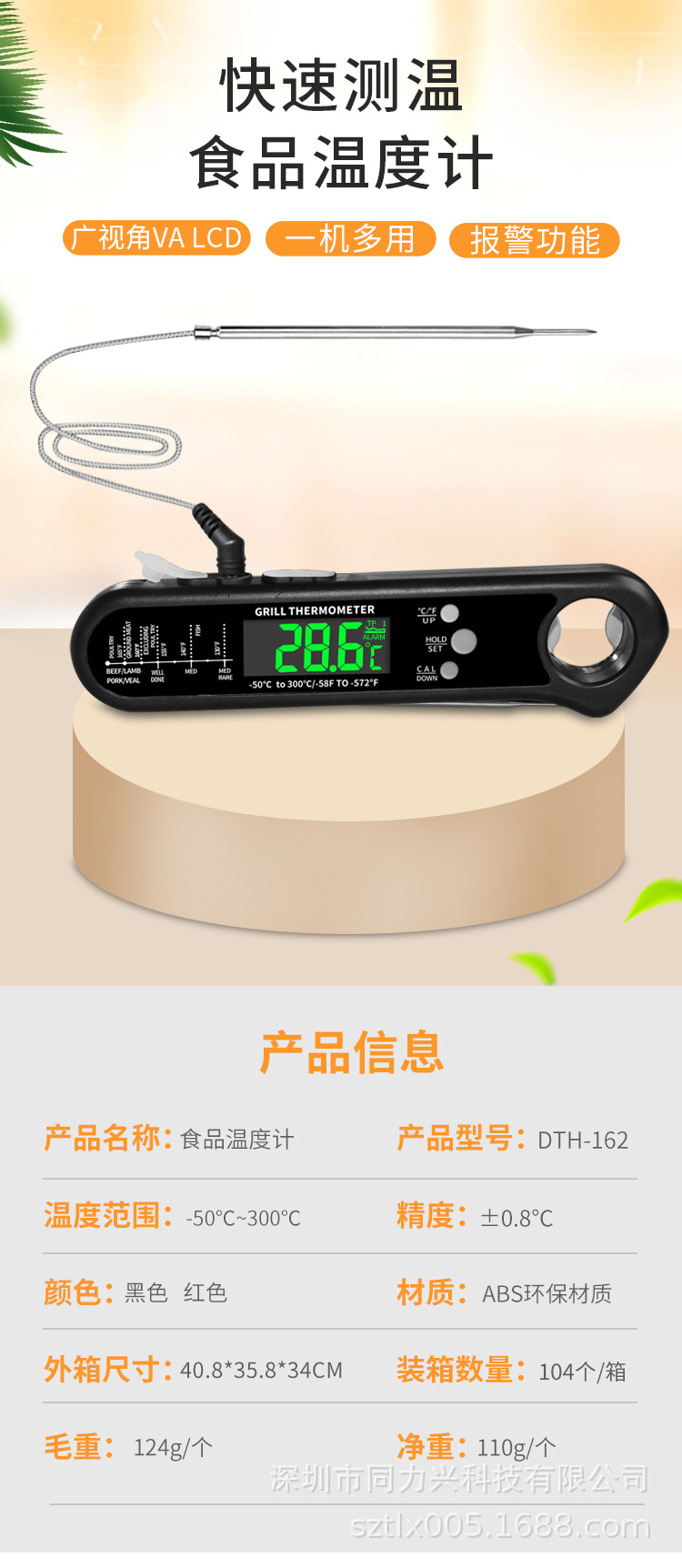

SPECIFICATION
● Range: -50 to 300°C(-58 to 572°F) ● Resolution: 0.1°C / 0.1°F
● Accuracy: ±1°C (0 to 150°C/32°F to 302°F) ±2~3°C in other ranges ● Preset alert
● TP1/TP2 temperature measurement. ● Reaction time: below 95°C/203°F,≤3S

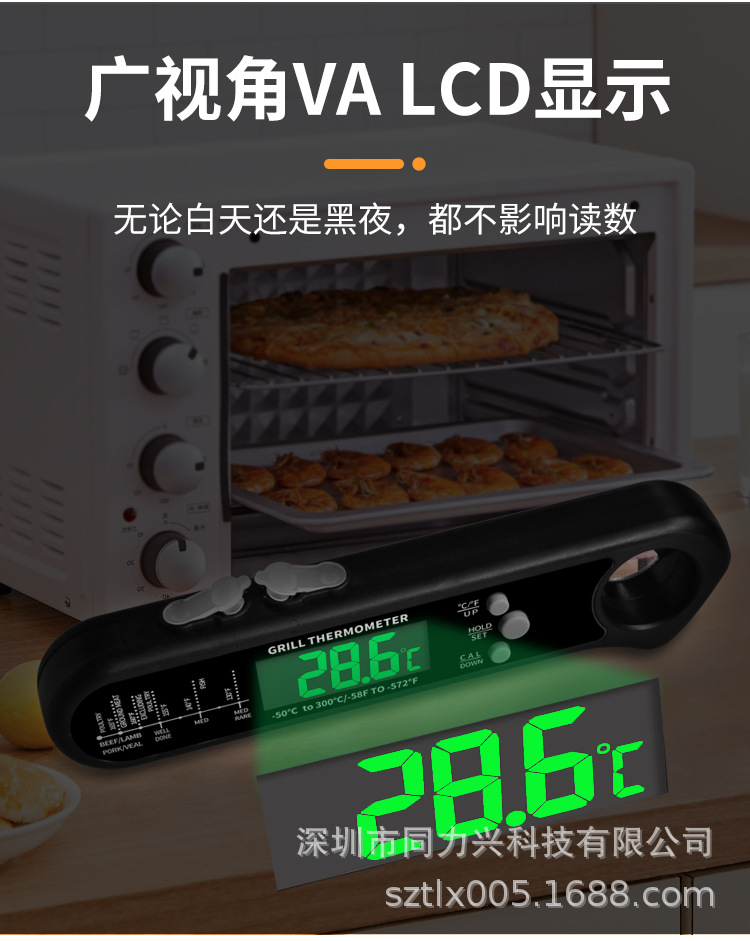

● Negative LCD display with back light. ● Power: 1 X CR2032 3.0V
OPERATION
● POWER ON
Insert external temperature probe or opened probe about 60 degrees angle from folded state to power on and the LCD will
display current measure temperature.
● MEASUREMENT
Insert the probe head into the object,with a depth of more than 10mm, then you can get the value when it is stable. Wipe the
probe with wet cloth after measurement. Press button to switch external temperature probe,

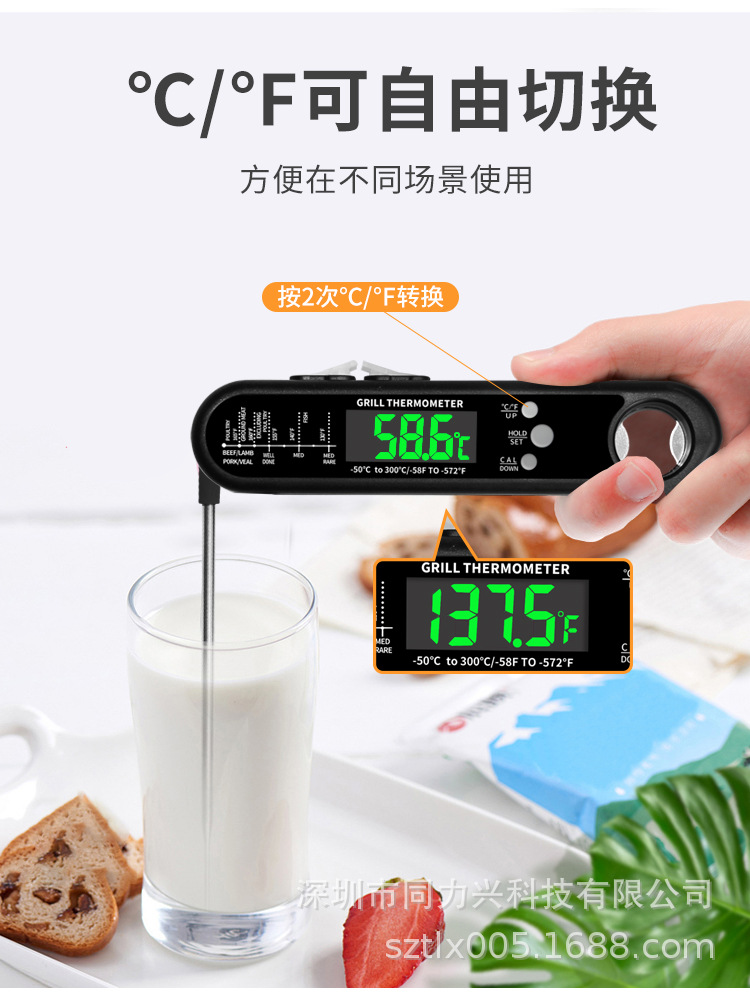

● °C/°F CONVERSION
When the thermometer is in power on state, holding button for 2 seconds to conversion of temperature value between
Celsius and Fahrenheit.

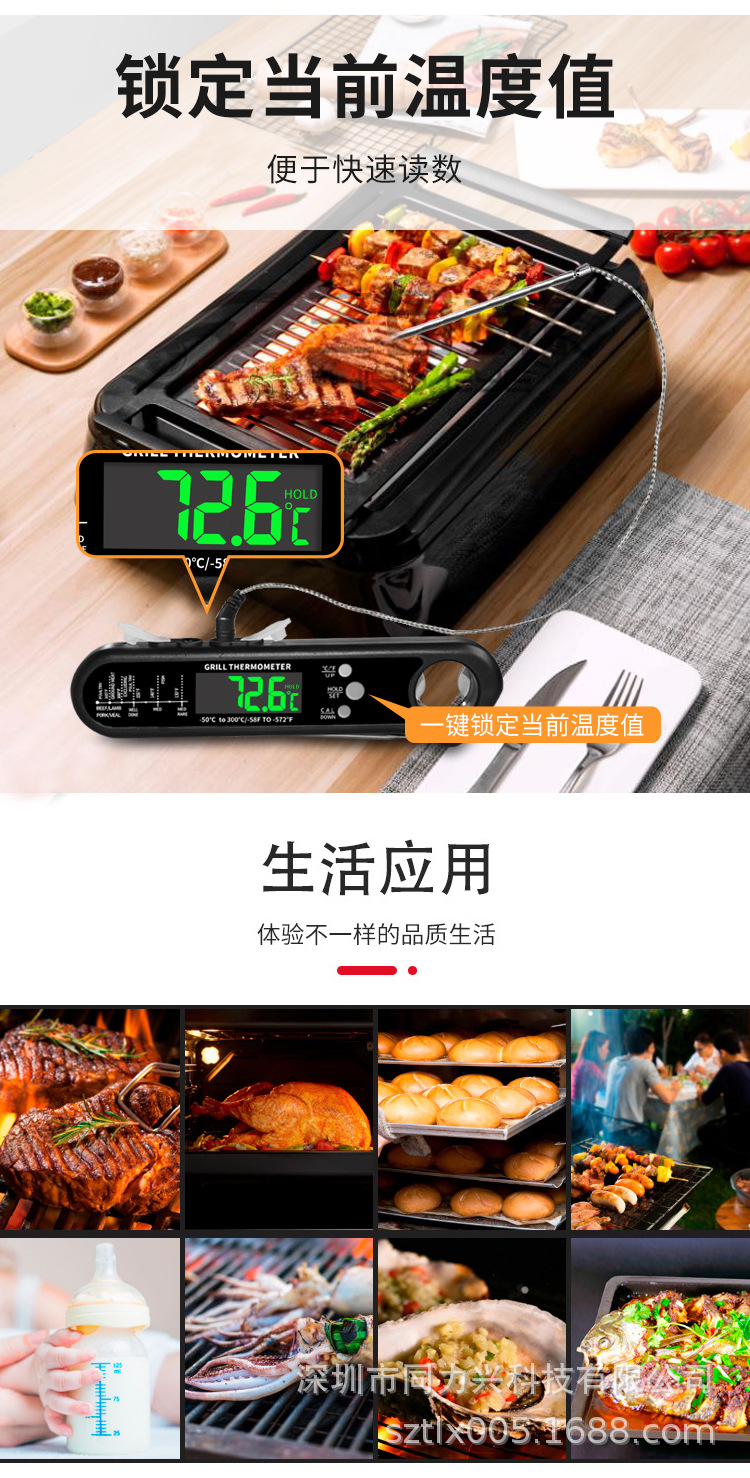

● HOLD
During the measurement, press button the “HOLD” icon will display on the LCD screen, the measurement value will be
locked. Press the button again to unlock the value.
● ALARM
Step1：Holding button for 2 seconds to set alert temperature value
Step2：Press button to increase the value, and holding it to increase it quickly, press button to decrease the
value,and holding it to decrease it quickly
Step3：Press button to confirm the setting value
Step4：Press button to turn on alarm and screen display“Alarm”; press the button again to turn off alarm

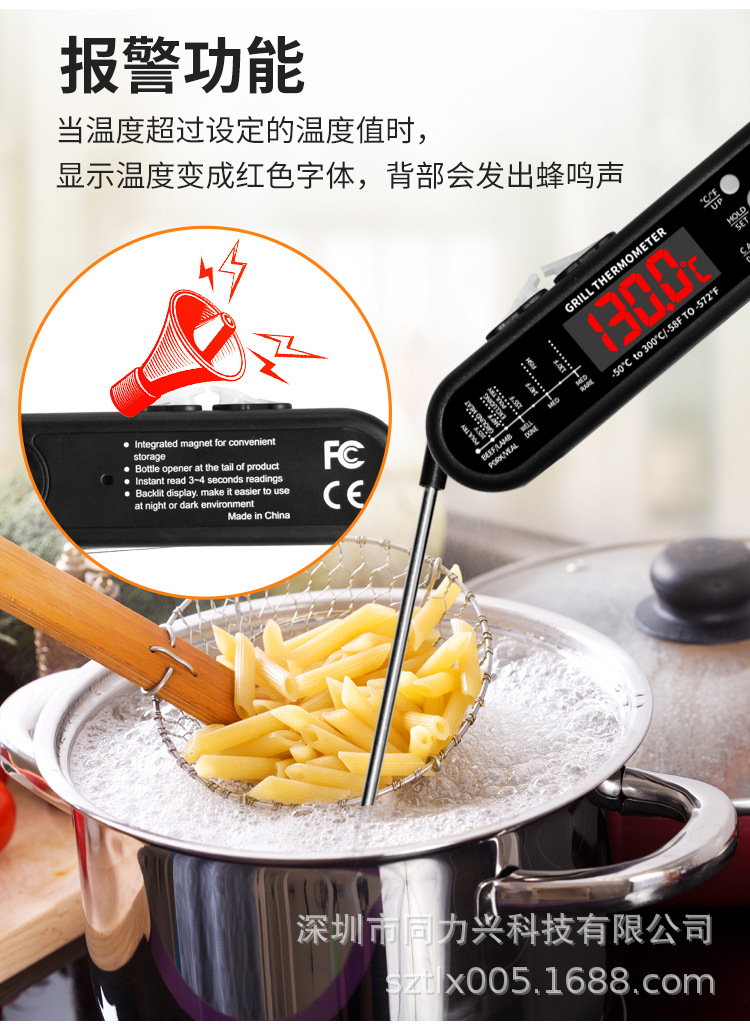

When the temperature exceeds the alarm setting value, the temperature value will flash red and the buzzer will ring. Press
any button, the buzzer will stop ringing, and press button to check other temperatures.
● POWER OFF
After the measurement, pull out the external temperature probe or turn the probe to about 30 degrees angle from the
horizontal state the thermometer will turn off. To save power, the thermometer will power off without any operation for about
30 minutes.
● CALIBRATION
When the thermometer is in power on state, Insert probe into a mixture of ice and water, holding button for 2 seconds,
the thermometer will be calibrated to 0°C.
