【商品名称】4D标灯
【尺寸】11cm

【适用车型】 高尔夫6 GOLF ，迈腾MAGOTAN ，CC ，途观Tiguan ，宝来BORA ，尚酷前标   Scirocco

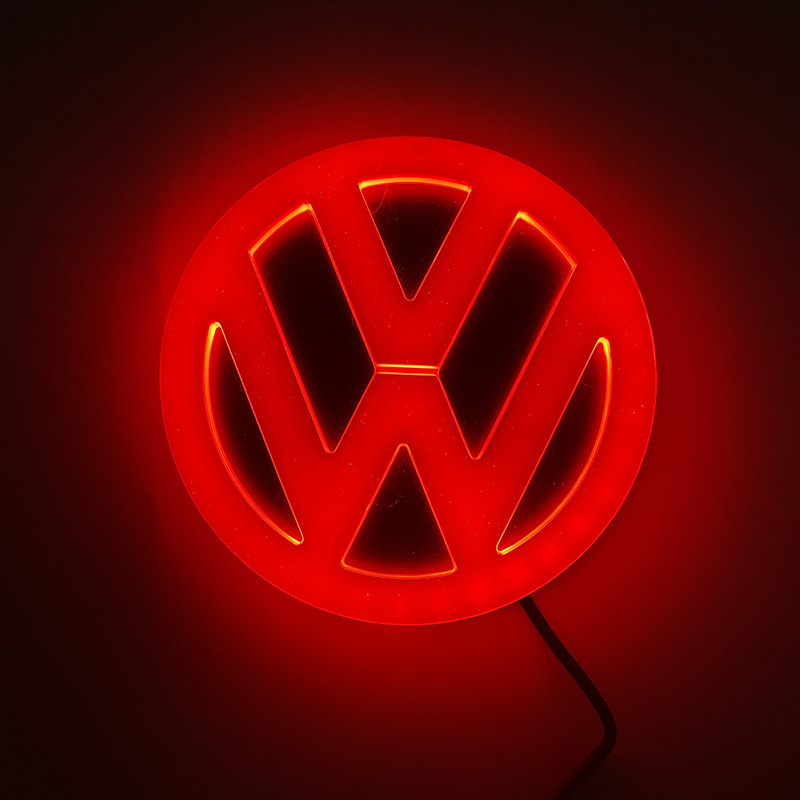

【灯光】红光，蓝光，白光 / 三选一
【电源】DC12V+/-10%
【配线长度】0.6米
【功率】2（W）
【电压】12（V）
【电流】0.3（A）
【单个毛/净重】 0.1kg+/-10%
【包装】彩盒装箱
【数量】 100盒/箱
【毛/净重】 13/10 KG
【外箱规格】 43X37X73CM
【外材料】 ABS
【灯芯 】3528  0603
【安装前准备的工具】

开始前请准备好以下工具： 1.平头螺丝刀 2.十字螺丝刀 3.绝缘胶布 4.毛巾 5.钳子

【安装说明】

1.先在尾箱车标旁边铺一条毛巾，用平头螺丝刀撬动车标，铺毛巾是为了防止刮花车身。

2.注意先把双面胶剥离车体，撬的时候用力适中，别太猛了，一点一点的，慢慢的就撬下来了，清理车标和车身上的双面胶。

3.用十字螺丝刀卸掉尾箱内部的隔板，注意有些地方有卡子，要小心操拆掉隔音板可以看到各种线路。

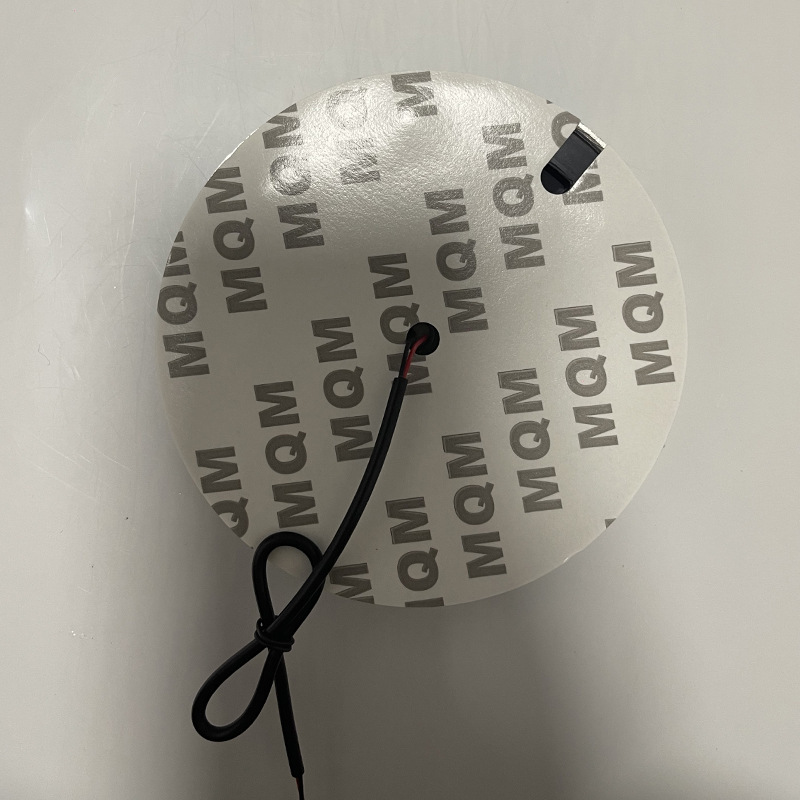

4.现在再来安装车标灯，车标灯电源线经过其中一个车标定位孔，穿到车箱里面 撕下车标灯背面的单面胶，一边拉线一边把车标灯粘到车身上，压紧。

5. 车标灯装好了，现在接电源。车标灯要接后牌照的照明灯电源，这样当开启小夜灯时车标灯也会同时打开，找到后牌照灯的电源接头。

6.先拔掉插头，正负极各剥一个口子，露出电线芯，按红对红，黑对黑接好线，别忘了用绝缘胶带缠上，最后还要重新将插头插回去！装回尾箱盖隔音板。

产品特点：

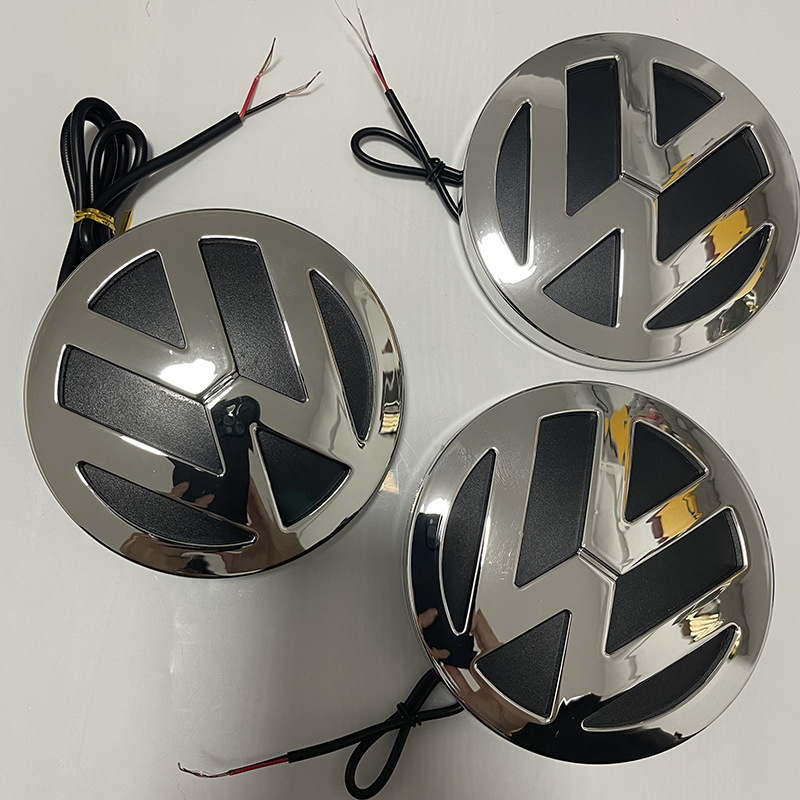

      1.本产品外观与原厂车标一致，安装在车尾箱车标位置，可直接替代原厂车标。其采用的特殊真空电镀技术，既保证与原厂车标的光泽度一致，又能保证高透光度和亮度均匀。

      2.采用高品质LED灯组，具有亮度高、使用寿命长等特点，特殊设计防水、防尘，保证长时间使用。

      3.本产品专为汽车改装爱好者而特别设计，白天车标灯不亮时，与原厂车标毫无差别，当夜间车牌照明灯打开后LED车标灯也随之点亮，使车标在黑夜变得光彩夺目，极富未来科技感，彰显您的爱车的尊贵血统。

      4.里面LED灯采用 特别防水防尘设计！ LED灯寿命长达10万小时。

      5.采用高品质汽车专用双面胶，粘力特强特持久！

Commodity name 4D beacon light
【Size】: 11cm
【Applicable models】:GOLF ，MAGOTAN ，CC ，Tiguan ，BORA ，  Scirocco

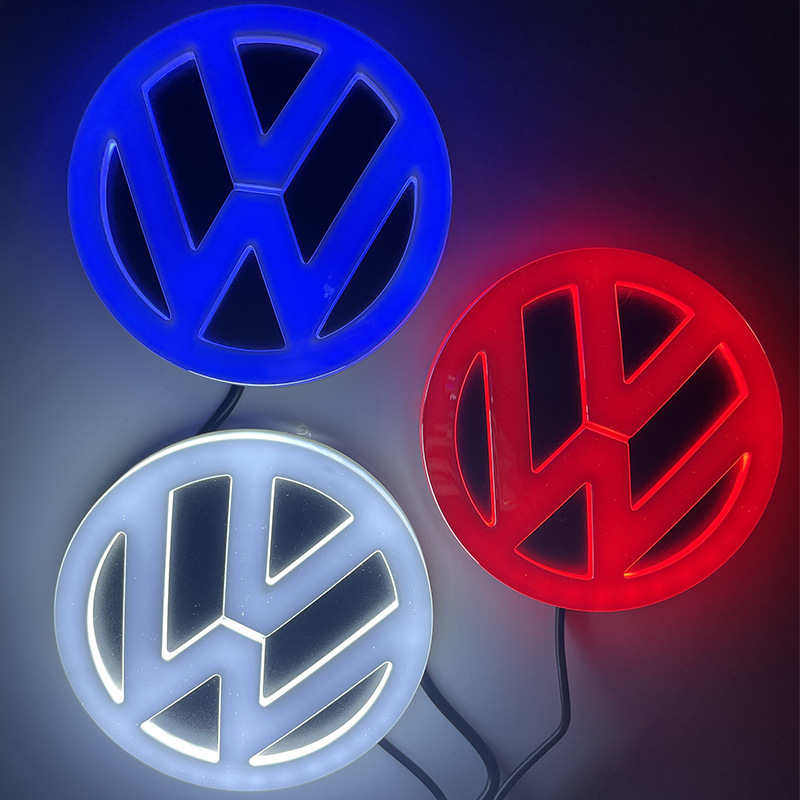

【Lighting】Red light, blue light, white light / choose one of three
【Power supply】DC12V+/-10%
Wiring length 0.25 meters
【Power】2(W)
【Voltage】12(V)
Current 0.3 (A) Tools prepared before installation

Before starting, please have the following tools ready: 1. Flat head screwdriver 2. Phillips screwdriver 3. Insulation tape 4. Towel 5. Pliers

【Installation Notes】

1. First, lay a towel next to the car logo in the trunk, and use a flat-head screwdriver to pry the car logo. The towel is to prevent scratching the body.

2. Pay attention to peel off the double-sided tape from the car body first, and use moderate force when prying, don't be too violent, little by little, slowly pry it off, and clean the double-sided tape on the car logo and the car body.

3. Use a Phillips screwdriver to remove the partition inside the tail box. Note that there are clips in some places. Be careful to remove the sound insulation board to see various lines.

4. Now install the car logo light. The power cord of the car logo light passes through one of the car logo positioning holes, and penetrates it into the car box. Tear off the single-sided adhesive on the back of the car logo light, and stick the car logo light to the body while pulling the wire. tight.

5. The car logo light is installed, now connect to the power supply. The car logo light should be connected to the power supply of the rear license plate light, so that when the night light is turned on, the car logo light will also be turned on at the same time, find the power connector of the rear license plate light.

6. Unplug the plug first, peel a hole in the positive and negative poles to expose the wire core, and connect the wires according to red to red, black to black, don't forget to wrap it with insulating tape, and finally plug the plug back in! Reinstall the boot lid baffle.

Features:

1. The appearance of this product is the same as that of the original car logo. It is installed in the position of the car logo on the trunk and can directly replace the original car logo. The special vacuum electroplating technology it adopts can not only ensure the same gloss as the original car logo, but also ensure high light transmittance and uniform brightness.

2. Adopt high-quality LED light group, which has the characteristics of high brightness and long service life, and is specially designed to be waterproof and dustproof to ensure long-term use.

3. This product is specially designed for car modification enthusiasts. When the car logo light is off during the day, it is no different from the original car logo. When the license plate light is turned on at night, the LED car logo light will also light up, making the car The logo becomes dazzling in the dark, with a sense of futuristic technology, showing the noble lineage of your car.

4. The LED light inside adopts a special waterproof and dustproof design! The life of the LED lamp is up to 100,000 hours.

5. Using high-quality car-specific double-sided tape, the adhesive force is extremely strong and durable!
