英文标题：

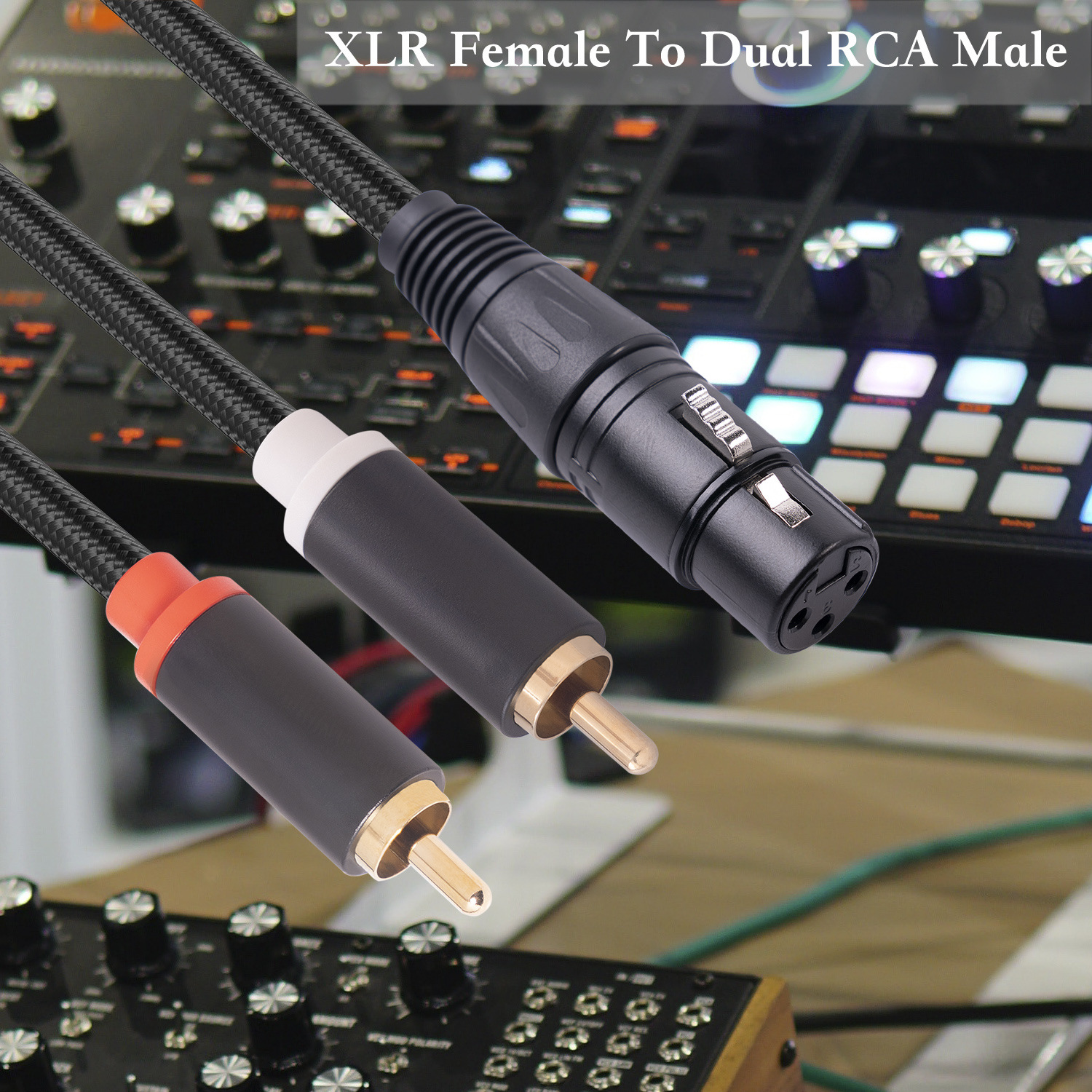

XLR to RCA Y-Cable, XLR Female to Dual RCA Adapter Y-Splitter Duplicator Lead Unbalanced  Audio Interconnect Cable

英文描述：

XLR Female to Dual RCA/Phono Male Plug Y Splitter Cable, this cable allows you to output from the XLR male output jack of an audio player, mixer, and connect to the RCA input on a separate device, it will be mono The XLR signal is split into two separate mono RCA lines. (Note: not the left and right channels)

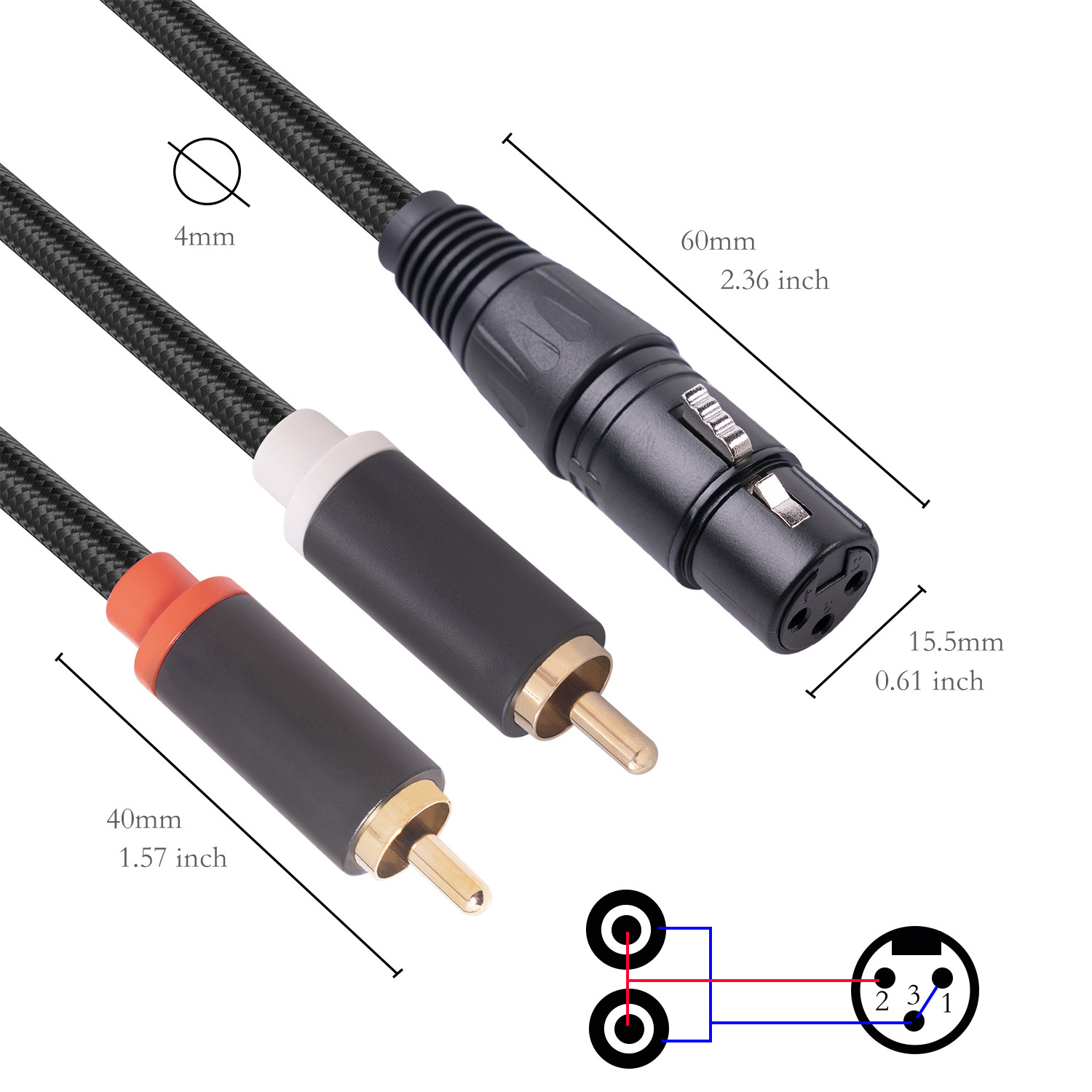

Unbalanced connections - XLR PIN 2 connects to the center RCA pin, XLR PIN 1 and 3 connect to the ring (ground) of the RCA plug. This adapter is only available in unbalanced formats, a balanced RCA to XLR adapter cannot be made. This is an adapter that allows you to use XLR audio signals with RCA jacked devices

High-quality gold-plated plugs, spring-loaded strain relief prevents the cable from being pulled out, corrosion-resistant, 24 AWG 4N oxygen-free copper wire combined with double shielding to provide the best audio quality, excellent signal quality.

Fiber protective mesh jacket, top quality, made of environmentally friendly materials, polyethylene insulation for improved high frequency response.

The XLR connector is a high quality metal shielded type that locks into the player, mixer; it splits near the end of the RCA, about 12"/30CM from the split point.

产品颜色：黑色

接口：三芯卡农母*1

      RCA 公*2

连接方式：并联接法，  RCA接口信号端并联连接到XLR端的2号，RCA屏蔽线连接到XLR端的1号和3号。

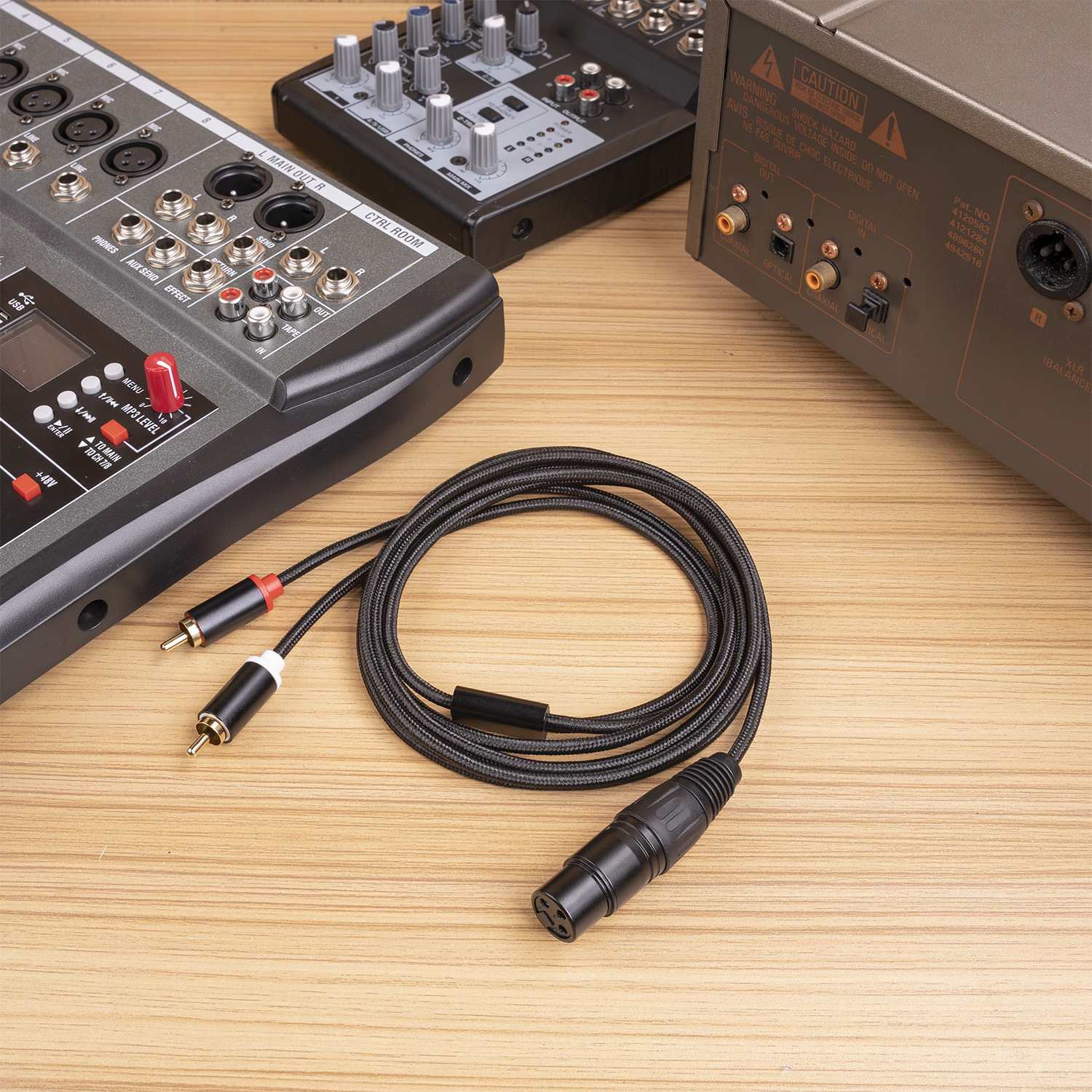

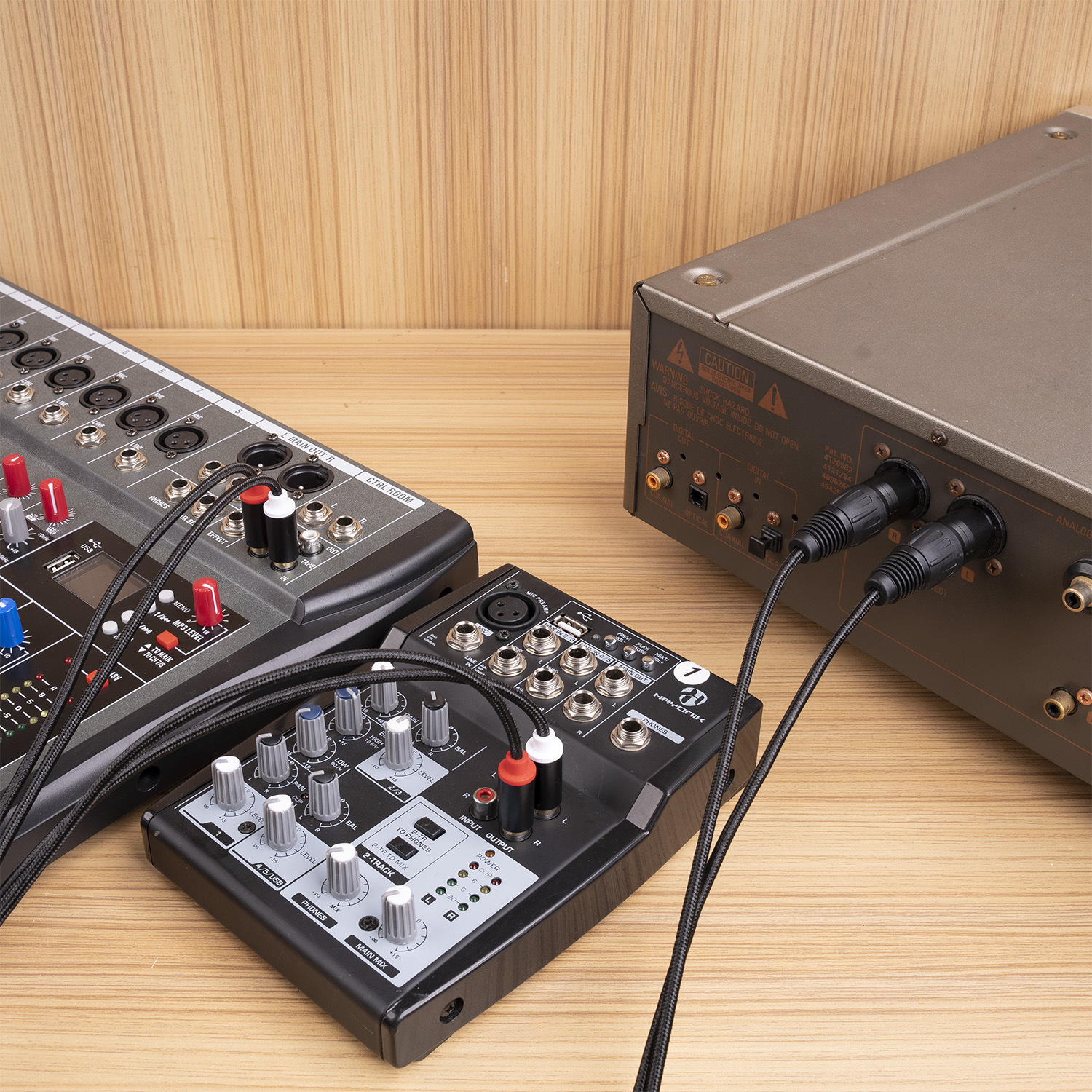

用途用法：可以将音频播放器的XLR输出接口转换为2个RCA公接口，同时输出2路单声道音频信号，可以连接功放输入接口或调音台输入接口。

产品特点：

传输性能：OFC 无氧铜导体提供近于零损失的音质传输；铝箔和铜丝双层屏蔽，有效减少干扰并隔离多余的噪音；通过聚乙烯绝缘提高频率，提供高清音质。

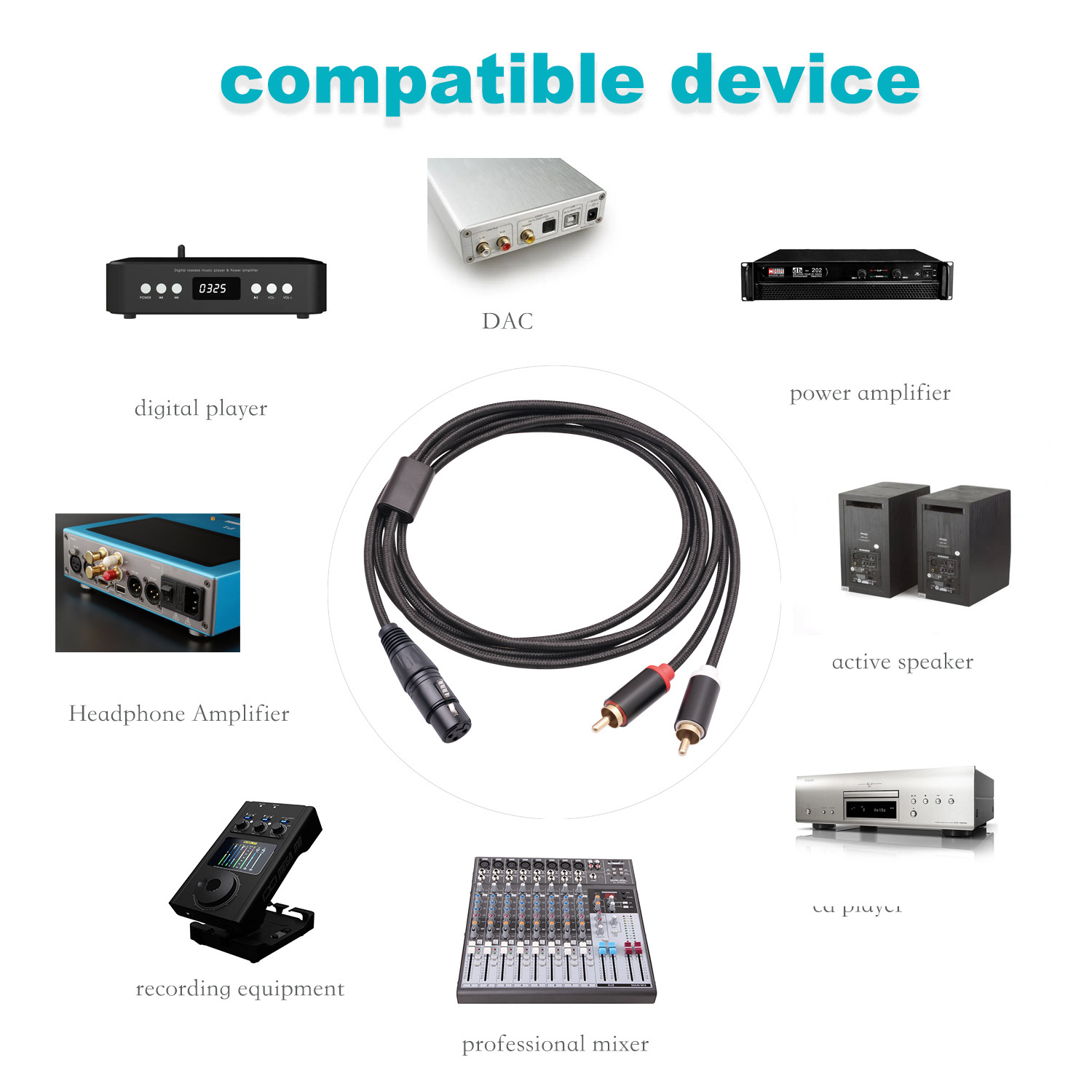

广泛兼容性： -这款 3 芯 XLR 卡农线适用于调音台、混音器、功率放大器、主动式扬声器、麦克风等设备。

此款转接线是将XLR端的音频输出转换为双RCA输出，不能将双RCA音频信号合并为XLR音频信号，请注意使用方向。

出色的设计：采用金属外壳，镀金RCA插头；可拆装X LR卡农头外径4.0mm的软质PVC护套，外层加编织网保护。

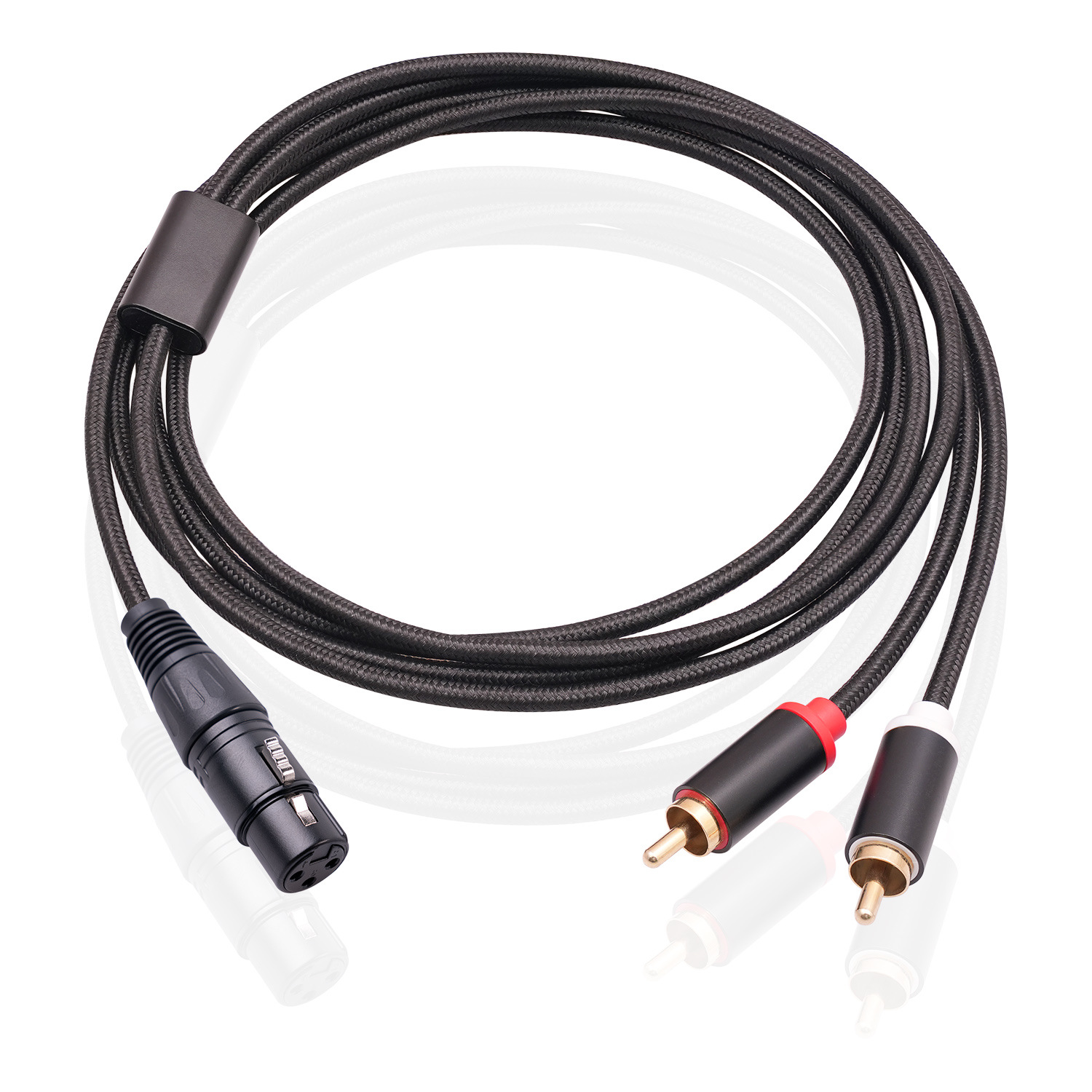

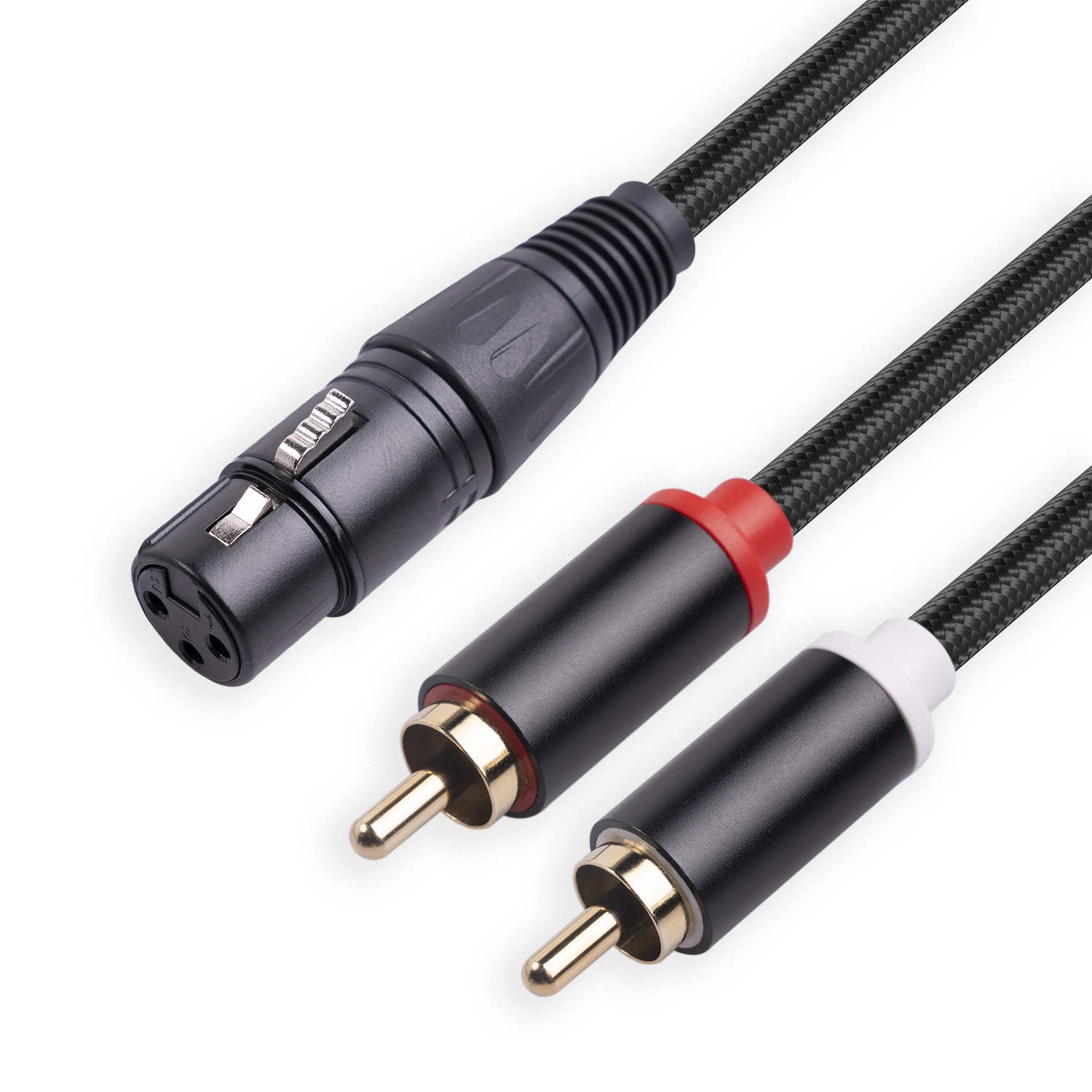

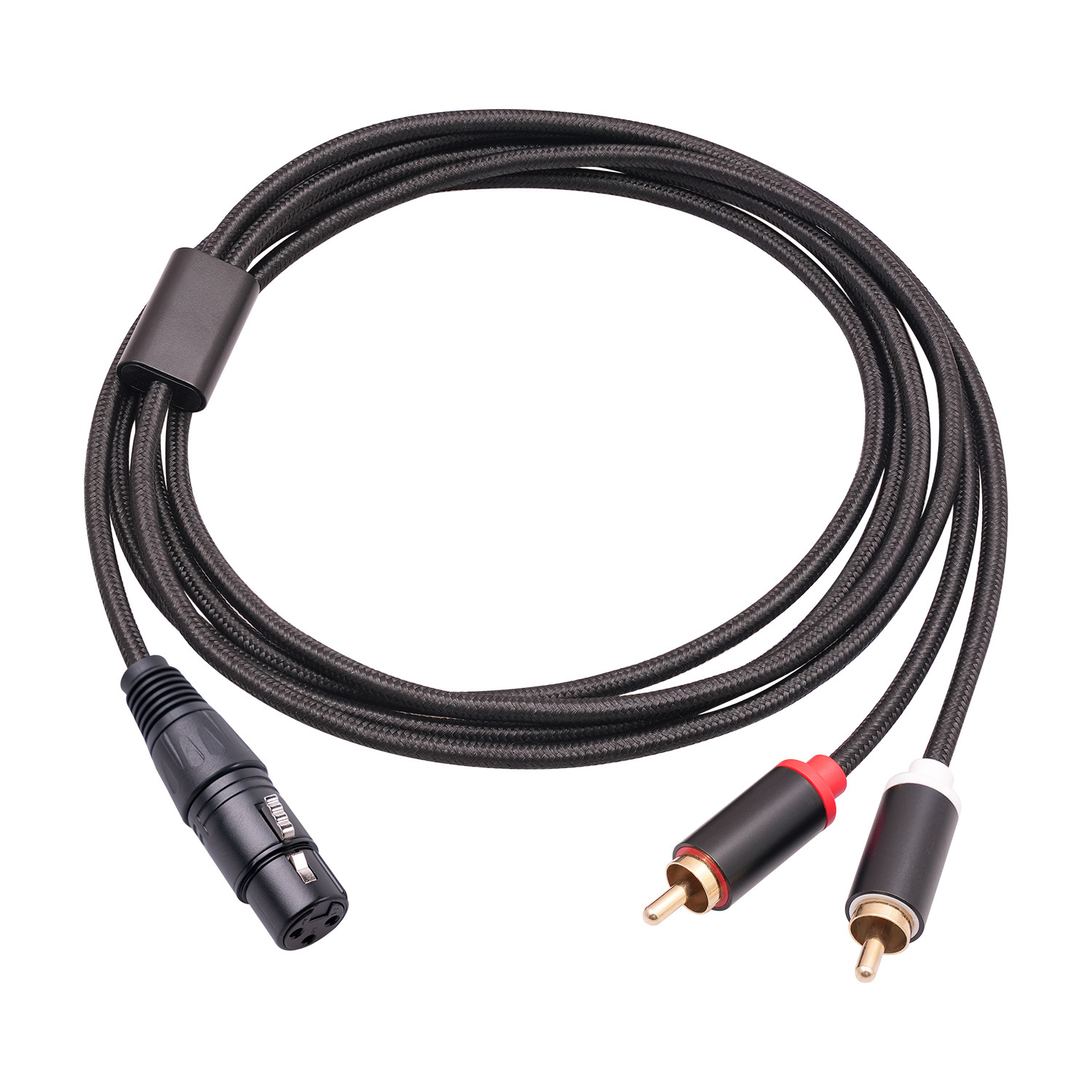

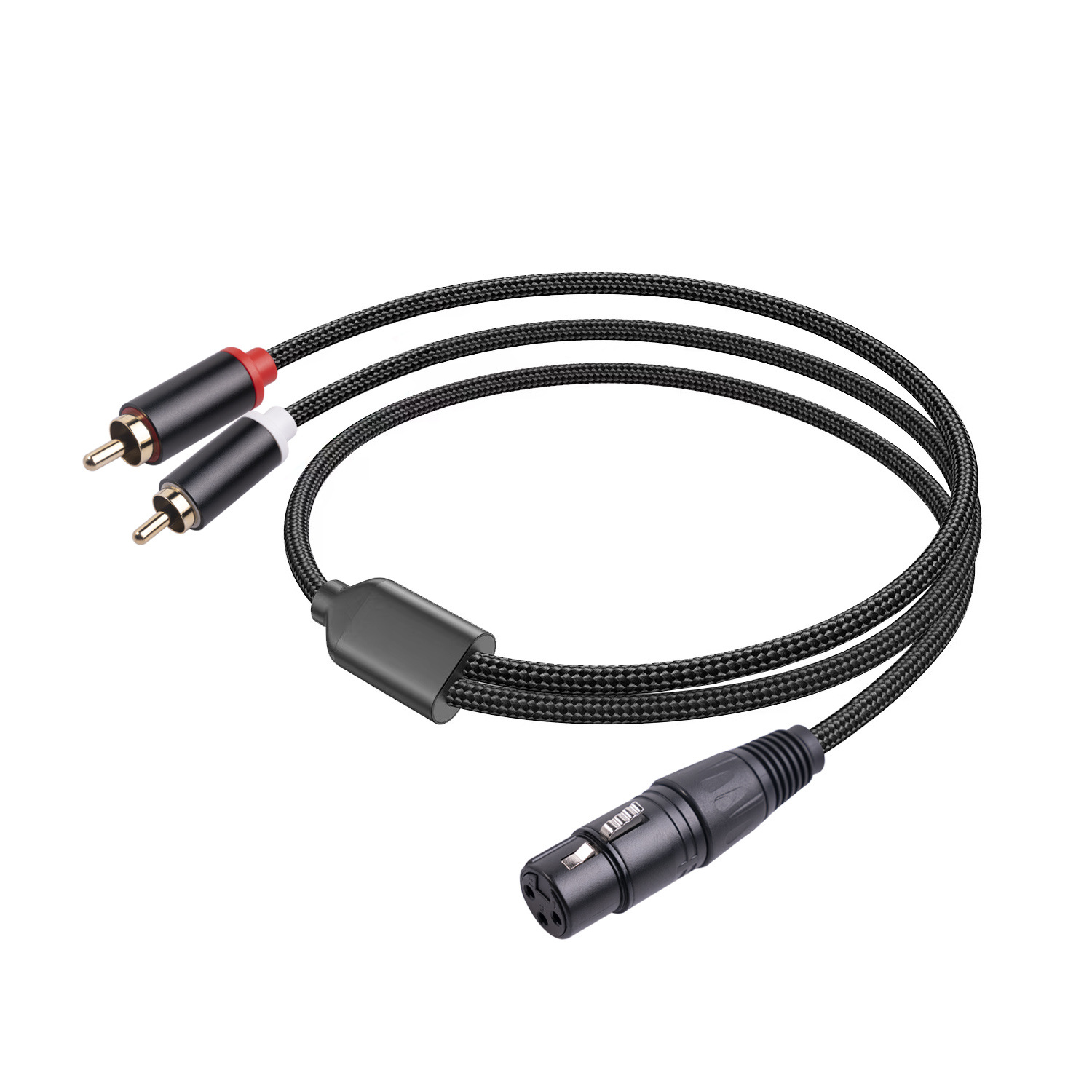

产品展示：
