Features:

*MEGA-2560 R31 Prototype Screw Terminal Block Shield Board Kit for Arduino

*Includes prototype PCB, terminal blocks, female header sockets

*The terminal module adopts high quality material, fine workmanship treatment, durable to use

*Made up of screw terminal block, PCB carrier and FR-4 glass fiber PCB

*Not assembled yet, you can use variety ways to mount, flexible to use

*Durable and practical to use

Specifications:

*Color: As Pictures Show

*Terminal Block:

Pitch: 3.5mm mini terminal blocks, total 84 pins (3pole x24pcs, 2pole x6pcs)

Wire range: 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass

*PCB:

Pads grid /pitch: 2.54mm, hole diameter: 0.8mm (Approx.)

Terminal block pitch: 3.5mm, hole diameter: 1.2mm (Approx.)

Dimension: 12.024*7.72cm (Approx.)

*Female Header Socket:

Pitch: 2.54mm, pin length: 15mm (Approx.)

Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs

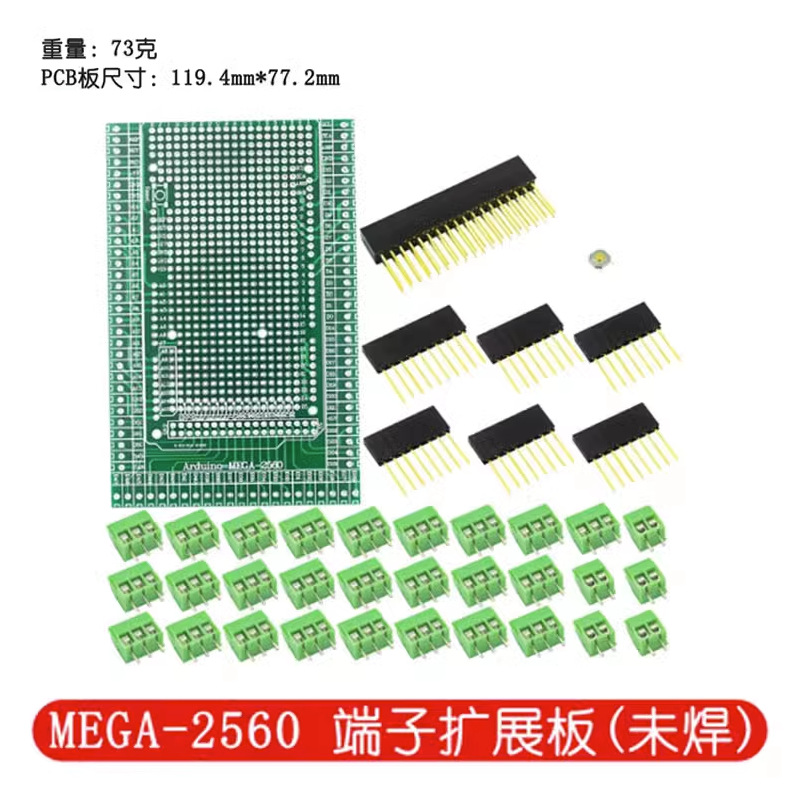

Package Contents:

1*Terminal Block Shield Board Kit

Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
