产品参数：

品牌：基嘉GIGERTOP

生产商：广州不夜天舞台灯光

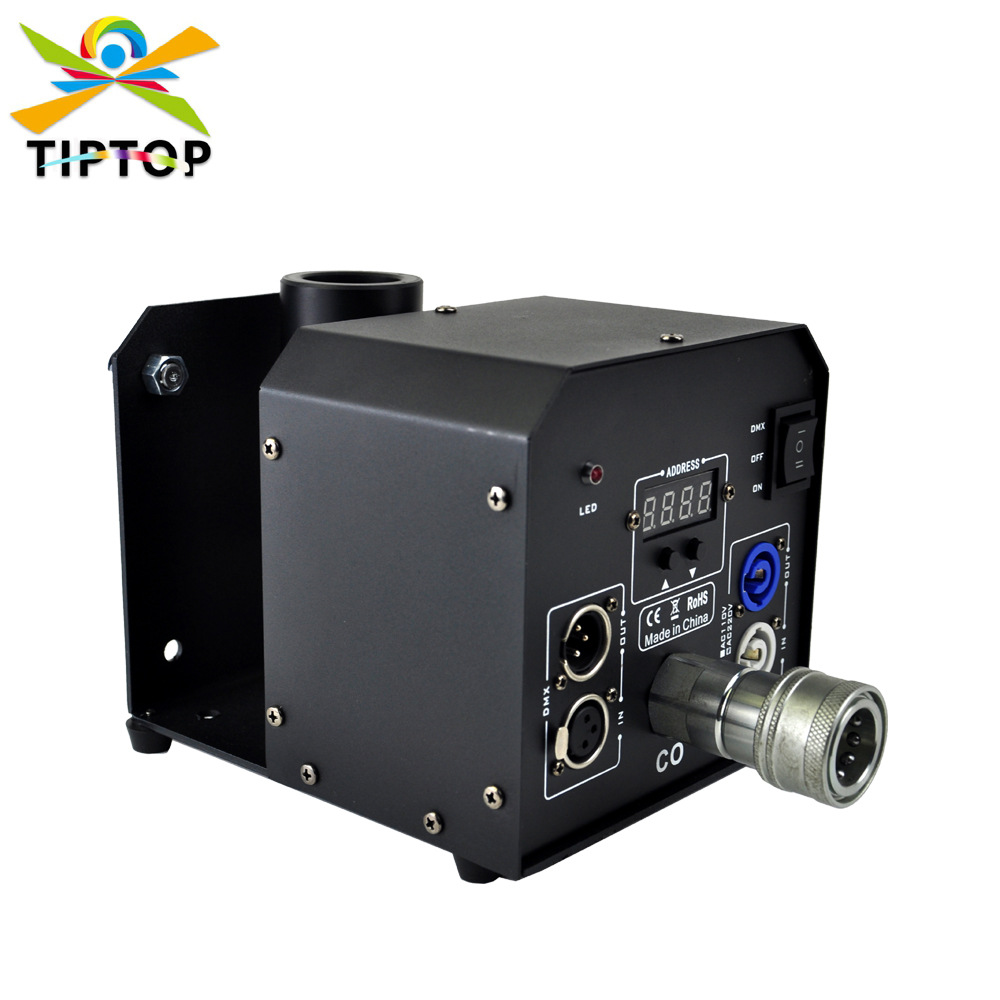

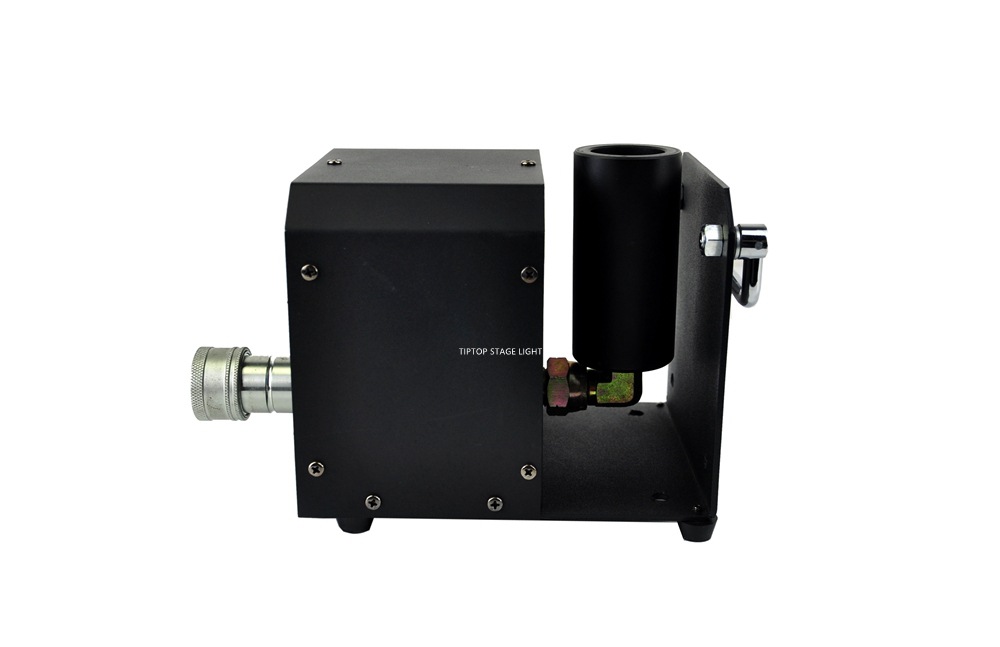

产品名称：新款多角度单管气柱机（强化型）

型号：TP-T24

电压: 110V/220V

频率:50/60Hz

功率: 200W

模式：DMX512+手动+遥控

通道：1

防水等级：IP20

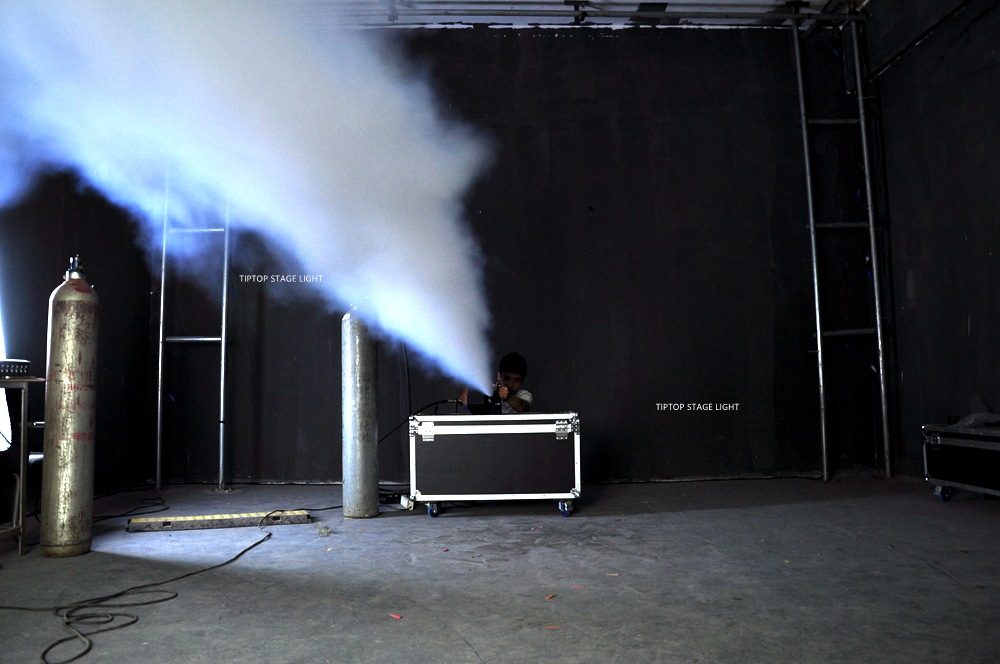

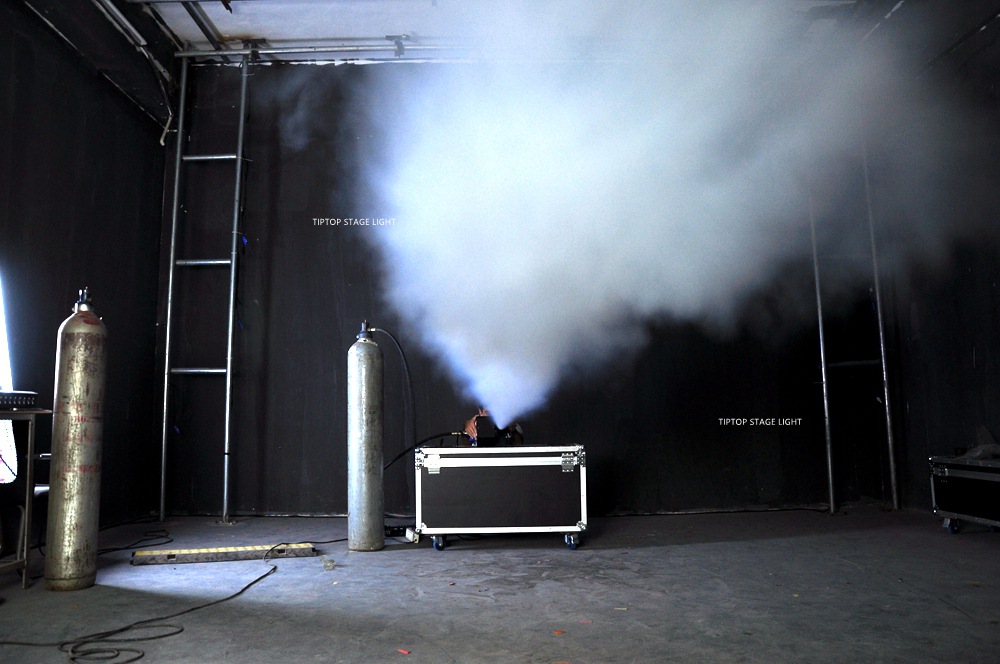

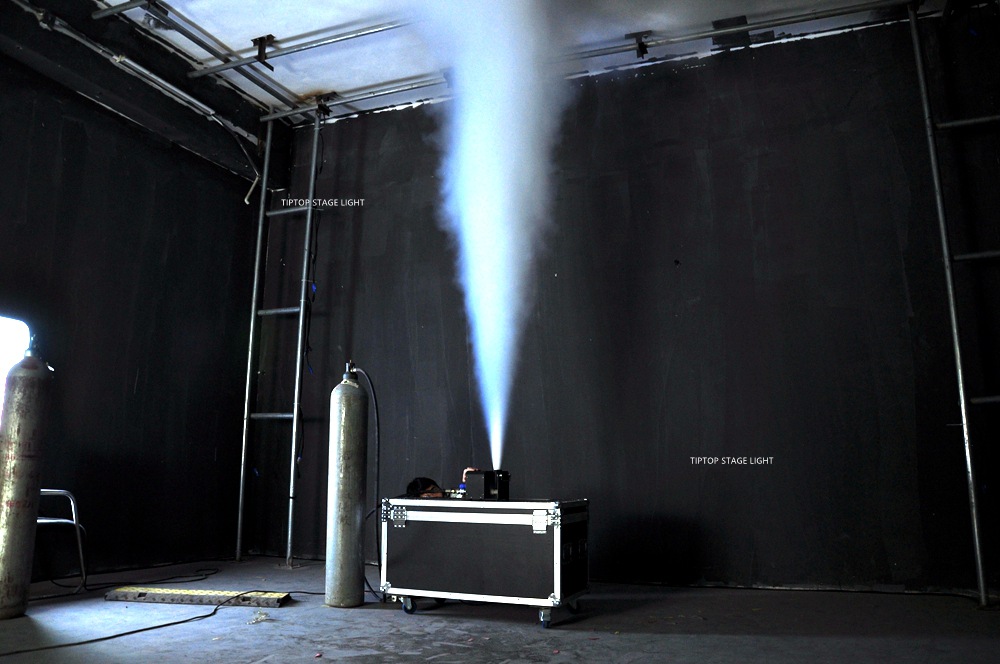

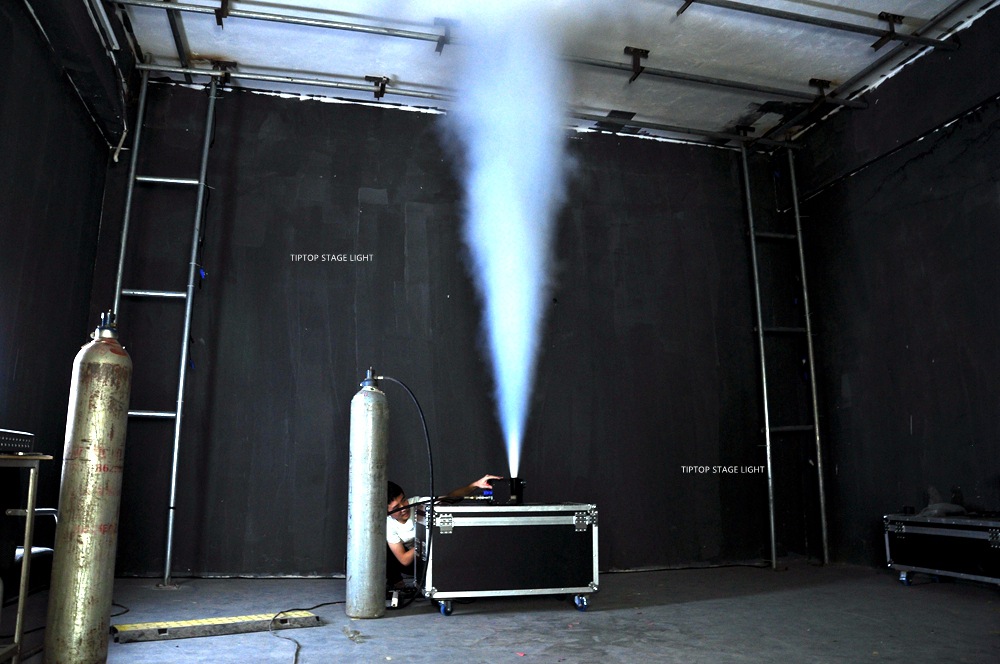

喷射高度：7-8米

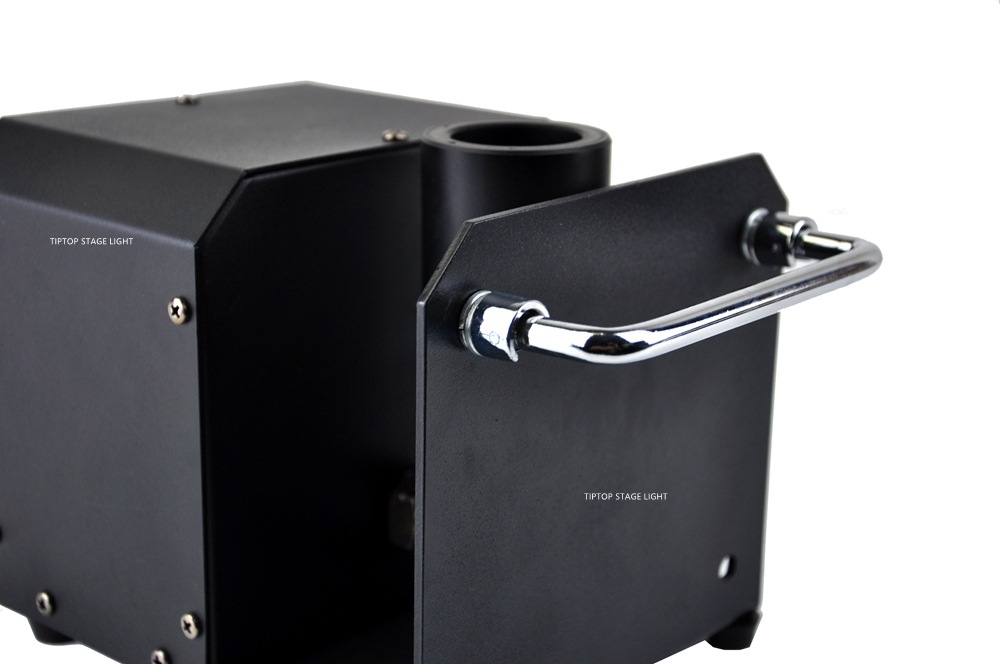

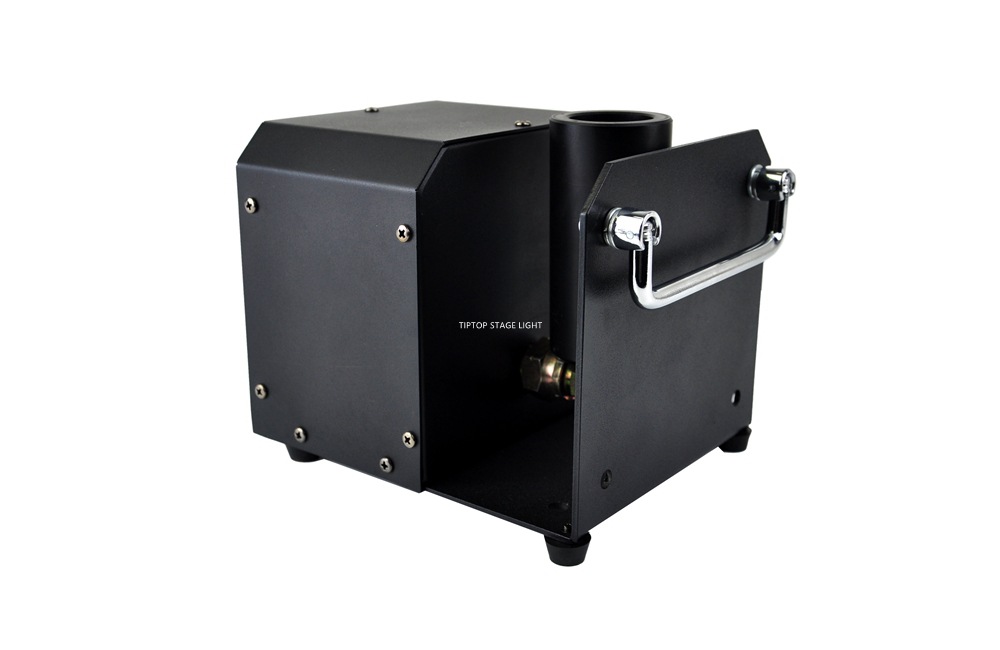

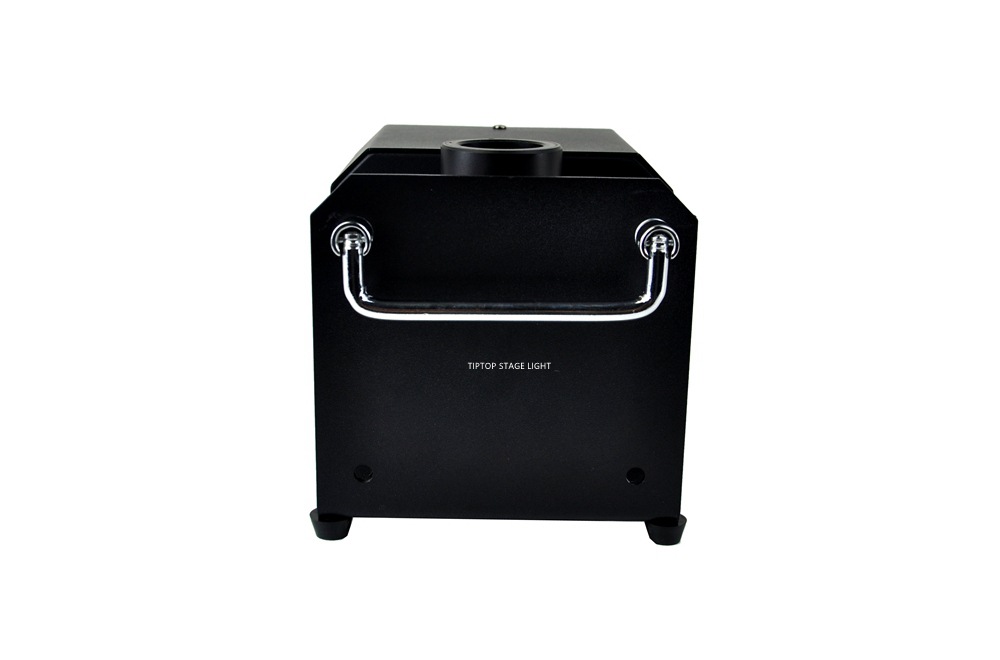

特色：加厚五金机箱，比普通气柱机的机箱厚30%，放在地面上更具的稳固，不容易倾倒。

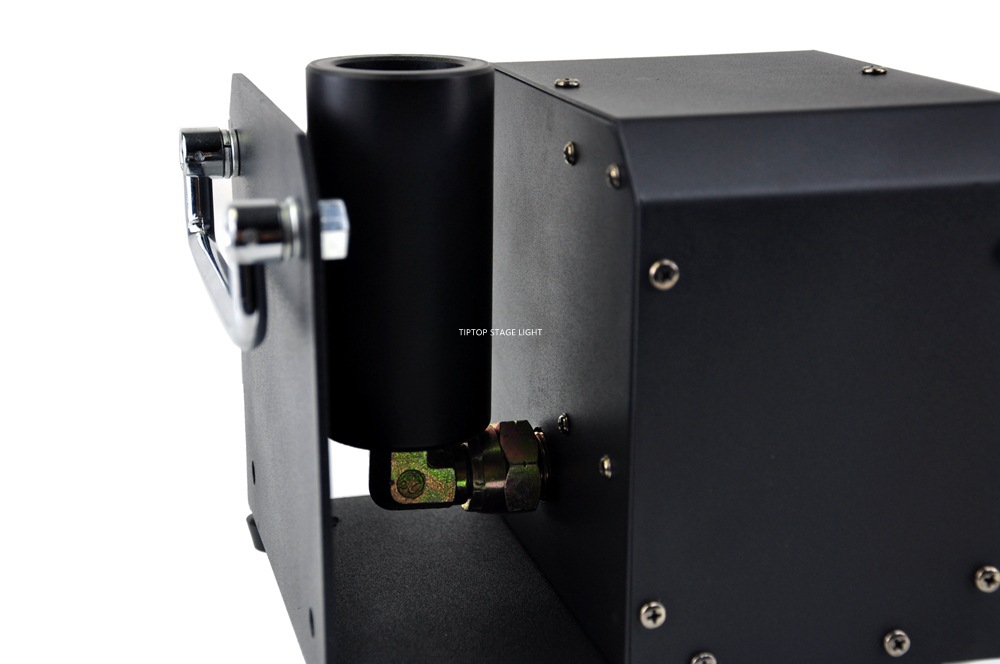

气阀品牌：高品质鸿森黑色高压气阀，内置活塞，不容易卡死或者漏气，型号HVH10-NPT1/2。

气管：6米高压气管，内置多层钢丝，不易鼓包和漏气  400兆帕 （气管可以做其他尺寸，费用需额外支付）

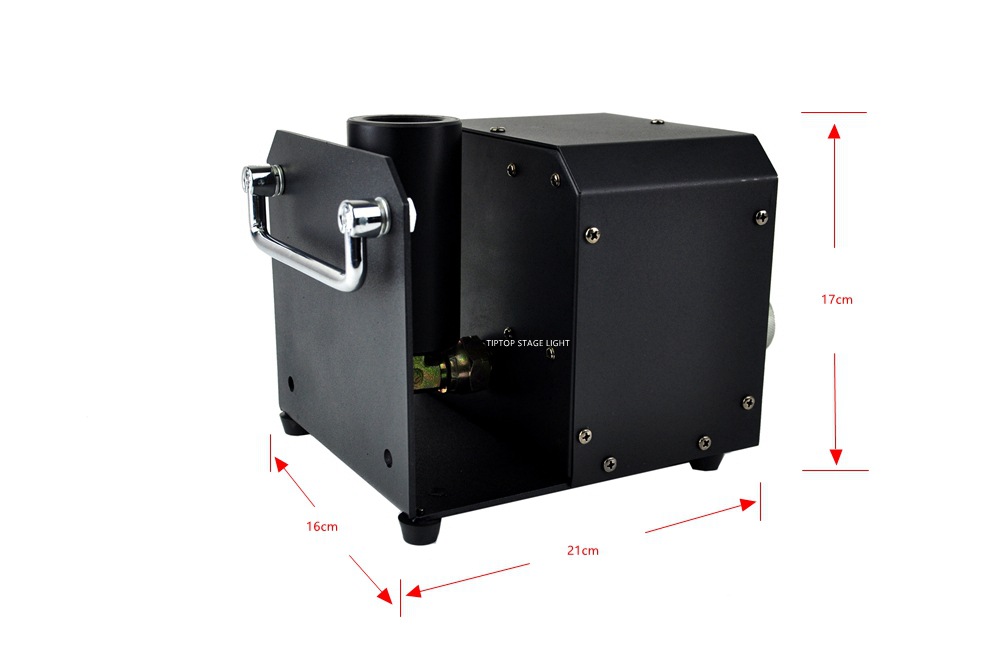

1装1纸箱=包装尺寸：31*28*26cm(1台/件）

1台纸箱=净重：7kg

1装2纸箱=包装尺寸：59*32*28cm(1台/件）

1装2纸箱=净重：14kg

包装情况（每件包含）

1 x 气柱机

1 x 气管

1 x 电源线

1 x 信号线

1 x 遥控器 （标准不放电池，需要电池请联系我司销售）

1 x 说明书

*建议喷射时间控制在1-3秒内，长时间喷射容易导致液态二氧化碳冷冻堵塞气阀阀组，若持续喷射，阀组非常容易损坏。错误操作导致的阀组损伤不在质保范围内，请注意。

*气柱机内置的高压气阀可以承受气瓶的气压，无需再次连接减压阀。

*气管铜接头可以直接连接国内的气瓶嘴，若出口则需额外添加转换铜接头，请注意。如产品出口，请与我司联系备注客户国家。

*气柱机的气阀和电源是单电压，110V或者220V，采购前切记注意当地电压。

*标准气管的长度是6米，我们也提供其他尺寸气管供客户选择，价格不同。

*新款气柱机增加遥控功能，如果需要遥控控制，机器不可以链接信号线和控台，否则机器会以DMX控制优先。

Product name: multi angle single tube LCD Display CO2 jet machine

Brand: TIPTOP
Mode: TP-T24
Gas input: liquid CO2 gas

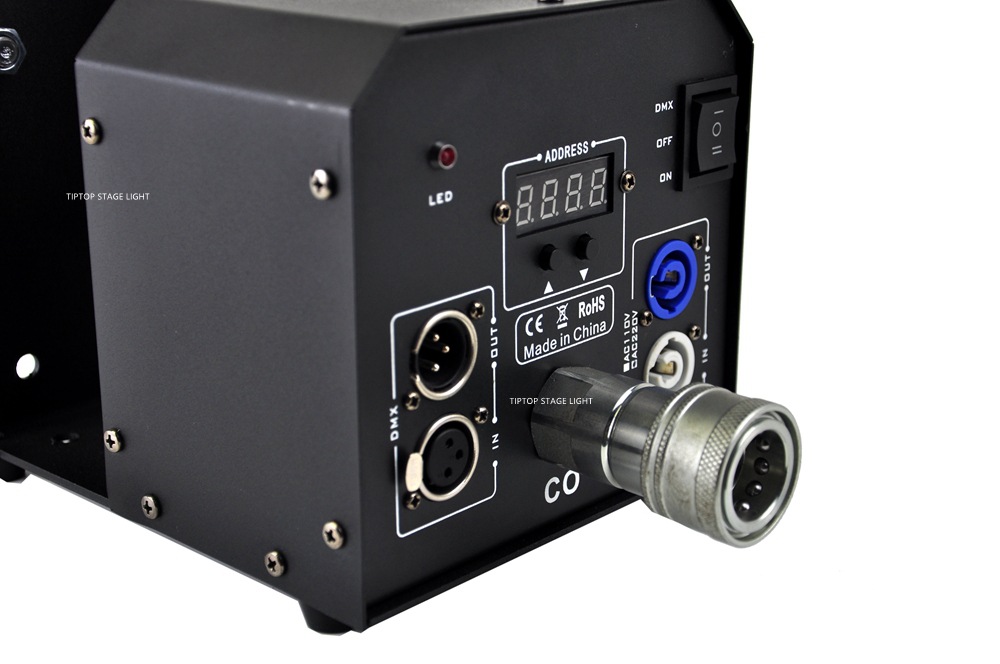

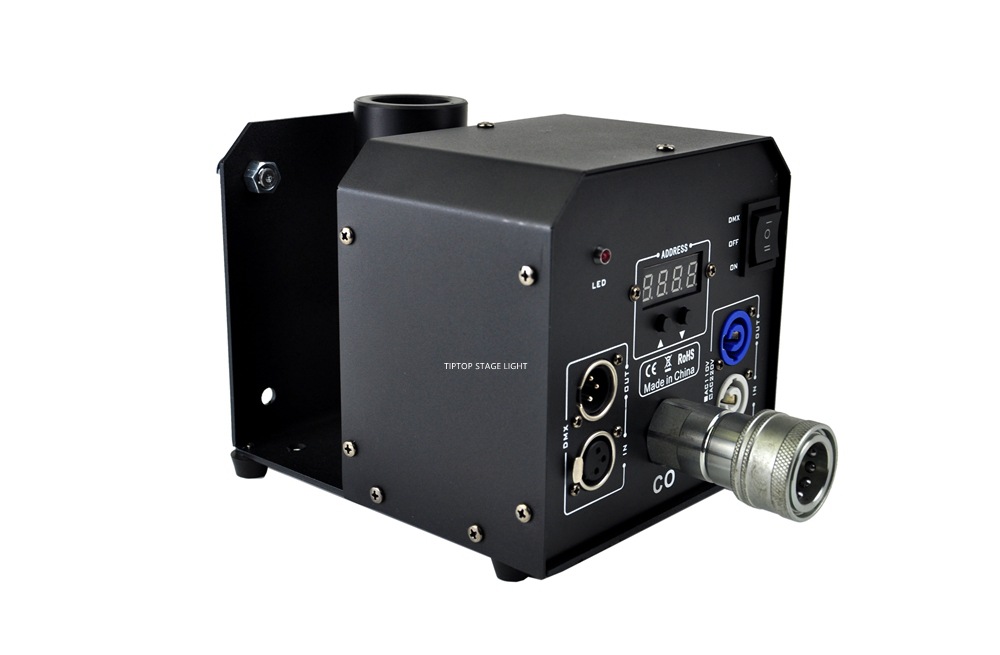

Control way: DMX512+Manual (Power on/off)+Remote control
DMX channels: 1 channel
Linkable: yes, via DMX
Voltage: AC100V / 220V
Power: 200W

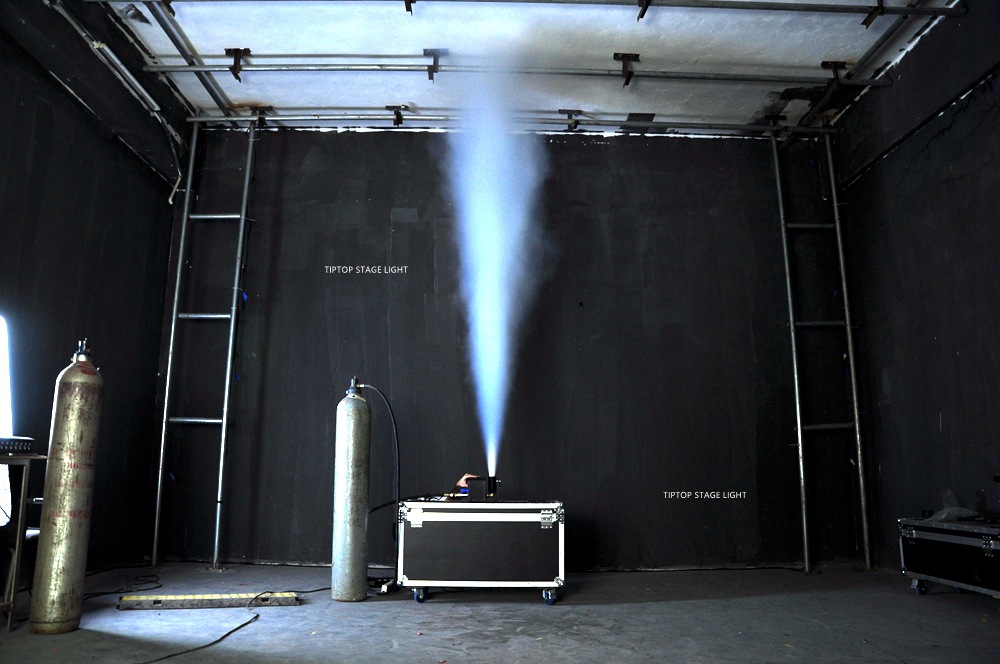

Gas jet height: 6-8 meter
Nozzle materials: ABS

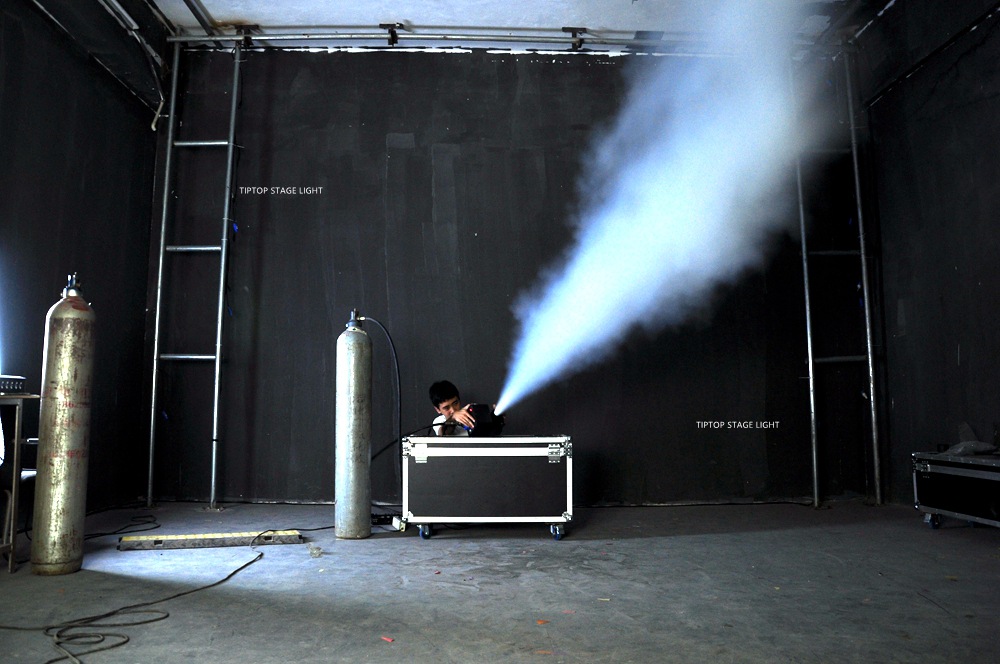

Co2 gas shot angle: adjustable 0-100 degree
gas valve: hongsen brand and model number is HVH10-NPT1/2.

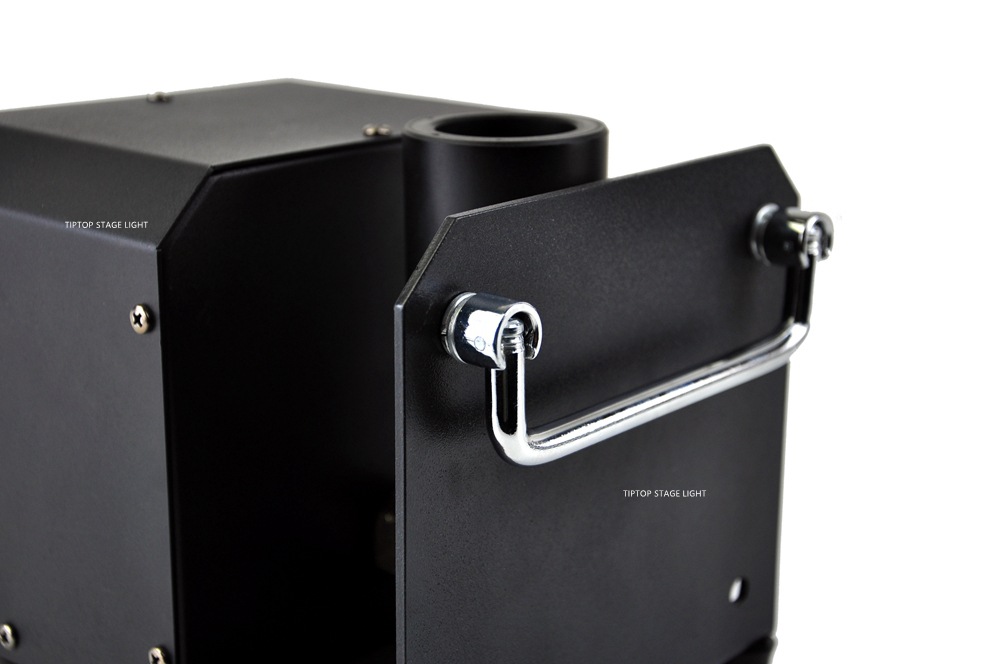

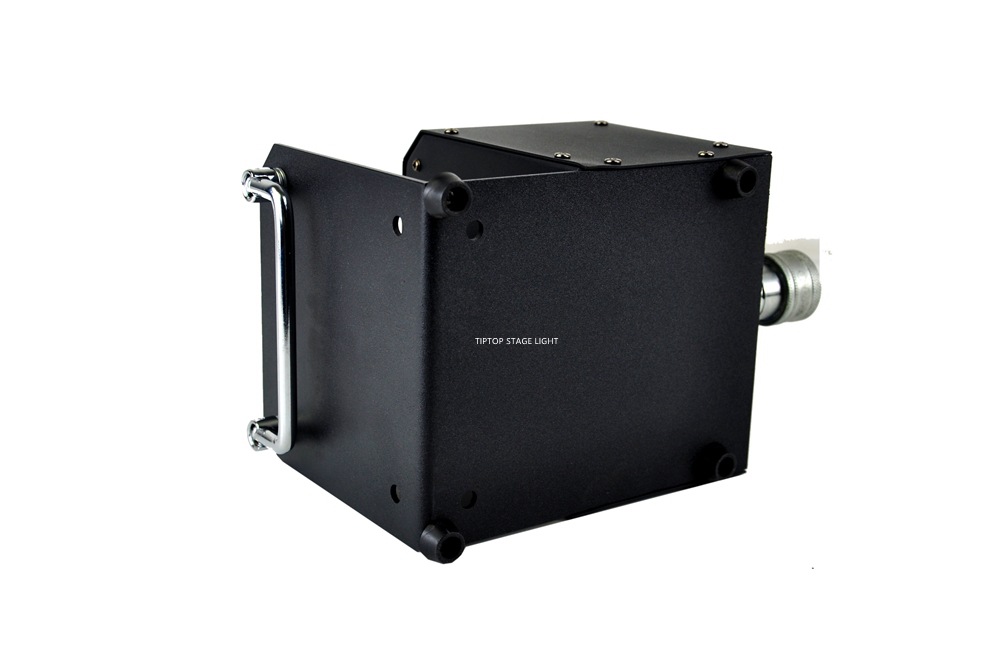

Product feature:  thicker iron shell than common model and not easy to fall down.
Hose length: 6 meters with quick connector （we also offer other length gas hose to choose)
Product warranty time: 1 year

1IN1 Carton box= 31*28*26cm

1 unit packing weight= 7kg

2IN1 Carton box =59*32*28cm

2 unit packing weight =14kg

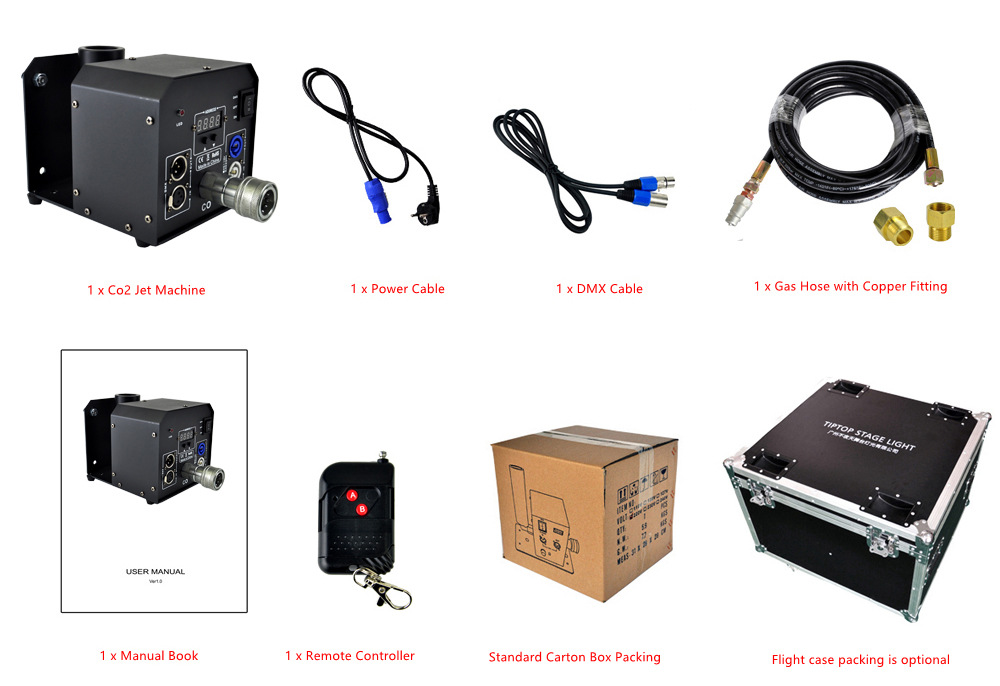

Packing list for each unit:
1 x co2 jet machine
1 x gas hose
1 x power cable
1 x DMX cable

1 x remote controller (no battery inside. If need battery please tell us)
1 x manual book

FAQ:
1: What kind of gas should I choose?
A: Liquid co2 gas.

2: Can I connect the machine to gas tank directly?
A: Yes. no need additional gas regulator to reduce the gas pressure.

3: Can I jet more than 5-10 seconds?
A: we suggest customer choose DMX mode and jet 1-3 seconds. Long time jet will damage the valve.

4: Can I choose longer gas hose?
A: the standard length is 6m. if you need longer or shorter gas hose please contact our sales manager.

5: how to control the machine?

A: the machine standard control is power control and DMX control. we also offer remote controller (when you use remote controller need to press switch to DMX position and no connect the DMX cable to DMX controller)

5: Can I choose flight case packing?
A: the standard packing way is carton box. 4IN1/6IN1 flight case is optional. If need please contact us.
