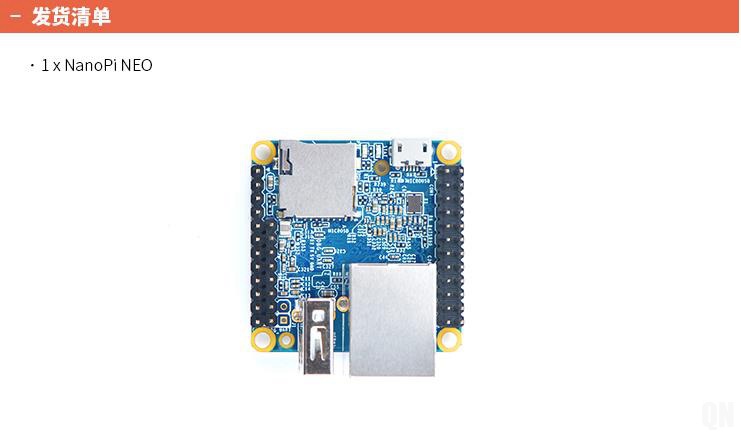

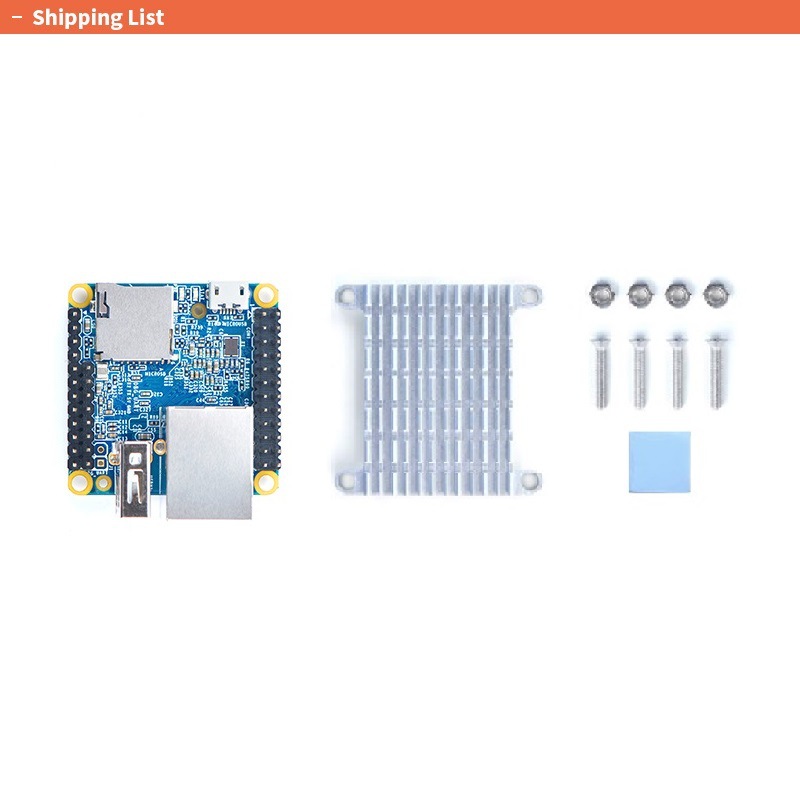

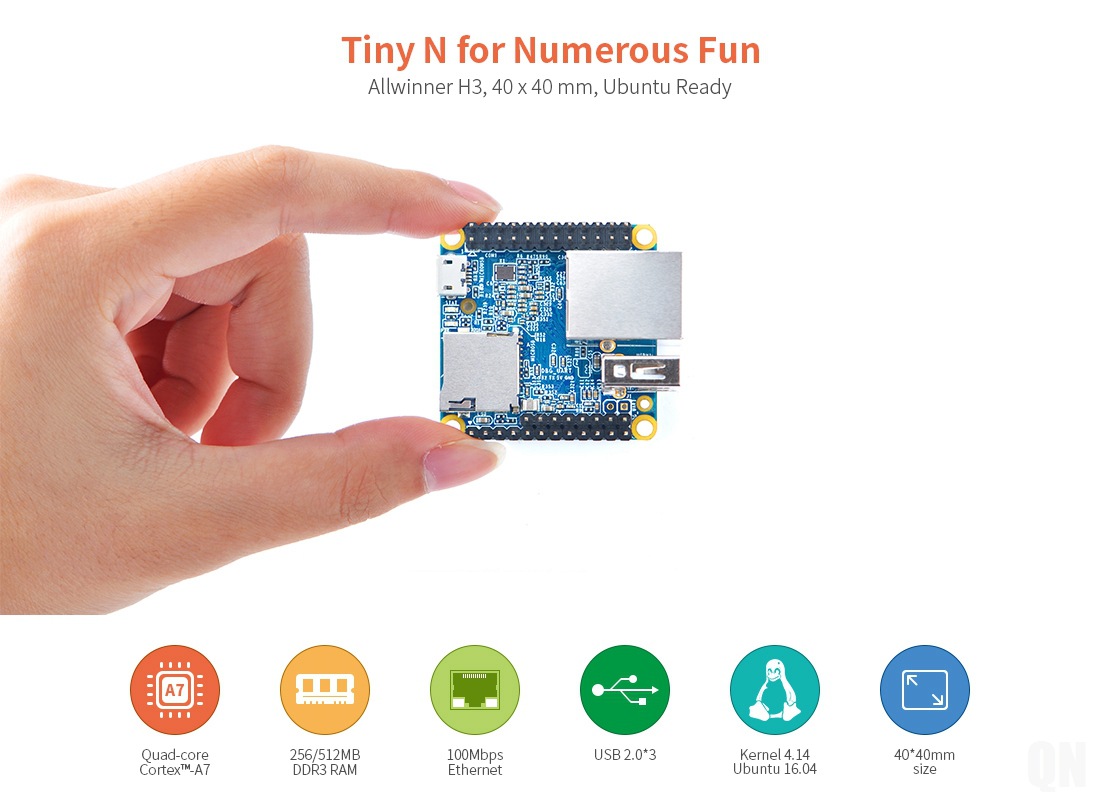

NanoPi Neo-LTS 512M DDR3 RAM Allwinner H3 Quad-core CortexA7
Openwrt/LEDE/Ubuntu/Armbian
| CPU | Model: Allwinner H3 Number of Cores: Quad-core Frequency: 4*Cortex-A7 Up to 1.2GHz |
| Memory | RAM: 256MB/512MB |
| Storage | MicroSD Slot: MicroSD*1 for external storage up to 128GB |
| Connectivity | Ethernet: 10/100M Ethernet |
| Audio | Audio input/output Port: 5Pin, 2.0mm pitch pin header |
| USB | MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A USB Host: 2.0 Type A*1, 2.54 mm pin*2 |
| Pin-header | GPIO: 2.54mm pitch 36pin. It includes UART, SPI, I2C, IO etc Serial Debug Port: 2.54mm pitch 4-pin-header Audio input/output Port: 2.0mm pitch 5-pin header |
| LED | Power LED(Red)*1 System LED(Green)*1 |
| Others | Working Temperature: -20℃ to 70℃ |
| Power | MicroUSB DC 5V/2A |
| OS Support | FriendlyCore(based on UbuntuCore-16.04) OpenWrt 18.06 Armbian DietPi Lakka Kali |
| Kernel version | Linux-4.4-LTS U-boot-2017.11 |
| PCB | 6 Layer |
| Dimension | 40*40mm |
| Weight | 14g(WITHOUT Pin-headers) |
http://wiki.friendlyarm.com/wiki/index.php/NanoPi_NEO
https://pan.baidu.com/s/1miMwKoK#list/path=%2F&parentPath=%2F
