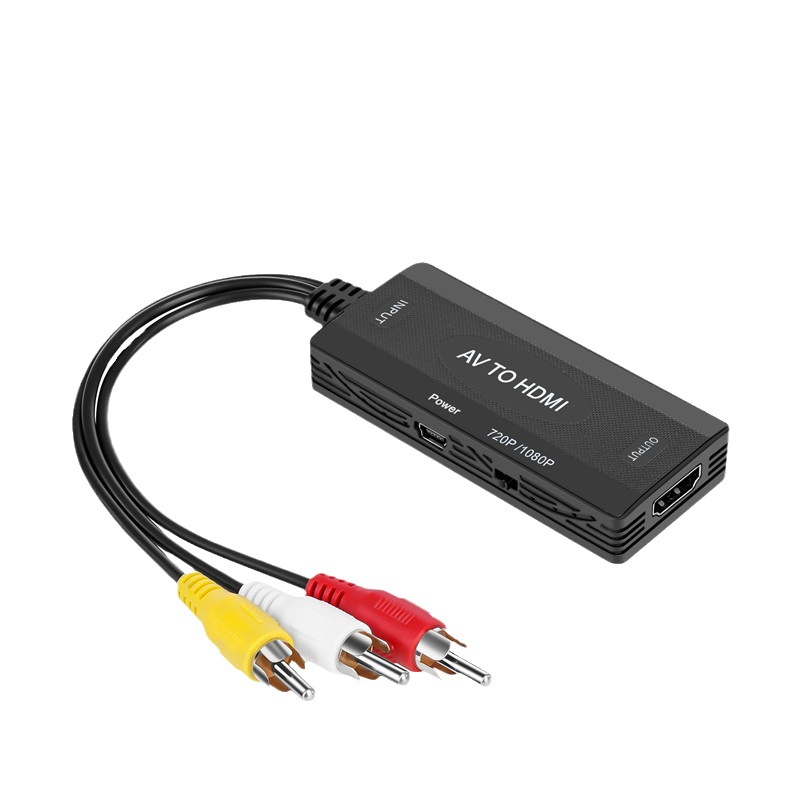

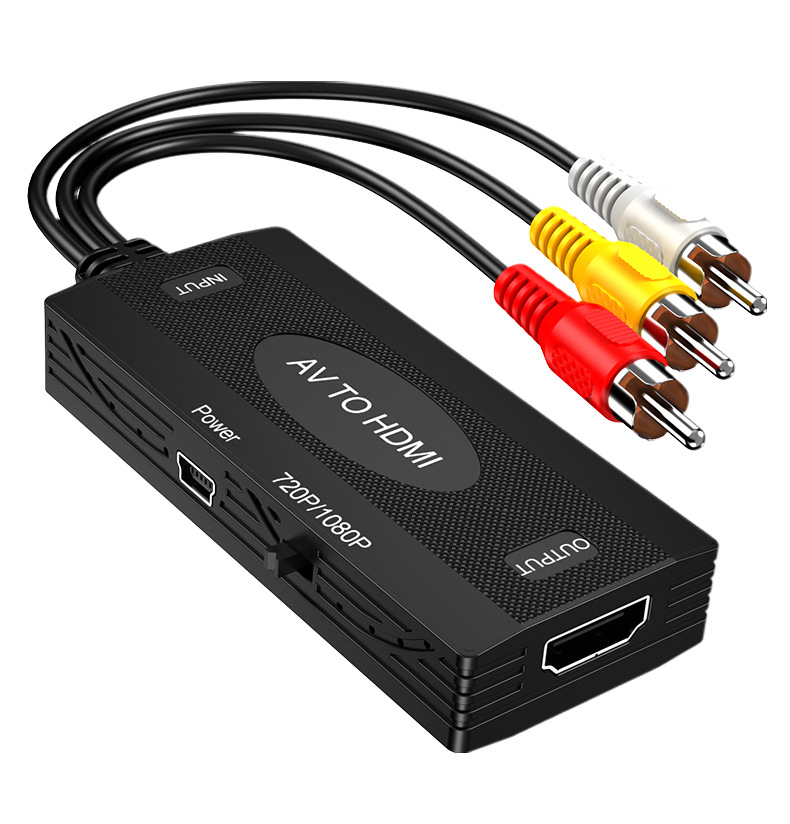

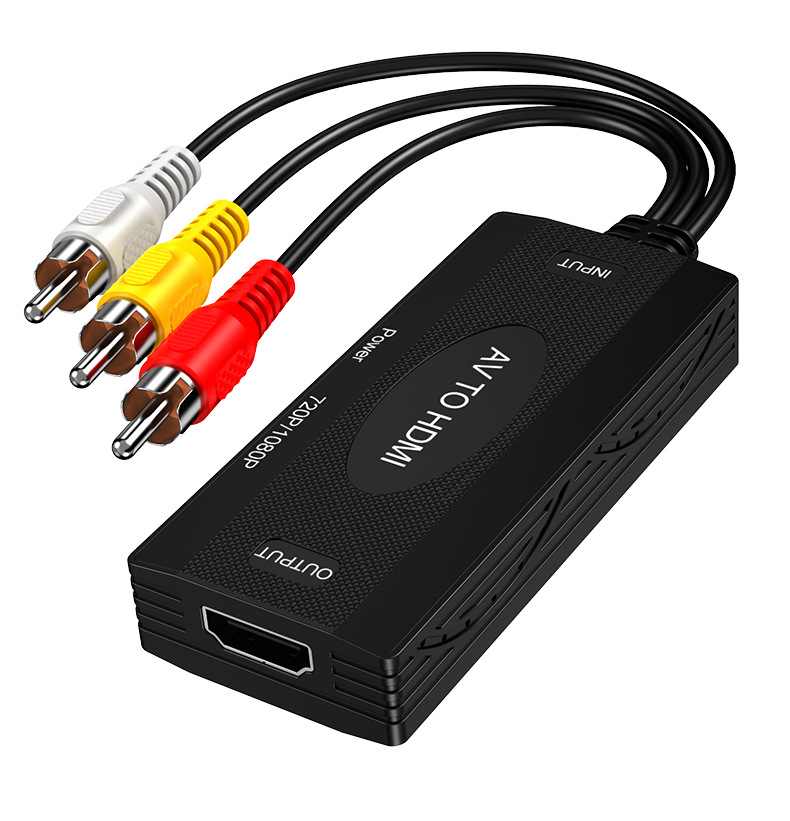

av转hdmi转换器 复合视频 厂家直销1080p DC供电款

av to hdmi converter composite video factory direct 1080p DC power supply

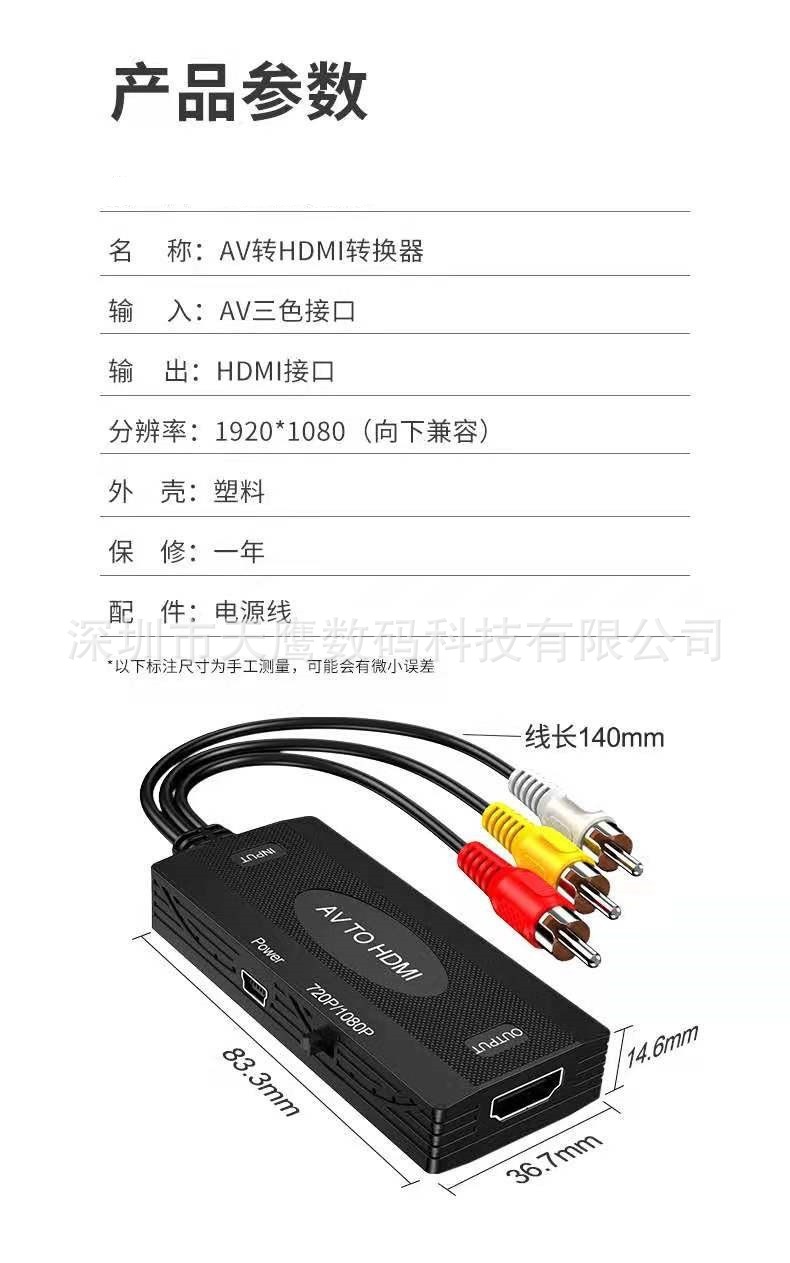

名称：AV转HDMI转换器

材质：ABS

尺寸：8.2*3.2*24mm

重量：40g  含包装127g

包装：盒装

 描述：

AV转HDMI转换器，可将AV，视频信号和L / R立体声音频信号转换为HDMI视频信号或音频。从而使用户可以从普通CVBS视频信号线（标准清晰度480i，576i）获得高质量的HDMI视频信号

特征：

1.AV TO HDMI

2.复合视频或S-Video可达全高清1080p；

3. HDMI输出可选为720P 50Hz / 60Hz（LED：红色）或1080P 50Hz / 60Hz； （LED：绿色）;

它可以在电视，VHS VCR，DVD编码器等上播放；

5.兼容1.3；

6.确保音频和视频的同步；

7.提供先进的信号处理，具有很高的精度，颜色，分辨率和细节；

8.电源/信号LED指示灯；

9.紧凑，轻巧，便携的尺寸。

规范：

*黑色

* DC 5 V USB电源

*输入端口：3 x AV（RCA）（白色，黄色，红色）1 x s视频

*输出端口：1 x HDMI

*输出分辨率（@ 60Hz）：720p，1080p

支持电视系统：PAL，NTSC3、58，NTSC4、43，SECAM，PAL / M，PAL / N

*兼容HDCP协议

请注意：

1.这是AV S视频到HDMI转换器。

2.使用本产品时，使用分布式Micro USB电缆为其供电。

3.注意：本产品不支持同时输出复合视频。通过设备上的开关按钮选择其中之一。

4.本产品仅支持720p和1080p输出，请使用HDMI显示器进行正确的设置。

description:

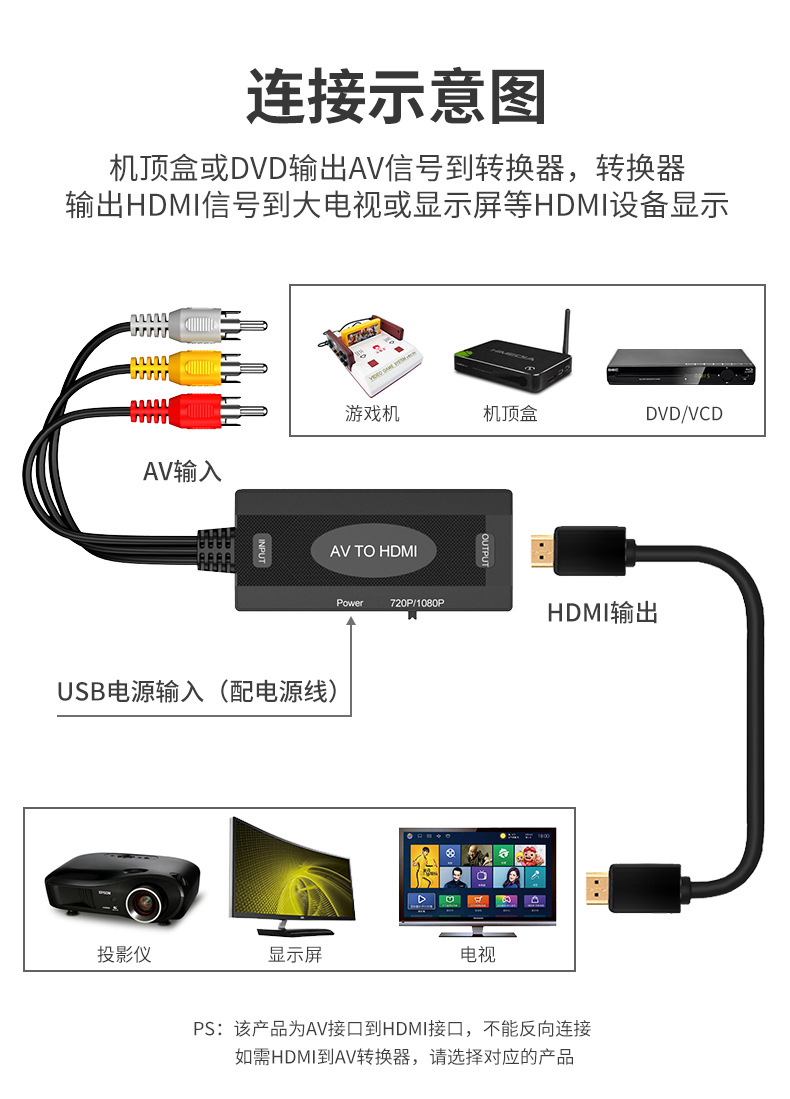

AV to HDMI converter can convert AV,  video signal and L/R stereo audio signal into HDMI video signal or audio. So that users can obtain high-quality HDMI video signals from ordinary CVBS and video signal lines (standard definition 480i, 576i)

feature:

1. brand new and high quality

2. High-end composite video or S-Video up to full HD 1080p;

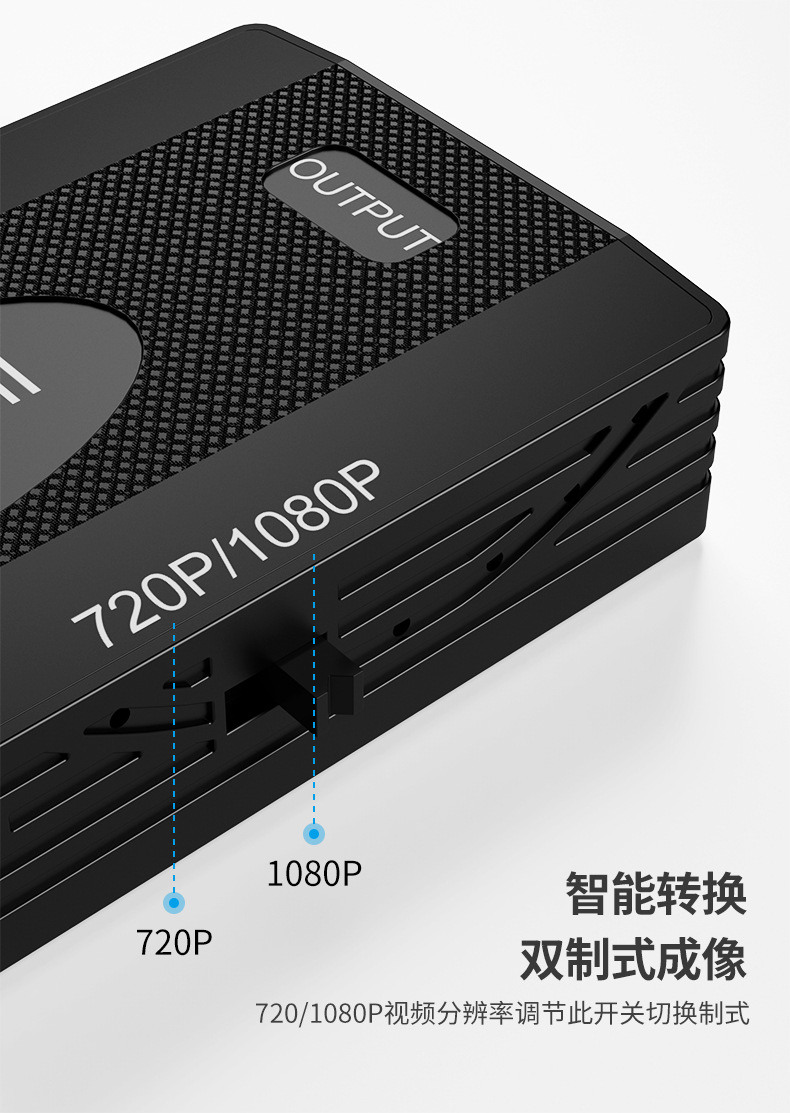

3. The HDMI output can be 720P 50Hz / 60Hz (LED: red) or 1080P 50Hz / 60Hz; (LED: green);

It can be played on TV, VHS VCR, DVD encoder, etc.;

5. Compatible with 1.3;

6. Ensure the synchronization of audio and video;

7. Provide advanced signal processing with high precision, color, resolution and detail;

8. Power/signal LED indicator;

9. Compact, light and portable size.

【Male AV S-video to HDMI Converter】 Can Convert Male AV CVBS Video Signal + Female S-video Signal + Male L/R Stereo Audio Signals to HDMI Video or Audio Signals, Be Compatible with TV, VHS VCR, DVD Recorders and More.【Support 720p/1080p】 Support HDMI 1.3, HDMI Output Resolution: 1080p@60Hz, 720p@60Hz. You can choose 720p or 1080p by Switching Button.【Support PAL or NTSC】 CVBS and S-VIDEO Input: PAL_B/N/M; NTSJ_M/J/Nc. Support Six Video Modes in Total.

【Plug and Play】 No Need Any Drivers, Portable, Plug and Play

【Low power consumption】 Only Need Low Power Via USB Cable. Powered by 5V 1A USB Cable. Please Note When Connected with Some Devices (such as for Sony Blu-ray DVD, PS4 and so on) Which Cannot Supply Enough Power from HDMI Port, the Converter Need Extra Power Supply via the USB Cable.

specification:

*black

* DC 5 V USB power supply

*Input port: 3 x AV (RCA) (white, yellow, red) 1 x s video

*Output port: 1 x HDMI

* Output resolution (@ 60Hz): 720p, 1080p

Support TV system: PAL, NTSC3, 58, NTSC4, 43, SECAM, PAL/M, PAL/N

*Compatible with HDCP protocol

caution:

1. This is an AV S video to HDMI converter.

2. When using this product, it must be powered by a distributed Micro USB cable.

3. Note: This product does not support simultaneous output of composite video. Select one of them via the switch button on the device.

4. This product only supports 720p and 1080p output, please use an HDMI display for correct settings.
