注意:本店所有产品价格均为含税价格,需未税价请联系旺旺客服
驱动网址:https://www.realtek.com/zh-tw/component/zoo/category/network-interface-controllers-10-100-1000m-gigabit-ethernet-pci-express-software
产品简介

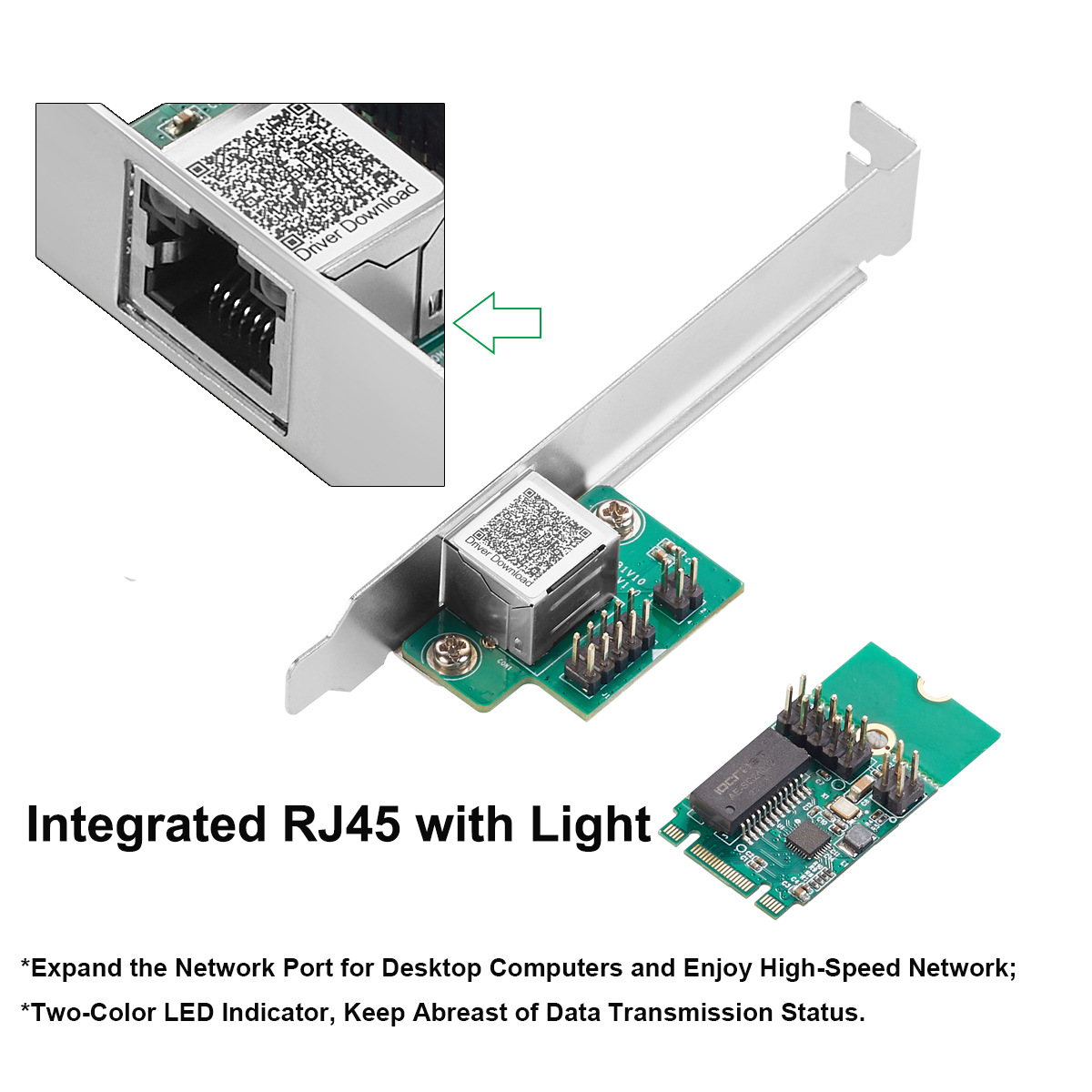

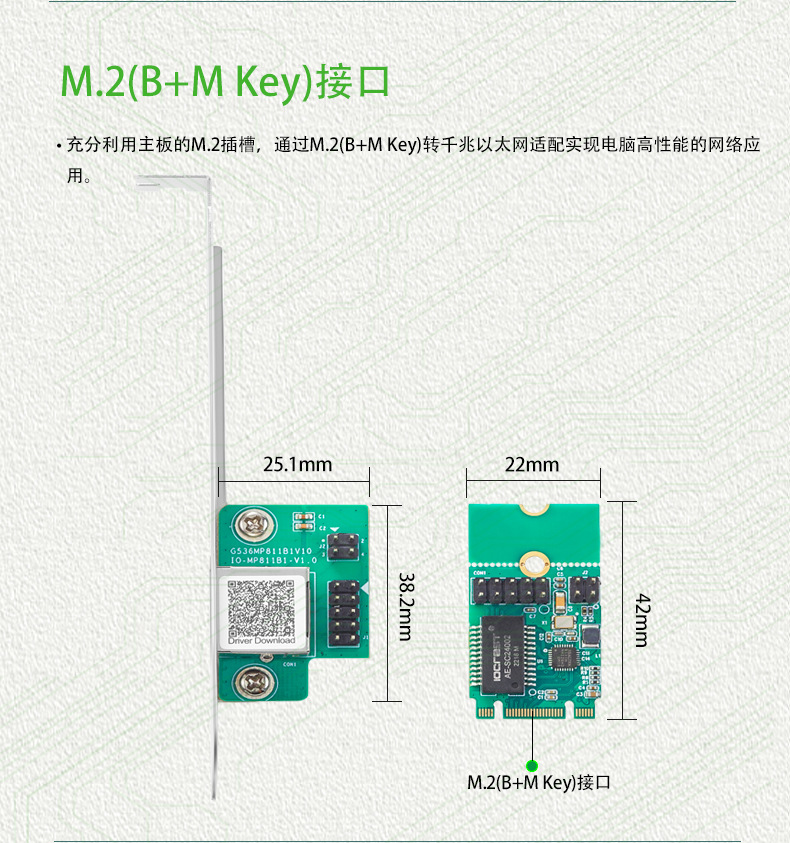

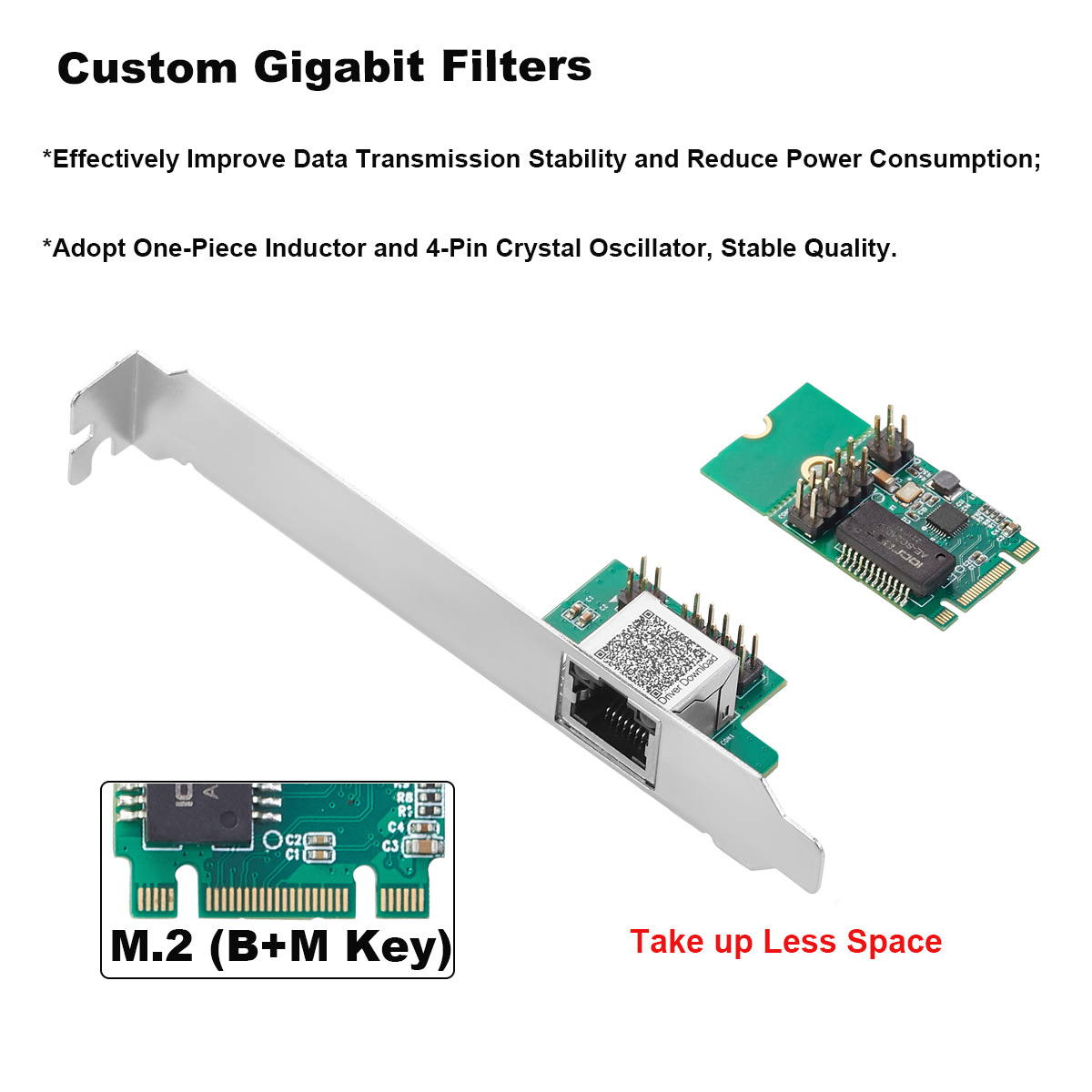

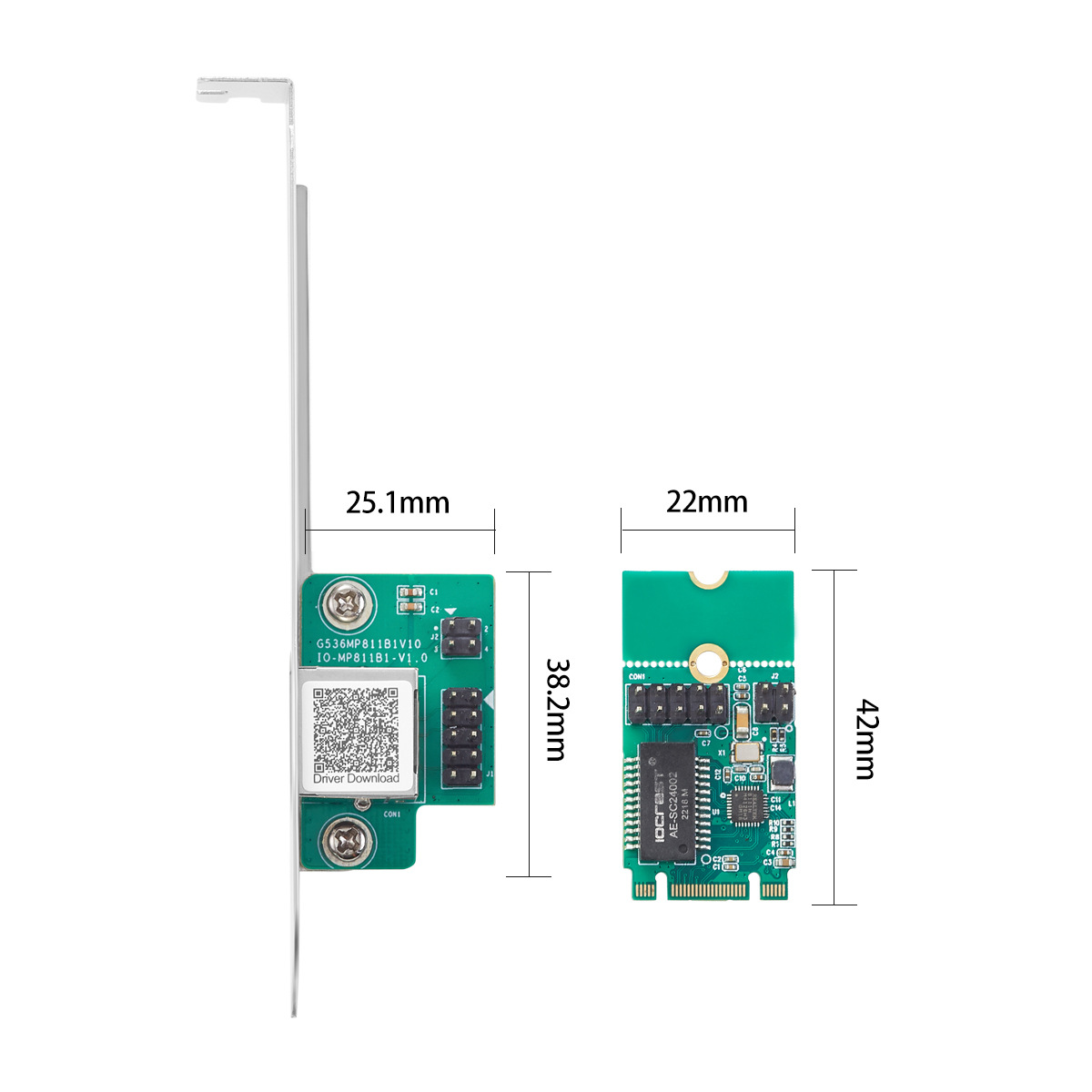

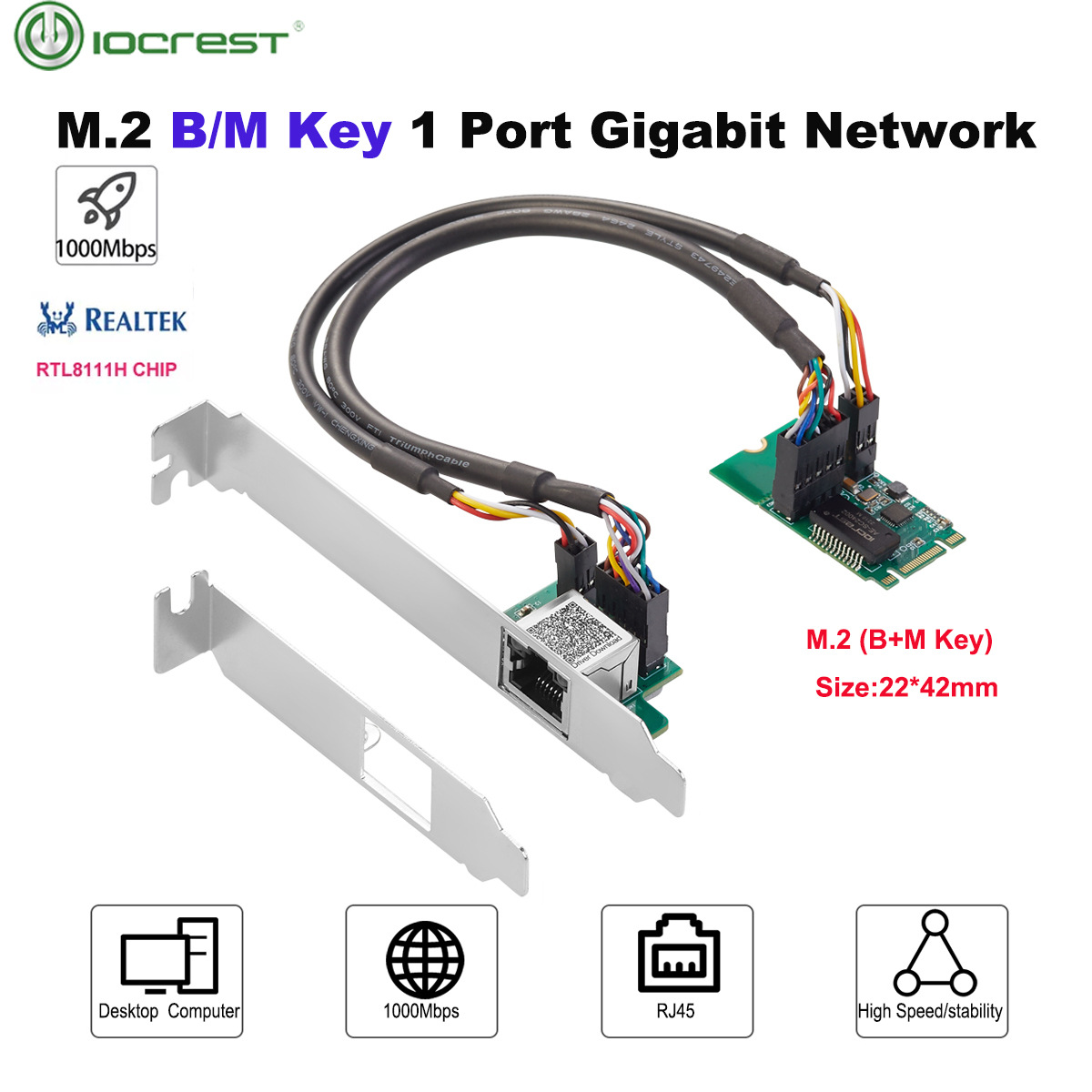

• 该款M.2千兆以太网适配器是一种高性能10/100 / 1000M以太局域网控制器。用户可以通过计算机的M.2(B+M Key)插槽扩展出1个标准的RJ45以太网接口。集成RTL8111H芯片,具有良好的稳定性和兼容性,采用千兆滤波器,集成RJ45带灯,一体成型电感,4脚晶振,品质稳定。以及丰富的操作系统支持,适用于家庭用户或办公设备的使用。
特征
• 集成 10/100/1000M 收发器
• 支持 Giga Lite (500M) 模式
• 具有下一页功能的自动协商
• 支持 PCI Express 1.1
• 支持对交换/极性/歪斜校正
• 交叉检测和自动校正
• 支持 1-Lane 2.5Gbps PCI Express 总线
• 支持硬件ECC(纠错码)功能
• 支持硬件CRC(循环冗余校验)功能
• 发送/接收片上缓冲区支持
• 支持 PCI MSI(消息信号中断)和 MSI-X
• 完全符合 IEEE802.3、802.3u 和 802.3ab
• 支持 IEEE 802.1P 第 2 层优先编码
• 支持 802.1Q VLAN 标记
• 支持 IEEE 802.3az-2010(EEE)
• 支持全双工流控制 (IEEE.802.3x)
• 支持 9K 字节的巨型帧
• 支持四核接收端缩放 (RSS)
• 支持协议卸载(ARP&NS)
• 支持 Microsoft WPI(唤醒数据包指示)
• Wake-On-LAN 和“RealWoW”技术(远程唤醒)支持
• 支持睡眠主机的 ECMA-393 ProxZzzy 标准
系统要求
• Windows ME、98SE、2000、XP、Vista、7、8 和 10 32 位/64 位
• Windows Server 2003、2008、2012 和 2016 32 -/64 位
• Linux、MAC OS 和 DOS

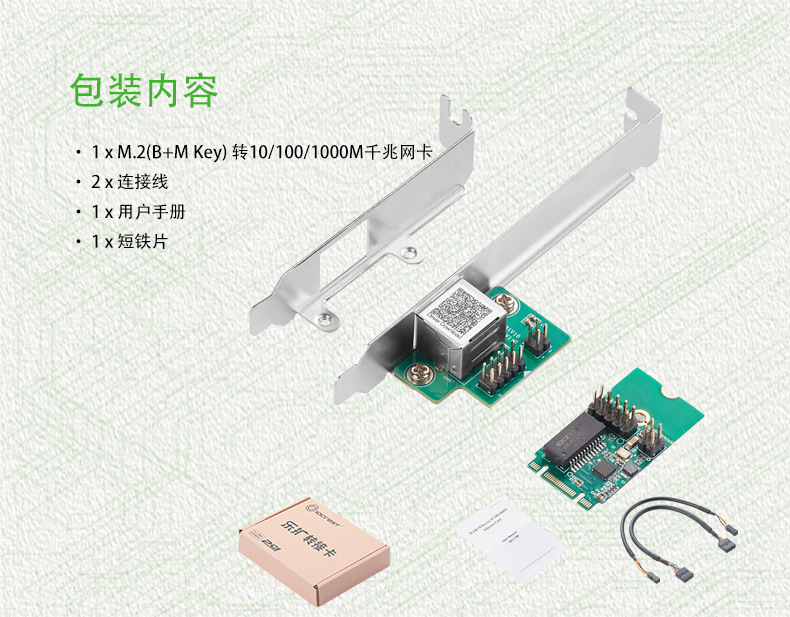

包装内容
• 1 x M.2(B+M Key) to 10 /100/1000M 以太网卡
• 2 x 连接电缆
• 1 x 短铁片
• 1 x 用户手册
Driver Download:https://www.realtek.com/zh-tw/component/zoo/category/network-interface-controllers-10-100-1000m-gigabit-ethernet-pci-express-software
Feature
• Integrated 10/100/1000M transceiver
• Supports Giga Lite (500M) mode
• Auto-Negotiation with Next Page capability
• Supports PCI Express 1.1
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Fully compliant with IEEE802.3, 802.3u and 802.3ab
• Supports IEEE 802.1P layer 2 Priority Encoding
• Supports 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010(EEE)
• Supports Full Duplex flow control (IEEE.802.3x)
• Supports jumbo frame to 9K bytes
• Supports quad core Receive-Side Scaling(RSS)
• Supports Protocol Offload(ARP&NS)
• Supports Microsoft WPI (Wake Packet Indication)
• Wake-On-LAN and "RealWoW"Technology (remote wake-up) support
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirements
• Windows ME、98SE、2000、XP、Vista、7、8 and 10 32-bit/64-bit
• Windows Server 2003、2008、2012 and 2016 32 -/64-bit
• Linux、MAC OS and DOS
Accessories
• 1 x M.2(B+M Key) to 10 /100/1000M Ethernet Card
• 2 x Connecting Cable
• 1 x Low profile bracket
• 1 x User manual
Note: Contents may vary depending on country/market
