产品名称: BGC 3.1 大电流2轴无刷云台控制板
厂家编号:BGC30P
产品外形: 50*50*10mm
驱动方式: MOS管
电源电压:2-4S(7.4-16.8V 推荐12V)
电源电压:2-4S(7.4-16.8V 推荐12V)
电源接头方式:JST和XH
硬件版本:BGC3.1
固件版本: 俄版 BGC2.2
电源接头方式:JST和XH
硬件版本:BGC3.1
固件版本: 俄版 BGC2.2
可支持马达: 2-8系列(从gopro 到 影视RED摄影机)
产品净重: 15g 含传感器和连接线
采用MOS管替代L6234D驱动电机
峰值电流10A(L6234D峰值5A)
可长时间工作在5A(建议加散热片)
包含:
1 x 最新款 BGC 3.0 大电流2轴无刷云台控制板
1 x 传感器
1 x 连接线

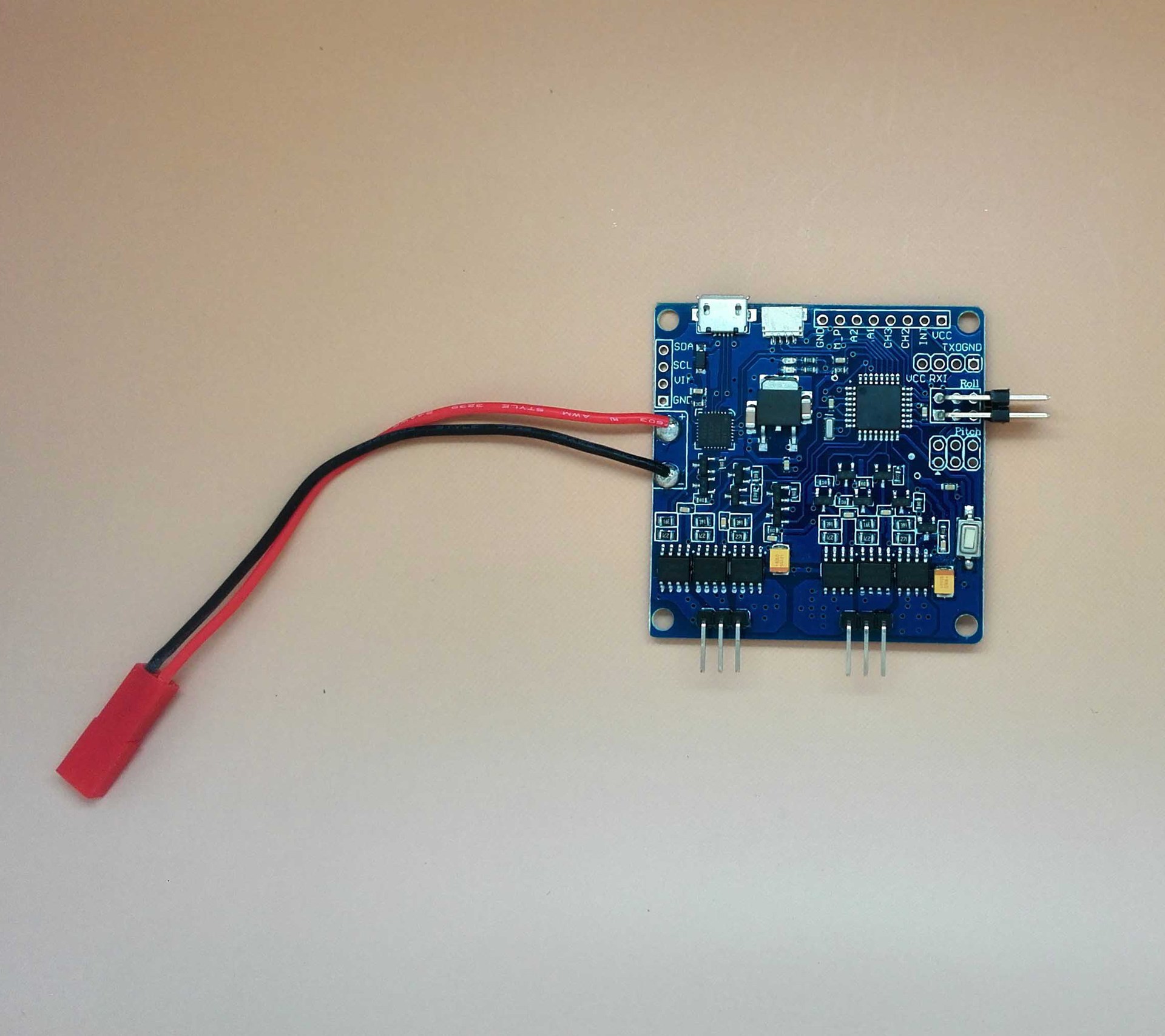

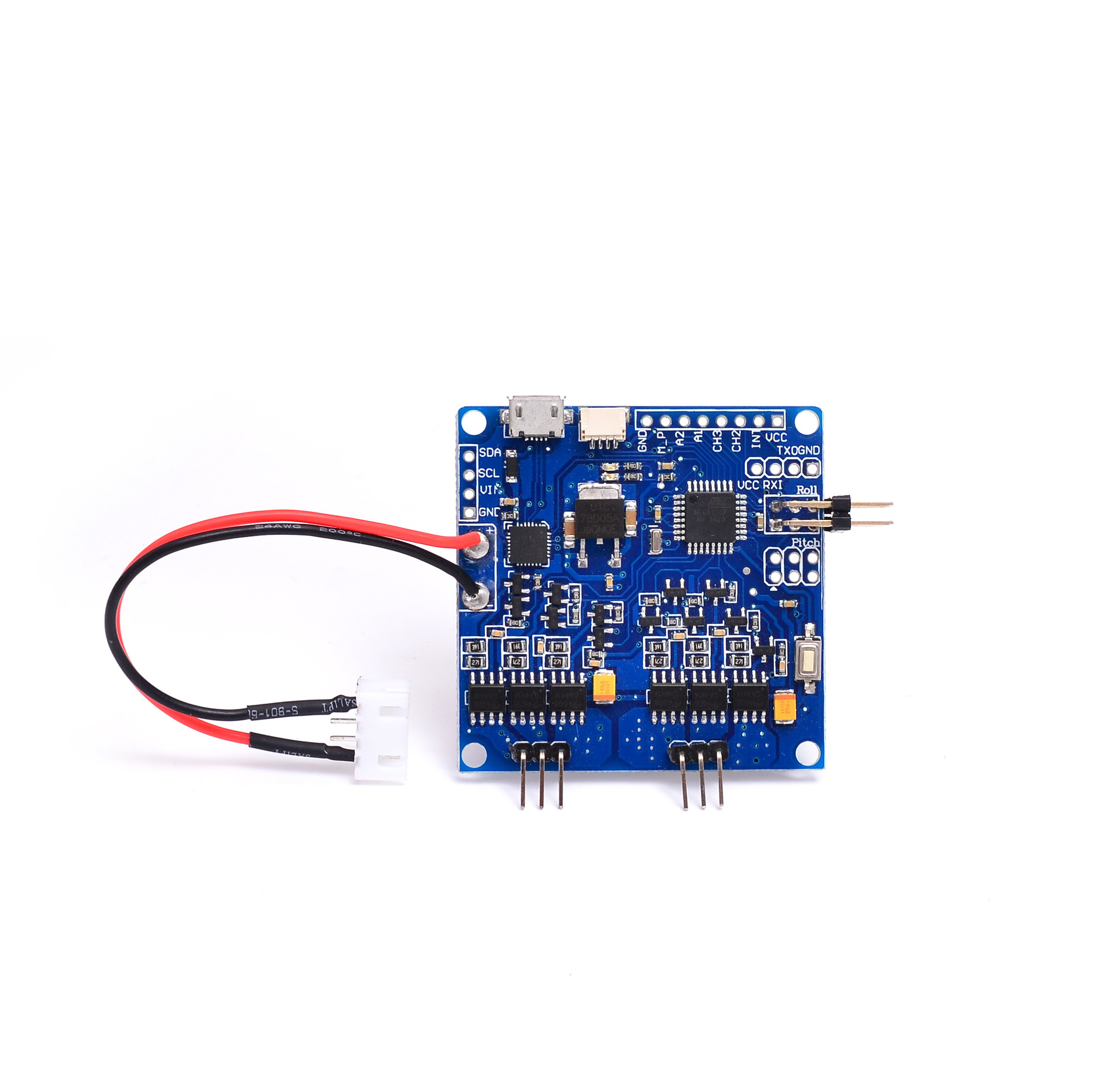

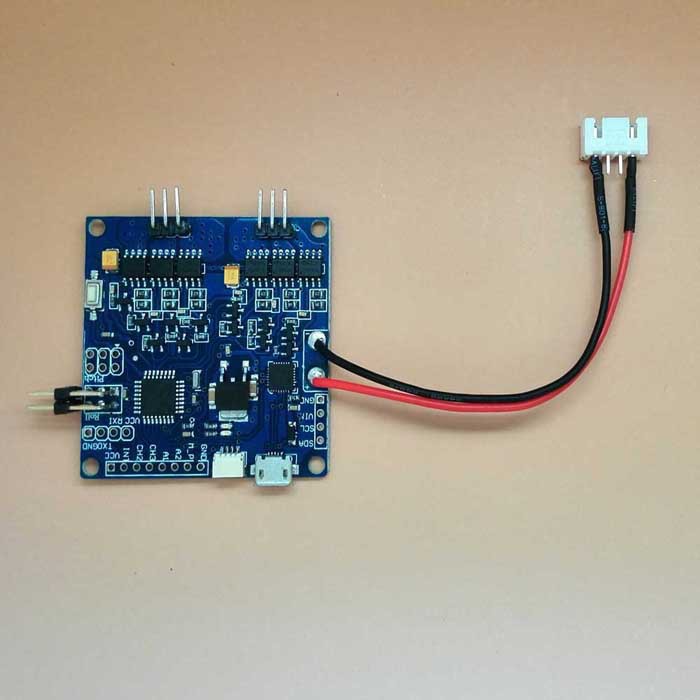

BGC 3.1 MOS Large Current Two-axis Brushless Gimbal Controller Driver alexmos
Features:
- Two-axis brushless gimbal driver
- Adopts MOS tube drive, with larger current
- Support 2-8 series gimbal motor
- Peak current 10A
- With IIC interface
Alexmos 2.0 or 2.2 firmware
【WARNING: Metal and carbon can conductive, pay attention to prevent short circuit.Chips are easily electrostatic breakdown, please do a good job protection before contact !】
Package Included:
- 1* BGC 3.1 Two-axis brushless gimbal driver
- 1* Sensor
- 1* Cable
