产品名称:水位传感器
工作电压:DC3v-5V
工作电流:小于20mA
传感器类型:模拟
检测面积:40mm*16mm
制作工艺:FR4双面喷锡
工作温度:10℃-30℃
工作湿度:10%-90%无凝结
产品尺寸:62mm*20*8mm(长*宽*高)
包装方式:静电袋子

产品重量:3.5g

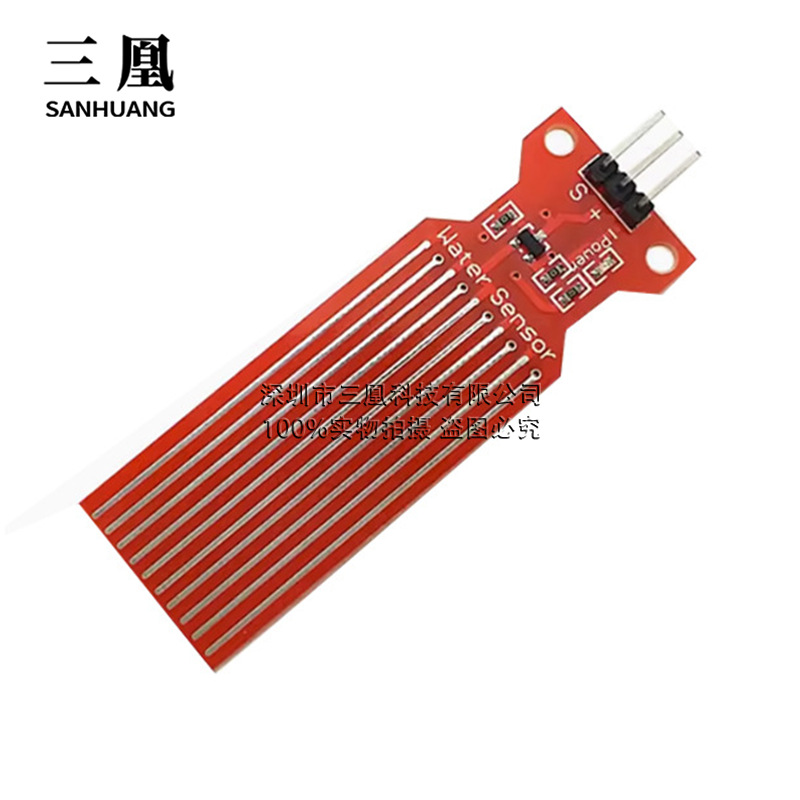

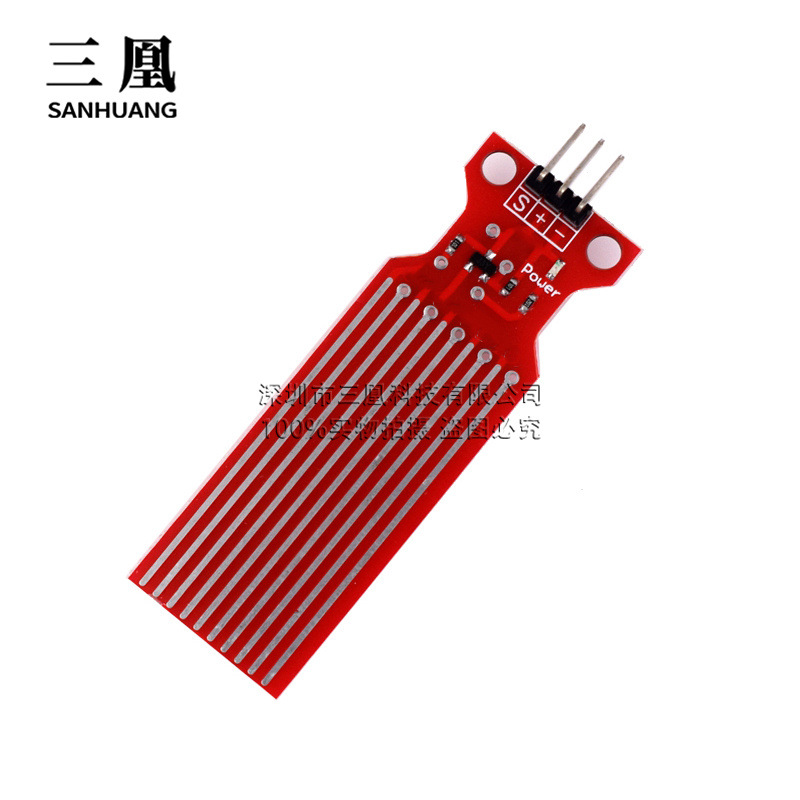

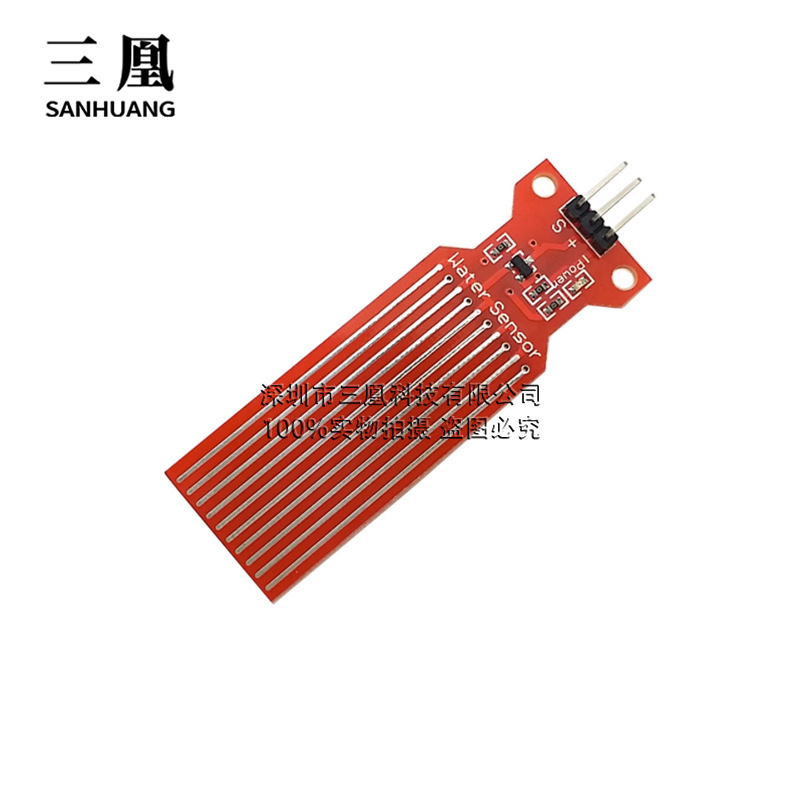

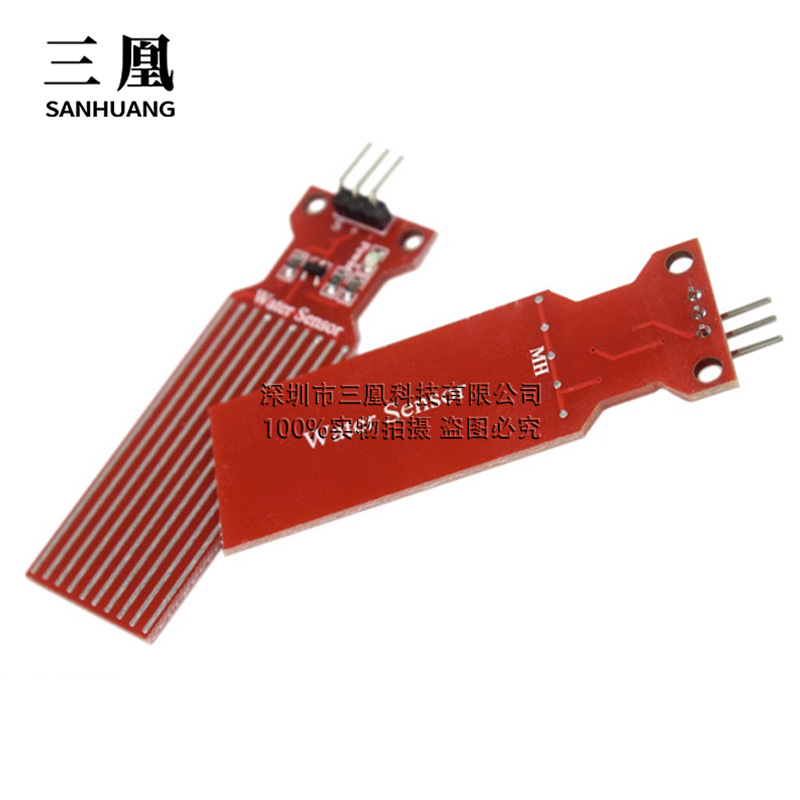

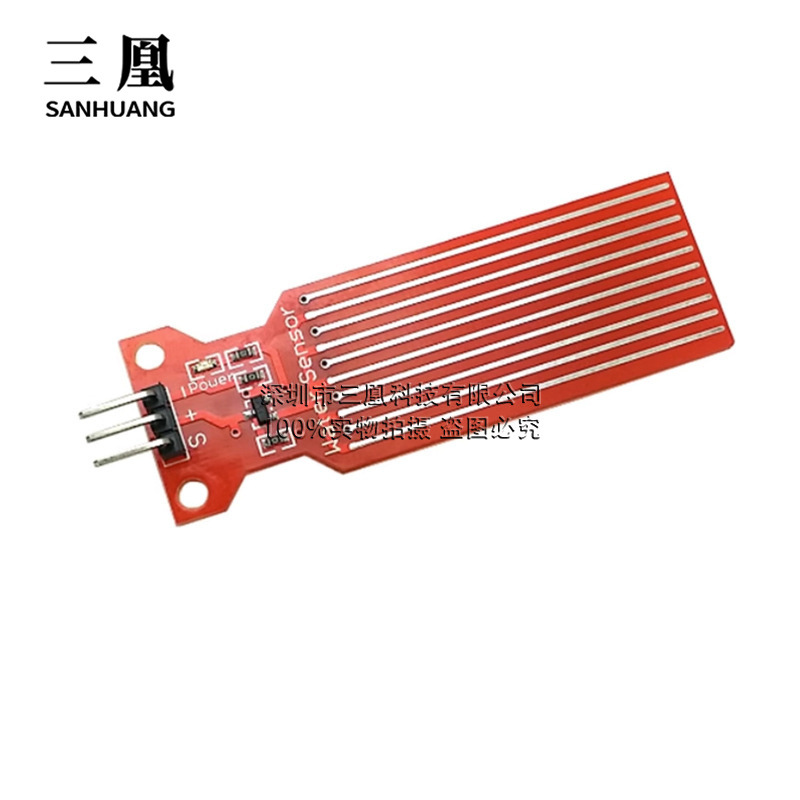

Water Sensor水位传感器是一款简单易用、性价比较高的水位/水滴识别检测传感器，其是通过具有一系列的暴露的平行导线线迹测量其水滴/水量大小从而判断水位。轻松完成水量到模拟信号的转换，输出的模拟值可以直接被Arduino开发板读取，达到水位报警的功效。

规格参数：

产品名称：水位传感器

工作电压：DC3-5V

工作电流：小于20mA

传感器类型：模拟

检测面积：40mm x 16mm

制作工艺：FR4双面喷锡

工作温度：10℃-30℃

工作湿度：10%-90%无凝结

产品重量：3.5g

产品尺寸：62mm x 20mm x 8mm

包装方式：静电袋密封

英文描述：

product description:

The WaterSensor Water Level Sensor is an easy-to-use, cost-effective water level/water drop identification sensor that determines the water level by measuring the amount of water droplets/water with a series of exposed parallel wire traces. It is easy to complete the conversion of water quantity to analog signal, and the output analog value can be directly read by the Arduino development board to achieve the effect of water level alarm.

Specifications:

Product Name: Water level sensor

Working voltage: DC3-5V

Working current: less than 20mA

Sensor Type: Simulation

Detection area: 40mm x 16mm

Production process: FR4 double-sided spray tin

Working temperature: 10 ° C - 30 ° C

Working humidity: 10%-90% non-condensing

Product weight: 3.5g

Product size: 62mm x 20mm x 8mm

Packing: electrostatic bag sealing
