L500-61键三模式薄膜键盘,亚马逊市场被包销,不能上传亚马逊,否则容易被投诉,请知悉

L500装箱尺寸及重量：

线长：1.7米

产品净重：391g

产品尺寸： 29.2*10.2*4cm

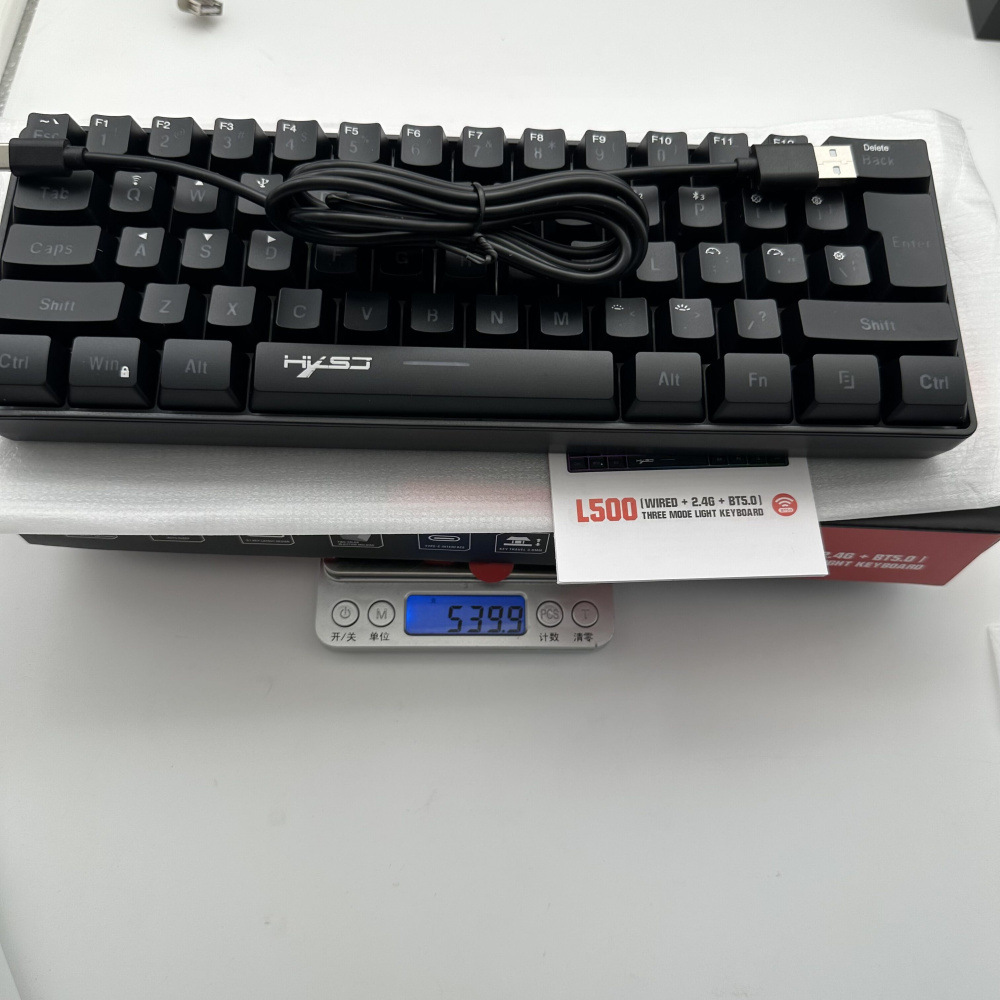

产品毛重：540g

彩盒包装尺寸：32*13*4.5cm

一箱子20个

装箱的尺寸52*34.5*29.5cm

整箱重量是：11.3kg

英文资料：

Selling point：

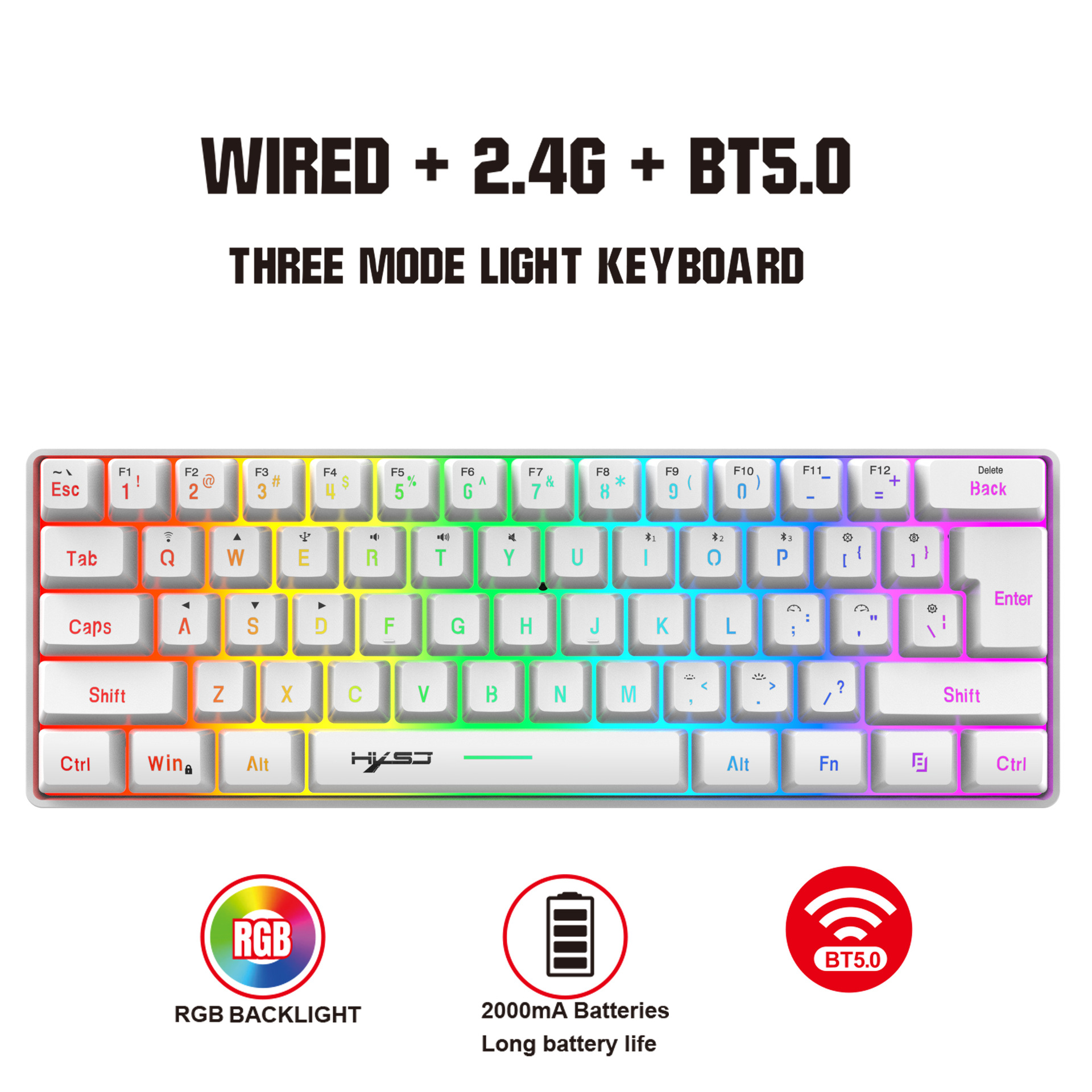

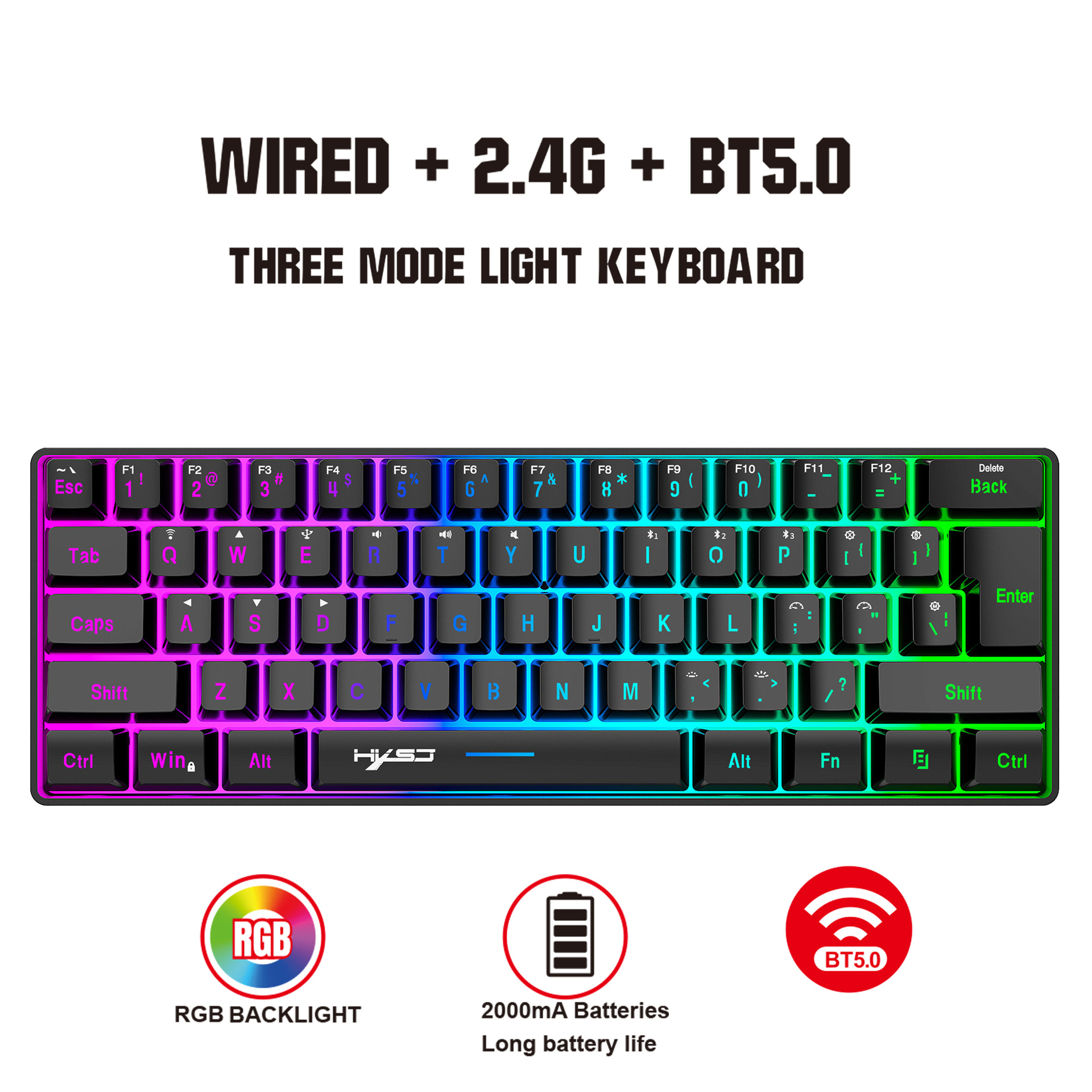

1. Three-in-One Design: Wired, 2.4G Wireless, and Bluetooth three connection modes, meeting the needs of multiple systems and facilitating seamless switching between office work and gaming.

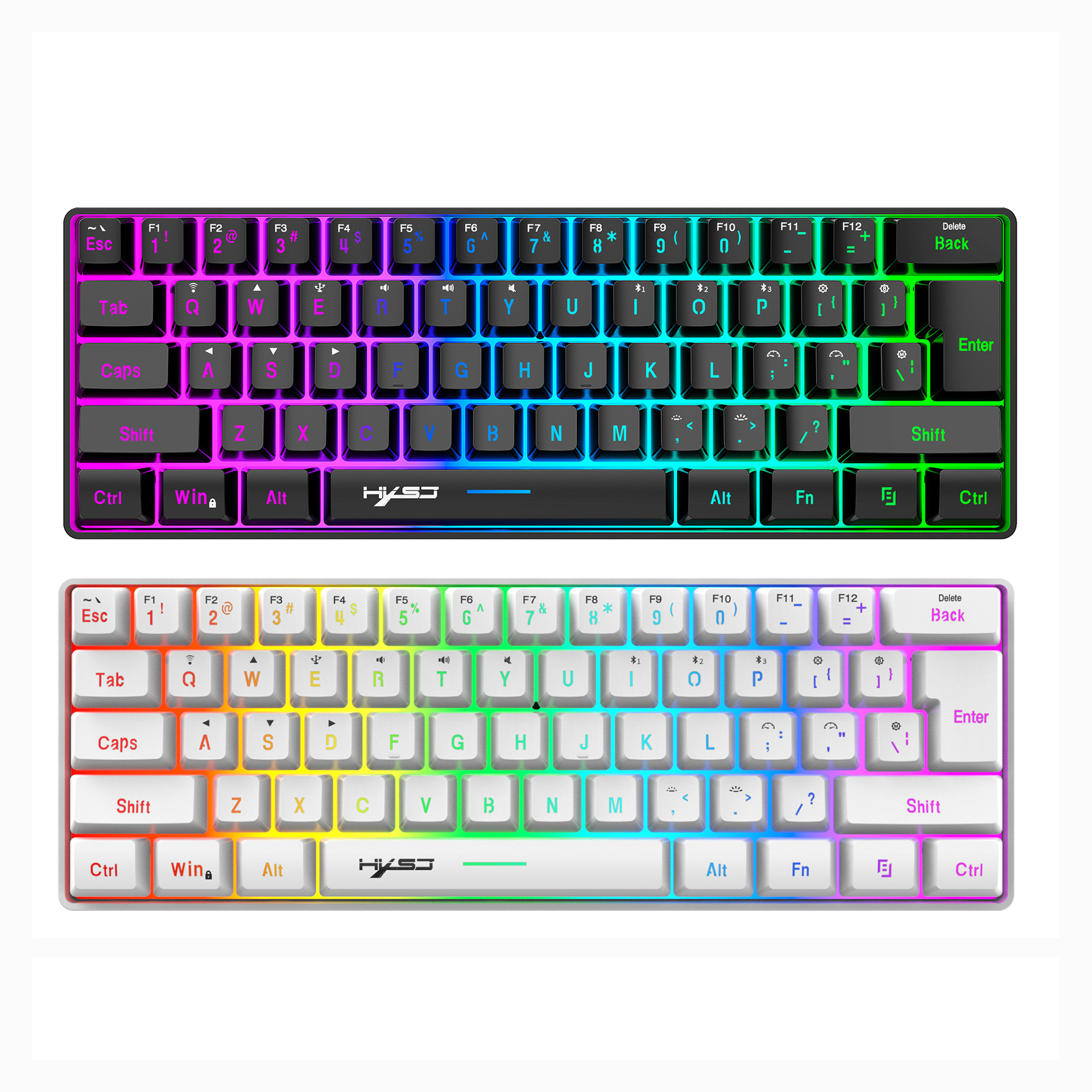

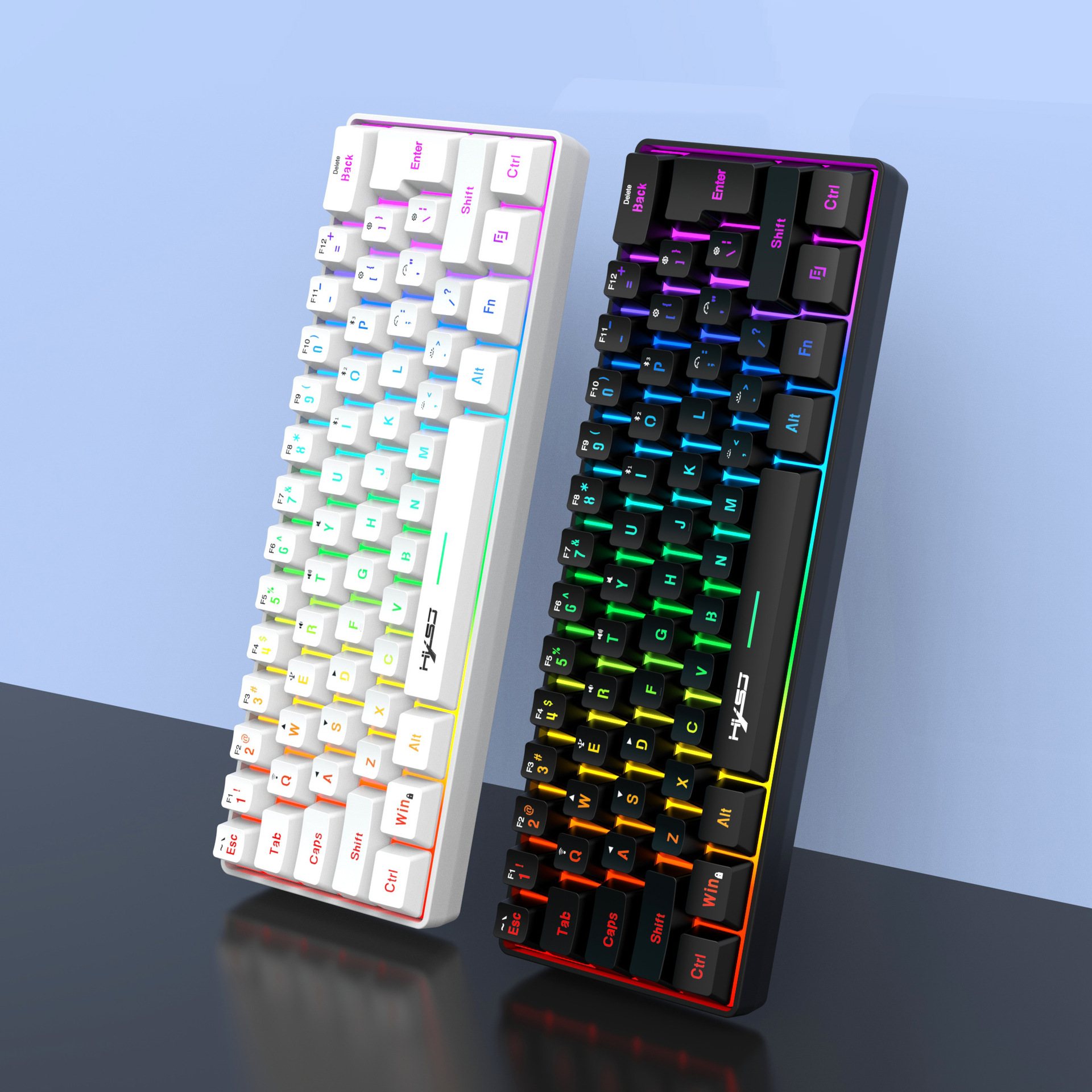

2. Vibrant RGB Backlight: Supports multiple lighting modes to create a personalized gaming atmosphere and enhance the overall user experience.

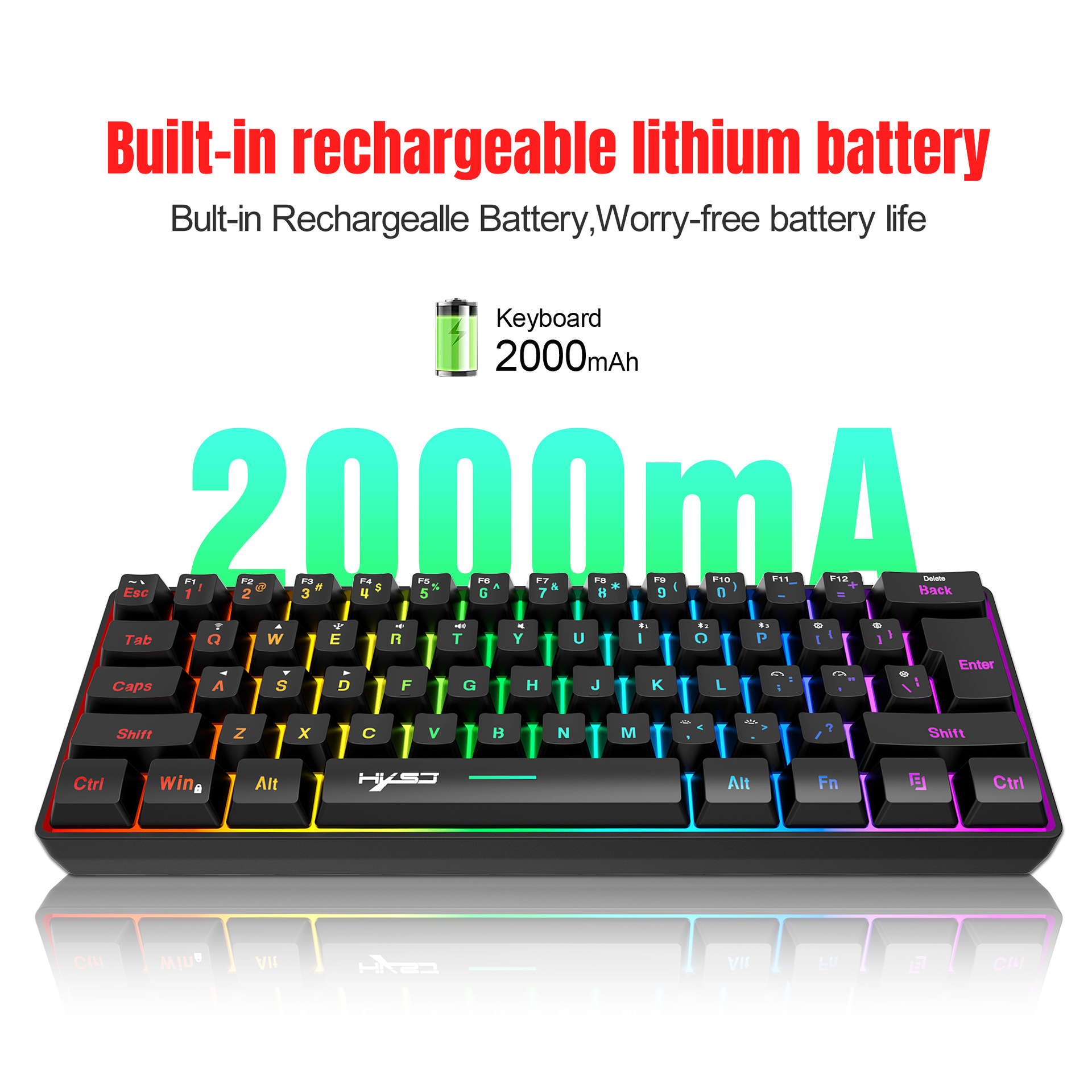

3. High-Capacity Lithium Battery: Built-in 2000mAh large-capacity lithium battery provides long-lasting endurance, eliminating the need for frequent recharging and ensuring durability.

4. User-Friendly Design: One-touch mode switching for convenient and quick operation, suitable for both office work and gaming, catering to diverse user needs.

5. Stable Connectivity: Reliable wired connection, convenient wireless and Bluetooth connectivity, ensuring stable signal transmission and optimizing the user experience.

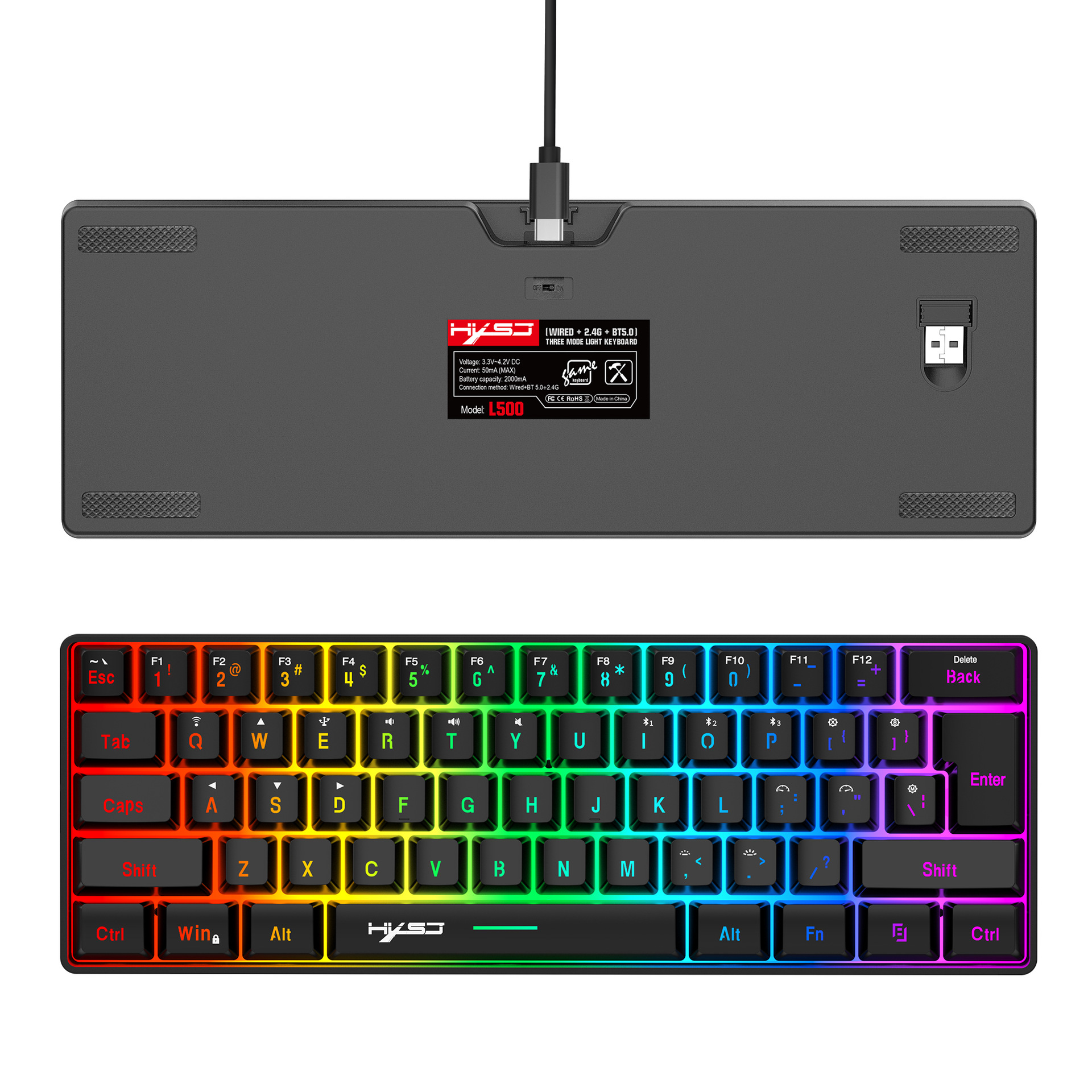

Product specifications:

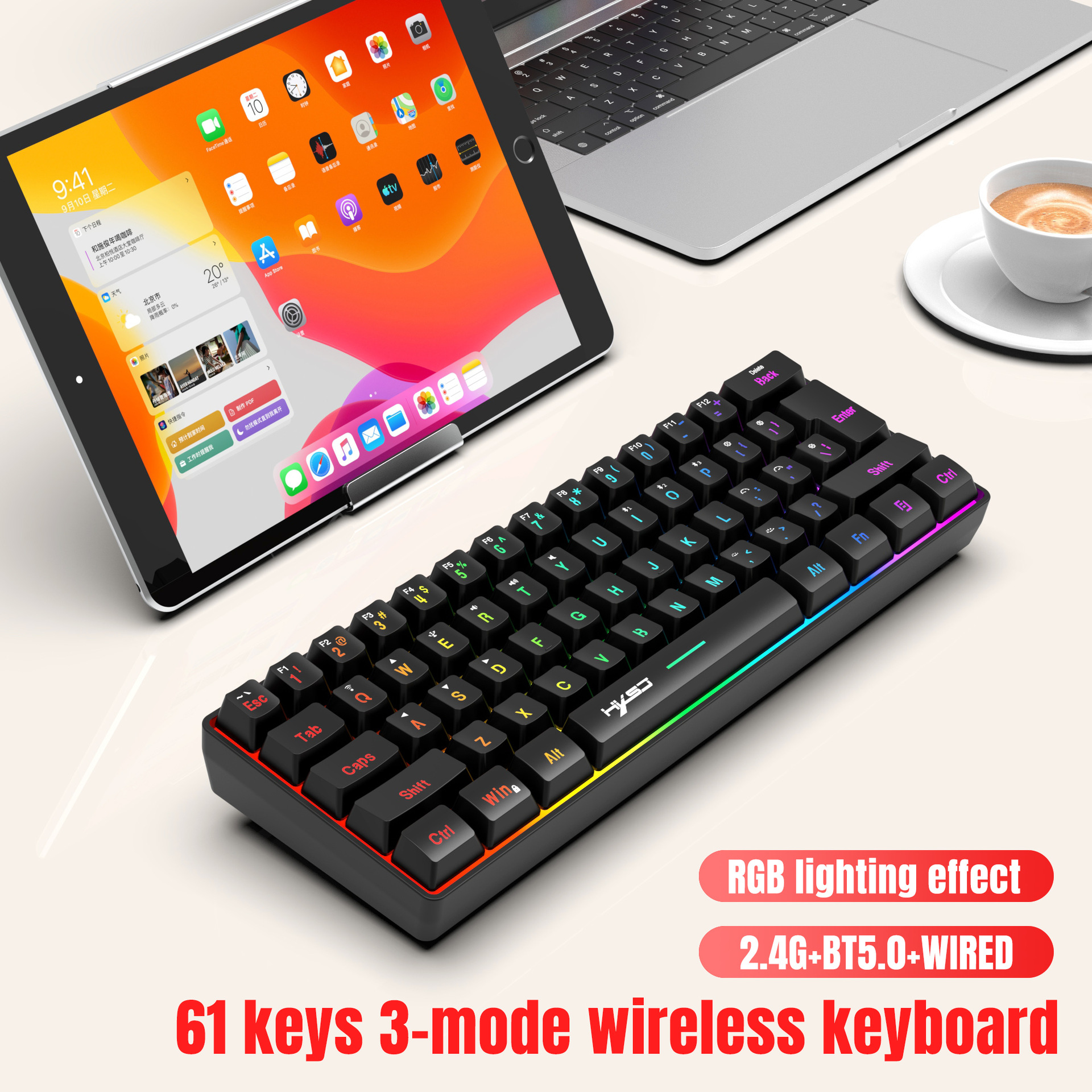

Specification item：Wired +2.4G+ Bluetooth Triple mode keyboard

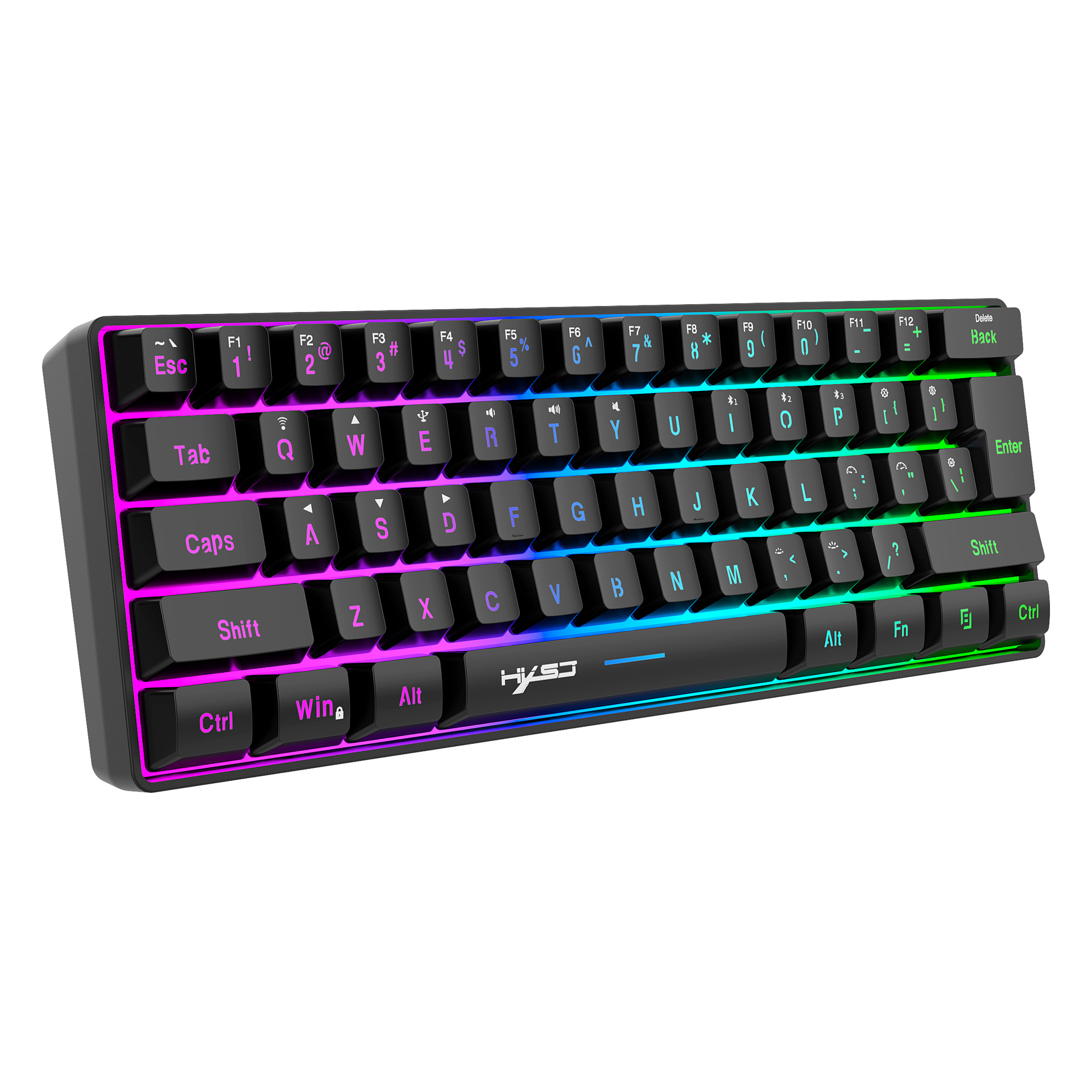

Product number: L500 Compact membrane keyboard

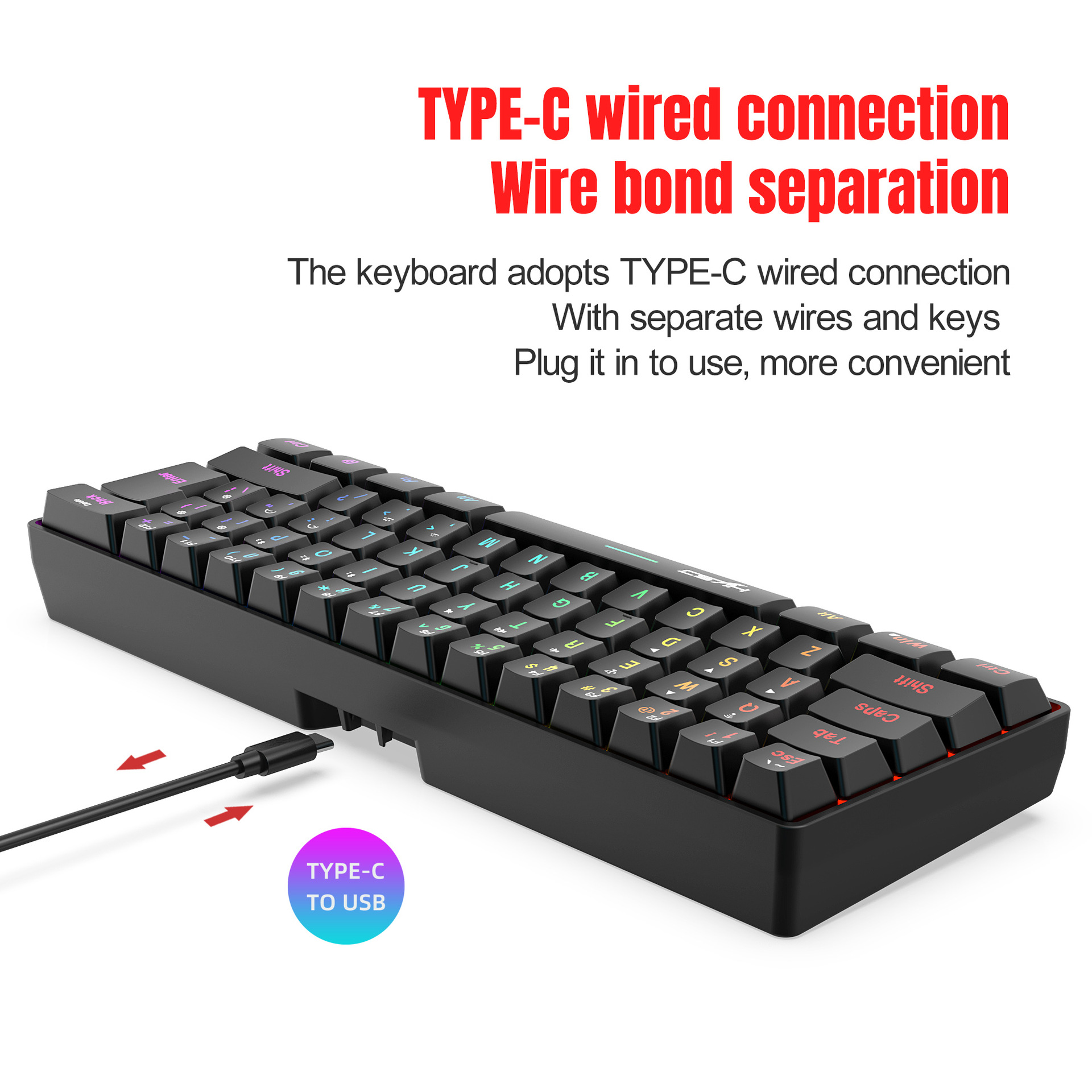

Interface Type : USB TO TYPE-C Interface

Connection method：Wired + BT5.0 + 2.4G Triple mode

Built-in battery capacity: 2000mA Rechargeable lithium battery

Light mode: Multiple RGB light modes

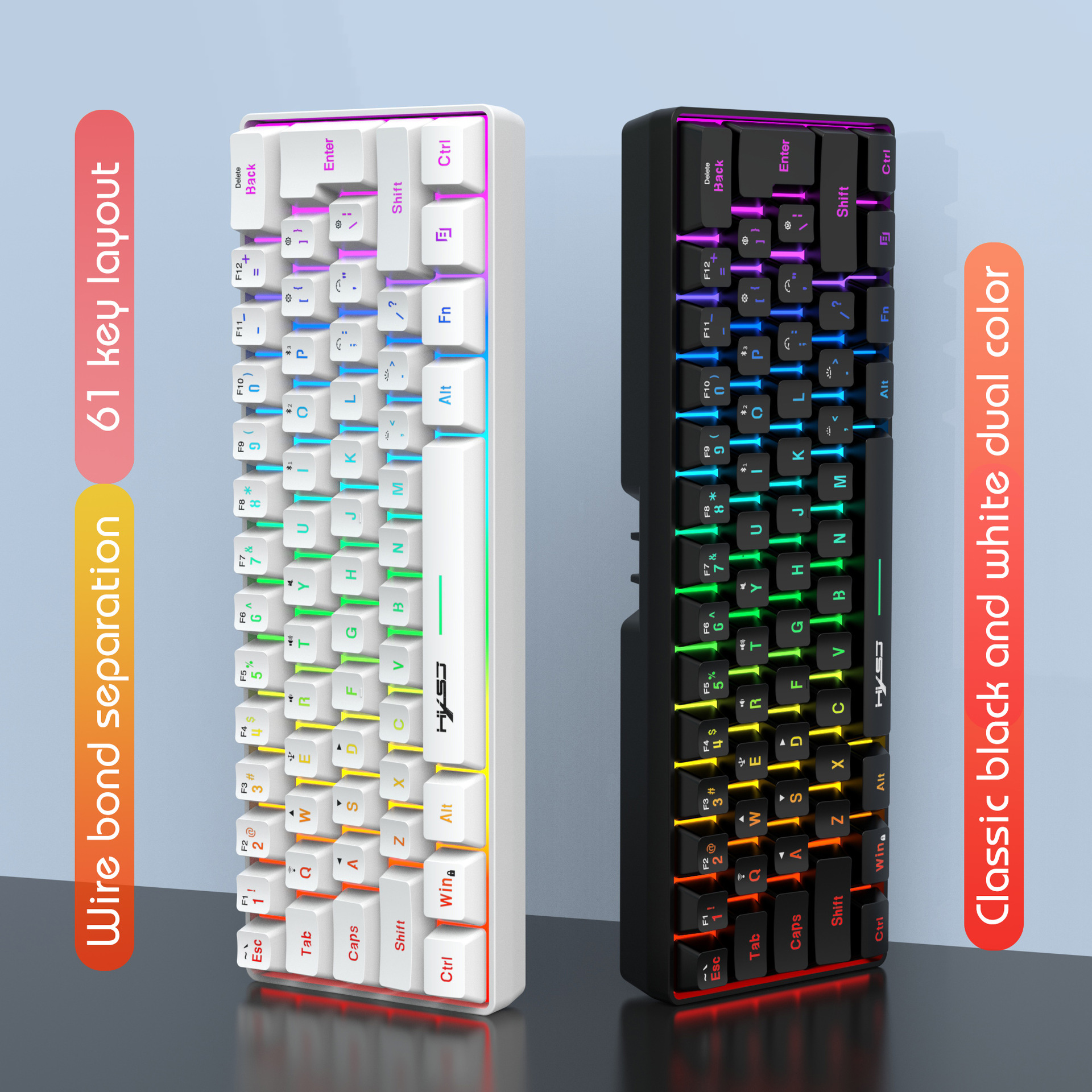

Number of keys: 61 Keys

Button life:10 million times or more

Operating Voltage:3.3V~4.2V DC

Working current:50mA (MAX)

Charging Cable:1.7m±0.3m Type-C Interface

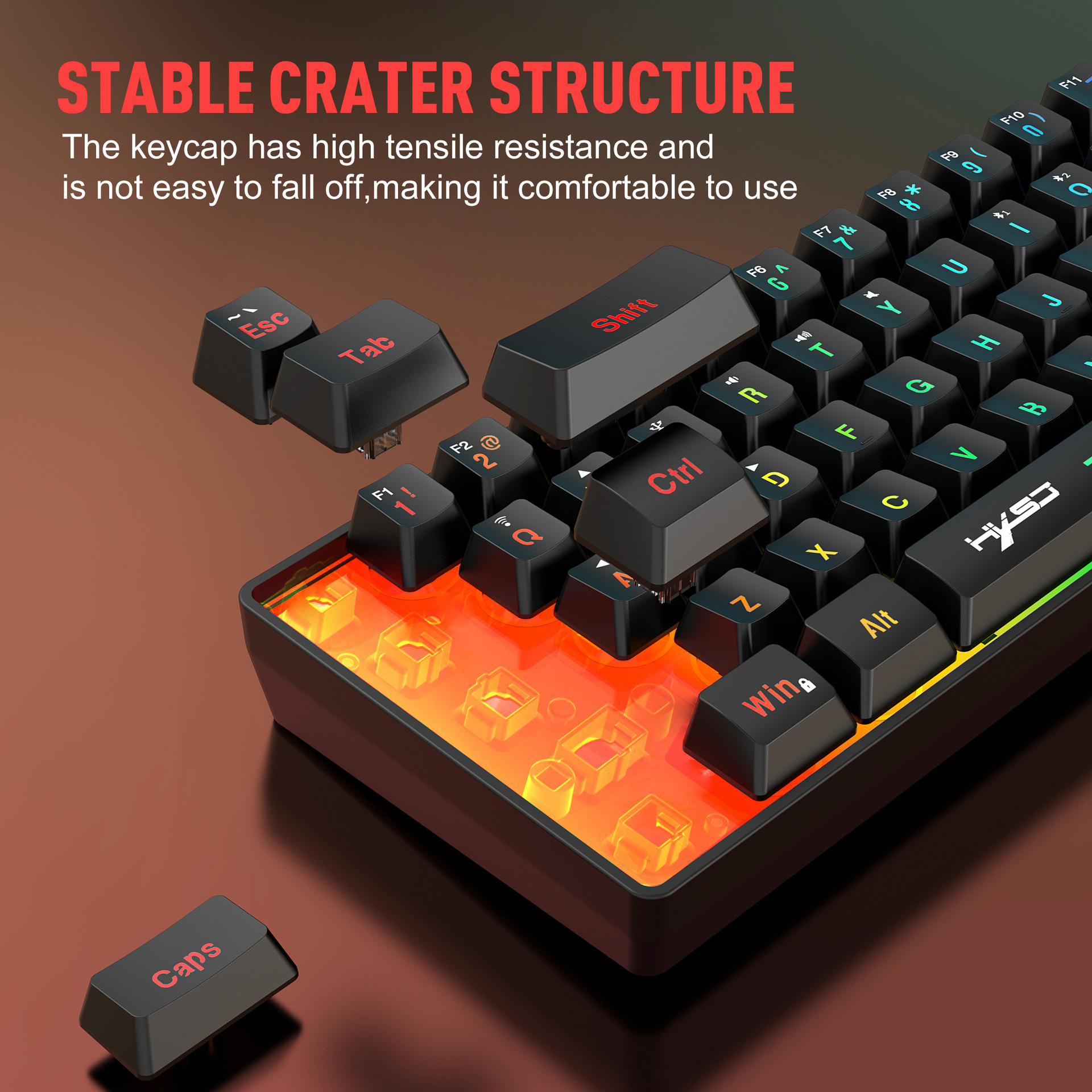

Key cap material :ABS

Key cap production process:Oil injection radium carving process glow

Multimedia:With multimedia (laser carving)

Product weight: 391g

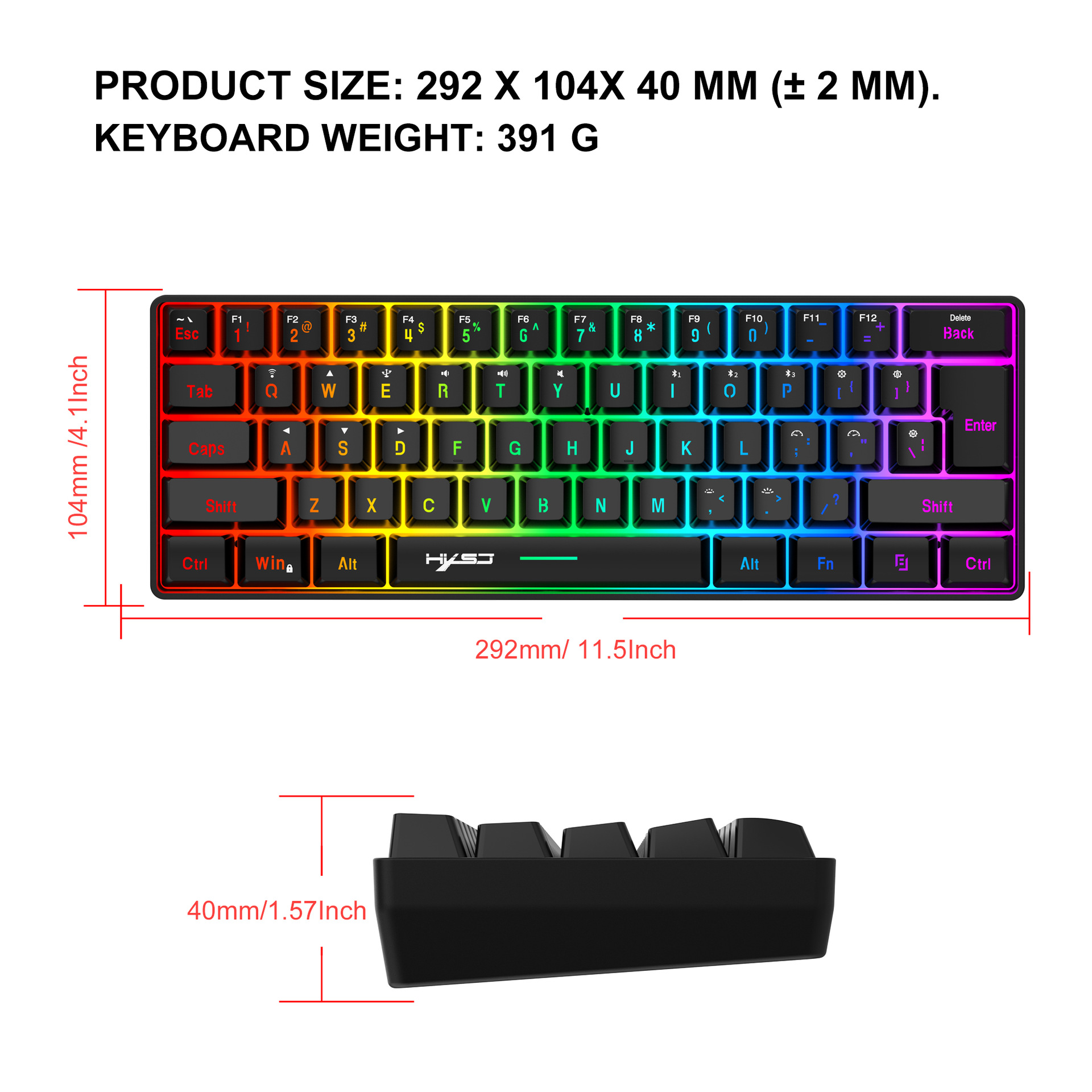

Product size: 29.2*10.2*4CM

Package size: 32*13*4.5cm

Package weight: 540g

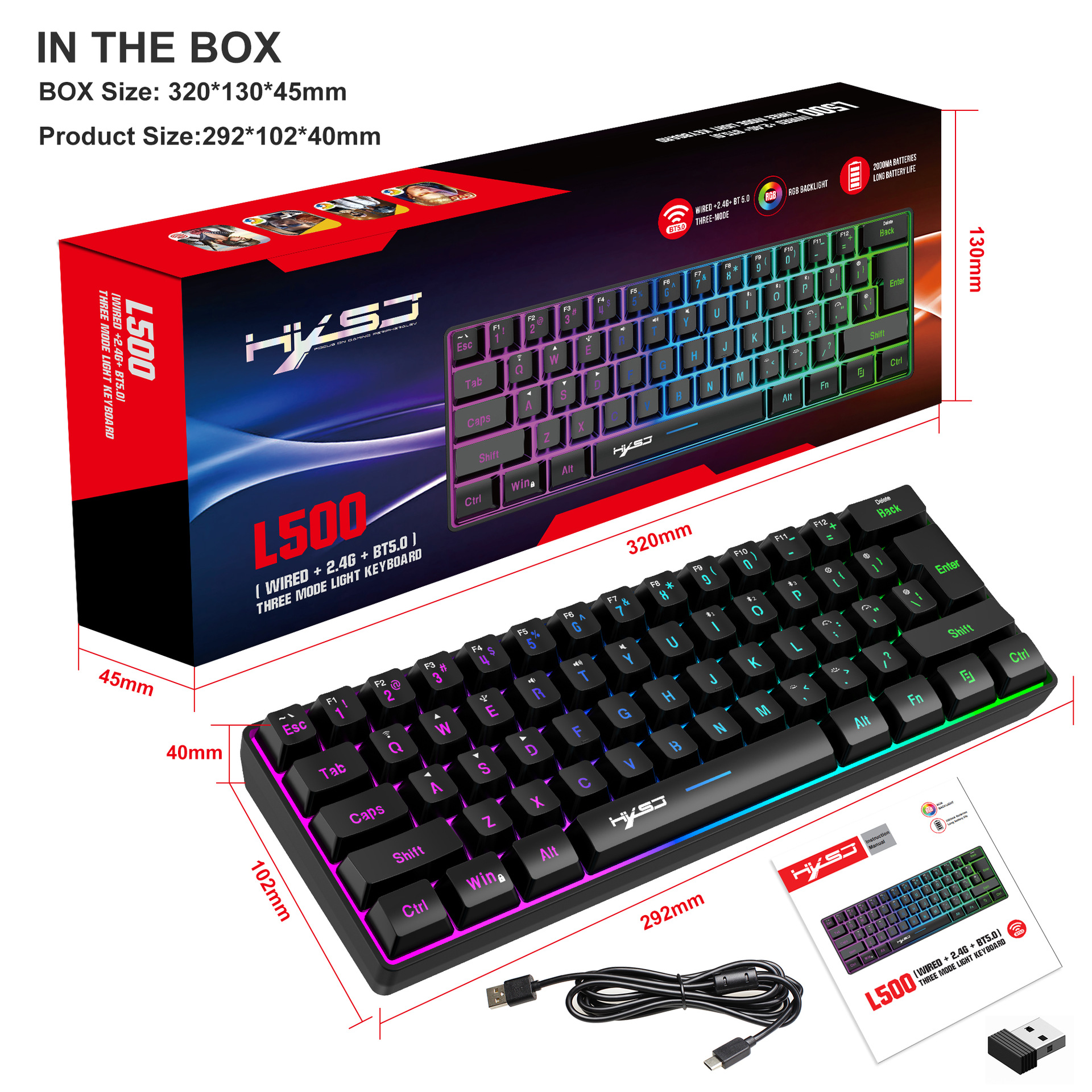

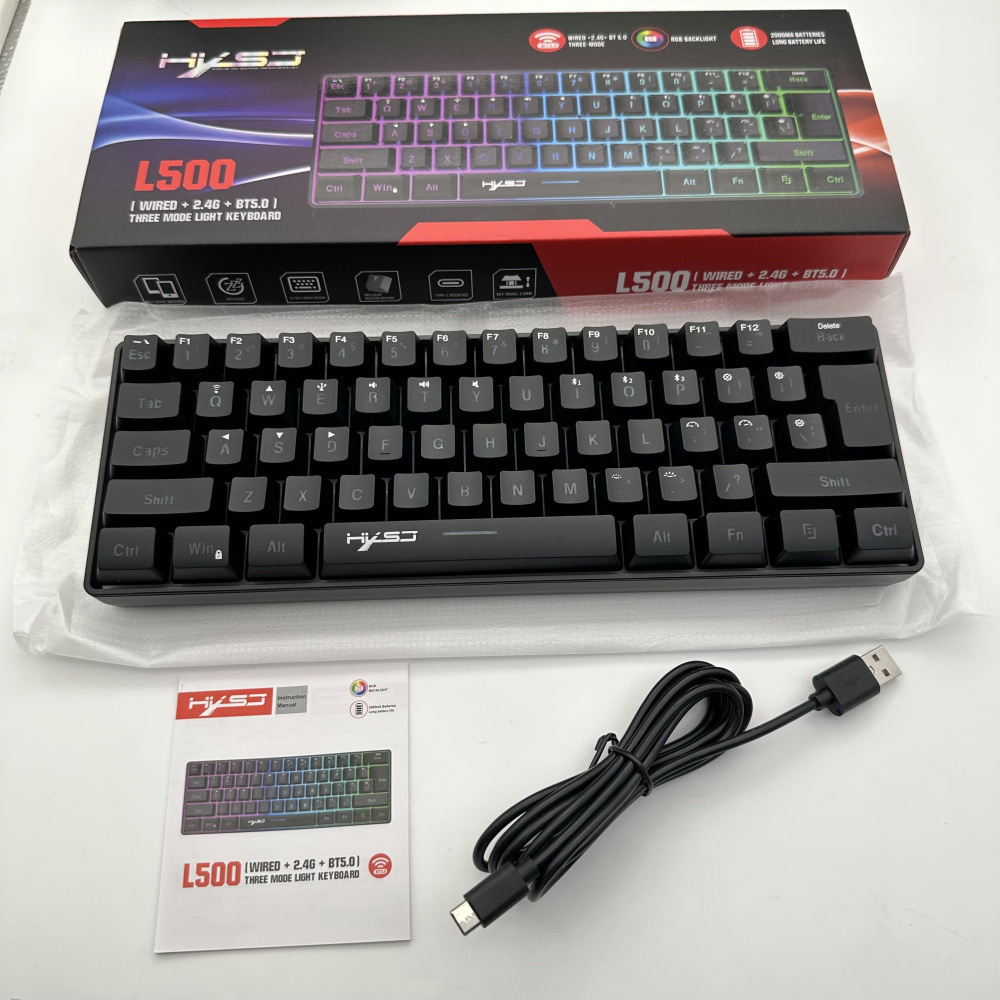

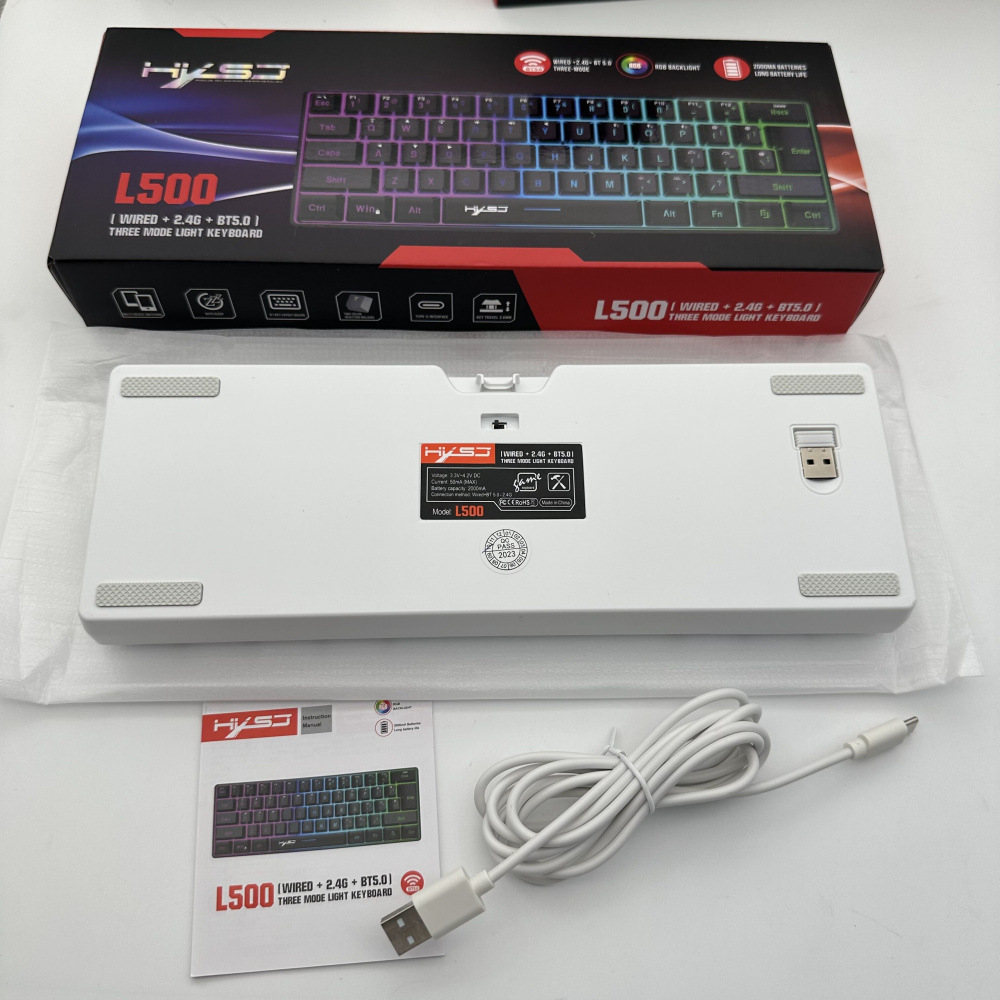

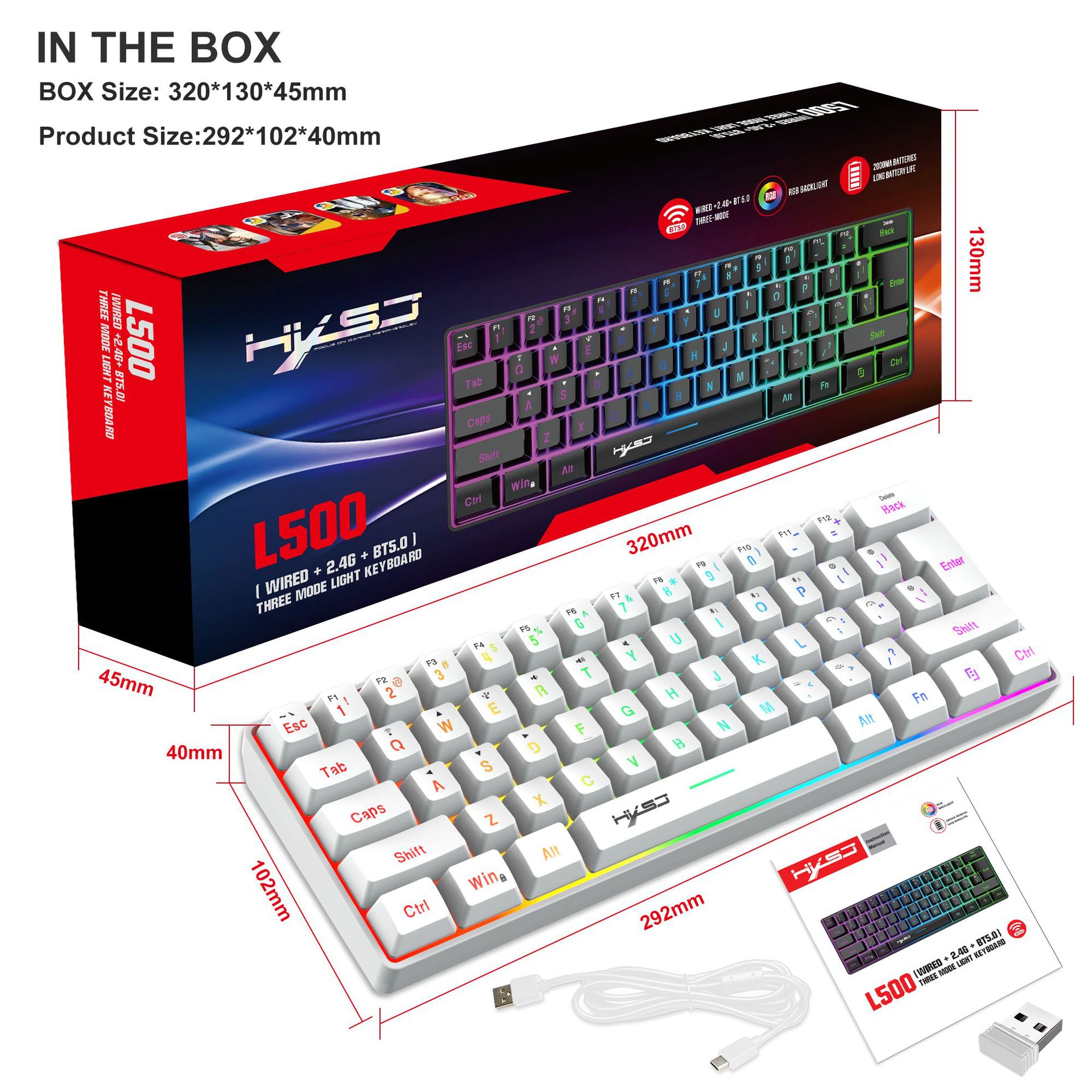

Package included:

1x Gaming keyboard

1x USB receiver

1x 1.7M Type-C charging cable

1x English User manual

System compatibility:

Compatible with IBM PC Win98SE/Me/2000/XP/VISTA/WIN 7/WIN10/WIN11 and Mac OS and Linux the latest system

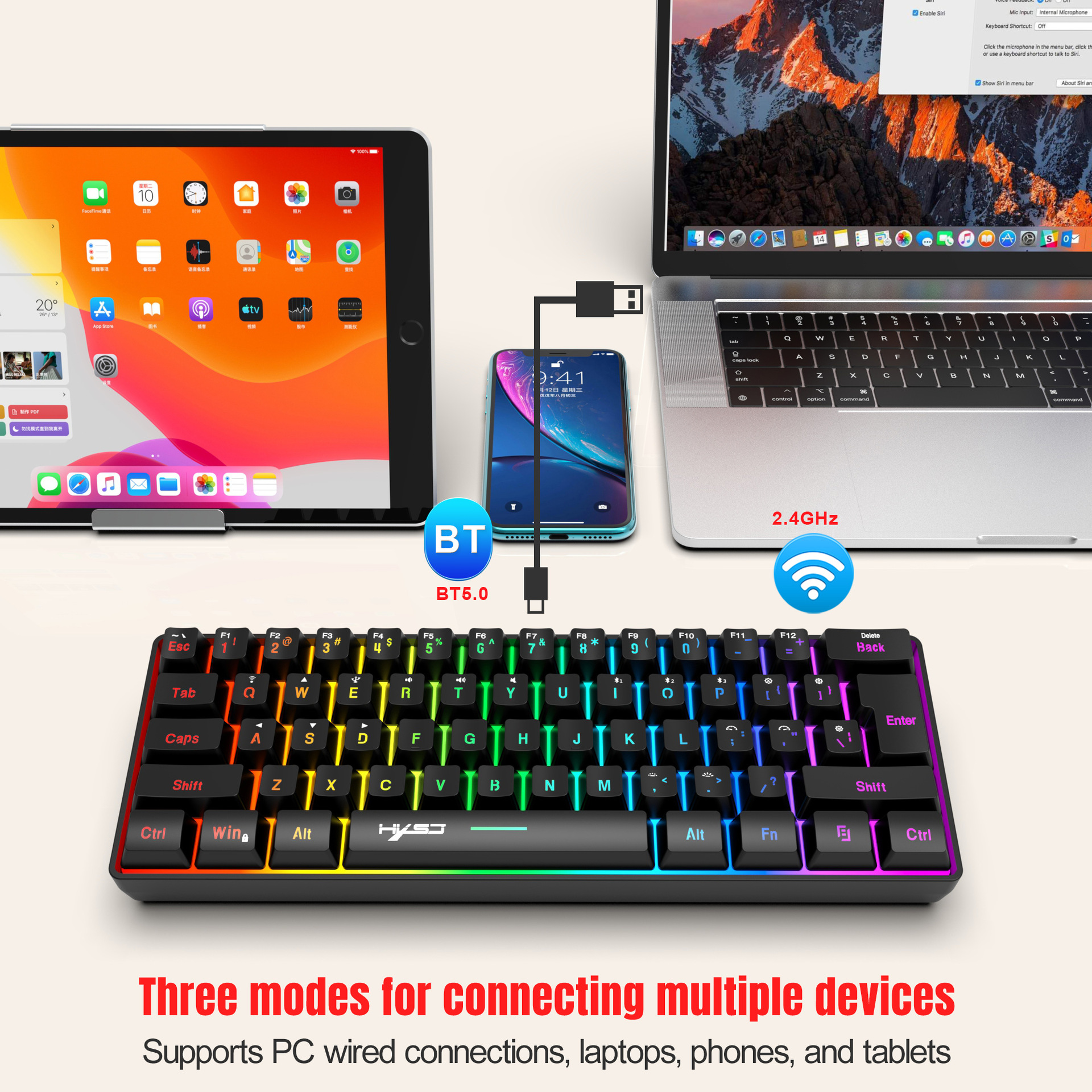

Supported devices:

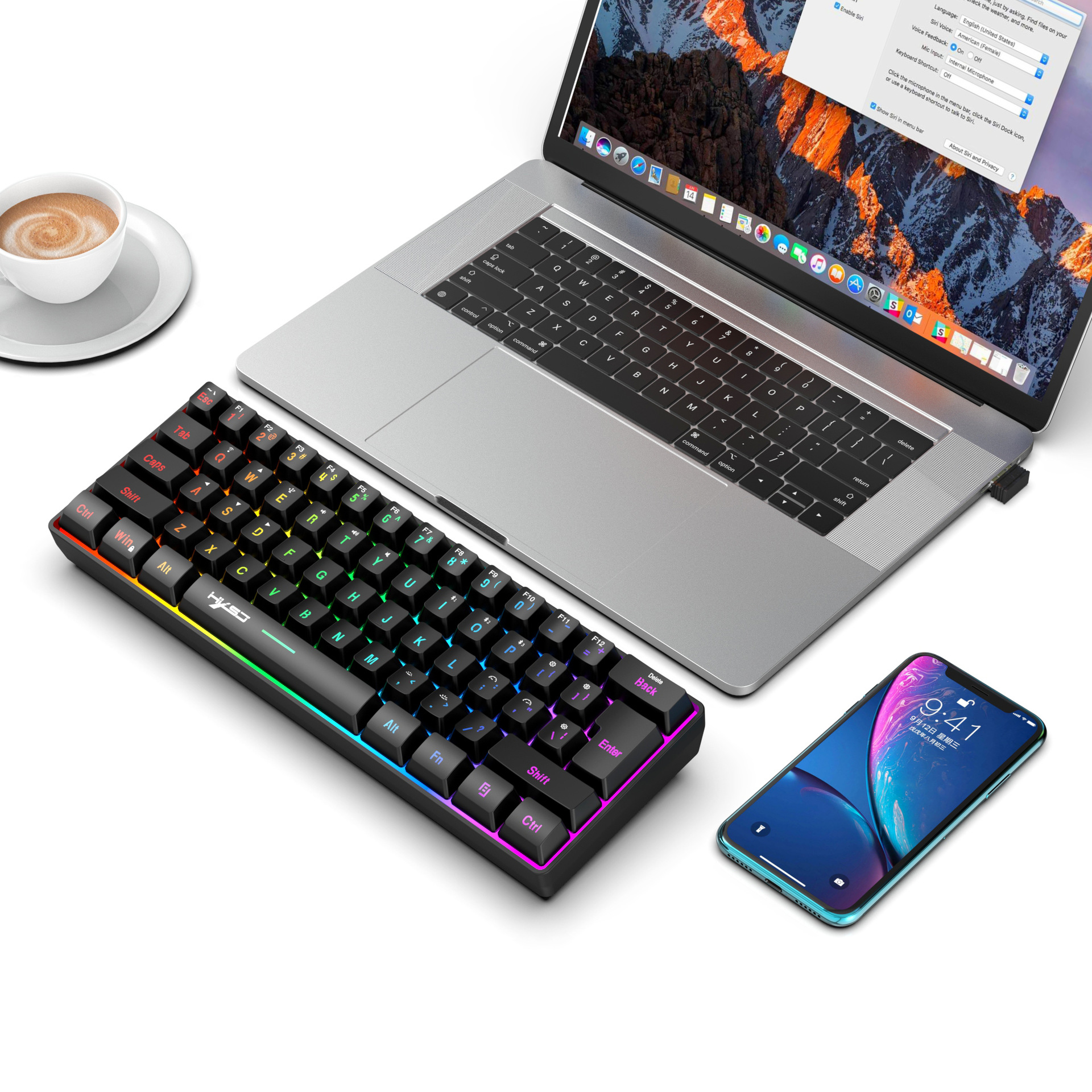

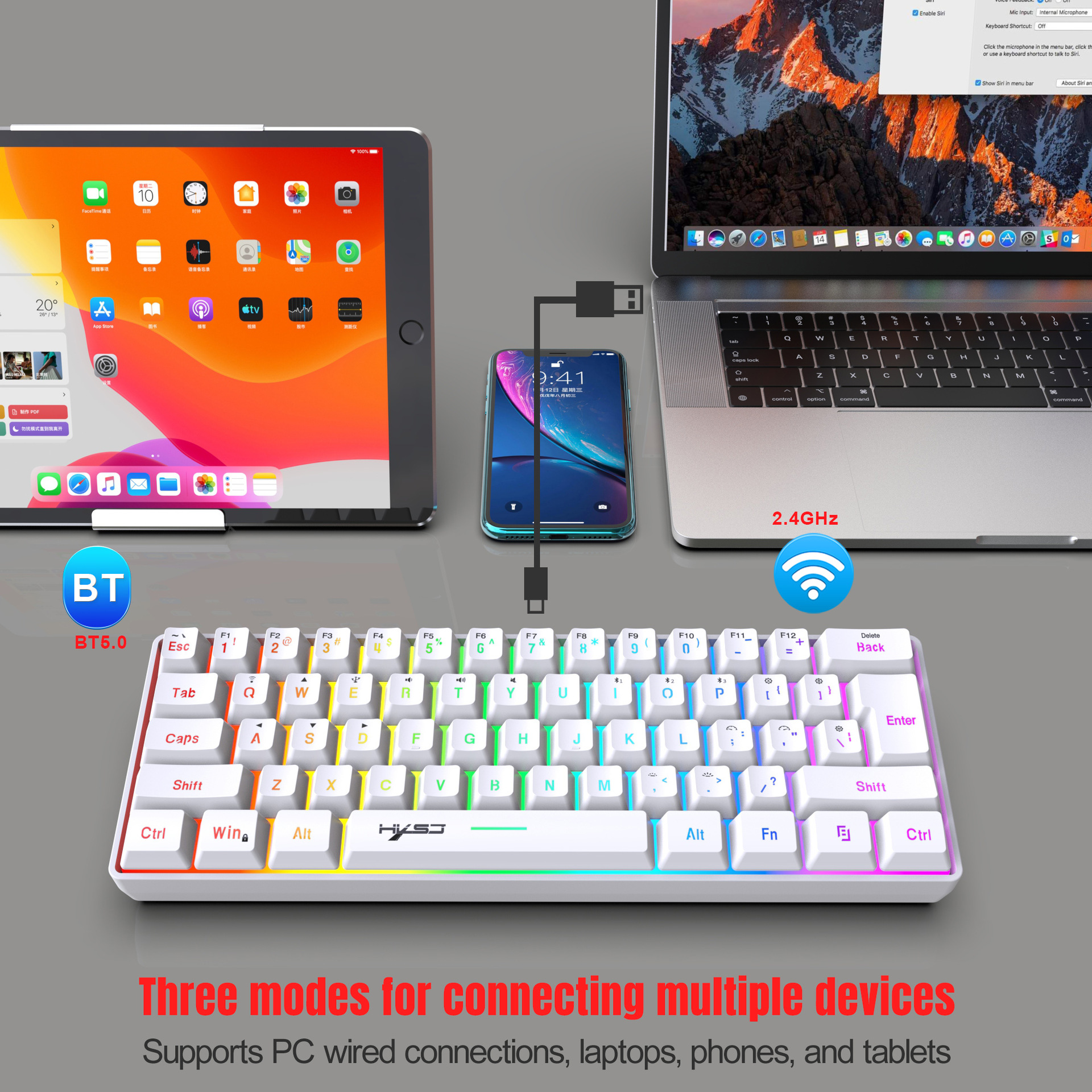

 Multiple devices such as mobile phones, tablets, and desktop computers can be connected at the same time.

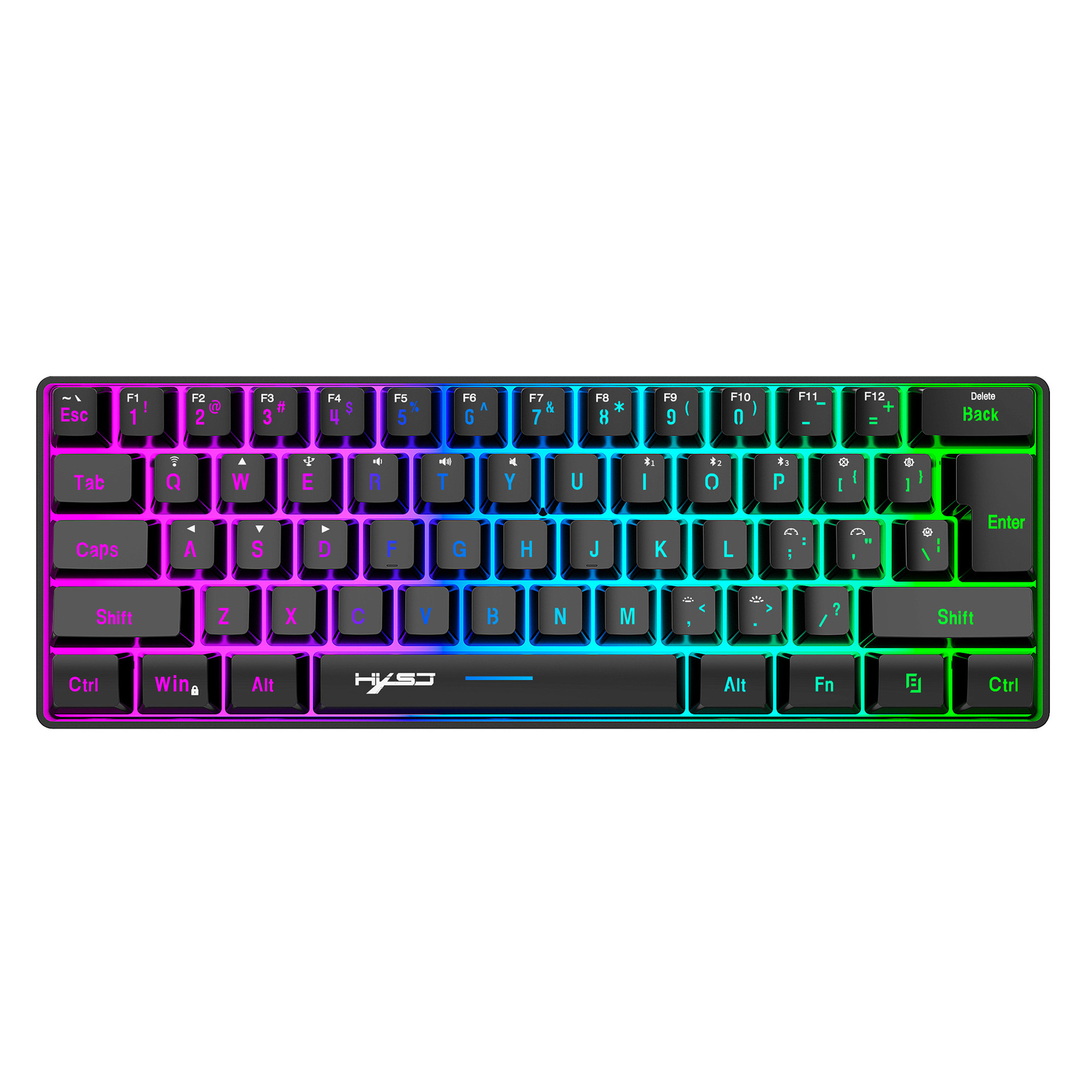

Compound function key switch:

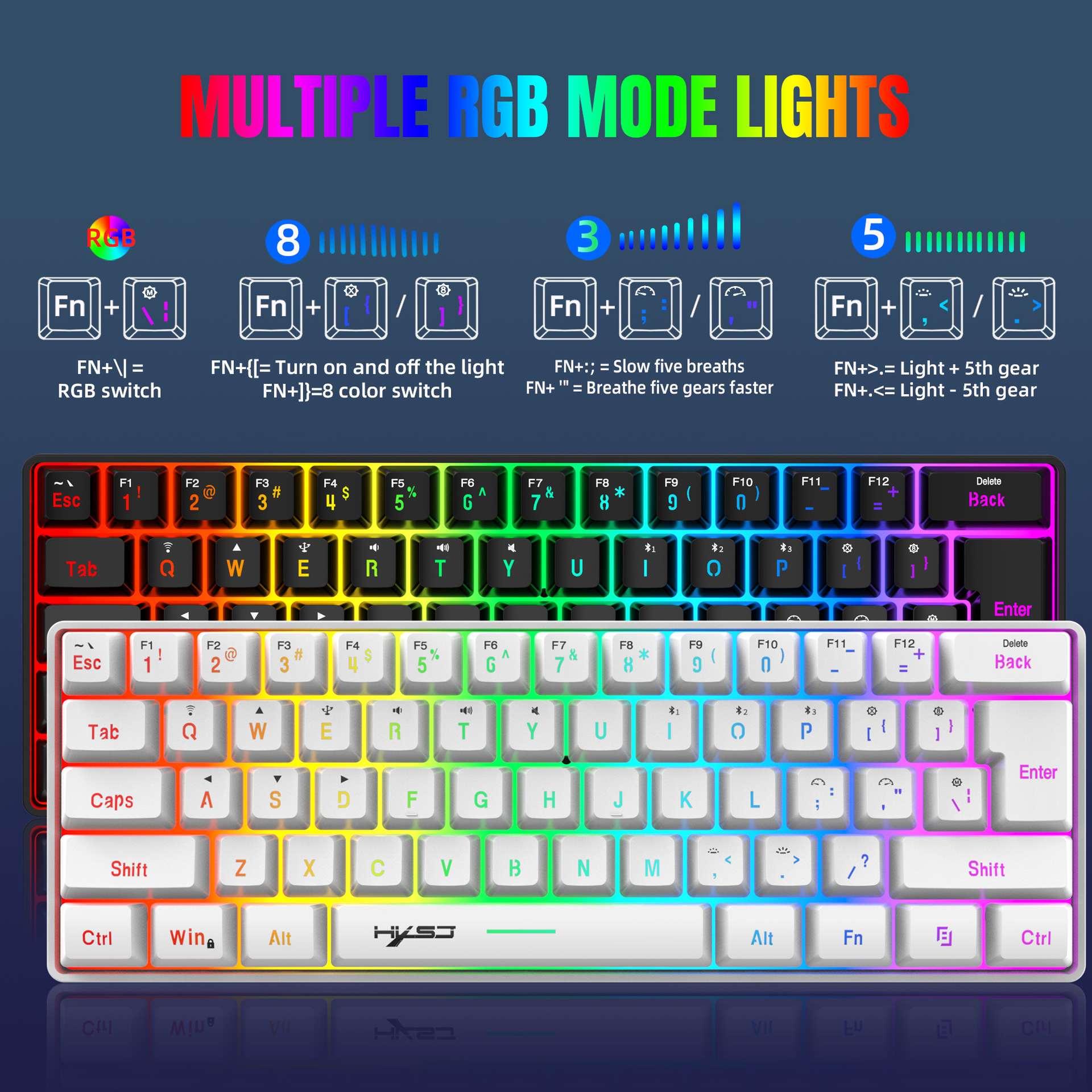

Backlight adjustment:

FN+{[= Turn on and off the light

FN+]}= 8 color switch

FN+\|= RGB switch

FN+>.= Light + 4th gear

FN+.<= Light - 4th gear

FN+:; = Slow four breaths

FN+ '" = Breathe four gears faster

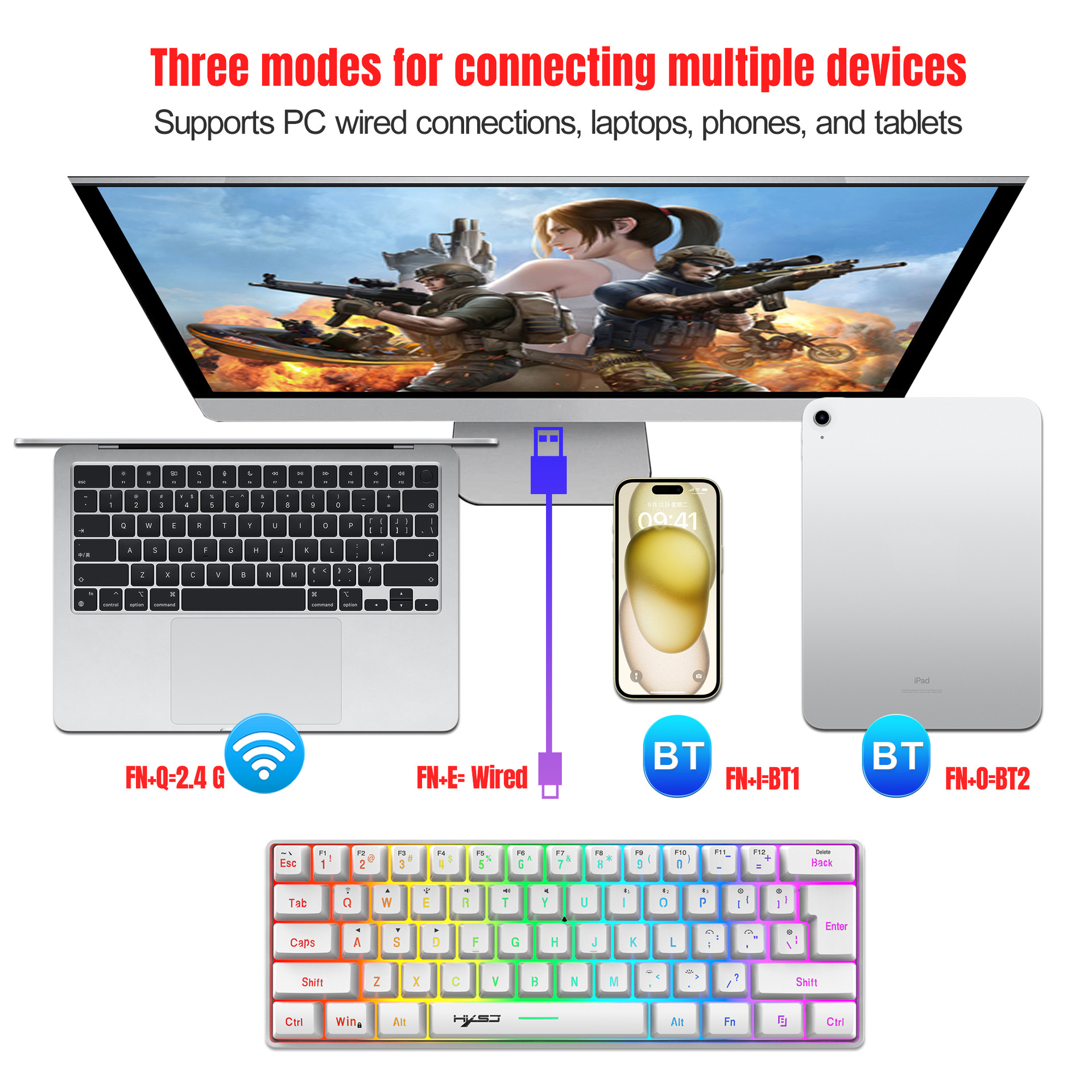

Compound function key switch:

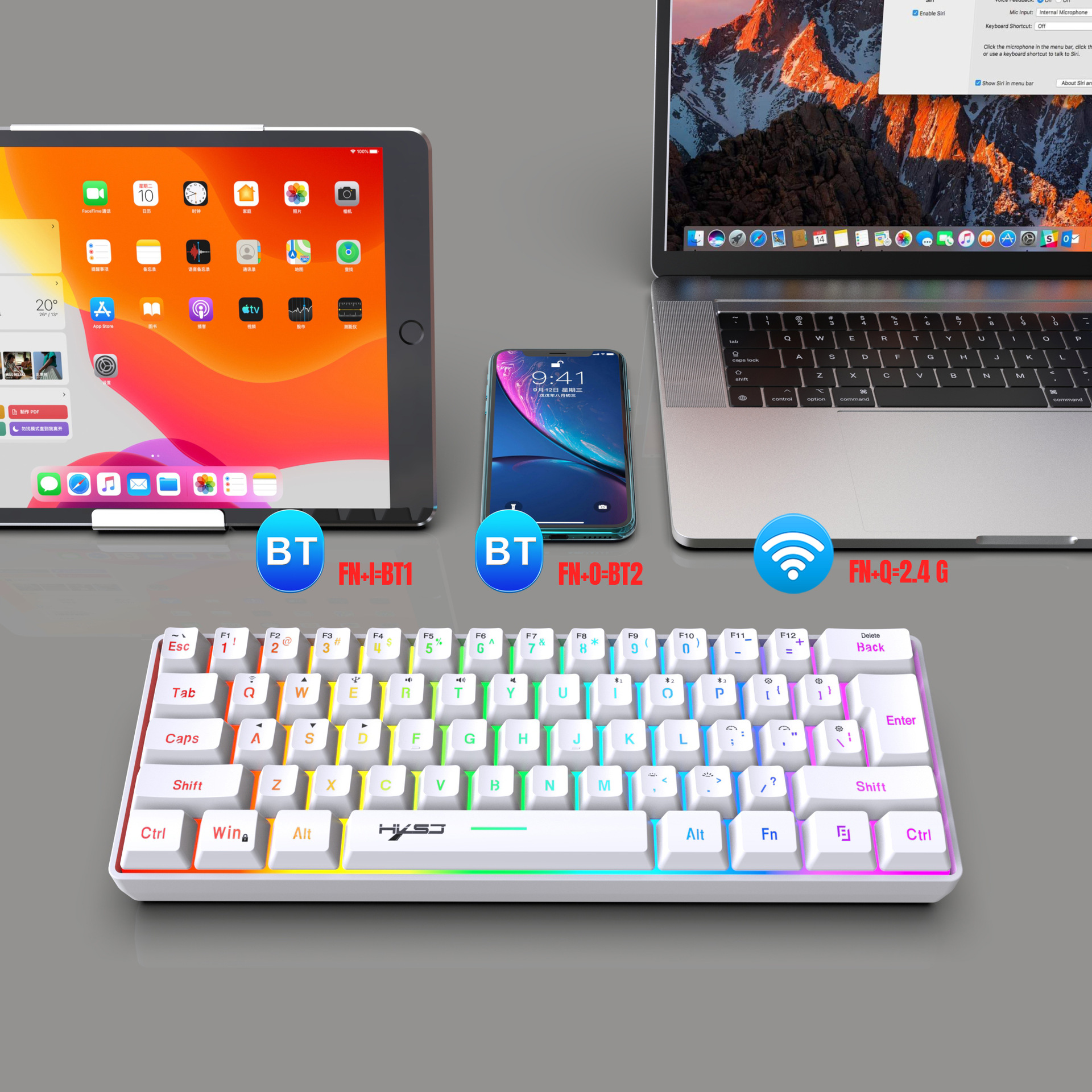

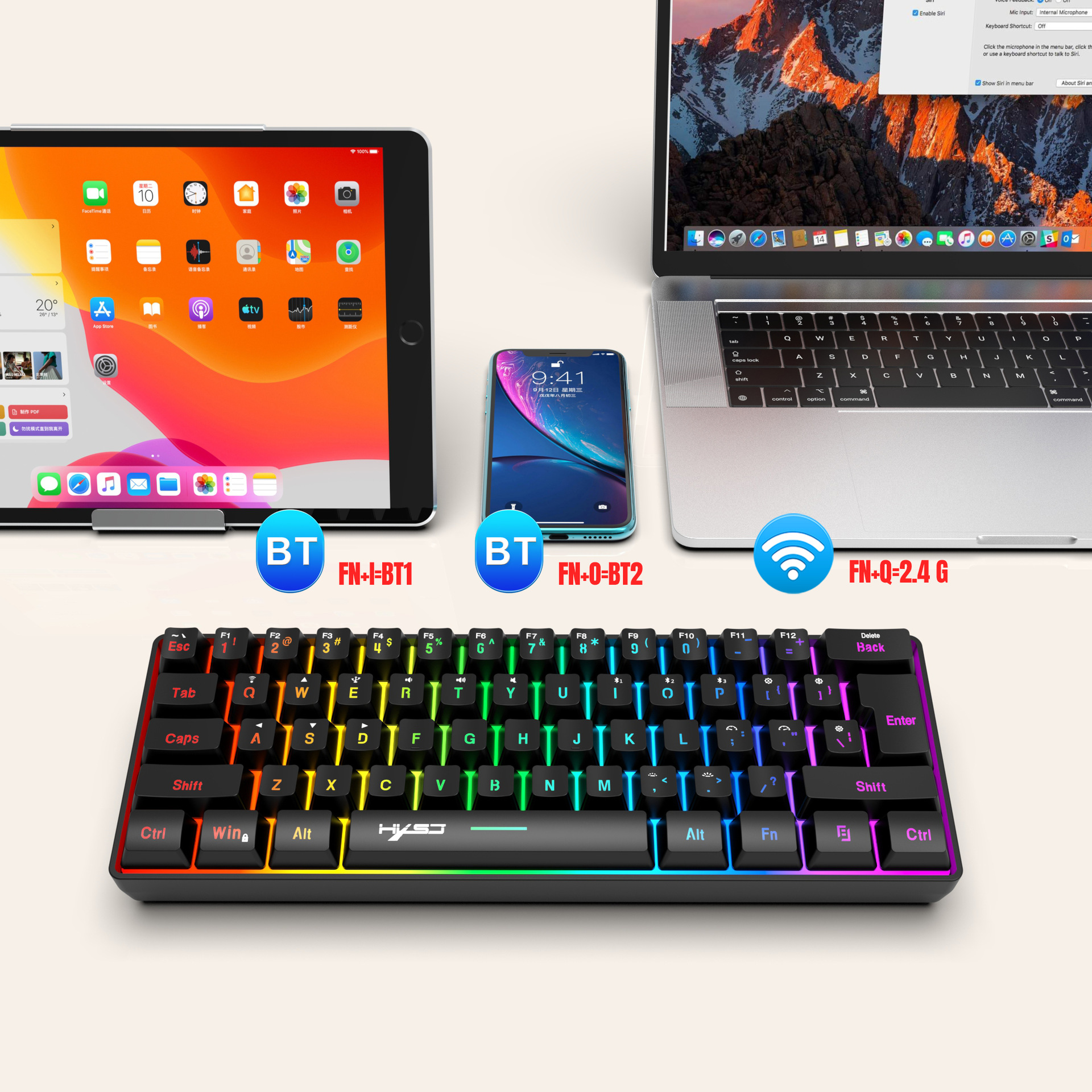

FN + Q = 2.4 G

FN+I= BT 1

FN+O= BT 2

FN+P= BT 3

FN+E= Wired

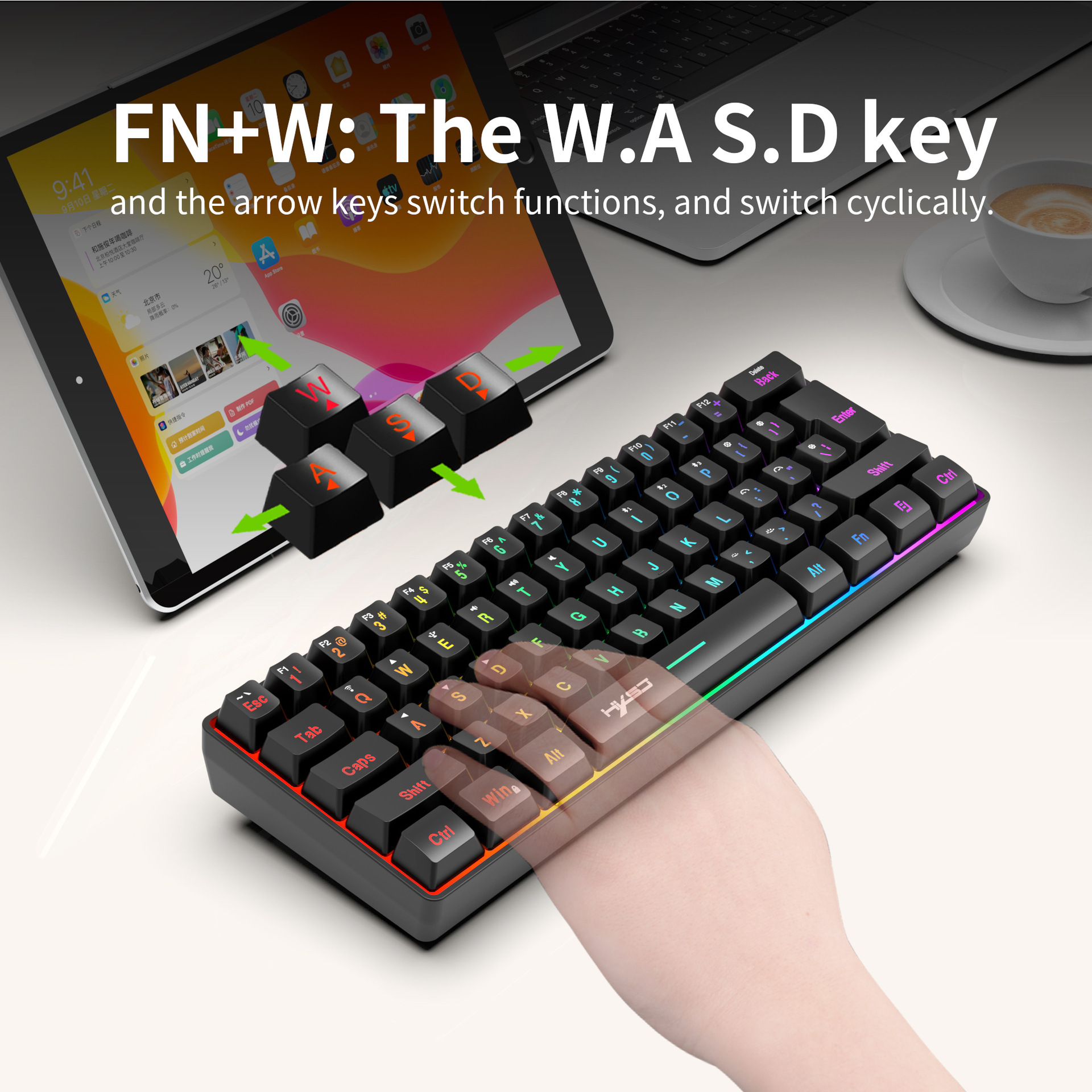

FN+W= Toggle arrow keys

FN+R= Volume -

FN+T= Volume +

FN+Y= Mute

FN+ESC=~`

FN+1! key: F1

FN+2@ key: F2

FN+3# key: F3

FN+4$ key: F4

FN+5% key: F5

FN+6^ key: F6

FN+7& key: F7

FN+8* key: F8

FN+9 (Key: F9

FN+0) key: F10

FN+- key: F11

FN+ =+ key: F12

FN+Back key: Delete

FN+Win =Lock the key Win and APP

Bluetooth Connection:

1. Turn the switch at the bottom of the keyboard to ON.

2. Press and hold the key FN+I= BT1, FN+O= BT2, FN+P= BT3. At this time, the green light flashes

rapidly under the F3 key, and the keyboard enters the state of sending Bluetooth code pairing (code

pairing mode).

3. Open your Bluetooth device search, find BT name, click Connect, LED stop flashing, Bluetooth

connection successful.

2.4G connection mode:

1. Turn the switch at the bottom of the keyboard to ON.

2. Hold down the FN+Q key. The green indicator under the F3 key blinks rapidly. Keyboard entered 2.4G

pairing mode.

3. Insert the 2.4G receiver. After the connection is successful, the green light of E key will no longer

blink.

Wired connection:

1. Turn the switch at the bottom of the keyboard to OFF.

2. Hold down the FN+E key. The green indicator under the F3 key blinks rapidly. Plug the keyboard cable USB port into the computer Settings to complete the connection.

◎Automatic sleep power saving mode:

Supports not operating the keyboard within 30 seconds, the backlight turns off by itself, the keyboard enters the sleep state, press any key to wake up.

◎The charging indicator light is red when charging, and the light is off when fully charged.

When the low voltage indicator is flashing, it indicates that the battery is insufficient, please charge it

in time;

◎Built-in 2000mA capacity battery, fully charged with 5V/1A equipment in about 2 hours; you can continue to use this product while charging.
