Physical Parameter

Design

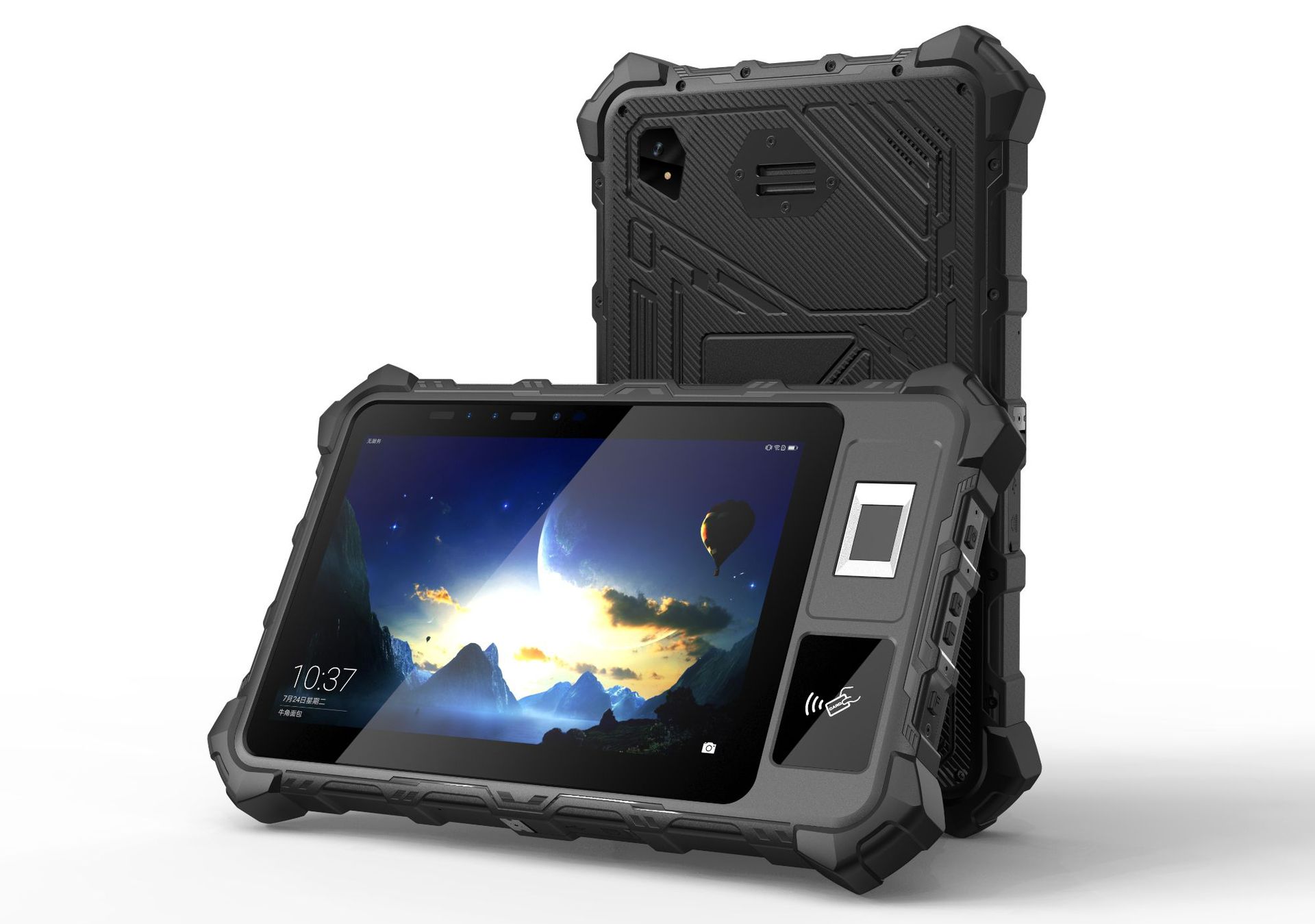

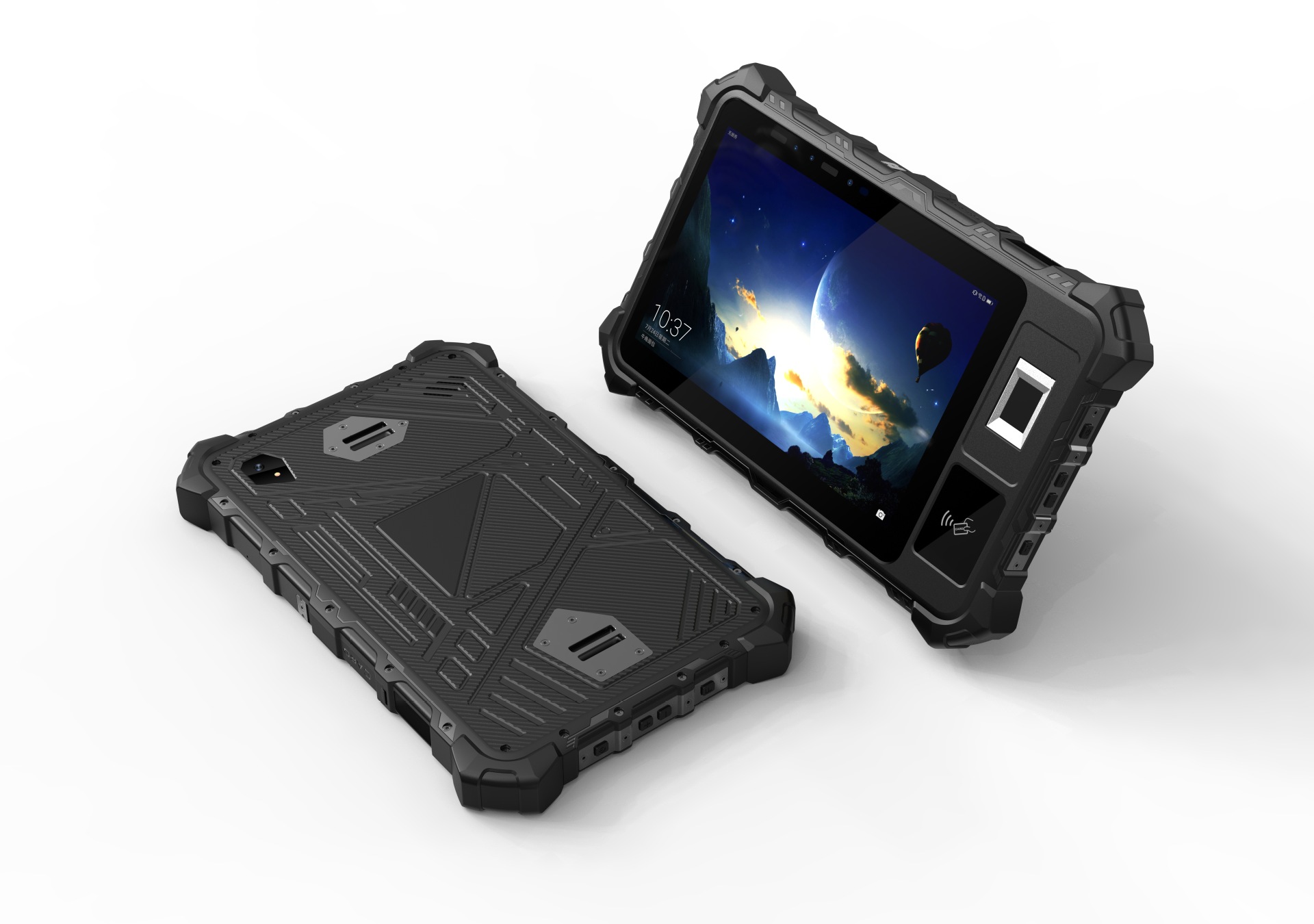

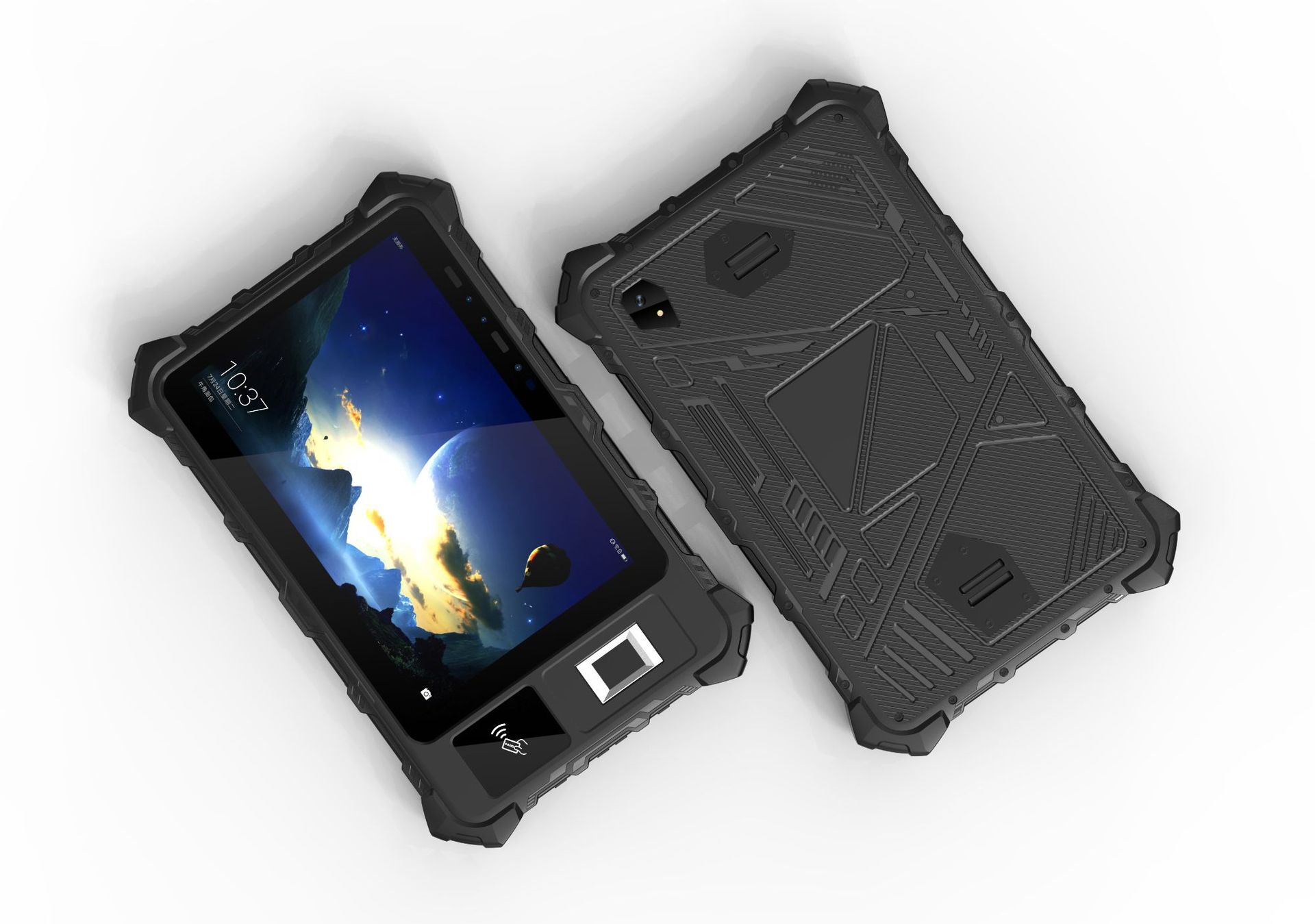

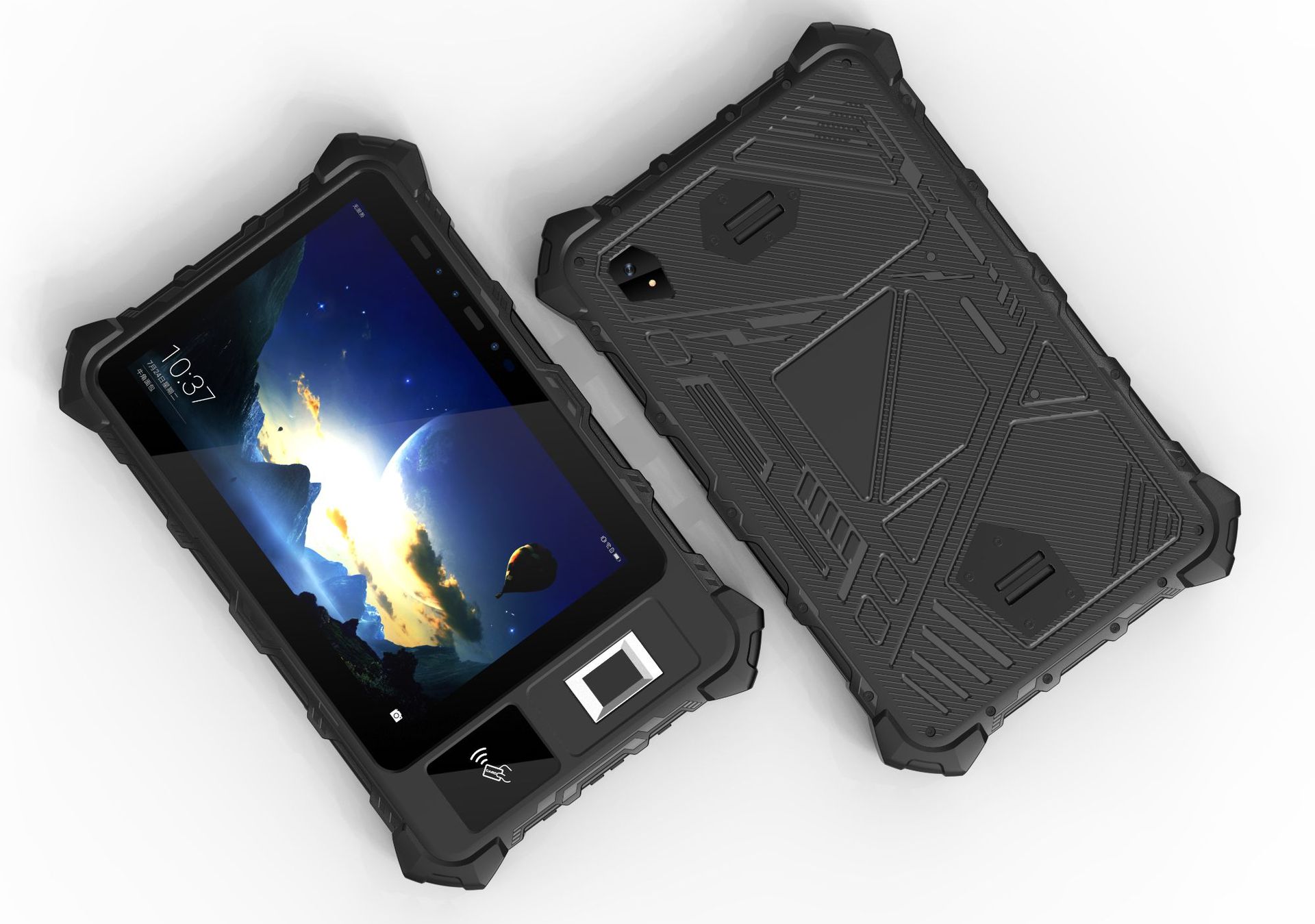

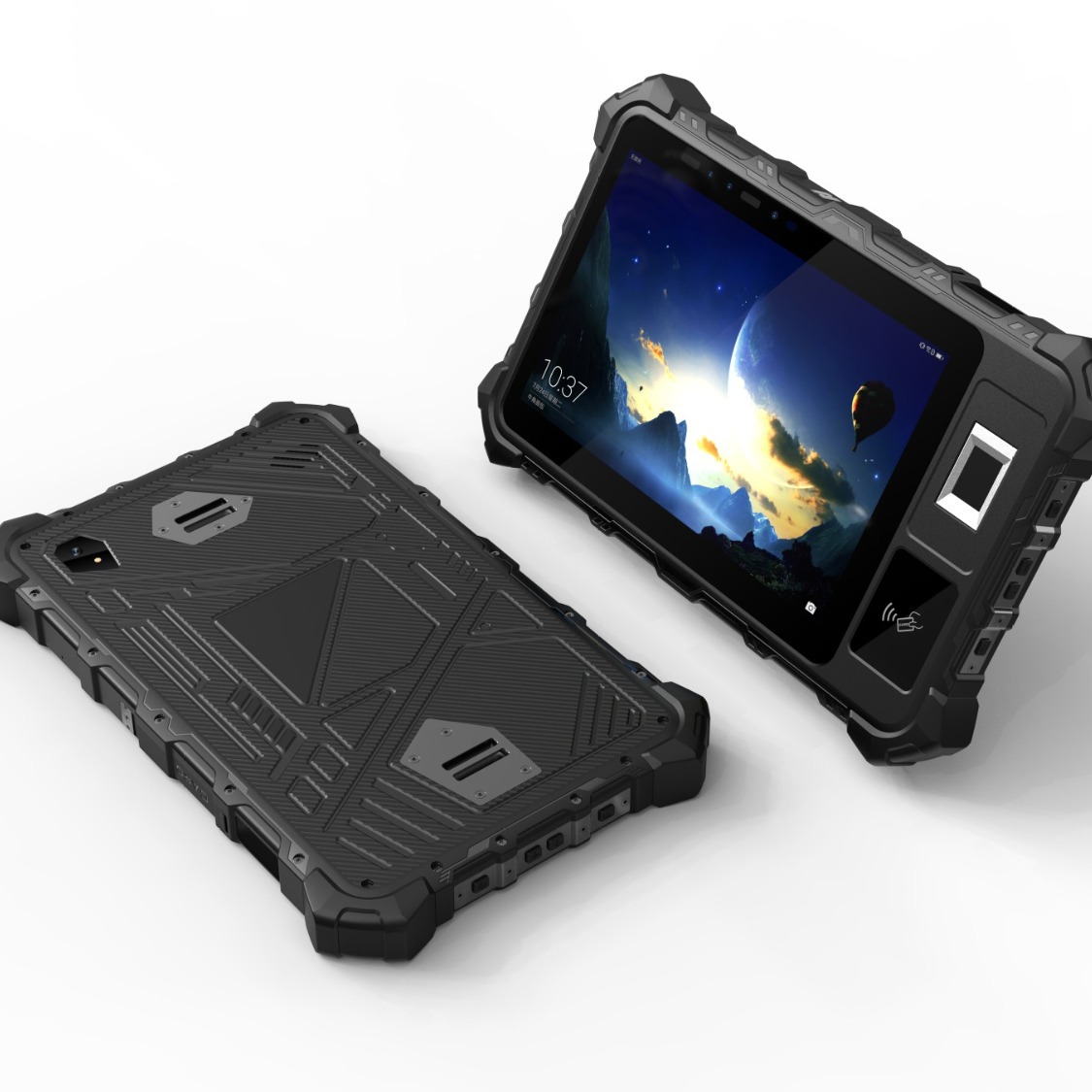

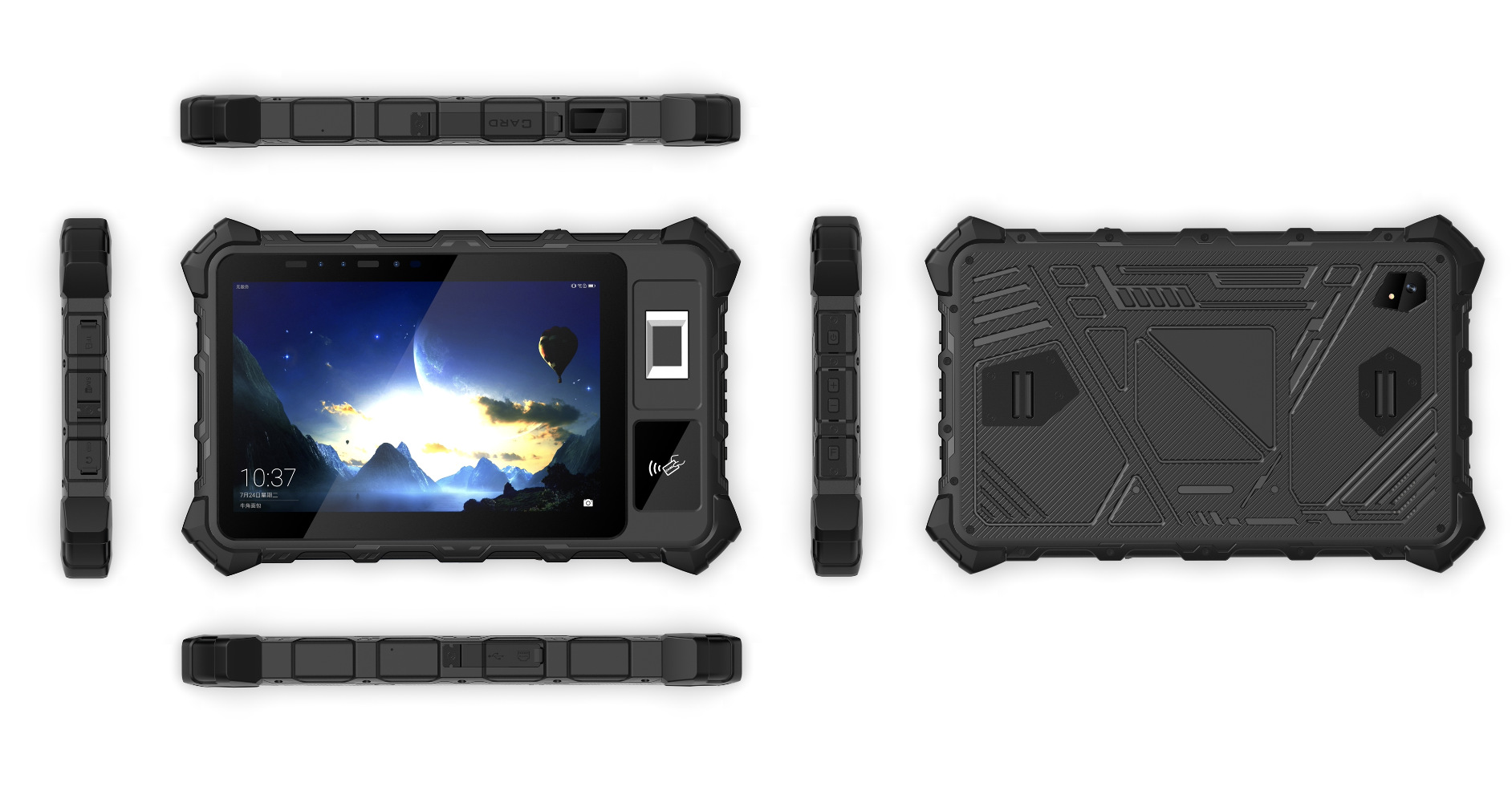

8“Tablet

Keys

scanner, power, volume+, volume-

Size

240*155*18mm

Weight

650g (including battery)

Colour

Black/white

Performance Parameter

OS

Android 10.0  （Option Android 13）

CPU

MTK6765  8 Core  2.3Ghz    ARM Cortex-A53 CPU， 680 MHz  IMG PowerVR GE8320 GPU

Storage

4GB RAM+64GB Flash, (Option: 6GB RAM+128GB Flash)

Display

8 inch IPS, resolution: 1280*800  （ Option:FHDv1920*1200）

Touch Screen

Capacitive touch screen, Multi-touch support

Camera

Front: 5.0M, auto focus

Rear:13.0M, PDAF, flashlight

Charge/communication interface

Type C interface, support USB2.0, high speed transmission,  support OTG

Memory extension

Support Micro SD card, up to 128GB

SIM/TF slot

SIM1 slot and SIM2 slot and T-Flash card

Battery

Built-in non-detachable lithium battery, 3.85V, 8000mAh,6 hours full of electricity(Option:10000mAh)

Battery Life

Continue working: ＞8H

Screen bright standby: ＞12H

Sleep standby: ＞500H

Sensor

Support G-sensor, L-sensor, Proximity sensor, Compass, (Option:Gyroscope )

Speak

Support, built-in  double horn

Microphone

Support, built-in double SMT mic,noise reduction

Vibrating Alert

Support, built-in SMT vibration motor

Notification

Communication Parameter

WIFI

Built-in wifi antenna, dual frequency 2.4G (2402-2482 MHz), 5.8G (5180-5825 MHz), IEEE 802.11a/b/g/n

Bluetooth

Built-in Bluetooth antenna, CLASS 2 power, BT5.0 LE standard,z

WAN

LTE-FDD:B1/B3/B5/B7/B8/B20

LTE-TDD:B38/B39/B40/B41;

WCDMA:B1/B2/B5/B8;

GMS: 850/900/1800/1900

GPS

Integrated GPS, GLONASS, accuracy 8m, built-in antenna

Optional Functions

Contact card reader

Supported Tag ICs  All major ISO/IEC 7816 compliant Smart Card IC support

PSAM Slot

PSAM card*2

RJ45/Type-A (USB A)

support RJ45 (100m/s) Type-A*1 (USB A)

NFC

Basic configuration, built-in antenna; NXP  chip, support ISO/IEC 14443 A, ISO/IEC 14443 B, MiFare S50, S70, reading distance 0-5cm, depending on tag types

1D/2D Bar code Scanner

2D, Support bar code type:

UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post

2D Stacked: PDF417, MicroPDF417, GS1 Composite

2D Matrix: Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code

Postal: Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code

OCR Option: OCR-A, OCR-B, E13B (MICR)

Fingerprint reader

Option Type：FAP10 Integrated Fingerprint Modules,FAP20 optical  sensor ,FAP30 optical  sensor

Sensing Area: 14*22mm/300*400 pixels /resolution 500dpi,256 greylevel

Certifications : FIPS PIV IQS/ISO 19794-4,MINEX & meet the FBI’s FIPS-201 image quality criteria

Working Environment

Working temperature

-10℃～+50℃

Storage temperature

-20℃～+60℃

Working humidity

<90％RH

Storage humidity

20％～93％RH(40℃)

Atmospheric pressure

86Kpa～110Kpa

Accessories

Accessories

Packing box. Charger. DC charging line.  Type-c cable.

Charge

Chinese standard, European standard, American standard, British standard (optional)
