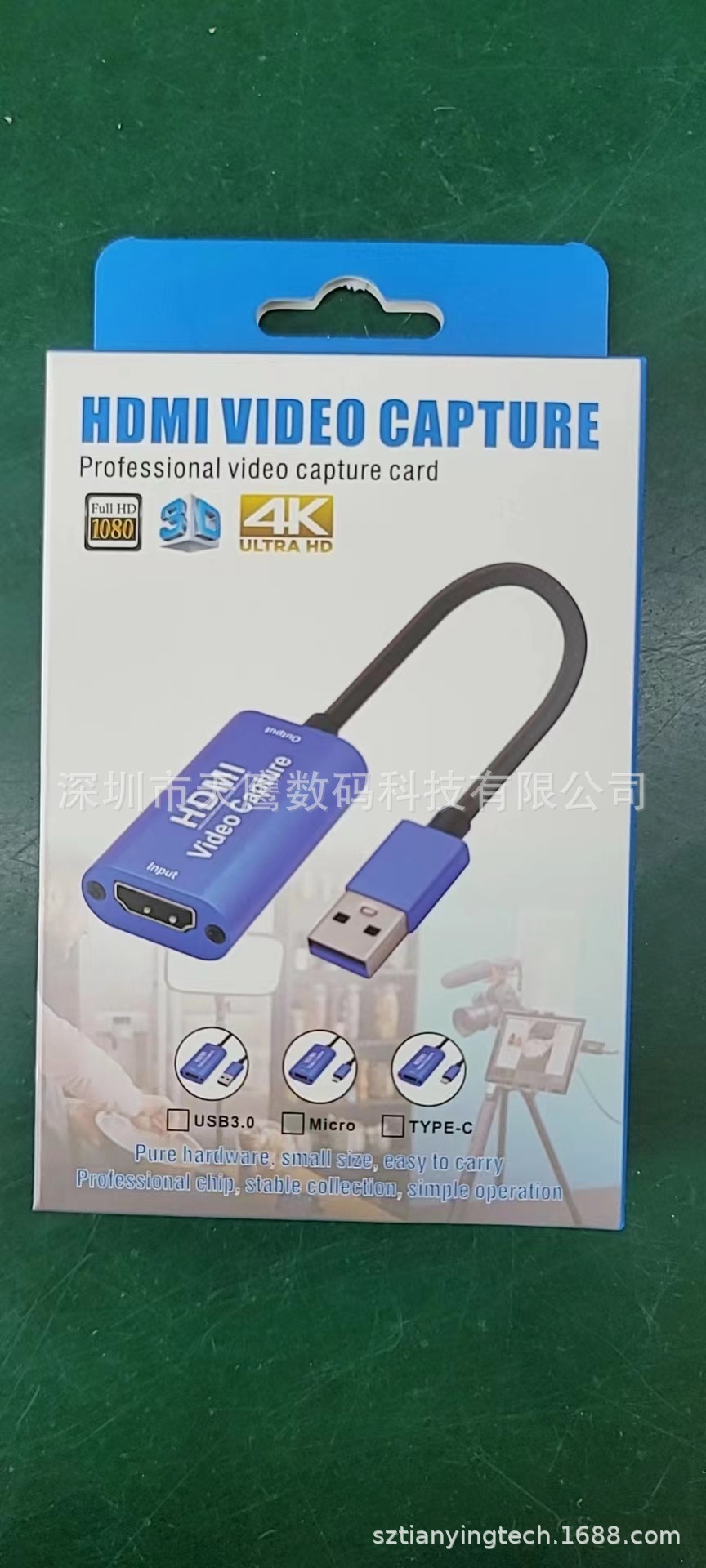

This USB 3.0 capture card can capture both HDMI video and HDMI audio at the same time.
The number is transferred to the computer and smart phone for preview and storage. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:
* Support the maximum input resolution of 3840×2160@60Hz;
* Support the maximum output resolution of 1920×1080@60Hz;
* Support 8/10/12 bit color depth;
* When using standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc.;
* Support Windows, Android and MacOS;
* Comply with USB video UVC specification;
* Comply with USB audio UAC specification;
* No need for external power supply, compact and easy to carry.

specification:
HDMI resolution.........................................Maximum input can support 3840× 2160@60Hz
Video input format............................................... ......... 8/10/12 bit color depth
Video output mode......................................... ............. YUV, JPEG
Video output resolution............Maximum output resolution 1920×1080@ 60Hz
Support audio format............................................... ................. L-PCM
Input cable length............ ≤15 meters, AWG26 HDMI standard cable
Maximum working current............................................... ............. 0.4A/5VDC
range of working temperature............................................... ........ (-10 to +55℃)

这款USB 3.0采集卡既可以采集HDMI的视频也可以同时采集HDMI的音频，可以将音视频信
号传输到电脑、智能手机上预览和存储起来。适合用于高清采集、教学录制、医疗影像等。

特点:
* 支持输入分辨率达3840×2160@60Hz;
* 支持输出分辨率达1920×1080@60Hz;
* 支持 8/10/12位色深;
* 支持使用标准AWG26 线缆时，输入传输距离达15米，（1080P及以下分辨率）;
* 支持大部分采集软件，如VLC、OBS 、Amcap等;
* 支持Windows、Android和MacOS;
* 符合USB视频UVC规范;
* 符合USB音频UAC规范;
* 无需外接电源，体积小巧携带方便。

规格:
HDMI 分辨率 ......................................... 输入可支持3840×2160@60Hz
视频输入格式 ........................................................ 8/10/12位色深
视频输出模式 ............................................................ YUV、JPEG
视频输出分辨率 ...................................... 输出分辨率1920×1080@60Hz
支持音频格式 ................................................................ L-PCM
输入线缆长度 .......................................... ≤15米，AWG26 HDMI 标准线缆
工作电流 ............................................................ 0.4A/5VDC
工作温度范围 ....................................................... (-10 to +55℃)
