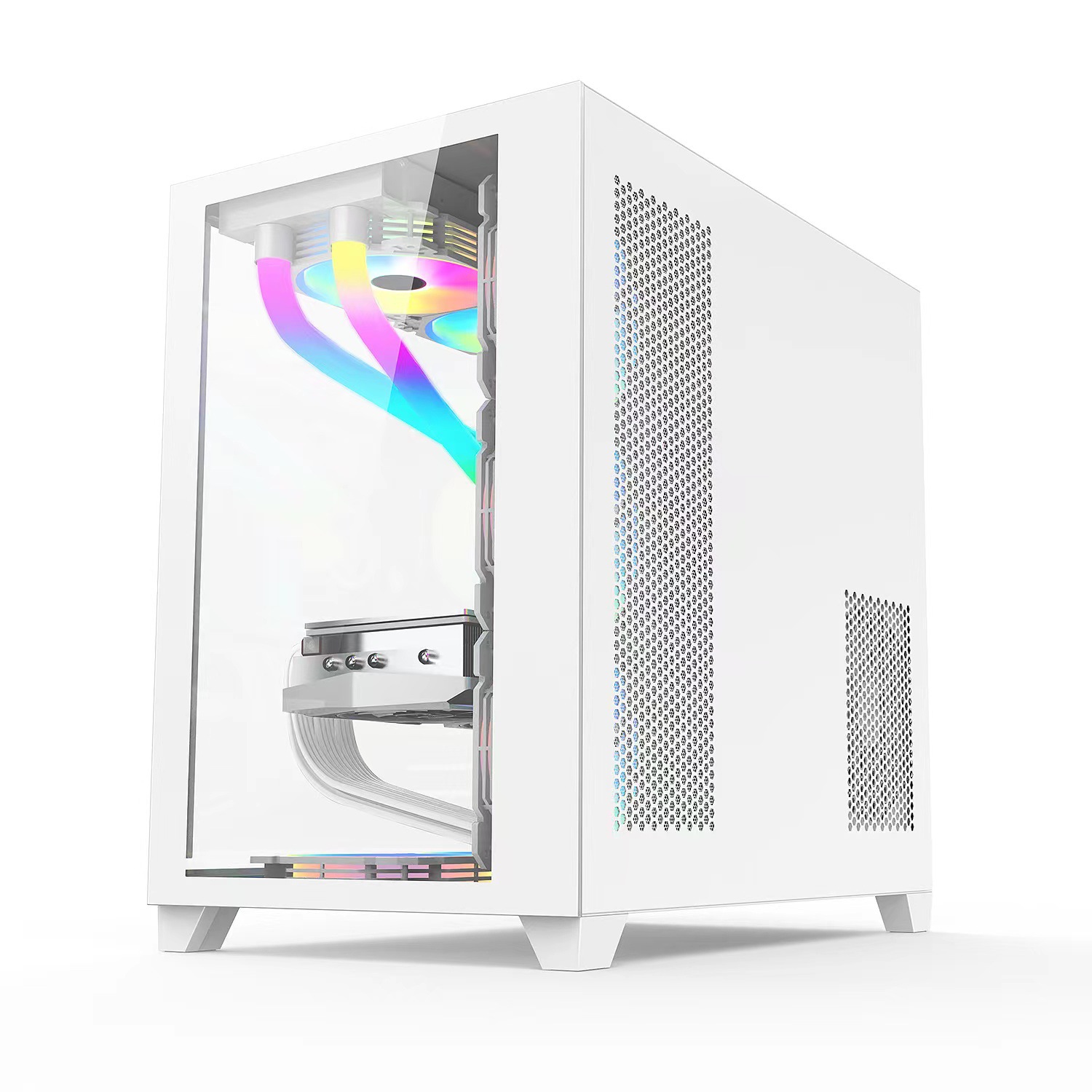

MINI海景房电脑机箱 Micro ATX机箱办公机箱 游戏机箱 台式机箱

1.材料Material: 0.45mm SPCC white coating;

2.主板Motherboard compatible:MicroATX\MIniATX;

3.顶部接口Interface:with USB1.0*2带HD+仿3.0 Audio

4.CD-ROM(5.25'): Not support; PCI slot:5;

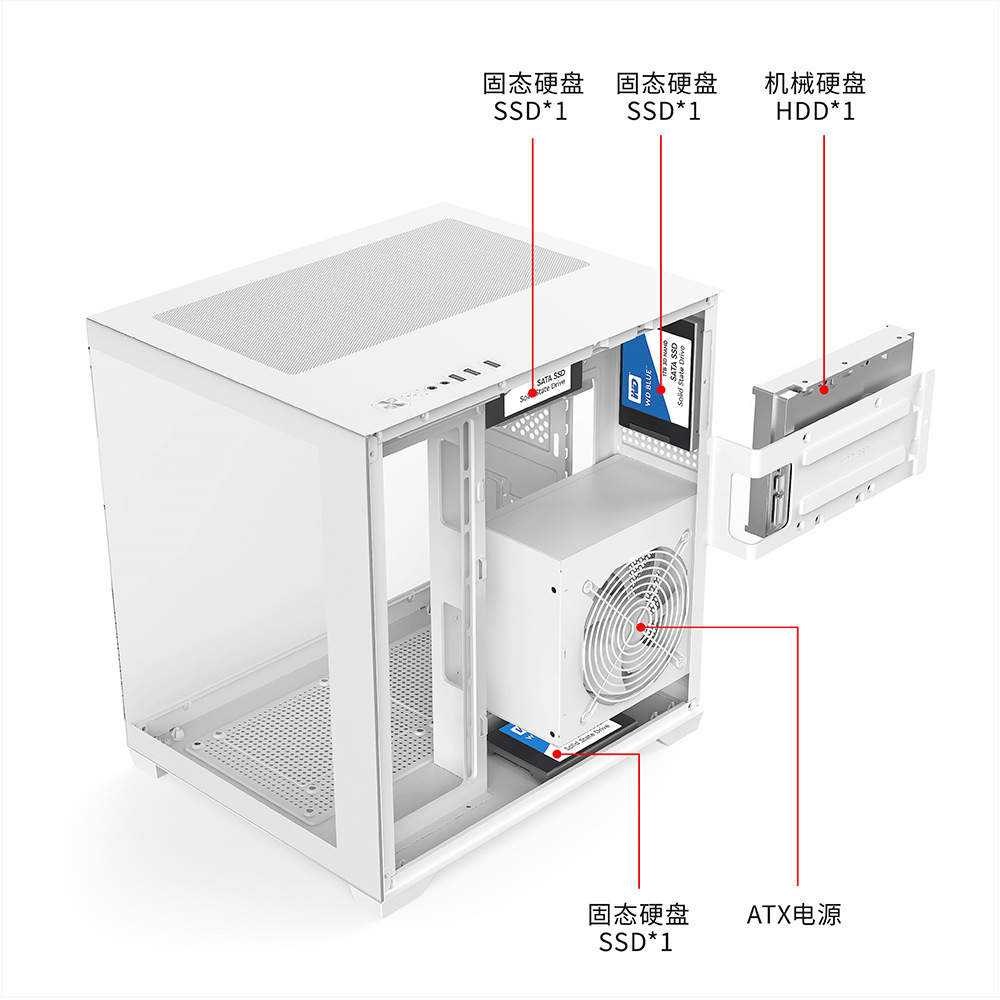

5.HDD(3.5')1, SSD(2.5'):3;

6.显卡长度Support VGA card length:330mm MAX

7.CPU散热器高度Support CPU height:160mm MAX

8.五金尺寸Chassis size:330*275*340mm;

9.机箱尺寸Case size:335*275*355mm;

10.外箱尺寸Carton sizez: 405*325*390mm;

11. 装柜数量Loading qty: 1280pcs/40 HQ

12.侧板高强度玻璃with Tempered glass left side panel;

13.前面板玻璃with glass front panel

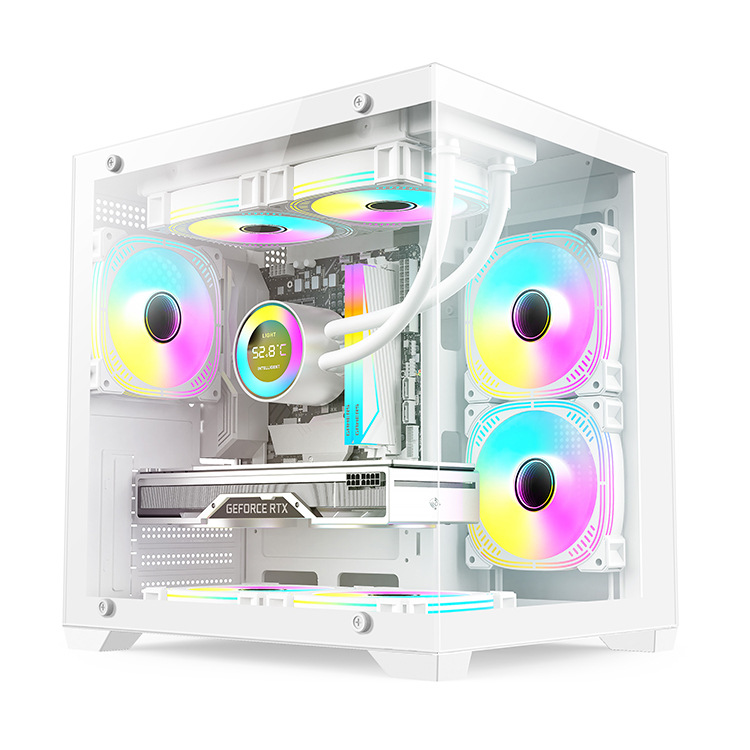

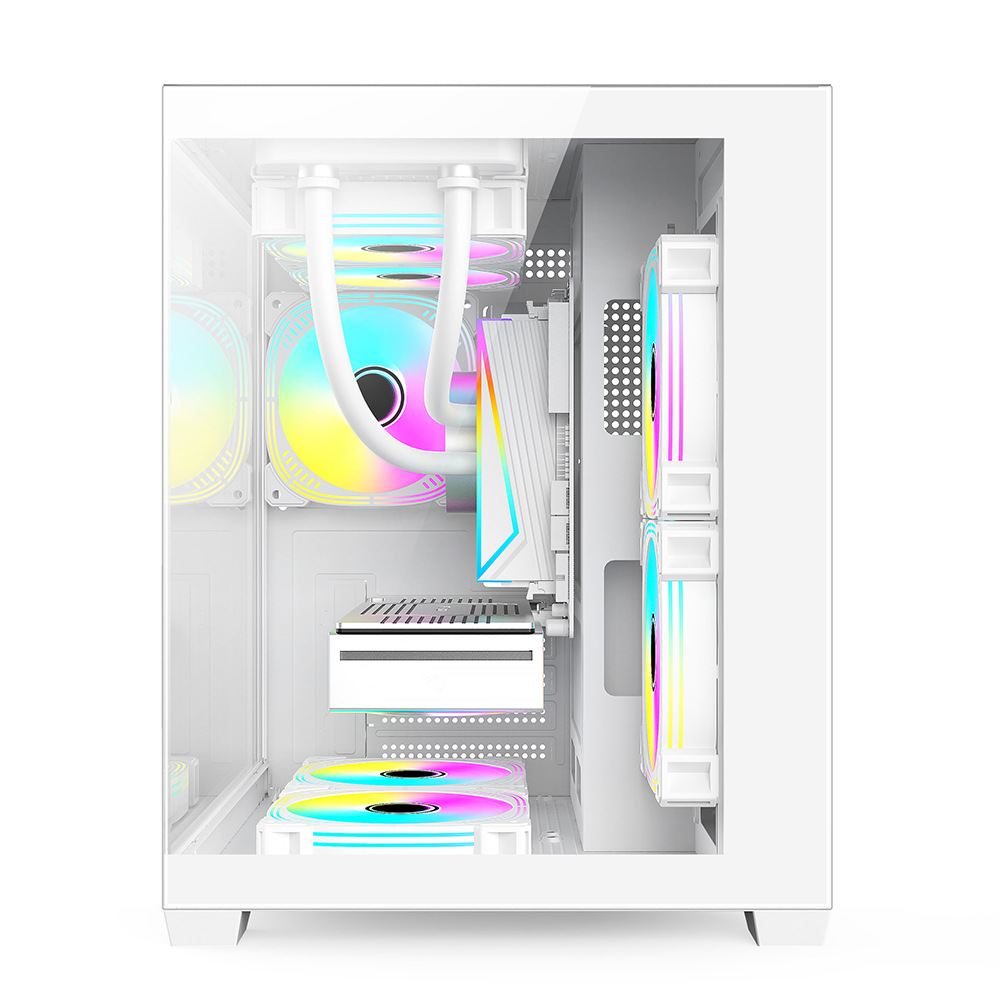

14.风冷散热Cooling fan(Option):

TOP:240water cooling or 2 pcs 120mm fan;顶部2个风扇或者240水冷；

Right side:2pcs 120mm fan, rear: 1pcs 120mm fan; 前右侧2个风扇或者240水冷；

Bottom :240water cooling or 2 pcs 120mm fan;底部2个风扇或者240水冷；
