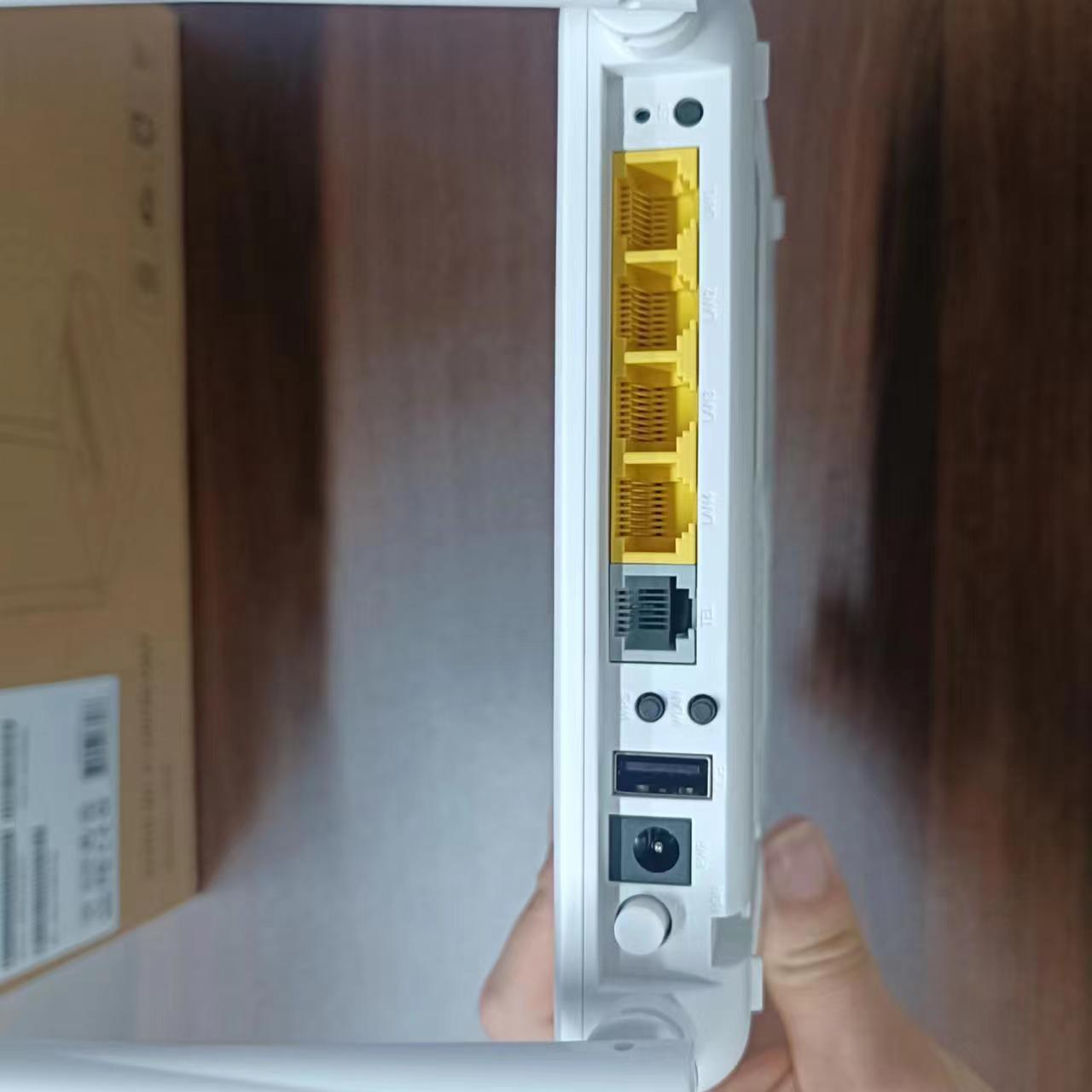

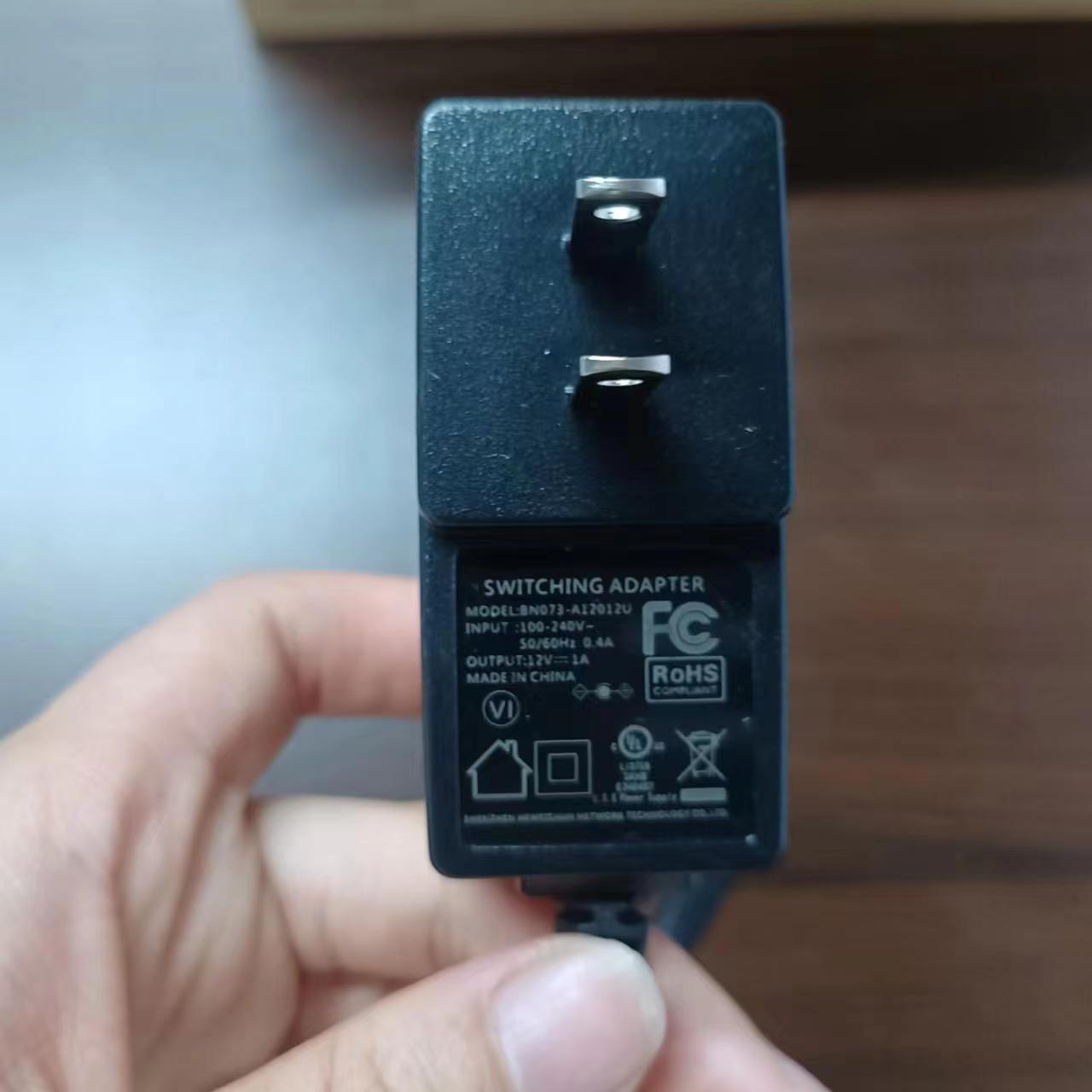

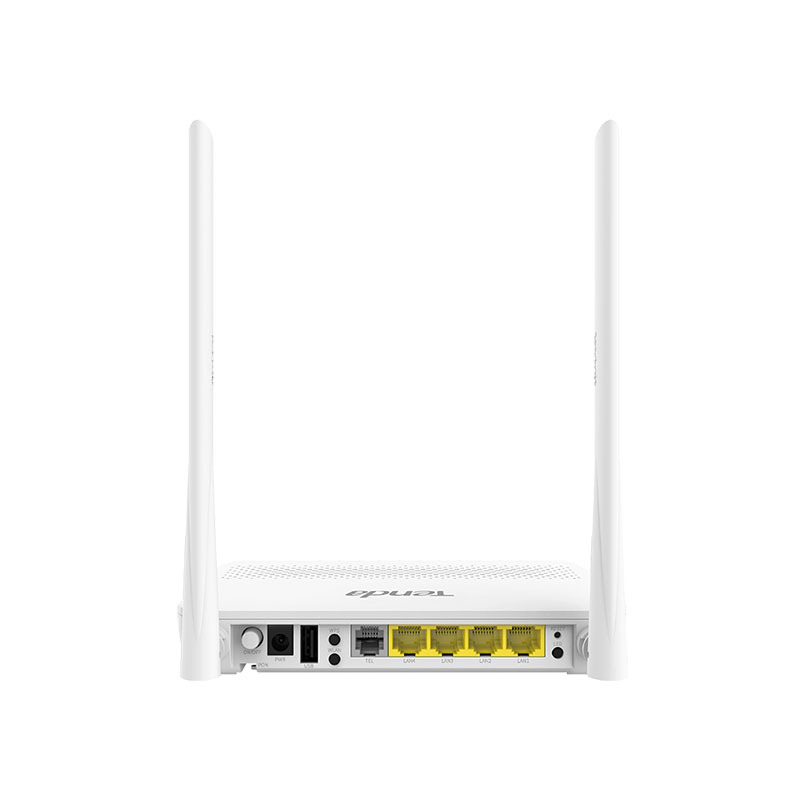

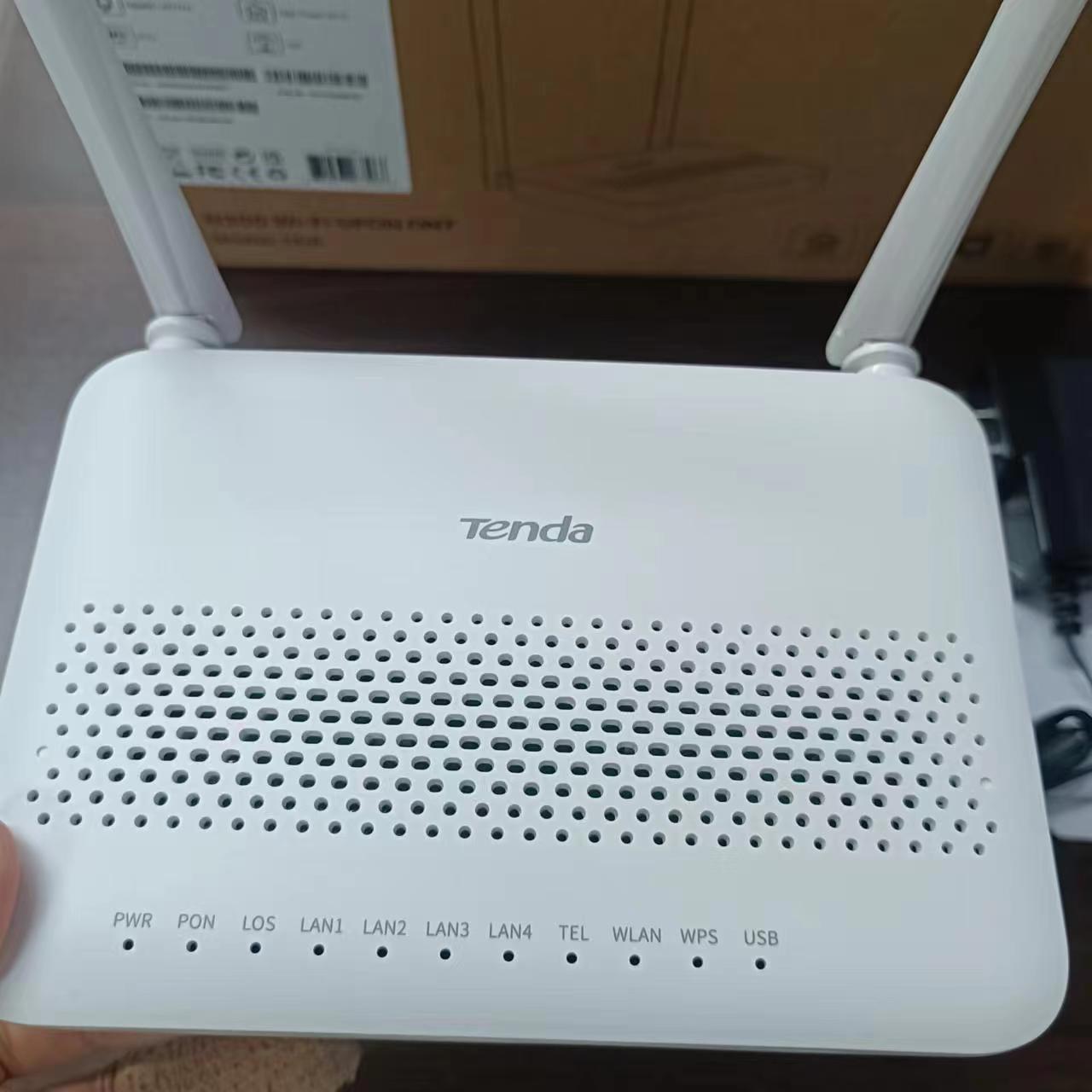

IEEE StandardsIEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3ZPON StandardsITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4Interfaces1*SC/APC GPON Port, 1*1000Mbps RJ45 LAN Port, 3*100Mbps RJ45 LAN Ports, 1*USB Port, 1*VoIP Port, 1*DC PortLED IndicatorPWR, PON, LOS, LAN1, LAN2，LAN3, LAN4, TEL,WLAN, WPS, USBButton1* Power On/Off Button, 1*WPS Button, 1*WLAN Button, 1 RESET Button ，1*LED ButtonOptical ModeClass B+Optical WavelengthTransmit at 1310nm, Receive at 1490nmTransmission Distance20km MaxBandwidthUpstream 1.25Gbps Max, Downstream 2.5Gbps MaxDimension163*115*28 mm (W * D * H)TX Power0.5~5dBmRX Power-28~-8dBmExternal Power SupplyDC 12V /1.0APower Consumption≤12wDHCP ServerServer, Client, DHCP Client List, Address Reservation, DHCP RelayWAN ConnectionPPPoE , Dynamic IP, Static IP, BridgeBusiness TypeTR069, Internet, IPTV, VoIPQuality Of ServiceBandwidth ControlIP VersionIPv4, IPv6ServicesDHCP, Dynamic DNS , IGMP Proxy UPnP, SambaVPN Pass-throughPPTP, L2TP, IPsec Pass-throughFirewallALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZIPv6Radvd, DHCPv6, MLD Proxy, MLD SnoopingDiagnosticsPing, Ping6, Tracert, Tracert6TR069ACS, Connection requestVoIPMain Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, AlarmFrequency2.4GHz，IEEE802.11 b/g/nBandwidth20M/40MChannel RangeCH1-CH13Antenna2 * 6 dBi AntennaEasy Client SetupWPS Button, WPS LEDSpeed11n 300MTransmission Power

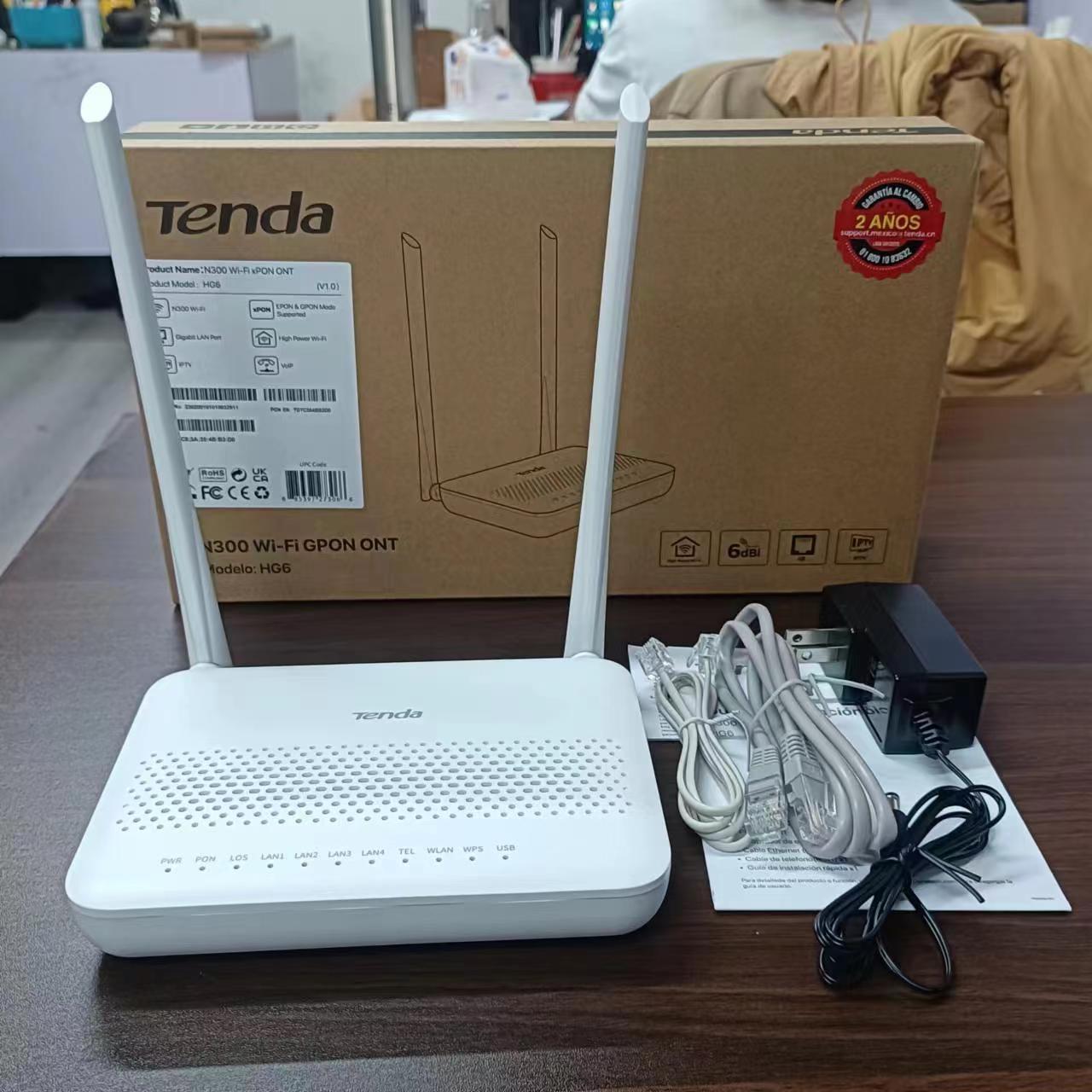

4 Guest SSIDsMax Terminal Linked32Operation Temperature0°c ~ 45°cStorage Temperature-40°c ~ 70°cOperating Humidity10% ~ 90% （Non-condensing）Storage Humidity5% ~ 90% (Non-condensing)Package Contents1*HG6,1* Power adapter, 1* Quick install guide, 1* RJ45 cable, 1* RJ11 cableCertificationCE, FCC, RoHS, Anatel

单个尺寸：32*19*6cm

重量：0.58kg
