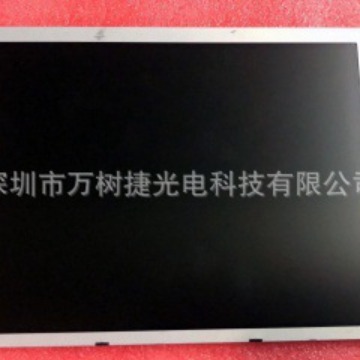

| LQ085Y3LG14 8.5inch 800×480(RGB), WVGA 109PPI , a-Si TFT-LCD, LCM |
|||
| Hight Brightness，WLED Backlight，Life ≥ 50K hours，With LED Driver，Matte | |||
| Panel Model | LQ085Y3LG14 | Panel Brand | Sharp |
| Size (inch ) | 8.5inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800×480(RGB), WVGA 109PPI | Pixel Format | RGB Vertical Stripe |
| Module Outsize(mm) | 227.4(W)×134(H)×13.9(D) | Display Mode | TN, Normally White, Transmissive |
| LCD Active area(mm) | 184.8(W)×110.88(H) mm | Response Time | 8/21 (Typ.)(Tr/Td) ms |
| Support Color | 262K | Light Source | WLED , 50K hours , With LED Driver |
| Viewing Angle | 80/80/80/80 (Typ.) | TouchScreen | Without |
| Brightness | 600 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
| Contrast Ratio | 1000:1 (Min.) (TM) | Used for | Industrial, Portable DVD Player Digital Photo Frame |
| Frequncy | 60Hz | Enviroment | Operating Temperature: -10 ~ 80 °C ; Storage Temperature: -25 ~ 80 °C |
| LCM Interface Type | LVDS (1 ch, 6-bit) , 33 pins Connector | FPC connector | HRS, FH12-33S-0.5SH(55), Pitch 0.5mm |
| Packaging & Delivery | |||
| Packaging Details | 20pcs/Box | ||
| Port | ShenZhen / HongKong | ||
| Lead Time : | 1-3 working days after payment | ||
| Warranty | 12 Months | ||
| Please contact the seller before you release the order, thanks! | |||
