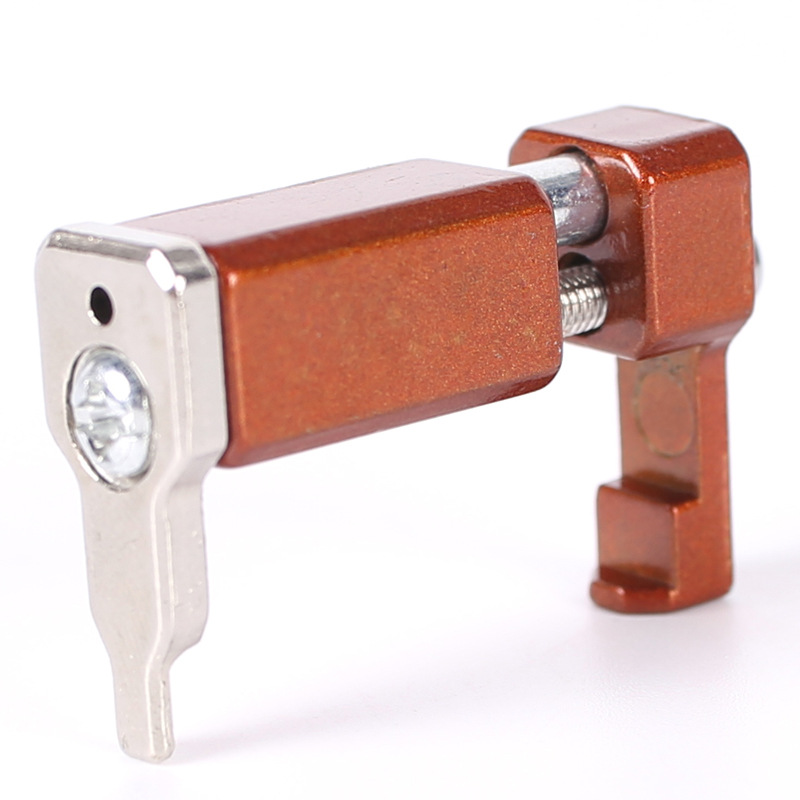

Floyd Rose Intonation Tool ACCU-LOCATOR/Intonation Adjuster for Floyd Rose

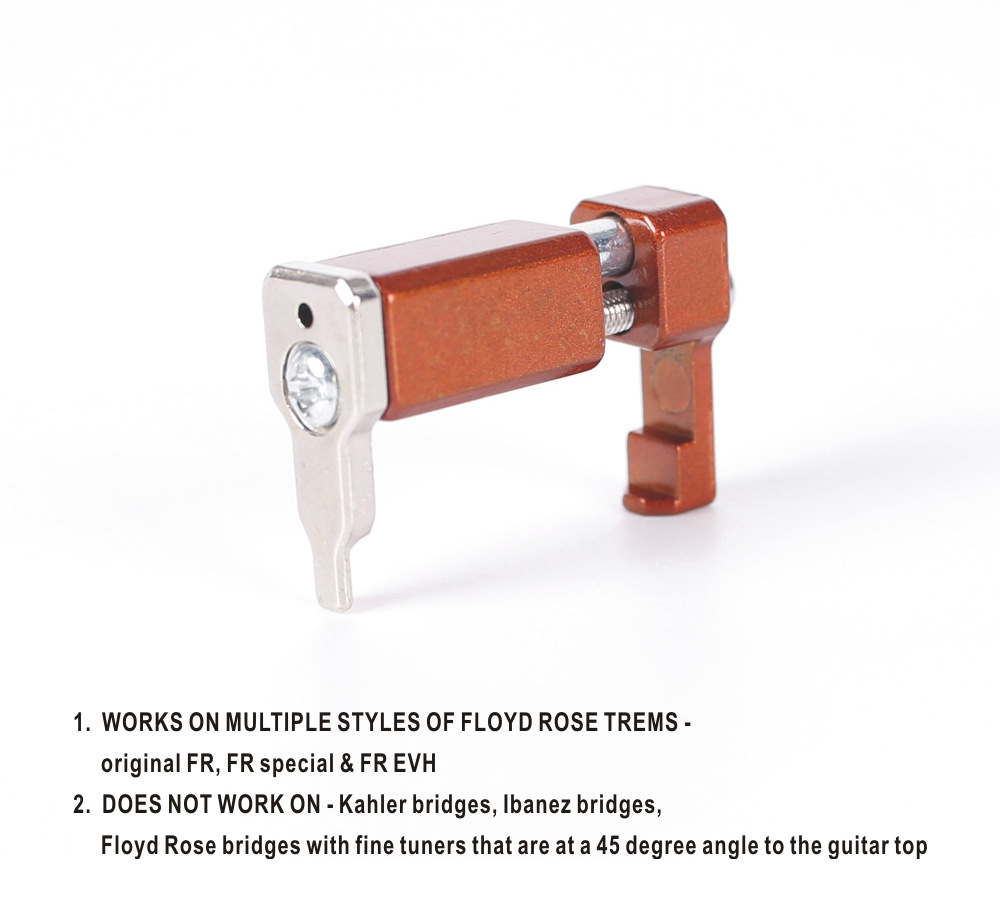

1. FINALLY A TOOL THAT WORKS - machined from Zinc alloy

2. WORKS ON MULTIPLE STYLES OF FLOYD ROSE TREMS - original FR, FR special & FR EVH

3. NO MORE HOURS OF DETUNING - make intonation adjustments under string tension

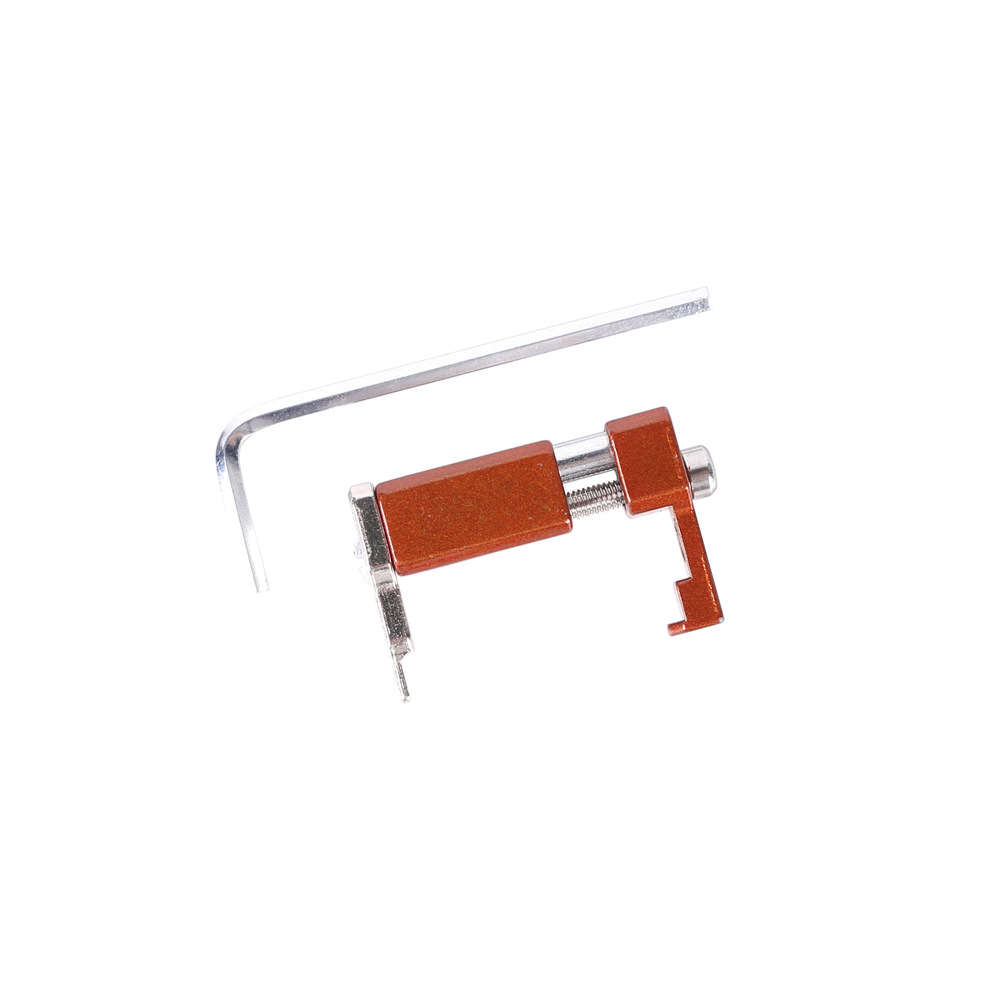

4. INCLUDES M2.5 HEX KEY - you won't have to find your "other" hex key to loosen the saddle screws, we include one with every tool

5. DOES NOT WORK ON - Kahler bridges, Ibanez bridges, Floyd Rose bridges with fine tuners that are at a 45 degree angle to the guitar top

DIRECTIONS FOR USE

1 - Block your trem so it can't move (you can use Guitars gauged Trem Wedge Blocks).

2 - Adjust your fine tuners to mid way to allow clearance for the toe of the tool

3 - Tune the guitar to pitch using your favorite tuner

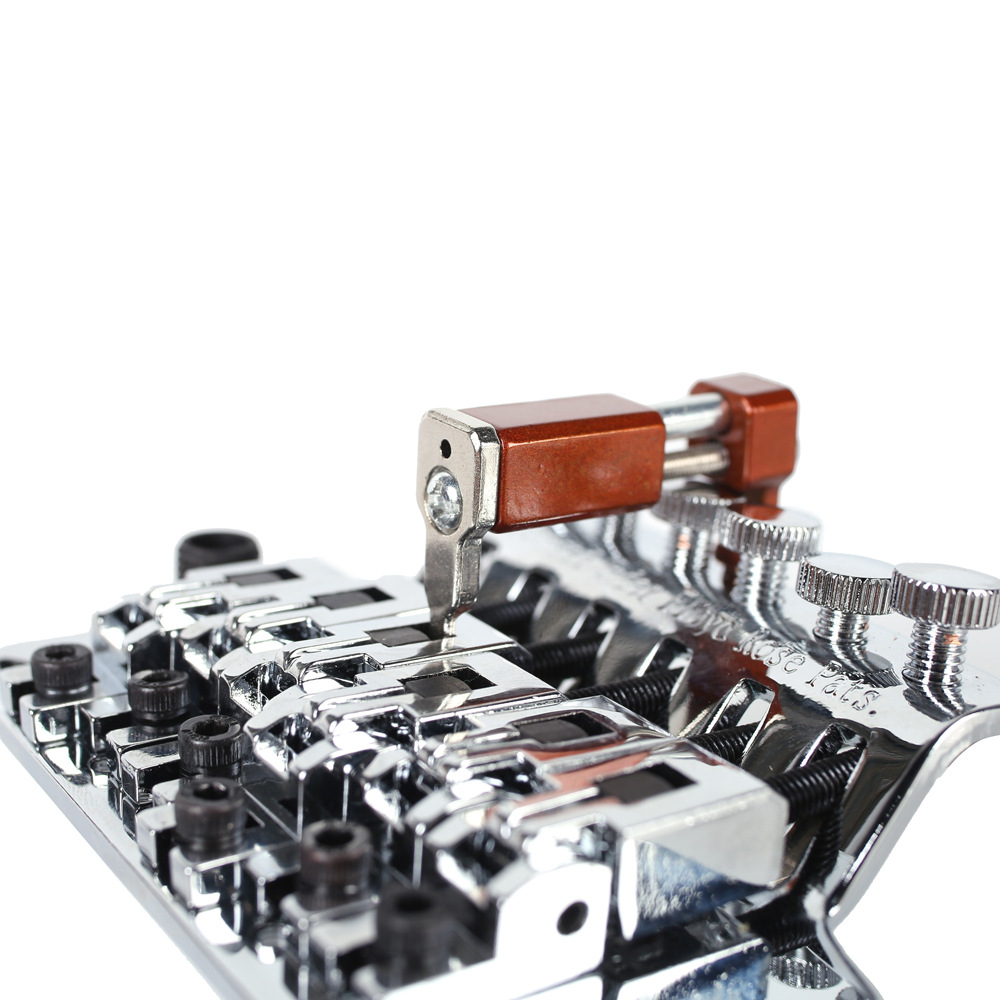

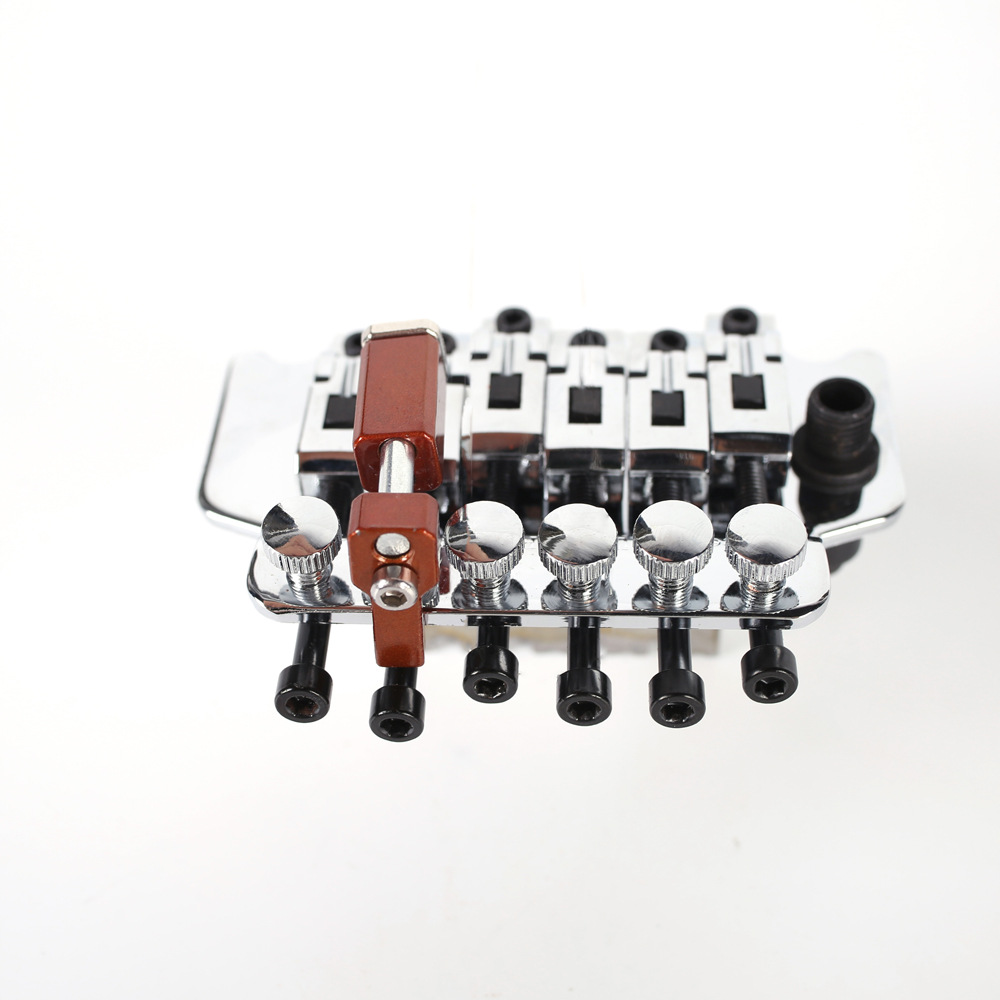

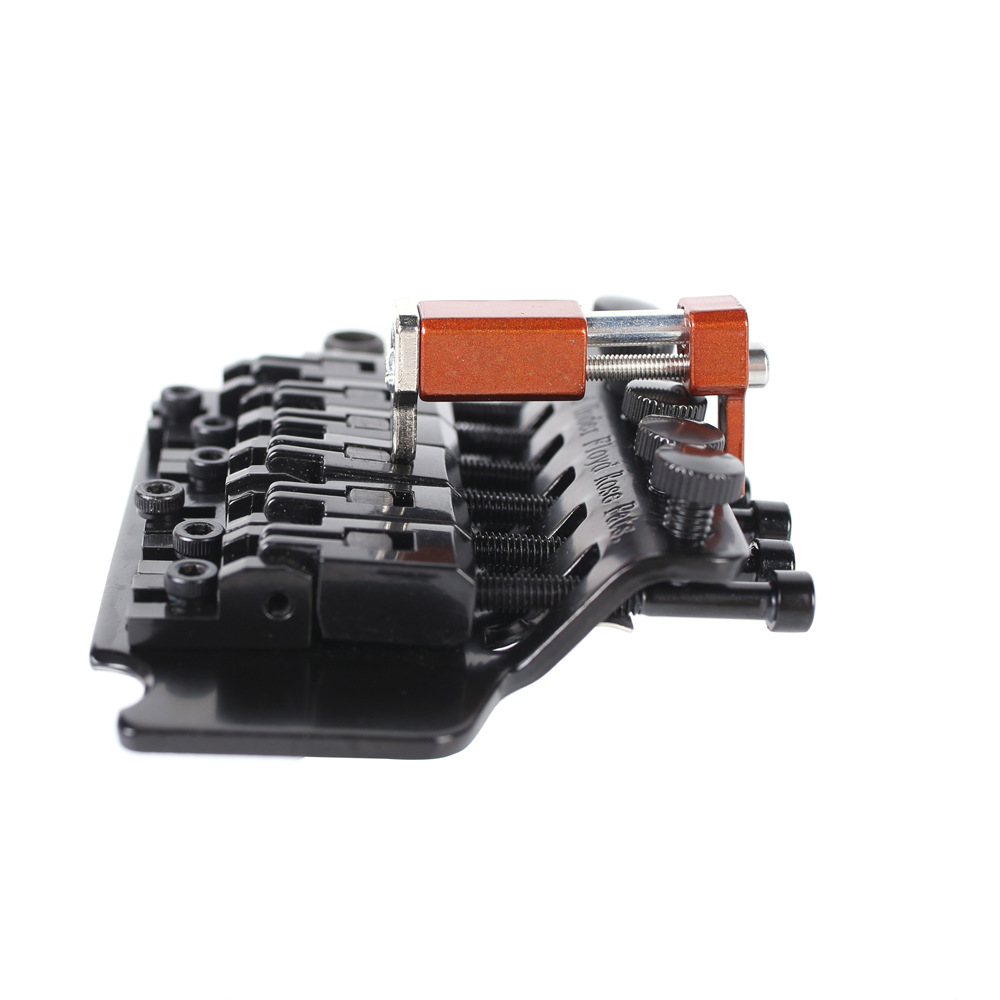

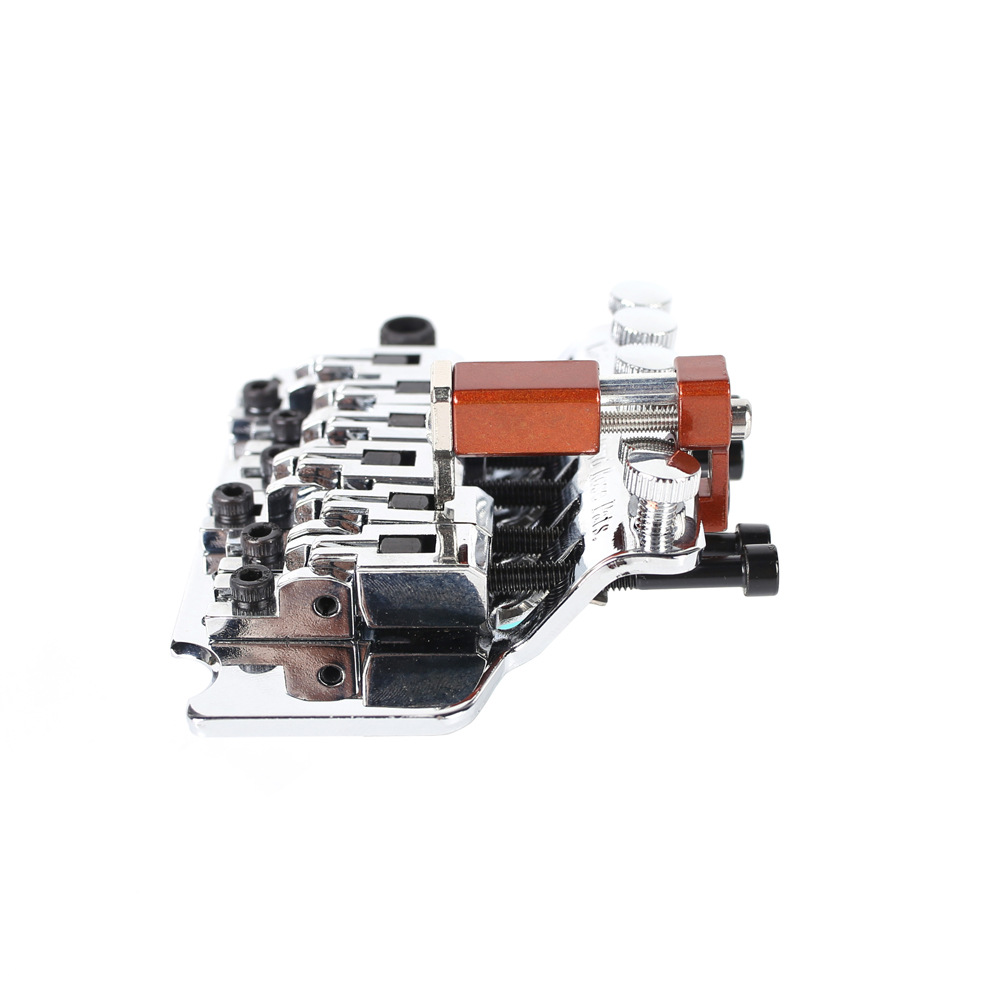

4 - Clamp the tool with the silver tang just behind the string block and the toe of the tool wrapped under the fine tuner plate (see picture). Snug it up.

5 - Loosen the saddle screw for the string you're working on.

6 - Ensure your string is in tune, then fret the string at the 12th fret. If the note is sharp, tighten the Intonation Tool's screw, retune and check again. If the note at the 12th fret is flat, loosen the Intonation Tool's screw to allow the saddle to move forward. Retune and check again. Do this for all strings until each string plays in tune open and at the 12th fret.

摇座琴桥音准工具

产品关键词1：Floyd Rose Intonation Tool

产品关键词2：Intonation Adjuster for Floyd Rose

材料：锌合金

表面处理：喷漆

单品毛重：20g

单品包装尺寸：7x4x1cm

包装方式：胶袋包装
