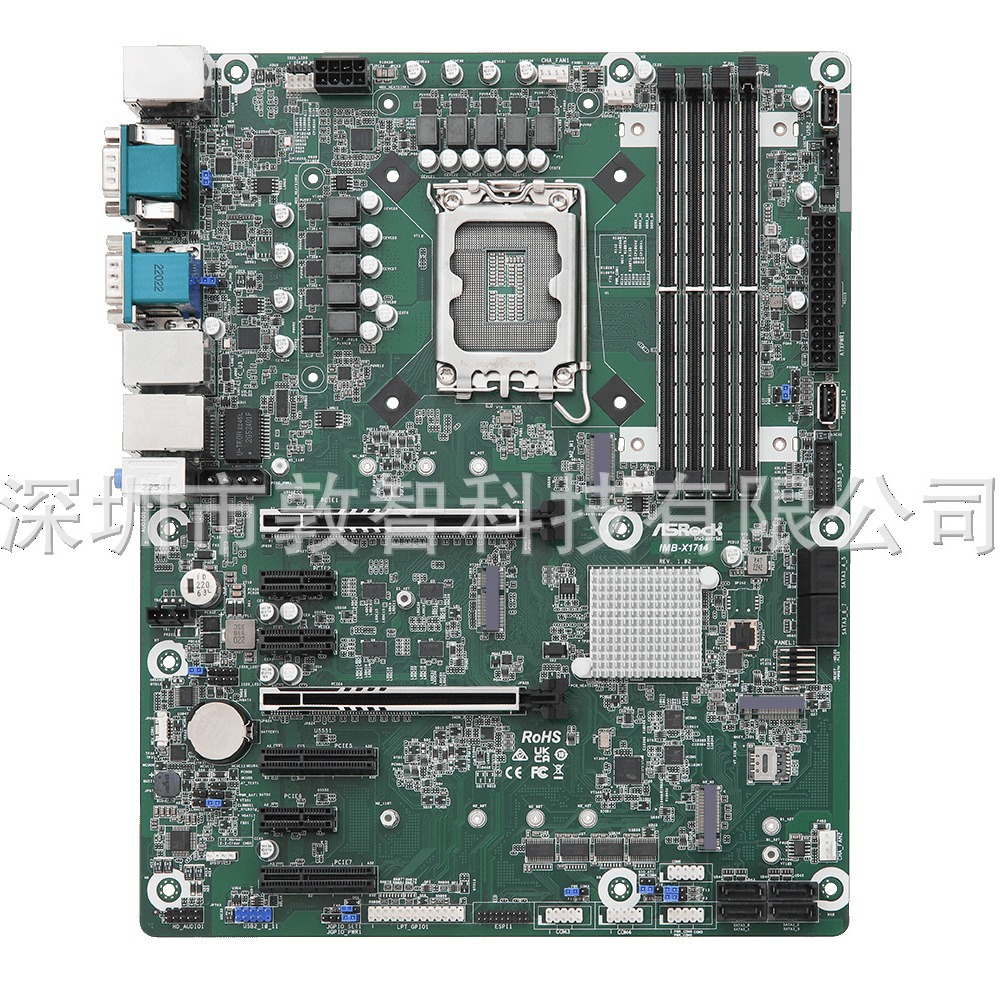

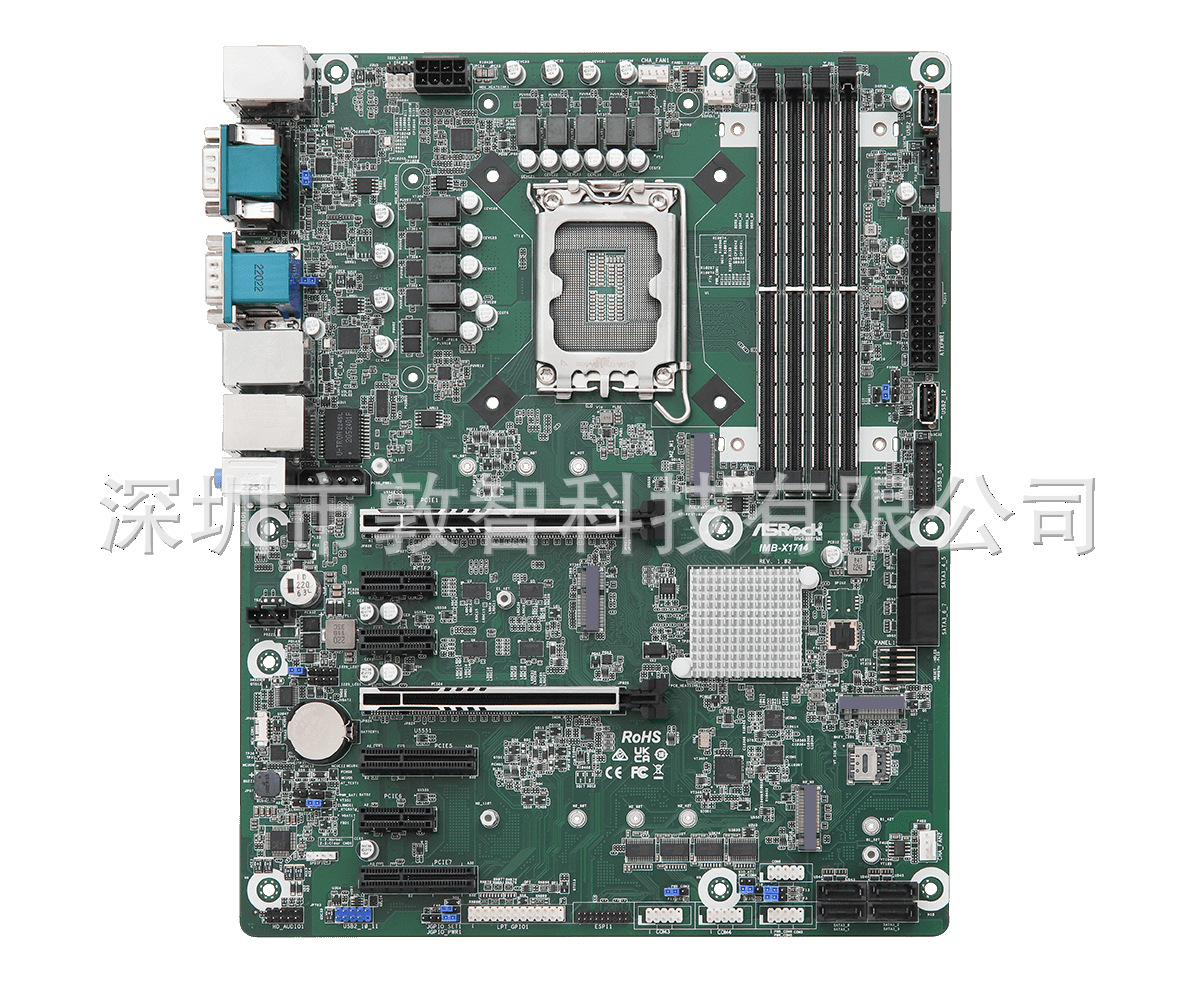

IMB-X1714

• 特点：
• Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
• 4 x 288-pin ECC/non-ECC Long-DIMM DDR5 4400/5600 MHz , up to 192GB (48GB per DIMM)
• 1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 2 x PCIe x4 (Gen4), 3 x PCIe x1 (Gen3)
• 1 x USB 3.2 Gen2x2 Type-C, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0
• 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 6 x COM, 8 x SATA3
• 3 x Intel 2.5 Gigabit LAN
• Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA
• TPM 2.0 onboard IC
• Supports Intel® vPro, VMD RAID 0/1/5/10
• ATX PWR (8+24 Pin)

产品规格：

Processor System

CPUIntel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125WChipsetIntel® W680SocketLGA1700BIOSAMI SPI 256 Mbit

Form Factor

DimensionsATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm)

Memory

TechnologyDual Channel ECC/non-ECC DDR5 4400/5600 MHz*

*Actual memory frequency depends on the CPU types and DRAM modules, for more

information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/

faq&faq_id=90 technical FAQ

*For DDR5 5600 support refer to memory support listCapacity192GB (48GB per DIMM)Socket4 x 288-pin Long-DIMM

Graphics

ControllerIntel® UHD GraphicsHDMIHDMI 2.0b

Max resolution up to 4096x2160@60HzDisplayPortDisplayPort 1.4a, DP++

Max resolution up to 4096x2160@60HzVGAMax resolution up to 1920 x 1200@60HzMultiDisplayTriple Display

Expansion Slot

PCIe2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support Riser card x8/x8)

2 x PCIe x4 (Gen4)

3 x PCIe x1 (Gen3)M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5GSIM Socket1 x SIM socket connected to M.2 Key B

Audio

InterfaceRealtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in

Ethernet

Controller/ SpeedLAN1: Intel® I226V with 10/100/1000/2500 Mbps, supports PoE*

LAN2: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro

LAN3: Intel® I226V with 10/100/1000/2500 Mbps

*PoE Output (DC) : 54V(IEEE802.3af/at), Imax 0.6AConnector3 x RJ-45

Rear I/O

HDMI1 x HDMI 2.0bDisplayPort1 x DP 1.4a++VGA1Ethernet3 x 2.5 Gigabit LANUSB5 x USB 3.2 Gen2

1 x USB 3.2 Gen2x2 (Type-C, 5V/3A)Audio3 (Mic-in, Line-in, Line-out)COMCOM1, COM2 (RS-232/422/485)

Internal Connector

USB2 x USB 3.2 Gen1 (1 x USB 3.2 header)

4 x USB 2.0 (1 x 2.54 pitch header, 2 x USB 2.0 Type-A vertical con)COMCOM3, COM4, COM5, COM6 (RS-232)Parallel1GPIO8 x GPI, 8 x GPO, (shared with LPT header)PS/21 x PS2 headerThunderbolt header1

Security

TPMTPM 2.0 onboard IC

Storage

M.21 x M.2 (Key M, 2242/2260/2280/22110/25110) with PCIe Gen4 x4 for SSD

1 x M.2 (Key M, 2242/2260/2280/22110/25110) with PCIe Gen3 x4 for SSDSATA8 x SATA3 (6Gb/s)RAIDIntel® VMD RAID 0/1/5/10

**supported by identical interface (PCIe or SATA)

PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M

SATA interface: SATA port

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#Interval256 segments, 0,1,2…255sec

Power Requirements

Input PWRATX PWR (8+24 Pin)Power OnAT/ATX Supported

- AT : Directly PWR on as power input ready

- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºCStorage Temp-40° C ~ 85° COperating Humidity5% ~ 90%Storage Humidity5% ~ 90%

Accessories

Gift Package2 x SATA Cable (14G00010107DAK)

1 x I/O Shield (13G020776000AK)

4 x SCREW M2*2,D=5 (13G020302031AK)Bulk Package1 x I/O Shield (13G020776000AK)

4 x SCREW M2*2,D=5 (13G020302031AK)
