ECG 7 단계 통치자

₩ 2,850 ¥ 14.5

색상:

1125

크기:

수량:

- +

재고: 63212

최소 주문 수량: 1

알리타플은 고객님께서 주문한 물건을 그대로 구매대행 해드립니다.
궁금한 사항이 있으시면 언제든 고객센터로 연락주세요.

1688온라인 사이트에서 검색된 상품입니다. 알리타플에서는 상품검색/현지구매(구매대행)/국제배송 업무만 제공해드립니다. 해당 상품의 품질 및 상태에 대해서는 확인해 드릴 수 없고 해당 물건이 입고가 된 후에 검수과정을 거쳐야 확인이 가능합니다.

동의합니다.

장바구니

상세페이지

About this item:
- Size: 86mm x 54mm
📦Package includes:
- 1 × ECG 7 Step Ruler

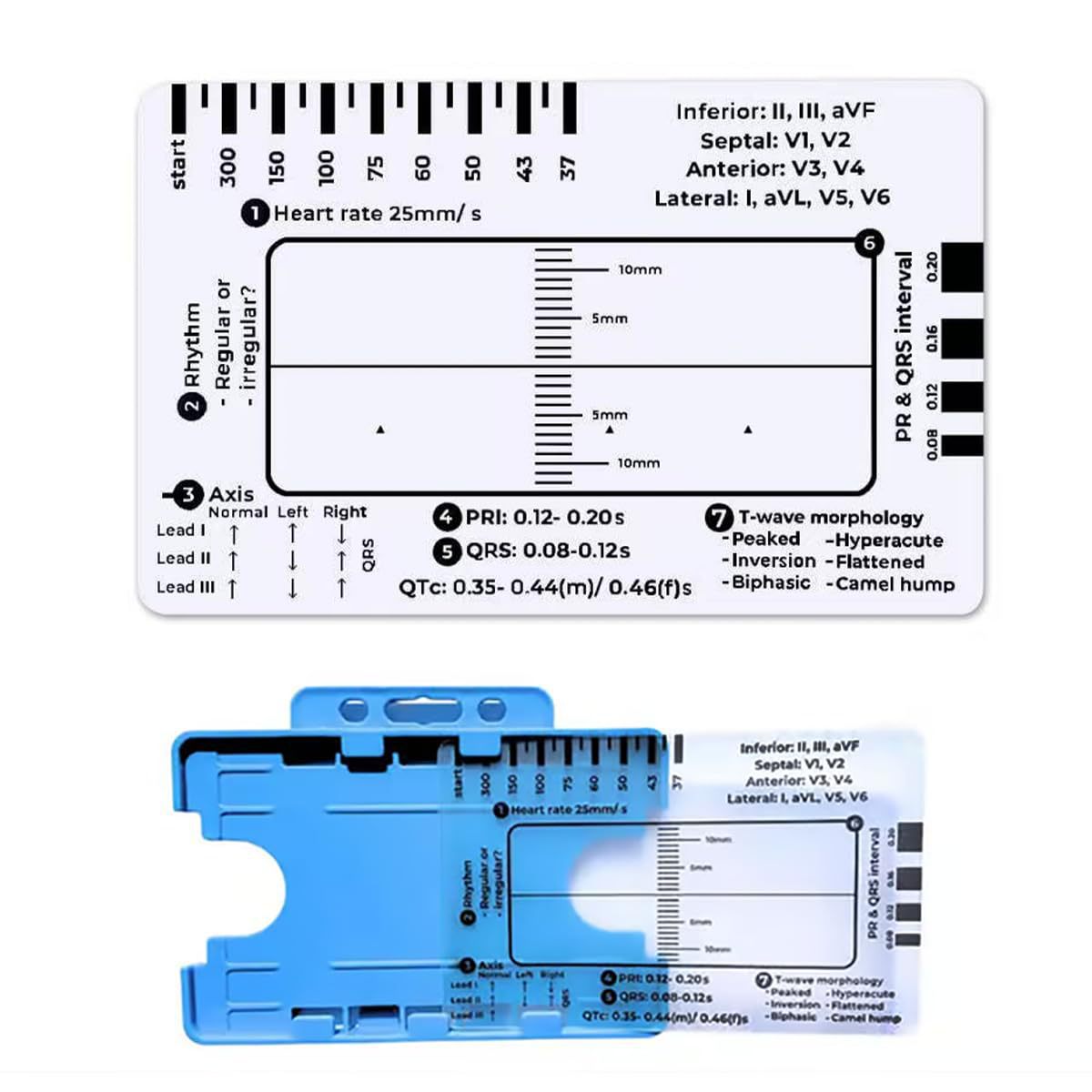

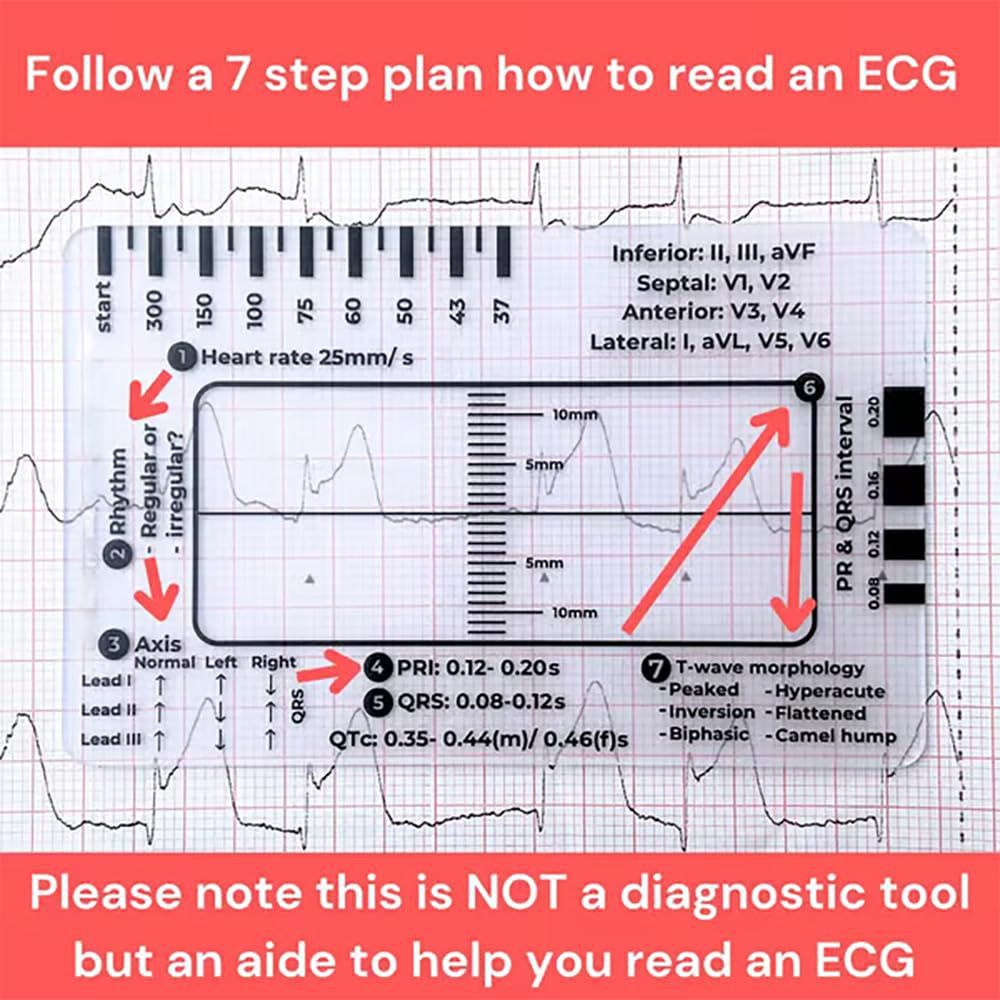

ECG 7 Step Ruler: A transparent ID sized card making ECG interpretation easy. Suitable for anyone undertaking ECG/ EKG practise from a student up to an experienced clinician

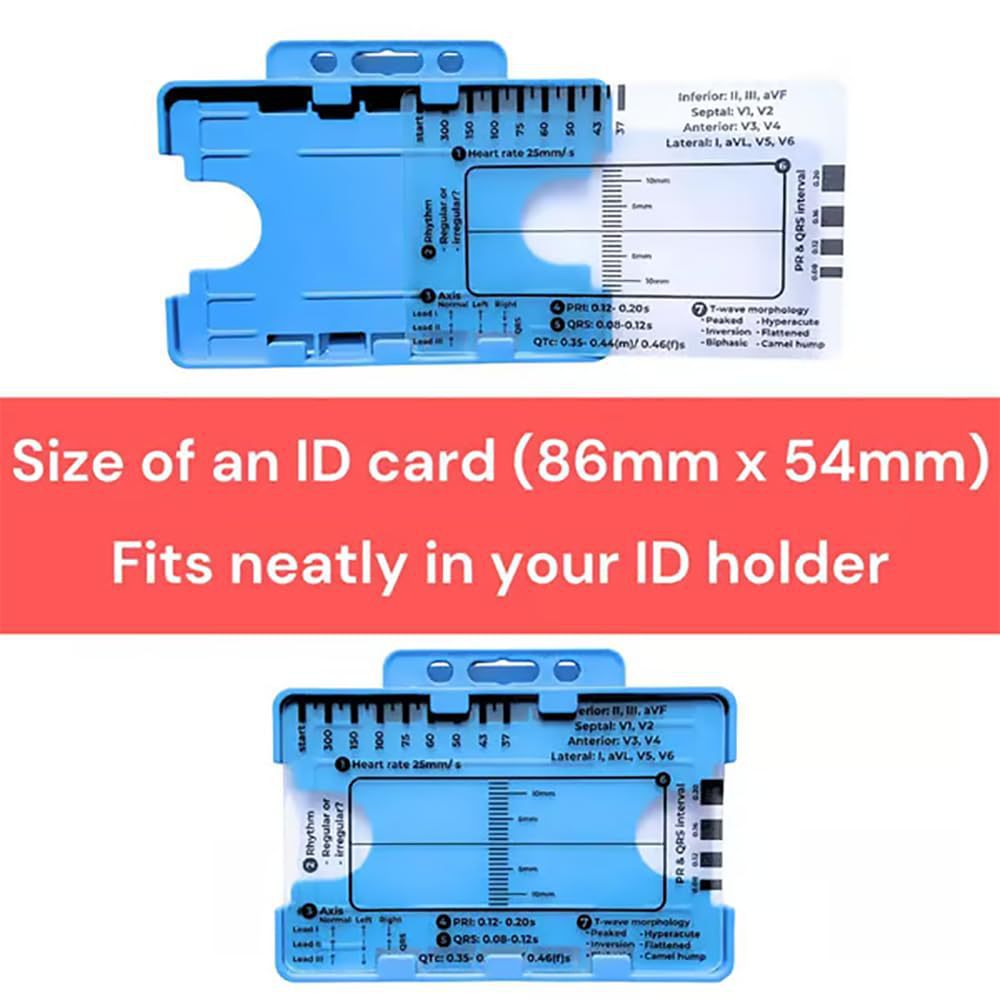

Size: Perfect sized to fit in your ID card holder for easy storage and access, specifically designed with the 7 step ECG interpretation method in mind
With a follow Follow a 7 Step Plan with reference points along the way for those hard to remember key points!

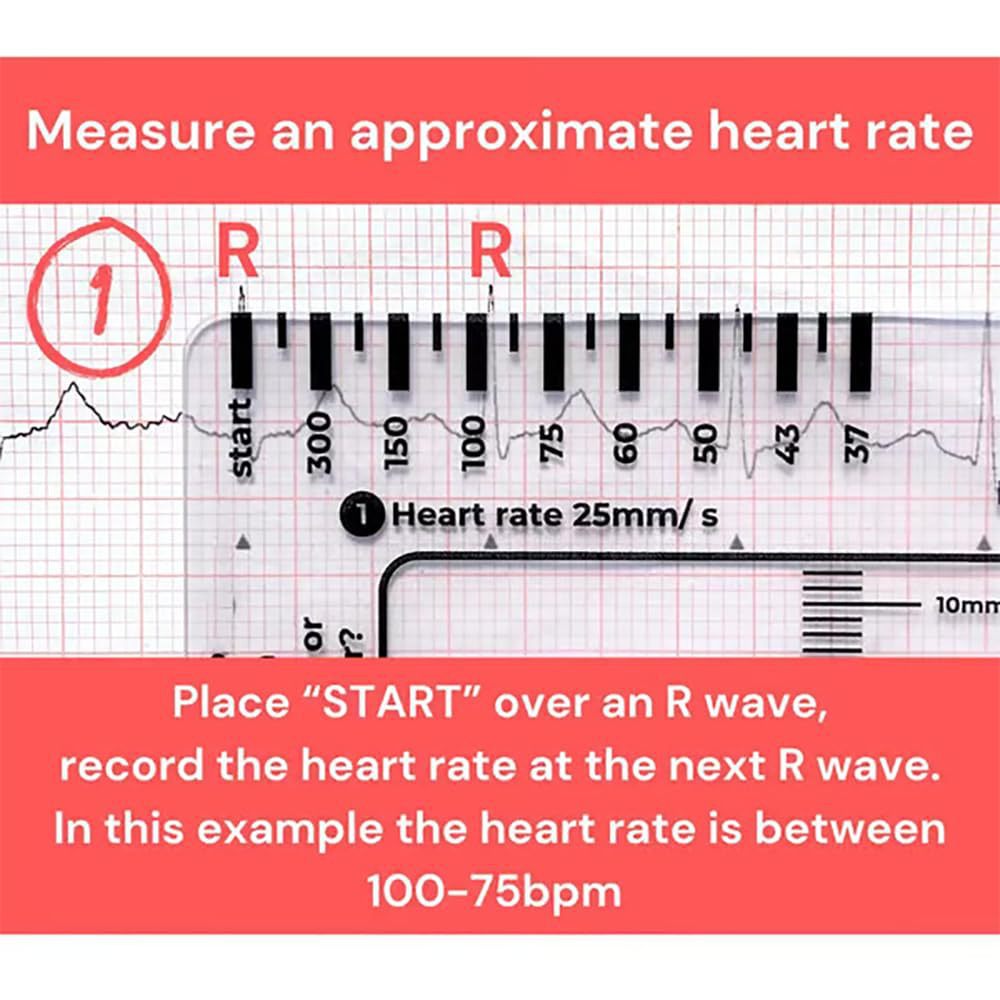

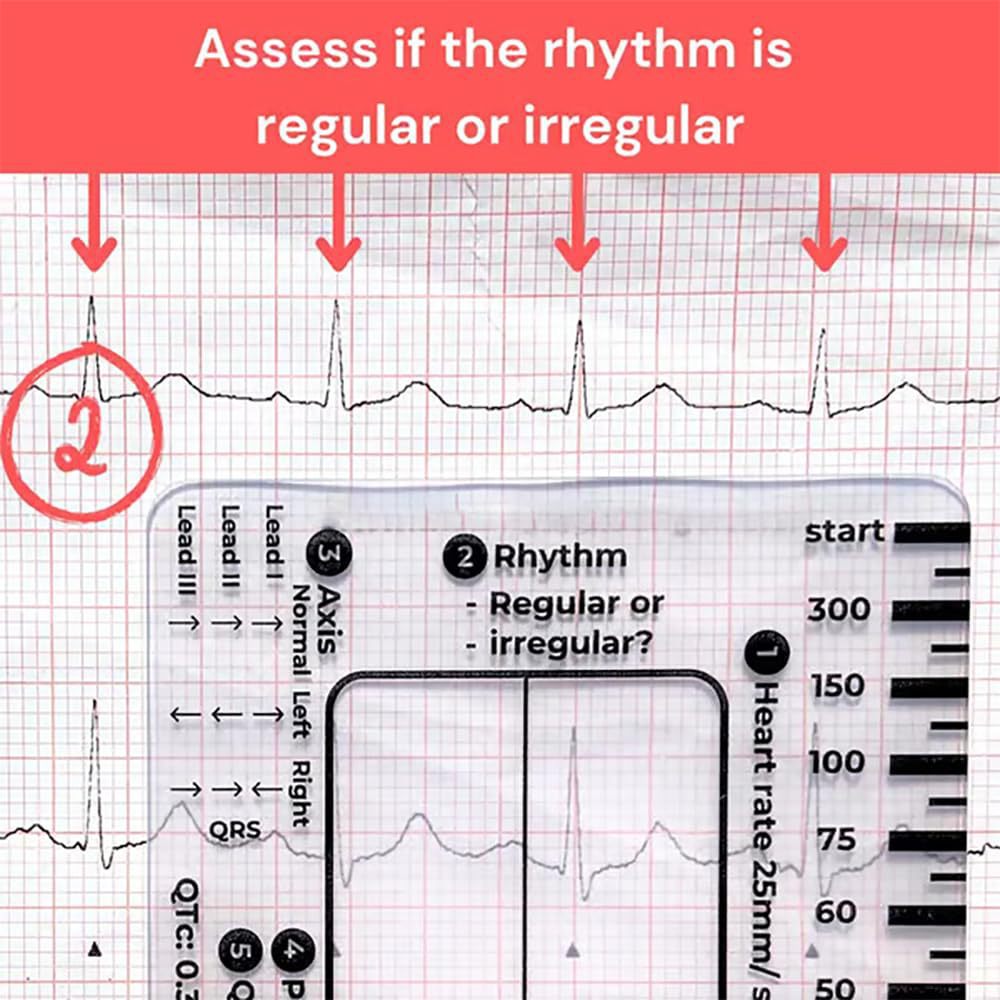

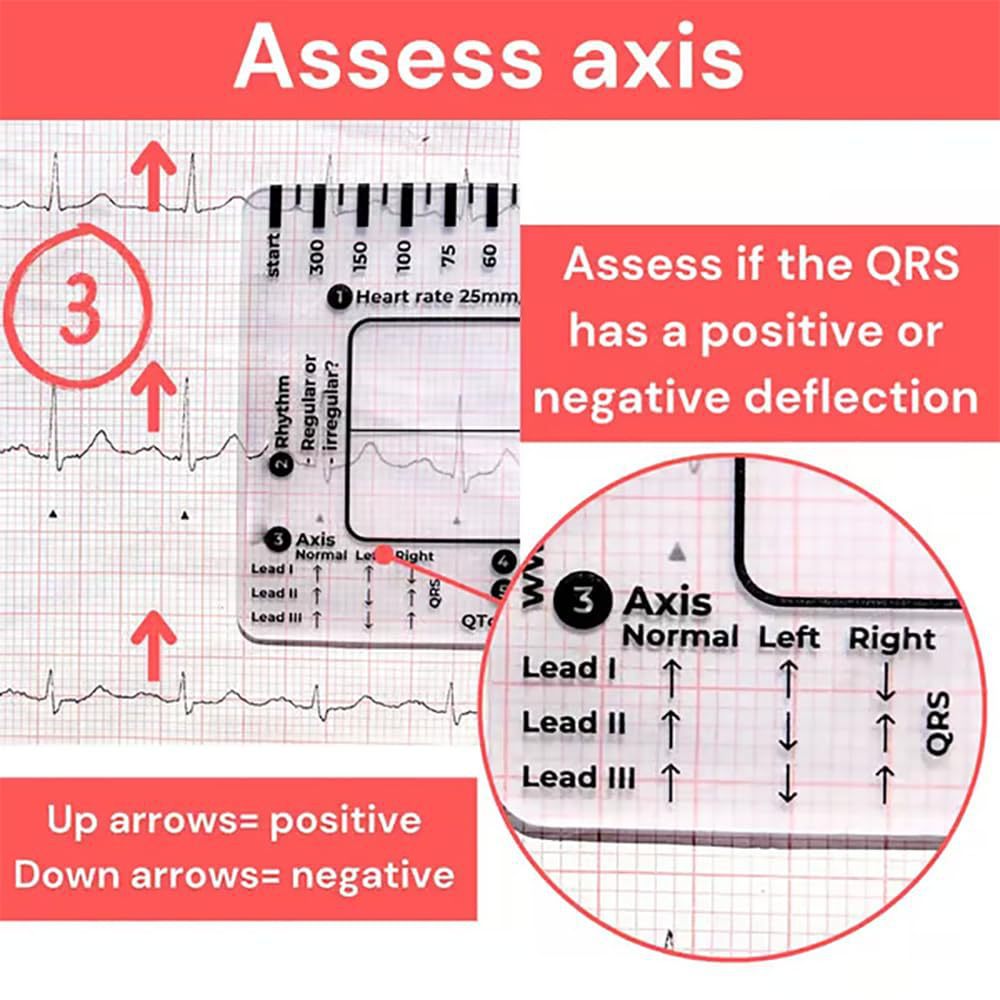

1.Heart rate- This will provide a quick but approximate heart rate. 2.Rhythm- Assess whether the heart rate is regular or irregular 3.Axis- A quick reference for normal, left or right axis deviation. The arrows pointing up indicate a positive deflection & arrows pointing down indicate a negative deflection.

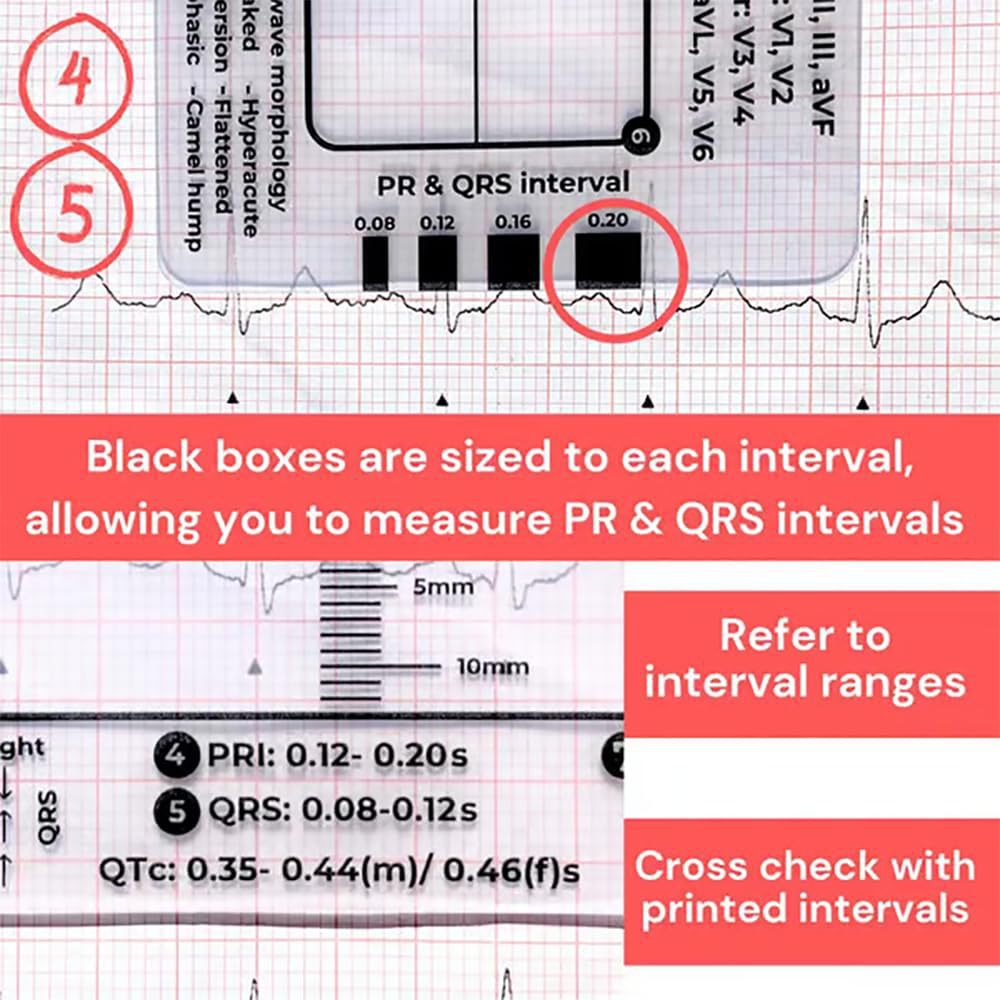

4.PR interval- This gives you a reference of the PRI range in milliseconds. Also to the right side, are blocks you can measure the PRI. 5.QRS interval- As above this gives you the range of the QRS & QTc in milliseconds and again you can measure the QRS interval with the blocks.

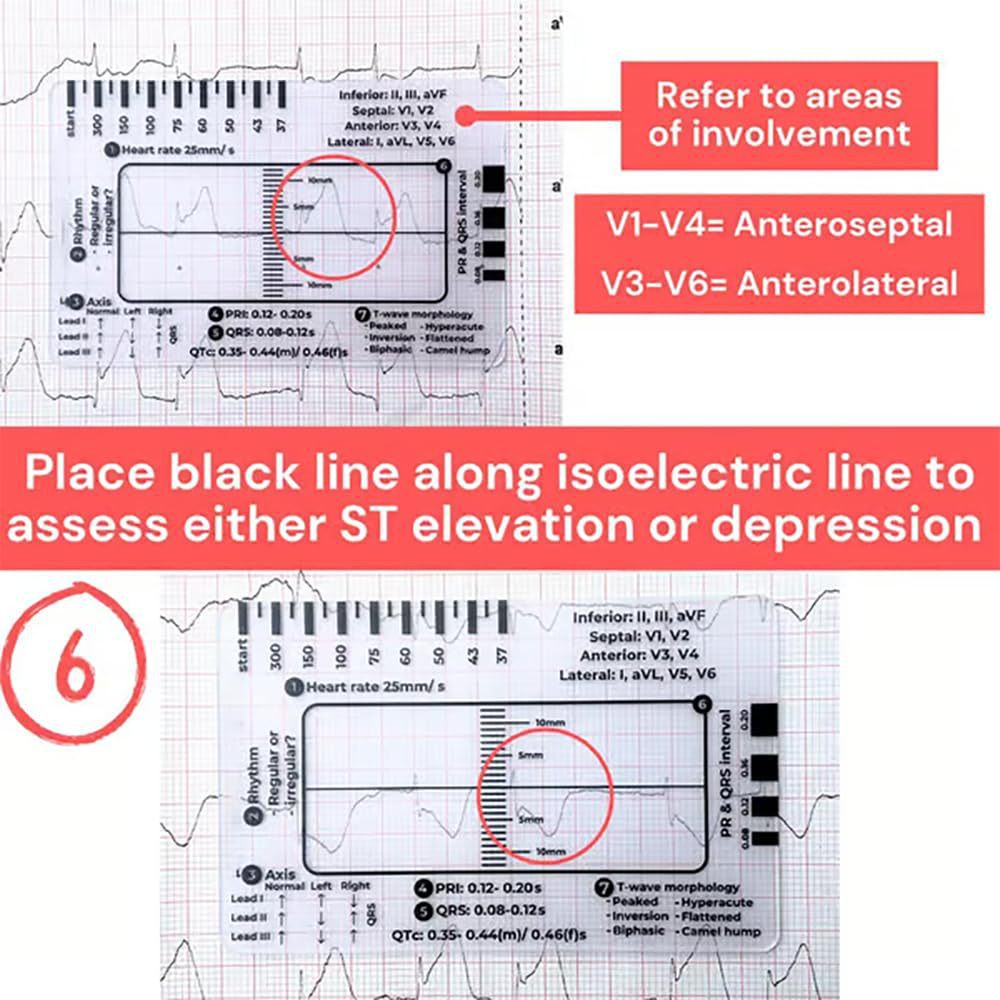

6.ST elevation/ depression- Place the straight back line along the isoelectric line to assess if there is either ST elevation or depression also there is a ruler so you can measure the degree of either in millimetres.

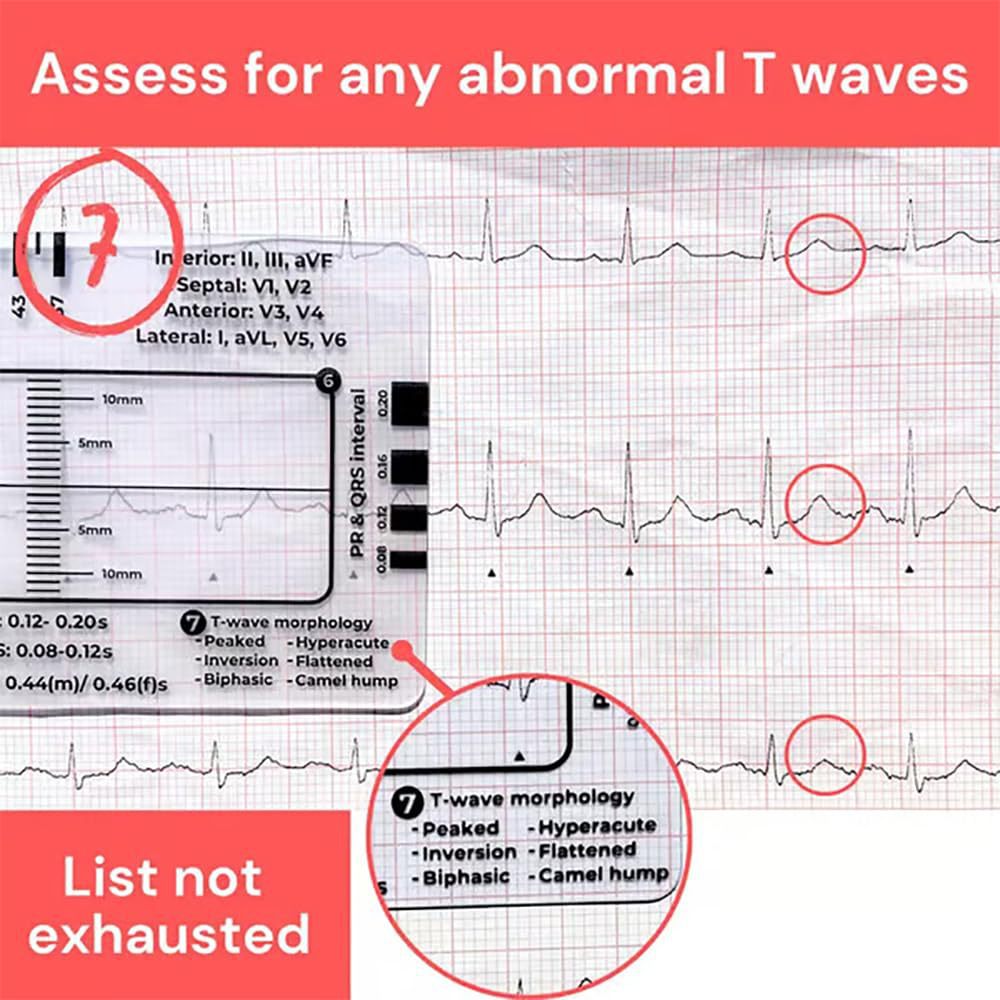

7.T wave- Lastly, a quick reference for potential T wave abnormalities. Plus top right references the leads view of the heart which comes in handy when identifying the area of a myocardial infarction. Remember: V1-V4= Anteroseptal MI & V3-V6= Anterolateral MI
