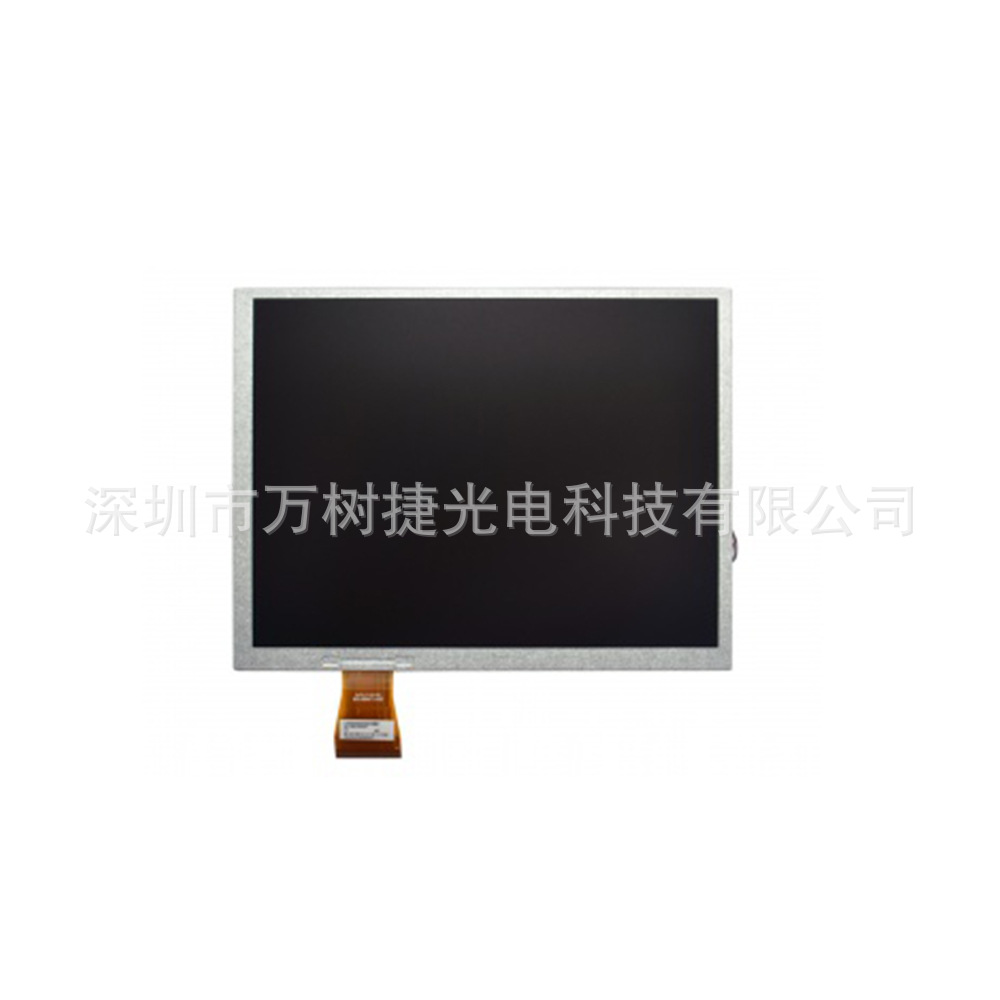

| A104SN03 V1 10.4" 800(RGB)×600 [SVGA] , a-Si TFT-LCD , LCM |
|||
| Panel Model | A104SN03 V1 | Panel Brand | AUO |
| Size (inch ) | 10.4inch | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600 [SVGA] | Pixel Format | RGB Vertical Stripe |
| Module Outsize(mm) | 228.4(H)×175.4(V) ×6.5(D) mm | Display Mode | TN, Normally White, Transmissive |
| LCD Active area(mm) | 211.2(H)×158.4(V) mm | Response Time | 30 (Typ.)(Tr+Td) |
| Support Color | 262K/16.2M 50% NTSC | Light Source | WLED [3S12P] , 10K hours , W/O Driver |
| Viewing Angle | 75/75/50/60 (Typ.)(CR≥10) | TouchScreen | Without |
| Brightness | 350 cd/m² (Typ.) | Power Supply | 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Contrast Ratio | 500:1 (Typ.) (TM) | Used for | Industrial, Digital Photo Frame, Portable DVD Player |
| Frame Rate | 60Hz | Enviroment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| LCM Interface Type | 60 pins TTL (1 ch, 6/8-bit) + SPI , FPC | FPC connector | \ |
| Packaging & Delivery | |||
| Packaging Details | 20pcs/Box | ||
| Port | ShenZhen / HongKong | ||
| Lead Time : | 1-3 working days after payment | ||
| Warranty | 12 Months | ||
|
Please contact the seller before you release the order, thanks!
|
|||
