1.44inch 디스플레이 보조 배터리 화면 SPI4 라인 1채널 TFT LCD 모듈 해상도 128*128

₩ 729 ¥ 3.2

색상:

1.44inch SPI4 라인1 채널

크기:

수량:

- +

재고:

최소 주문 수량: 1

알리타플은 고객님께서 주문한 물건을 그대로 구매대행 해드립니다.
궁금한 사항이 있으시면 언제든 고객센터로 연락주세요.

1688온라인 사이트에서 검색된 상품입니다. 알리타플에서는 상품검색/현지구매(구매대행)/국제배송 업무만 제공해드립니다. 해당 상품의 품질 및 상태에 대해서는 확인해 드릴 수 없고 해당 물건이 입고가 된 후에 검수과정을 거쳐야 확인이 가능합니다.

동의합니다.

장바구니

상세페이지

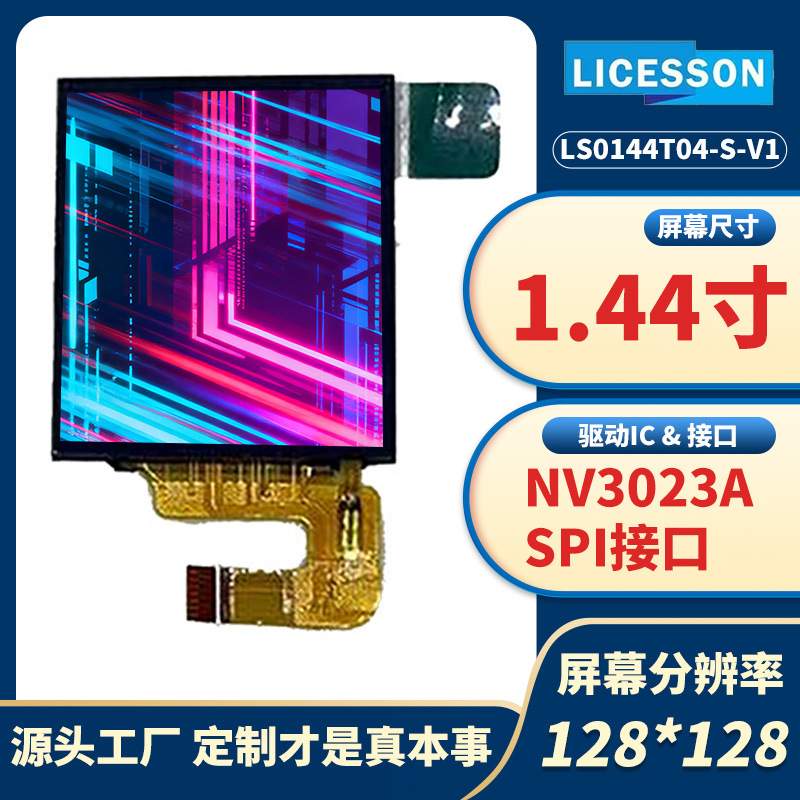

LS0144T04-S-V1 1.44英寸 TFT液晶屏模块规格参数

⚙️ 基本信息

面板型号	LS0144T04-S-V1
屏幕尺寸	1.44 英寸
分辨率	128(RGB) × 128
显示颜色	262K 色
视角方向	TN (12点钟方向)
显示类型	a-Si TFT, 透射式
模块类型	COG+FPC+B/L
驱动IC	NV3023A

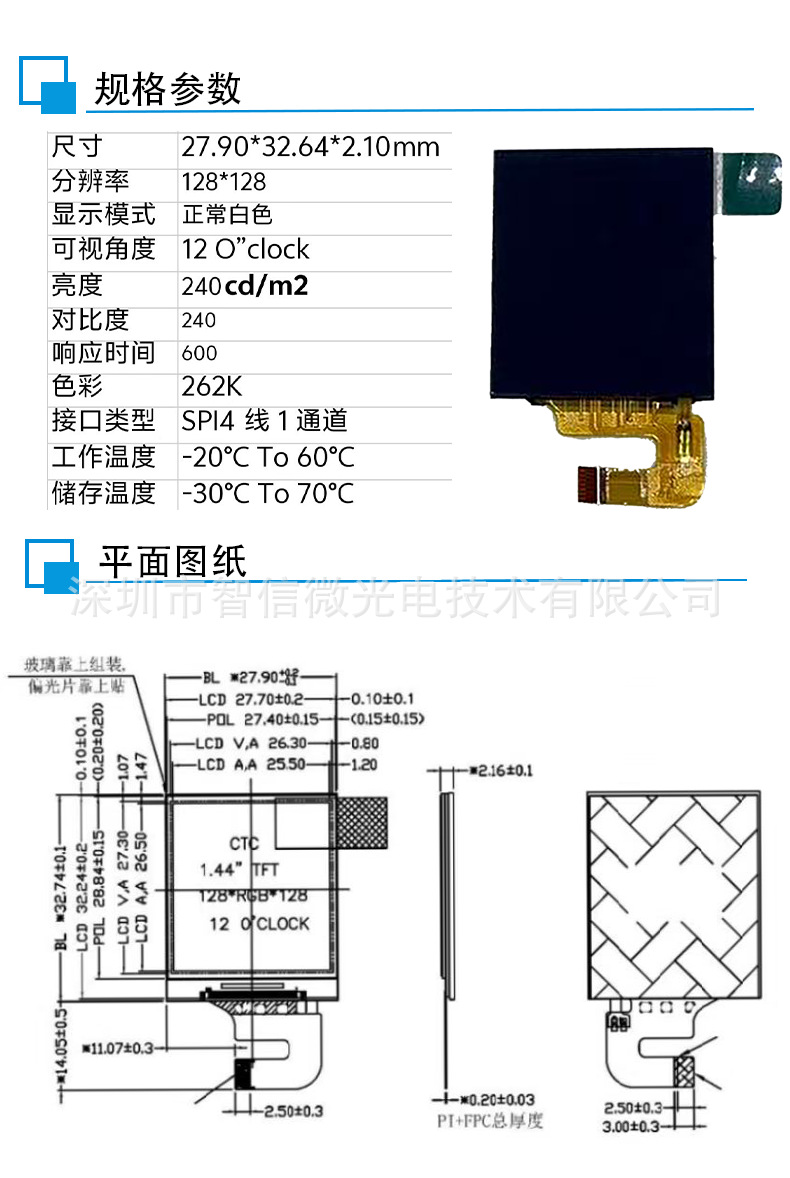

📐 机械尺寸

模块尺寸 (H×V×D)	27.9 × 32.64 × 2.1 mm
有效区域 (AA)	25.49 × 26.5 mm
像素数	128(RGB) × 128 像素

💡 光学特性

典型亮度	240 cd/m²
对比度	600:1 (典型值)
响应时间	≤ 32 ms
可视角度 (CR≥10)	60°/60°/60°/60° (上/下/左/右)
NTSC色域	50% (典型值)
背光类型	2颗白光LED
背光驱动条件	IF=40mA (定电流驱动)

🔌 电气与接口

模拟电源 (VCI)	典型 2.8V (范围 2.6V ~ 3.3V)
接口电源 (IOVCC)	典型 1.8V (范围 1.65V ~ 3.3V)
信号接口	4线串行接口 (SPI 4线1通道)
接口引脚数	15 Pin
背光LED电压	典型 3.0V (范围 2.9V ~ 3.1V)

🌡️ 环境与可靠性

工作温度	-20°C ~ +60°C
存储温度	-30°C ~ +70°C
存储湿度	10% ~ 90% RH (无凝露)
RoHS	符合

⚠️ 注意：以上参数均来源于官方规格书 (Rev V1.0, 2024-01-22)，实际使用请以样品或合同为准。部分参数（如亮度、对比度）为典型值，实际值可能存在±5%的偏差。背光LED寿命为20000小时（典型值）。

立信智显 - 中、小尺寸TFT量产产品列表

专业显示解决方案提供商 | 品质保障 | 专业定制

中小尺寸 TFT显示 IPS/ADS技术宽温工作多种信号类型个性化定制

序号	产品型号	尺寸	分辨率	显示类型	工作温度	信号类型	AA区尺寸	外形尺寸	PIN脚
1	LS071I01-S-V1	0.71/圆形	160*160	IPS	-20~70℃	4WSPI	18(H)*18(V)	20.12(H)22.3(V)1.9(D)	插接12PIN
2	LS096I05-S-V1	0.96	80*160	ADS	-20~70℃	4WSPI	10.8(H)*21.7(V)	13.5(H)27.95(V)2.01(D)	插接8PIN
3	LS012I03-M-V2	1.2/圆形	240*240	ADS	-10~60℃	8MCU	30.24(H)*30.24(V)	32.54(H)34.31(V)1.56(D)	插接18PIN
4	LSI0128HG002B	1.28/圆形	240*240	ADS	-10~60℃	4WSPI	32.4(H)*32.4(V)	35.6(H)37.74(V)1.6(D)	15PIN
5	LSI0128HG003A	1.28/圆形	240*240	ADS	-10~60℃	16MCU	32.4(H)*32.4(V)	35.6(H)37.74(V)1.6(D)	31PIN
6	LSCI013CDTM0A1.1	1.3	240*240	ADS	-10~60℃	4WSPI	23.4(H)*23.4(V)	33(H)38.6(V)3.51(D)	16PIN
7	LS0144T03-S-V1	1.44	128*128	TN	-10~60℃	4WSPI	25.5(H)*26.5(V)	27.9(H)32.64(V)2.1(D)	焊接13PIN
8	LS0144T05-S-V1	1.44	128*128	TN	-10~60℃	4WSPI	25.5(H)*26.5(V)	29.5(H)36.5(V)2.5(D)	插接10PIN
9	LS0147I02-S-V3	1.47	172*320	ADS	-10~60℃	4WSPI	17.65(H)*32.83(V)	19.65(H)36.76(V)1.56(D)	24PIN
10	LS015I01-QS-V1	1.5/圆形	360*360	IPS	-20~70℃	QSPI	38.16(H)*38.16(V)	40.46(H)41.96(V)2.16(D)	插接16PIN
11	LS016I01-MP-V1	1.6/圆形	400*400	ADS	-10~70℃	MIPI	39.84(H)*39.84(V)	42.14(H)44.23(V)1.9(D)	12PIN
12	LSL018I01-QS-V1	1.8/圆形	360*360	ADS	-20~70℃	QSPI	45.68(H)*45.68(V)	69.00(H)69.66(V)3.11(D)	插接10PIN
13	LSC018I02-QS-V1	1.8/圆形	360*360	ADS	-20~70℃	QSPI	45.68(H)*45.68(V)	69.00(H)69.66(V)3.11(D)	插接16PIN
14	LS0177T02-S-V1	1.77	128*160	TN	-10~60℃	4WSPI	28.03(H)*35.04(V)	34.7(H)46.7(V)2.5(D)	焊接14PIN
15	LS020T08-M-V1	2	128*160	TN	-20~70℃	8MCU	31.87(H)*39.84(V)	37.68(H)51.3(V)2.8(D)	焊接24PIN
16	LSC020I09-R-V2	2	240*320	IPS	-10~60℃	6BIT RGB	30.6(H)*40.8(V)	39.24(H)59.24(V)3.38(D)	插接24PIN
17	QV021Y10	2.1/圆形	360*360	IPS	-20~70℃	/	/	/	/
18	LS022T04-R-V1	2.2	240*320	TN	-20~70℃	6BIT RGB	33.84(H)*45.12(V)	40.1(H)55.2(V)2.33(D)	插接40PIN
19	LSR024T13-S-V1	2.4	240*320	TN	-20~70℃	4WSPI	36.72(H)*48.96(V)	42.72(H)60.26(V)3.55(D)	插接18PIN
20	LS024T04-M-V1	2.4	240*320	TN	-20~70℃	SPI/MCU	36.72(H)*48.96(V)	42.72(H)60.26(V)2.15(D)	插接40PIN
21	LSC024I09-MP-V1	2.4	240*320	ADS	-20~70℃	MIPI	36.72(H)*48.96(V)	49.6(H)67.9(V)4.08(D)	25PIN
22	LS028T10-M-V1	2.8	240*320	TN	-20~70℃	SPI/8MCU	43.2(H)*57.6(V)	50.0(H)69.1(V)2.3(D)	插接24PIN
23	LSC030I06-MP-V1	2.96	360*640	IPS	-20~70℃	MIPI	36.72(H)*65.28(V)	42.64(H)74.52(V)2.1(D)	插接25PIN
24	LS032I03-R-V1	3.2	240*320	IPS	-20~70℃	6BIT RGB	48.6(H)*64.8(V)	55.05(H)75.20(V)2.84(D)	插接45PIN
25	LS035I01-R-V1	3.5	320*480	ADS	-20~70℃	18RGB	55.44(H)*98.64(V)	54.5(H)80(V)2.2(D)	40PIN
26	LS035I03-MP-V1	3.5	640*480	ADS	-20~70℃	4MIPI	70.08(H)*52.56(V)	76.84(H)63.84(V)2.99(D)	30PIN
27	LSC040I01-R-V1	3.95	480*480	ADS	-20~70℃	18RGB	71.86(H)*70.18(V)	84.2(H)84.2(V)3.14(D)	40PIN
28	LS0397I03-MP-V1	3.97	480*800	ADS	-20~70℃	MIPI	51.84(H)*86.4(V)	55.64(H)94.1(V)2.2(D)	33PIN
29	LXT043QHXC-P40-C	4.3	480*272	TN	-20~70℃	24RGB	95.04(H)*53.86(V)	105.5(H)67.2(V)2.6(D)	40PIN
30	LSI045FW-MP026V2	4.5	480*854	ADS	-20~70℃	MIPI	55.44(H)*98.64(V)	61(H)107.4(V)3.2(D)	40PIN
31	LSCI050HD-MP5013-WYX	5	720*1280	ADS	-20~70℃	MIPI	62.1(H)*110.4(V)	87.5(H)141.5(V)3.45(D)	40PIN
32	LS050I03-MP-V1	5	1080*1920	ADS	-20~70℃	MIPI	61.64(H)*109.58(V)	75.88(H)119.47(V)2.75(D)	40PIN
33	LS055I01-MP-V1	5.5	1080*1920	ADS	-20~70℃	MIPI	68.04(H)*120.96(V)	71.04(H)129.67(V)1.69(D)	30PIN
34	LSC062I02-MP-V2	6.2	480*1280	ADS	-20~70℃	MIPI	54.43(H)*146.65(V)	67.25(H)161.7(V)3.58(D)	39PIN
35	LS070I07-M-V1	7	1024*600	ADS	-20~70℃	MIPI	154.2144(H)*85.92(V)	164.9(H)100(V)2.8(D)	30PIN
36	LS070T06-R-V1	7	800*480	TN	-20~70℃	24RGB	154.08(H)*85.92(V)	164.86(H)99.96(V)3.5(D)	50PIN
37	LS070T08-R-V1	7	1024*600	ADS	-20~70℃	24RGB	154.08(H)*85.92(V)	164.9(H)100(V)3.25(D)	50PIN
38	LSC080I05-MP-V1	8	800*1280	ADS	-20~70℃	MIPI	107.64(H)*172.22(V)	137.33(H)199.16(V)6.75(D)	40PIN
39	LSC101I33-MP-V1	10.1	800*1280	ADS	-20~70℃	MIPI	135.36(H)*216.58(V)	143.1(H)228.7(V)2.47(D)	40PIN
40	LSC101I34-MP-V1	10.1	800*1280	ADS	-20~70℃	MIPI	135.36(H)*216.58(V)	159.61(H)240.83(V)4.2(D)	40PIN
