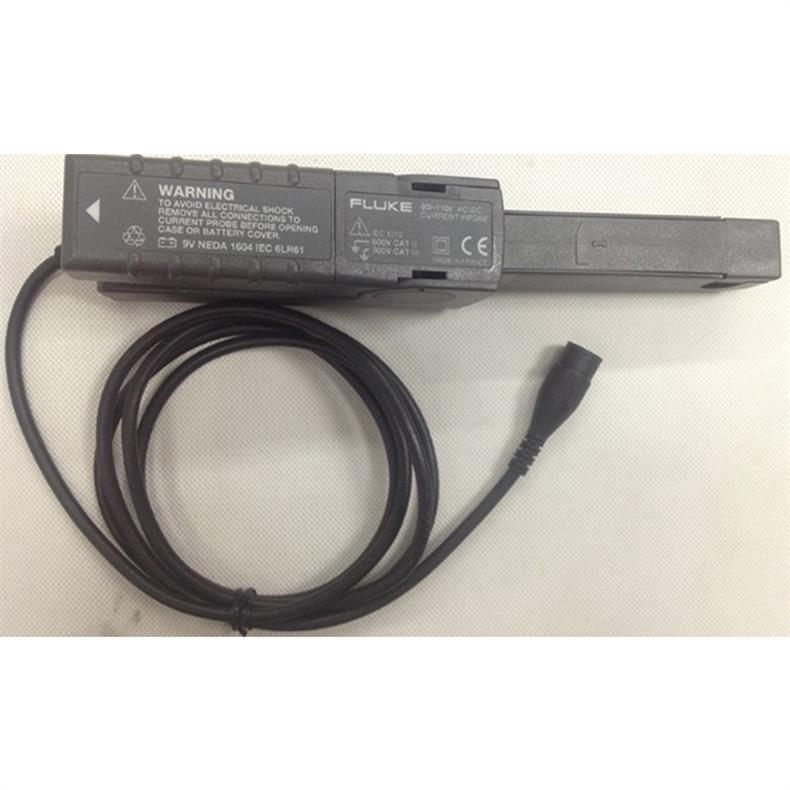

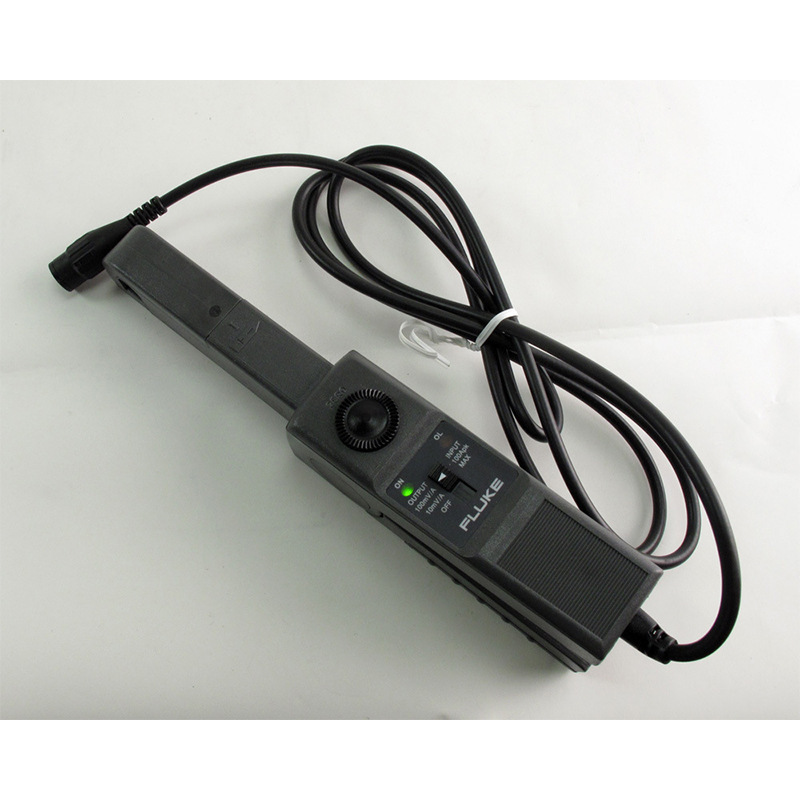

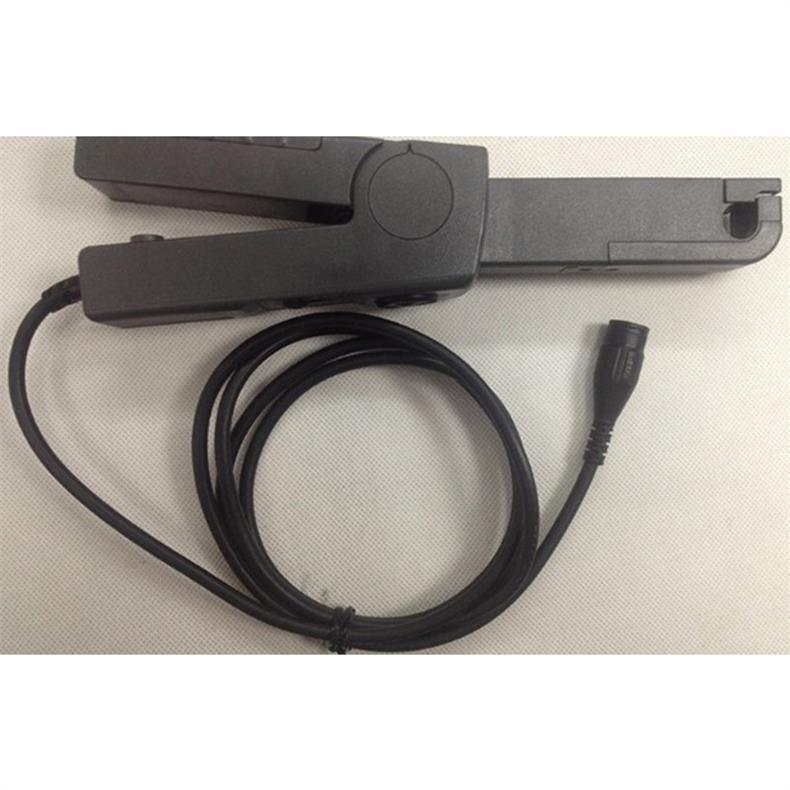

产品概述:80i-110s 交/直流电流钳
80i-110交/直流电流钳与任何福禄克示波表、功率谐波分析仪、万用表或其他电压测量工具兼容，
其具有以下特点：
BNC连接器输入或者使用计将钳形探头转换成使用适配器PM9081/001 BNC连接器
电流范围:0.1 - 100直流或0.1到100 AC
基本电性(DC = 1 khz):
100 mv /设置:50 - 10± 3%或+ 50 ma
10 mv /设置:50 - 40 ± 4%或+ 50 ma
40 - 80 ± 12%或+ 50 ma
80 - 100 ± 15%
输出信号:10范围:100 mv / 100 |范围:10 mv /
带宽:1~20 khz
工作电压:600 v AC rms
导线的最大大小:11.8毫米(。46英寸)直径
安全等级:IEC 1010和1010号CSA-C22.2 - 1安装第二类,工作电压600 v
| Specifications | |
| Nominal current range | 10 A, AC/DC |
| 100 A, AC/DC | |
| Continuous current range | 0.1 A - 10 A AC/DC |
| 1 A - 100 A AC/DC | |
| Maximum non-destructive current | 140 A - 2 kHz |
| Lowest measurable current | 0.1 A |
| Basic accuracy | 100 mV/A setting: 50 mA to 10 A ±3% of reading +50 mA |
| 10 mV/A setting: 50 mA to 40 A ±4% of reading +50 mA | |
| 40 A to 80 A ±12% of reading +50 mA | |
| 80 to 100 A ±15% of reading | |
| Useable frequency | DC - 100 kHz |
| Output level(s) | 10 A range: 100 mV/A |
| 100 A range: 10 mV/A | |
| Zero error adjustment | Yes |
| Safety Specifications | |
| Safety | CAT II, 600 V |
| CAT III, 300 V | |
| Maximum voltage | 600 V |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Battery life | 9 V, 55 h |
| Maximum conductor diameter | 11.8 mm |
| Output cable length | 1.6 m |
| BNC adapter | Yes |
