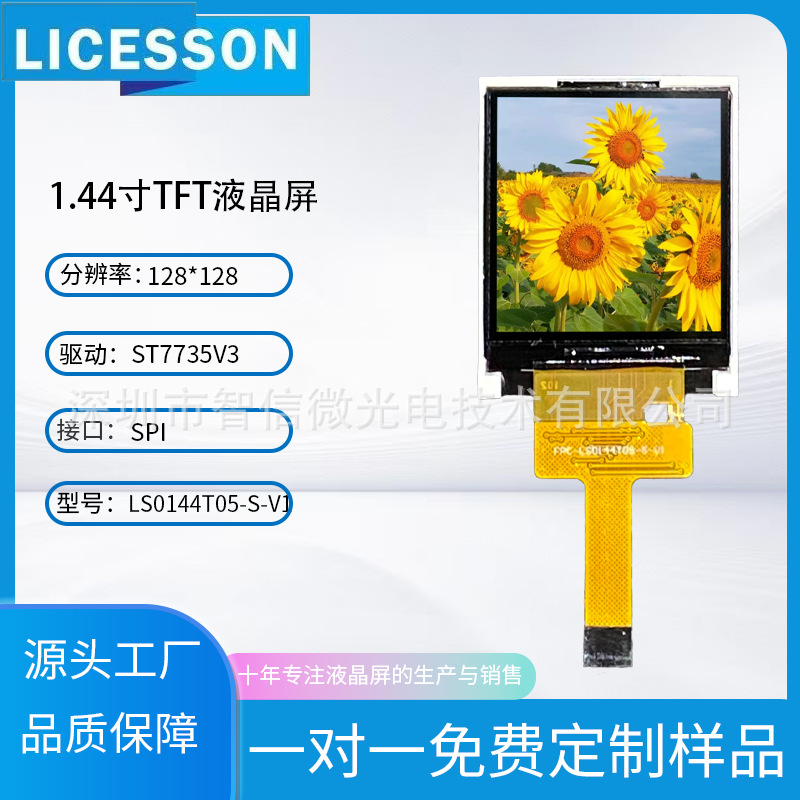

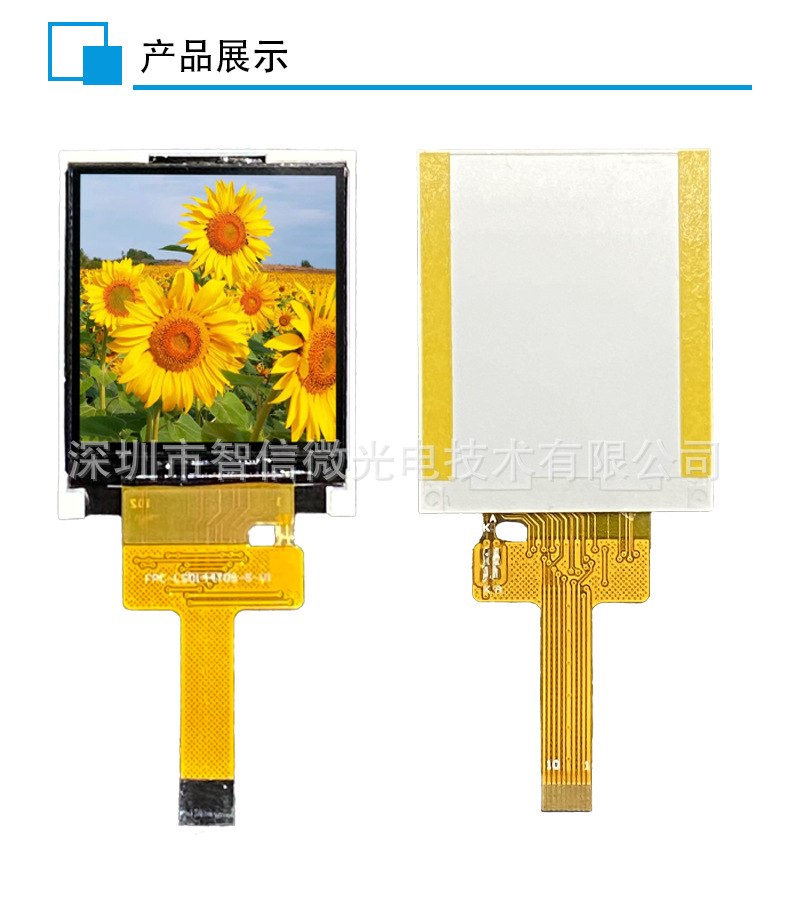

LS0144T05-S-V1 1.44英寸 TFT液晶屏模块 规格参数
⚙️ 基本信息
| 面板型号 |
LS0144T05-S-V1 |
| 屏幕尺寸 |
1.44 英寸 |
| 分辨率 |
128(RGB) × 128 |
| 显示颜色 |
262K 色 |
| 视角方向 (灰阶反转) |
TN (12点钟方向) |
| 显示类型 |
a-Si TFT, 透射式 (Transmissive) |
| 模块类型 |
COG+FPC+B/L |
| 驱动IC |
ST7735V3 |
| 输入数据 |
SPI (3线/4线) |

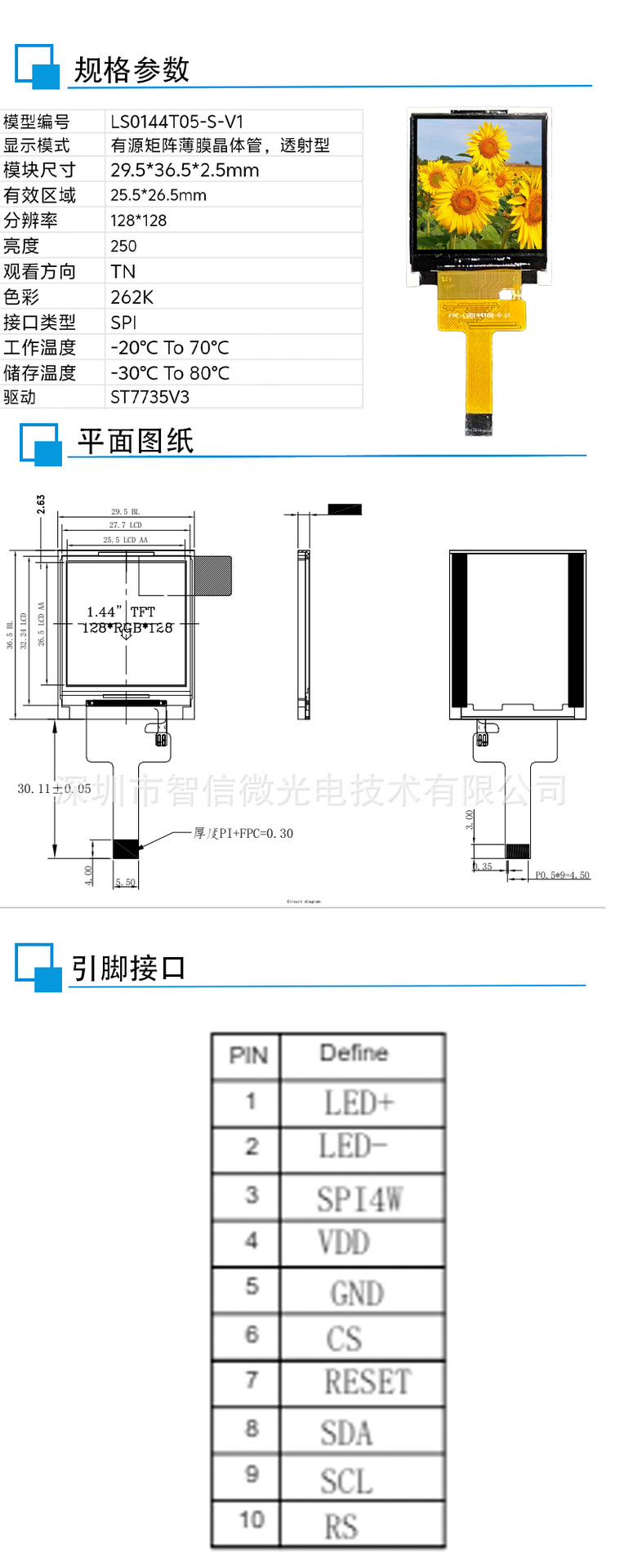

📐 机械尺寸
| 模块尺寸 (H×V×D) |
29.5 × 36.5 × 2.5 mm (基于图纸) |
| 有效区域 (AA, H×V) |
25.5 × 26.5 mm (基于图纸) |
| 像素数 |
128(RGB) × 128 像素 |
💡 光学特性
| 响应时间 (Tr+Tf) |
Typ. 25 ms, Max. 30 ms |
| 对比度 (CR) |
Typ. 600, Min. 300 |
| 透光率 (T%) |
Typ. 5.5% |
| 可视角度 (CR>10) |
上: 70°, 下: 60°, 左: 75°, 右: 75° |
| 白光色坐标 (CIE1931) |
Wx: 0.301, Wy: 0.327 |
| 背光类型 |
白光LED |
| 背光驱动条件 |
IF=40mA, VF=2.7~3.3V (典型值) |
🔌 电气与接口
| 供电电压 (VDD) |
2.8V ~ 3.3V |
| 信号接口 |
SPI (3线/4线, 10 Pin FPC) |
| 接口引脚数 |
10 Pin (FPC) |
🌡️ 环境与可靠性
| 工作温度 |
-20°C ~ +70°C |
| 存储温度 |
-30°C ~ +80°C |
| RoHS |
符合 |
🎯 适用细分应用场景（1.44英寸小尺寸）
| ⌚ 智能穿戴 |
智能手表、智能手环、运动手环、儿童手表 |
| 📱 手持终端 |
对讲机、手持条码扫描器、RFID手持终端、数据采集器 |
| 🏠 智能家居 |
智能温控器、智能开关面板、智能门锁显示屏、小家电控制屏 |
| 🔬 仪器仪表 |
万用表、示波器、实验仪器面板 |
| 📖 教育电子 |
电子词典、翻译笔、学习机、儿童早教机 |
| 🎮 娱乐消费 |
MP3/MP4播放器、游戏机副屏、数码相框 |
| 🖥️ 开发评估 |
单片机开发板、树莓派扩展屏、Arduino显示模块 |
⚠️ 注意：以上参数均来源于精准匹配的官方规格书 (LS0144T05-S-V1(SPEC).pdf, 发布时间: 2025-01-02)。该型号为1.44英寸小尺寸显示模块，采用SPI接口，适用于智能穿戴、手持终端、便携医疗、智能家居面板、仪器仪表、教育电子等对尺寸和功耗有严格要求的便携式或嵌入式应用场景。实际使用请以样品或合同为准。部分光学参数为典型值，实际值可能存在±5%的偏差。
立信智显 - 中、小尺寸TFT量产产品列表
专业显示解决方案提供商 | 品质保障 | 专业定制
中小尺寸 TFT显示 IPS/ADS技术 宽温工作 多种信号类型 个性化定制
| 序号 | 产品型号 | 尺寸 | 分辨率 | 显示类型 | 工作温度 | 信号类型 | AA区尺寸 | 外形尺寸 | PIN脚 |
|---|
| 1 |
LS071I01-S-V1 |
0.71/圆形 |
160*160 |
IPS |
-20~70℃ |
4WSPI |
18(H)*18(V) |
20.12(H)*22.3(V)*1.9(D) |
插接12PIN |
| 2 |
LS096I05-S-V1 |
0.96 |
80*160 |
ADS |
-20~70℃ |
4WSPI |
10.8(H)*21.7(V) |
13.5(H)*27.95(V)*2.01(D) |
插接8PIN |
| 3 |
LS012I03-M-V2 |
1.2/圆形 |
240*240 |
ADS |
-10~60℃ |
8MCU |
30.24(H)*30.24(V) |
32.54(H)*34.31(V)*1.56(D) |
插接18PIN |
| 4 |
LSI0128HG002B |
1.28/圆形 |
240*240 |
ADS |
-10~60℃ |
4WSPI |
32.4(H)*32.4(V) |
35.6(H)*37.74(V)*1.6(D) |
15PIN |
| 5 |
LSI0128HG003A |
1.28/圆形 |
240*240 |
ADS |
-10~60℃ |
16MCU |
32.4(H)*32.4(V) |
35.6(H)*37.74(V)*1.6(D) |
31PIN |
| 6 |
LSCI013CDTM0A1.1 |
1.3 |
240*240 |
ADS |
-10~60℃ |
4WSPI |
23.4(H)*23.4(V) |
33(H)*38.6(V)*3.51(D) |
16PIN |
| 7 |
LS0144T03-S-V1 |
1.44 |
128*128 |
TN |
-10~60℃ |
4WSPI |
25.5(H)*26.5(V) |
27.9(H)*32.64(V)*2.1(D) |
焊接13PIN |
| 8 |
LS0144T05-S-V1 |
1.44 |
128*128 |
TN |
-10~60℃ |
4WSPI |
25.5(H)*26.5(V) |
29.5(H)*36.5(V)*2.5(D) |
插接10PIN |
| 9 |
LS0147I02-S-V3 |
1.47 |
172*320 |
ADS |
-10~60℃ |
4WSPI |
17.65(H)*32.83(V) |
19.65(H)*36.76(V)*1.56(D) |
24PIN |
| 10 |
LS015I01-QS-V1 |
1.5/圆形 |
360*360 |
IPS |
-20~70℃ |
QSPI |
38.16(H)*38.16(V) |
40.46(H)*41.96(V)*2.16(D) |
插接16PIN |
| 11 |
LS016I01-MP-V1 |
1.6/圆形 |
400*400 |
ADS |
-10~70℃ |
MIPI |
39.84(H)*39.84(V) |
42.14(H)*44.23(V)*1.9(D) |
12PIN |
| 12 |
LSL018I01-QS-V1 |
1.8/圆形 |
360*360 |
ADS |
-20~70℃ |
QSPI |
45.68(H)*45.68(V) |
69.00(H)*69.66(V)*3.11(D) |
插接10PIN |
| 13 |
LSC018I02-QS-V1 |
1.8/圆形 |
360*360 |
ADS |
-20~70℃ |
QSPI |
45.68(H)*45.68(V) |
69.00(H)*69.66(V)*3.11(D) |
插接16PIN |
| 14 |
LS0177T02-S-V1 |
1.77 |
128*160 |
TN |
-10~60℃ |
4WSPI |
28.03(H)*35.04(V) |
34.7(H)*46.7(V)*2.5(D) |
焊接14PIN |
| 15 |
LS020T08-M-V1 |
2 |
128*160 |
TN |
-20~70℃ |
8MCU |
31.87(H)*39.84(V) |
37.68(H)*51.3(V)*2.8(D) |
焊接24PIN |
| 16 |
LSC020I09-R-V2 |
2 |
240*320 |
IPS |
-10~60℃ |
6BIT RGB |
30.6(H)*40.8(V) |
39.24(H)*59.24(V)*3.38(D) |
插接24PIN |
| 17 |
QV021Y10 |
2.1/圆形 |
360*360 |
IPS |
-20~70℃ |
/ |
/ |
/ |
/ |
| 18 |
LS022T04-R-V1 |
2.2 |
240*320 |
TN |
-20~70℃ |
6BIT RGB |
33.84(H)*45.12(V) |
40.1(H)*55.2(V)*2.33(D) |
插接40PIN |
| 19 |
LSR024T13-S-V1 |
2.4 |
240*320 |
TN |
-20~70℃ |
4WSPI |
36.72(H)*48.96(V) |
42.72(H)*60.26(V)*3.55(D) |
插接18PIN |
| 20 |
LS024T04-M-V1 |
2.4 |
240*320 |
TN |
-20~70℃ |
SPI/MCU |
36.72(H)*48.96(V) |
42.72(H)*60.26(V)*2.15(D) |
插接40PIN |
| 21 |
LSC024I09-MP-V1 |
2.4 |
240*320 |
ADS |
-20~70℃ |
MIPI |
36.72(H)*48.96(V) |
49.6(H)*67.9(V)*4.08(D) |
25PIN |
| 22 |
LS028T10-M-V1 |
2.8 |
240*320 |
TN |
-20~70℃ |
SPI/8MCU |
43.2(H)*57.6(V) |
50.0(H)*69.1(V)*2.3(D) |
插接24PIN |
| 23 |
LSC030I06-MP-V1 |
2.96 |
360*640 |
IPS |
-20~70℃ |
MIPI |
36.72(H)*65.28(V) |
42.64(H)*74.52(V)*2.1(D) |
插接25PIN |
| 24 |
LS032I03-R-V1 |
3.2 |
240*320 |
IPS |
-20~70℃ |
6BIT RGB |
48.6(H)*64.8(V) |
55.05(H)*75.20(V)*2.84(D) |
插接45PIN |
| 25 |
LS035I01-R-V1 |
3.5 |
320*480 |
ADS |
-20~70℃ |
18RGB |
55.44(H)*98.64(V) |
54.5(H)*80(V)*2.2(D) |
40PIN |
| 26 |
LS035I03-MP-V1 |
3.5 |
640*480 |
ADS |
-20~70℃ |
4MIPI |
70.08(H)*52.56(V) |
76.84(H)*63.84(V)*2.99(D) |
30PIN |
| 27 |
LSC040I01-R-V1 |
3.95 |
480*480 |
ADS |
-20~70℃ |
18RGB |
71.86(H)*70.18(V) |
84.2(H)*84.2(V)*3.14(D) |
40PIN |
| 28 |
LS0397I03-MP-V1 |
3.97 |
480*800 |
ADS |
-20~70℃ |
MIPI |
51.84(H)*86.4(V) |
55.64(H)*94.1(V)*2.2(D) |
33PIN |
| 29 |
LXT043QHXC-P40-C |
4.3 |
480*272 |
TN |
-20~70℃ |
24RGB |
95.04(H)*53.86(V) |
105.5(H)*67.2(V)*2.6(D) |
40PIN |
