Product Introduction:

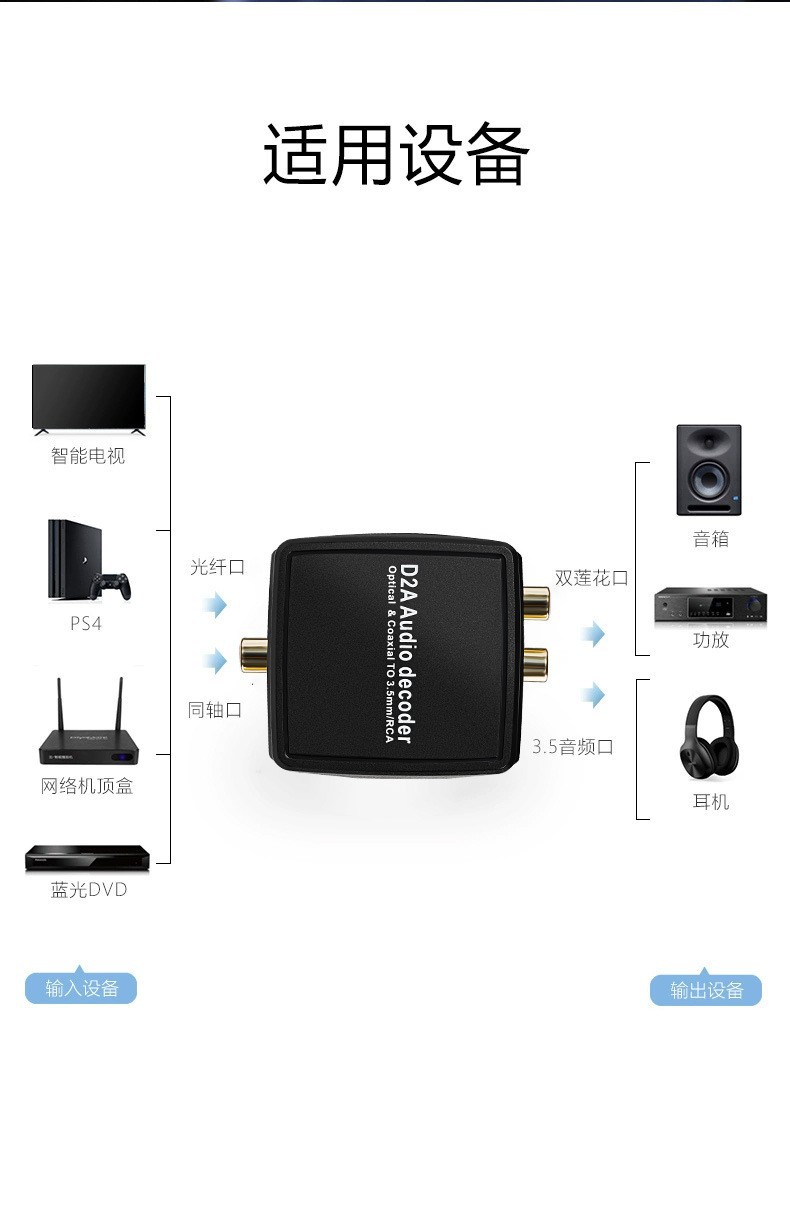

This audio decoder can convert optical/coaxial Dolby

AC-3/DTS/PCM digital audio signal input into 2.0 analog

stereo audio output by RCA and 3.5mm interface, using this

product can solve repeated switching/setting signals issues

with cumbersome manipulation of source output audio

formats. Therefore, it is widely used in public places such as

families, schools, squares, concert halls, and cinemas.

Product Features:

Built-in high-performance audio decoding chip;

support DTS/AC-3

Support SPDIF , Coaxial digital audio input

RCA stereo and 3.5mm stereo simultaneous output

Output large volume

3.5mm stereo headphone port equipped with

high-performance audio amplifier to drive headphones

Support 96KHz/24bit audio sampling rate

Ultra low power consumption

Product Specifications:

Support audio format..................Dolby、AC-3、DTS、PCM

Support audio sampling rate...............44.1Khz~96KHZ/24bit

3.5mm audio port output maximum level..................6.2Vp-p

RCA audio port output maximum level......................6.2Vp-p

Maximum operating current…………..…...........…5V/150mA

Working temperature…………..............…...…......-40~+85℃

Storage environment temperature...........……....-60~+120℃

Working environment

humidity..................................-10~90%RH(non-condensing)

Storage environment

humidity…………........………...-5~95%RH（

non-condensing）

32 Ω headphone power..............................................28Mw

Total Harmonic Distortion.............................................0.08%

SNR............................................................................98.8db

Frequency response........................................20hz～20Khz

Channel crosstalk.......................................................98.5db

Channel balance...........................................................0.3db

Product size...............................................62x70.5x22.5mm

Bare weight....................................................................39g

Case material..............................................................Plastic

Package Contents:

Converter......................................................................1pcs

USB Supply Power Cable.............................................1pcs

User Manual..................................................................1pcs
