       本公司有着15年安防产品的生产经验，因为专业，所以出色。

       本公司诚招全国代理商加盟，支持一件代发，淘宝、微商囤货价。

       大量批发请致电：13798389157

                产品说明：

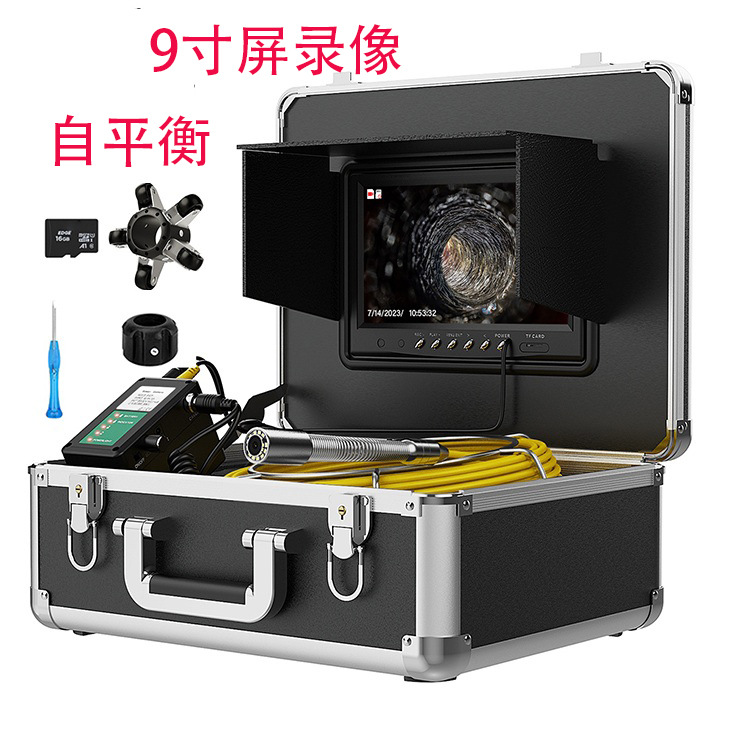

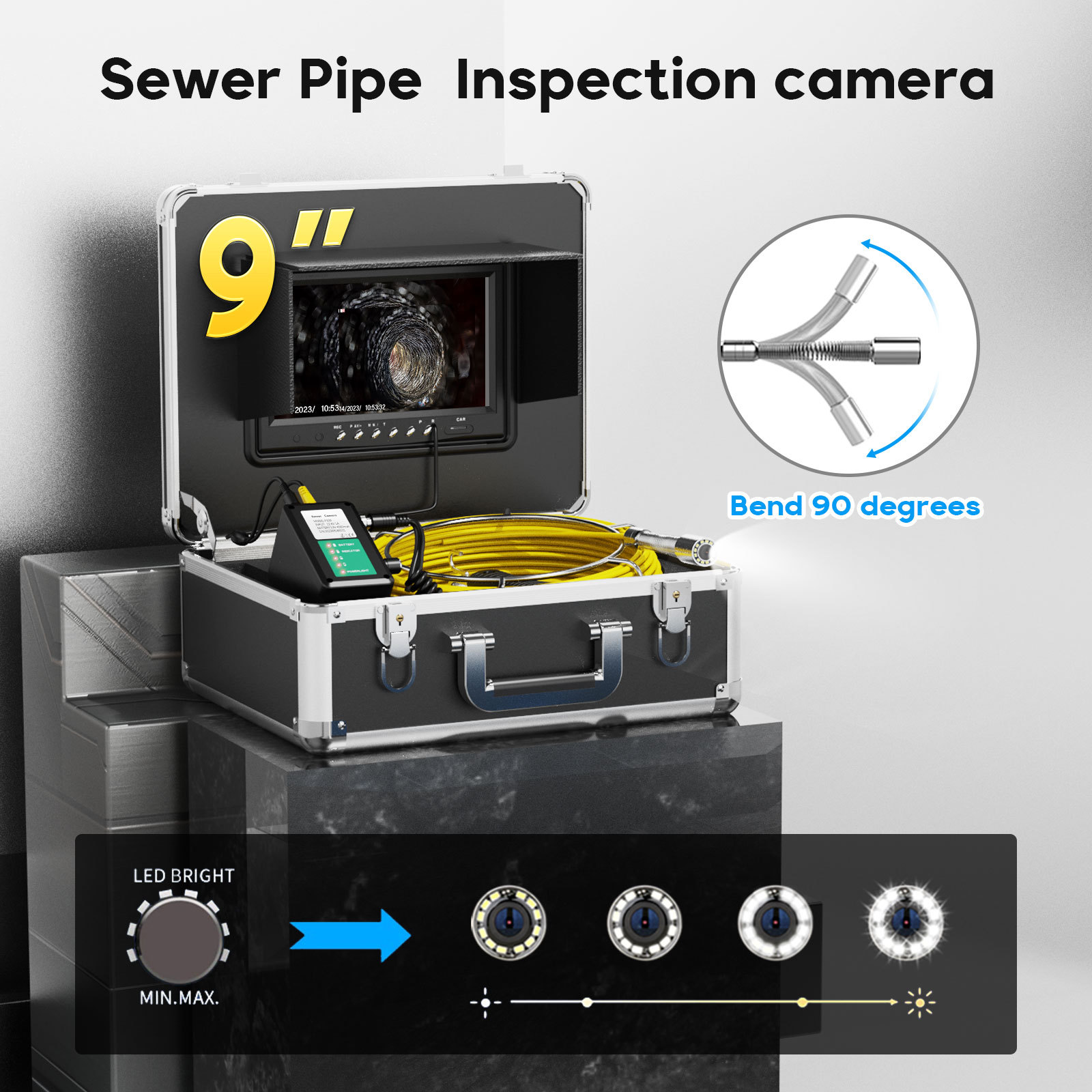

     9寸屏，带录像 ，带自平衡，22毫米1000TVL高清304不锈钢摄像机，IP68防水，12个可调节的LED灯照亮难以到达的检查区域。在黑暗环境中，检查将更加清晰。

 管道摄像机主要应用于：管道污水检查，排水管道系统检测，下水道堵塞查看等项目

显示器：

1：9 英寸 TFT 彩色记录监视器，带遮阳板，可改善室外环境
2：TF卡：内存支持最大 16G SD 卡（包括 16G SD 卡）
3：充电器：AC100-240V DC12.6V 1000MA
4：电池：发光细胞逮捕器4.5AH
5：电池连续使用时间：约6小时
6.：线缆：20米、30米，50米可选）

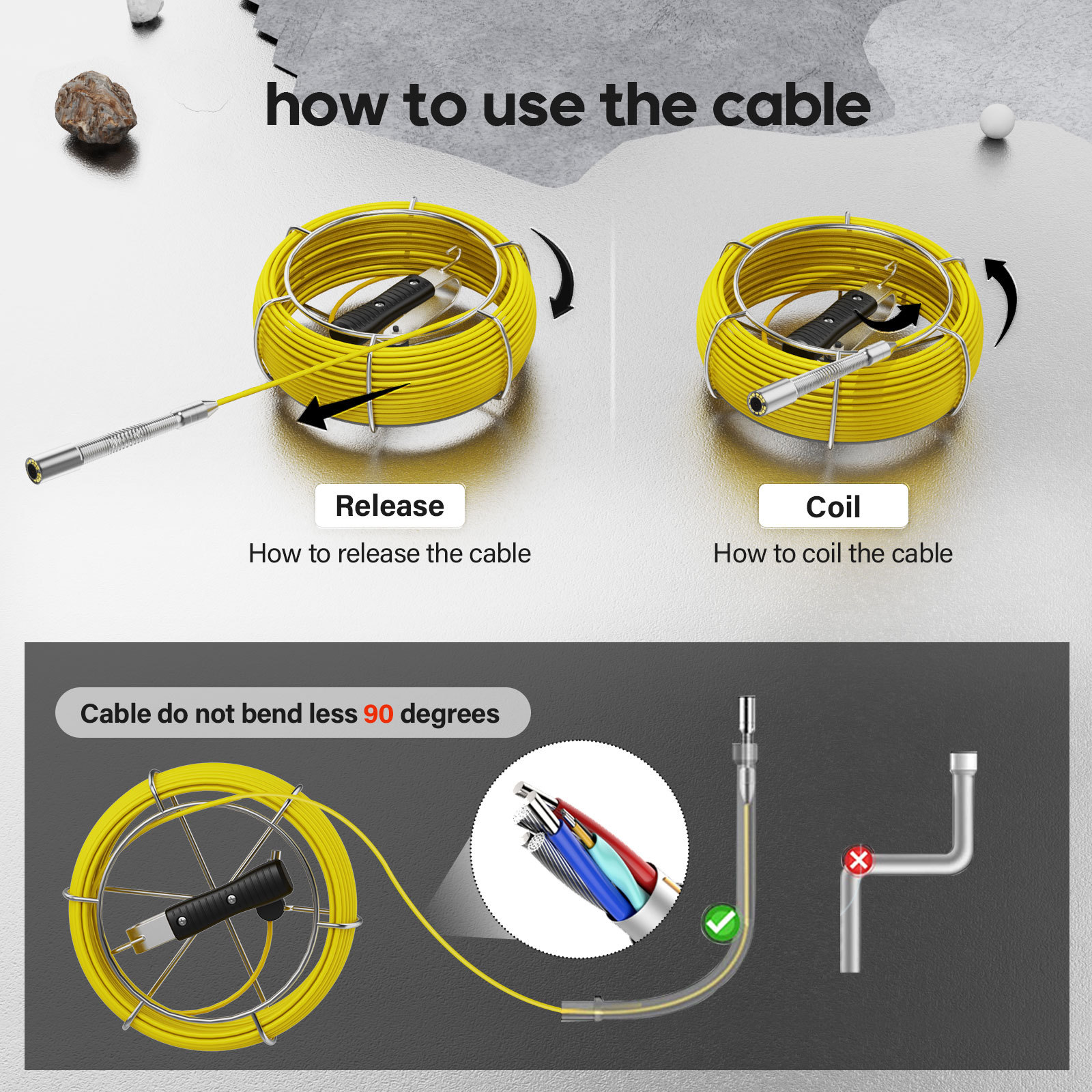

7.材料：电缆材料为玻璃纤维杆（直径：5毫米），耐腐蚀、耐冷、抗拉。

摄像机：

1：.摄像机光源，12颗 LED白光灯可调
2：摄像机视角：145°，清晰显示高清1000TVL
3：探头直径22mm
4：视频图像带自平衡调节

5：工作温度：-20-60°

6：储存温度：-50-60°

7：.铝盒尺寸：490*355*200mm
8：.包装尺寸：495*450*215mm

配件：

 1 * 9 英寸液晶显示器（DVR）
 1 * 16gb TF 卡
 1 * 高清 1000TVL 摄像机
 1 * 20M 30M  50M 玻璃纤维电缆可选
 1 * 相机保护套1个，滑轮1个
 1 * 4500mah 电池盒
 1 * 充电器
 1 * 螺丝刀

  产品说明：

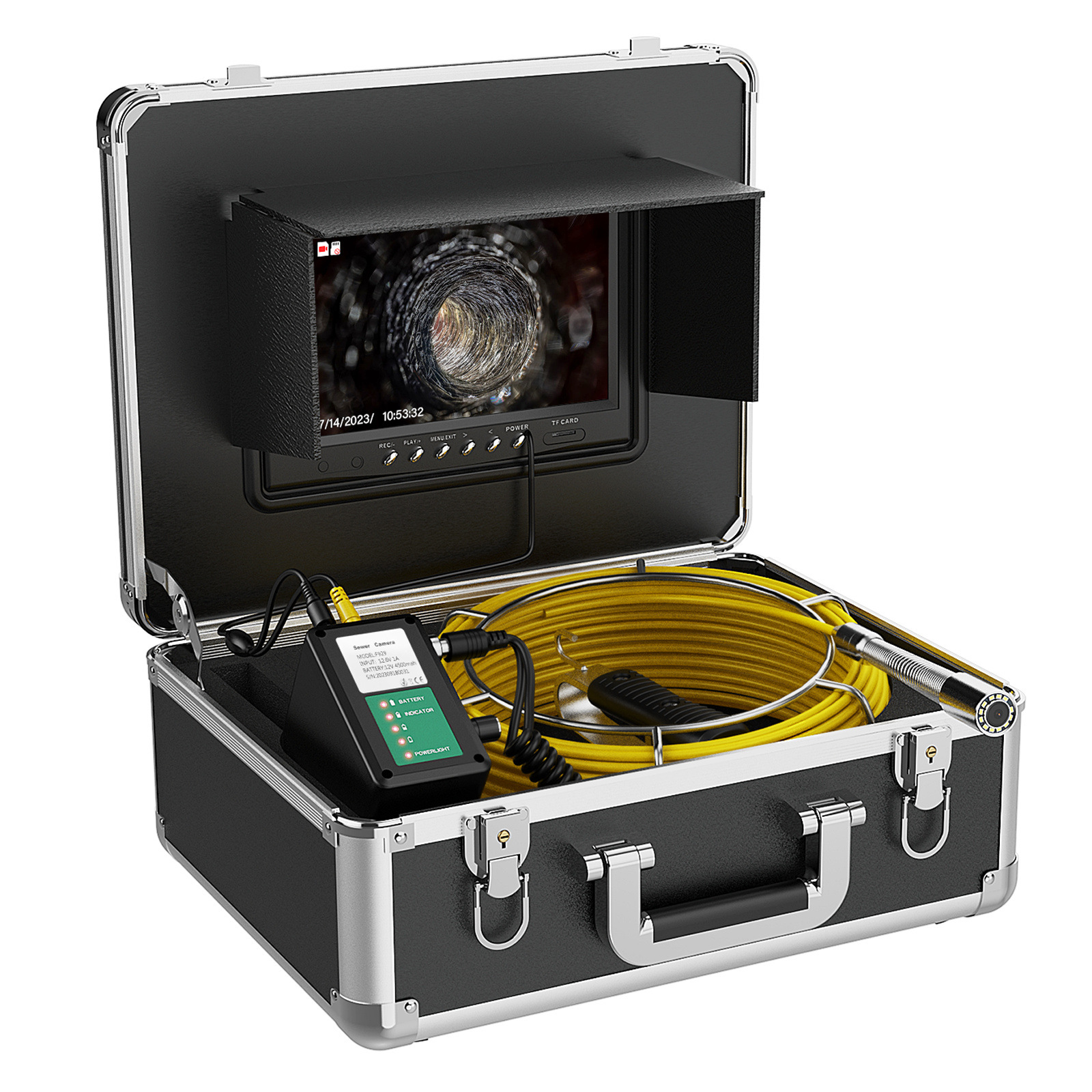

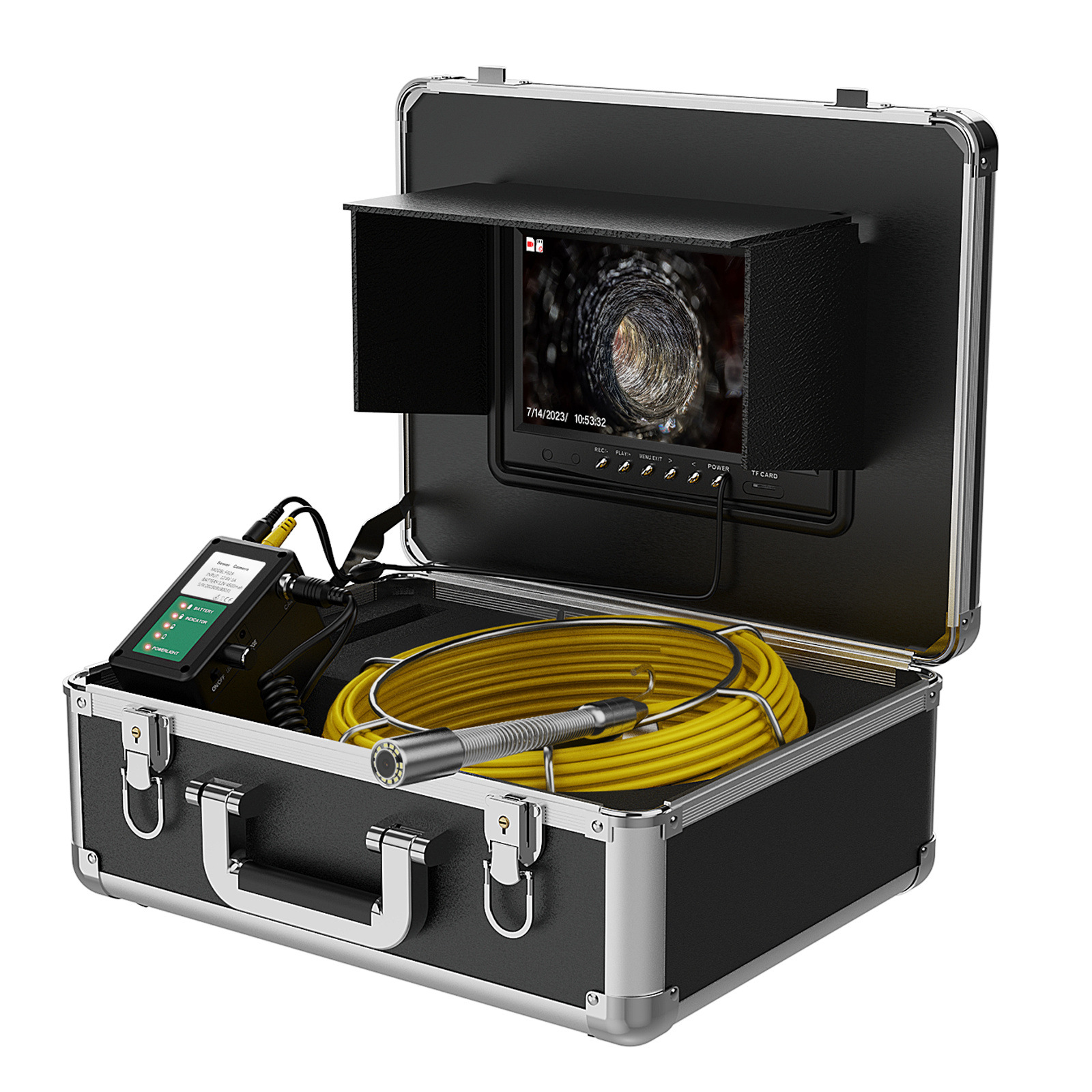

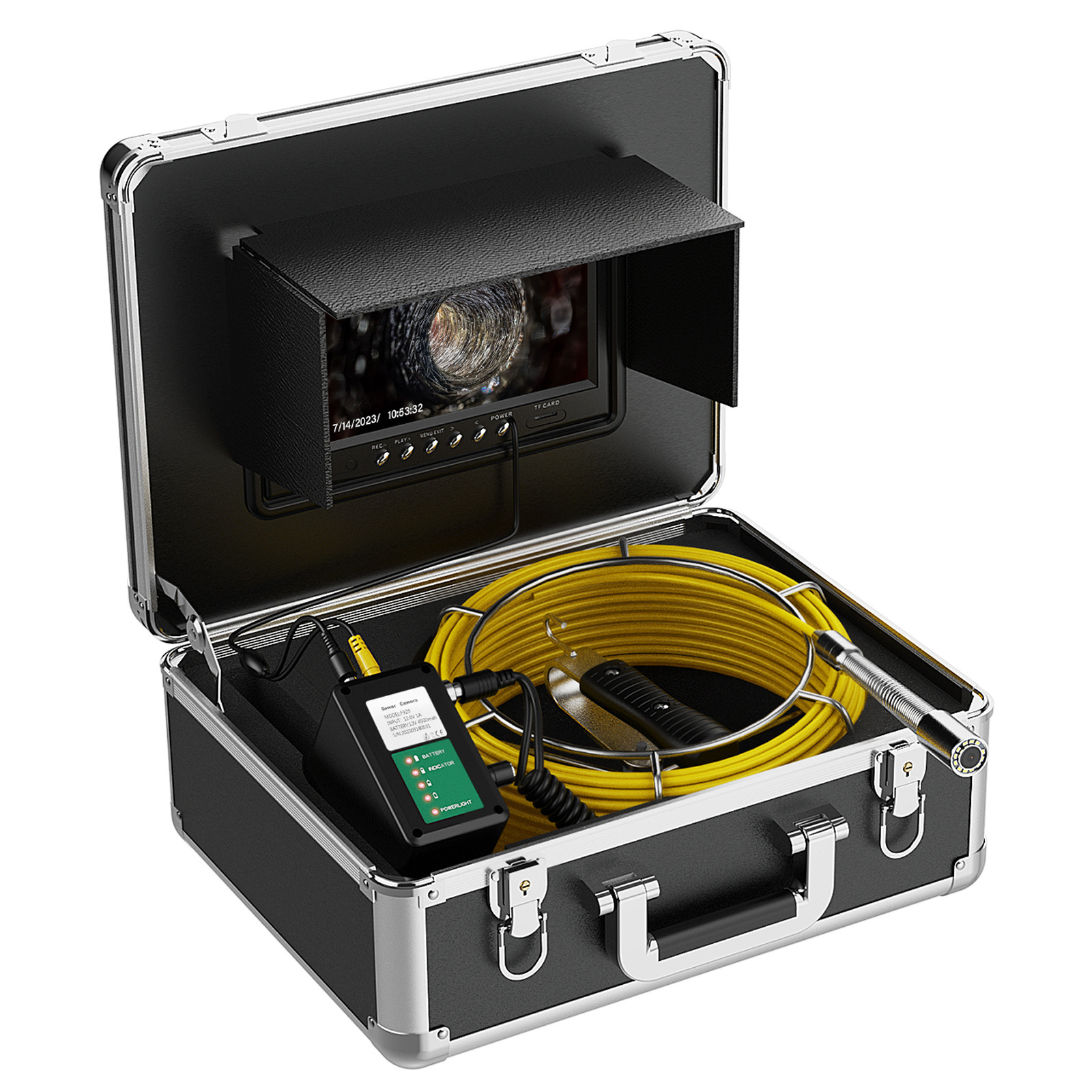

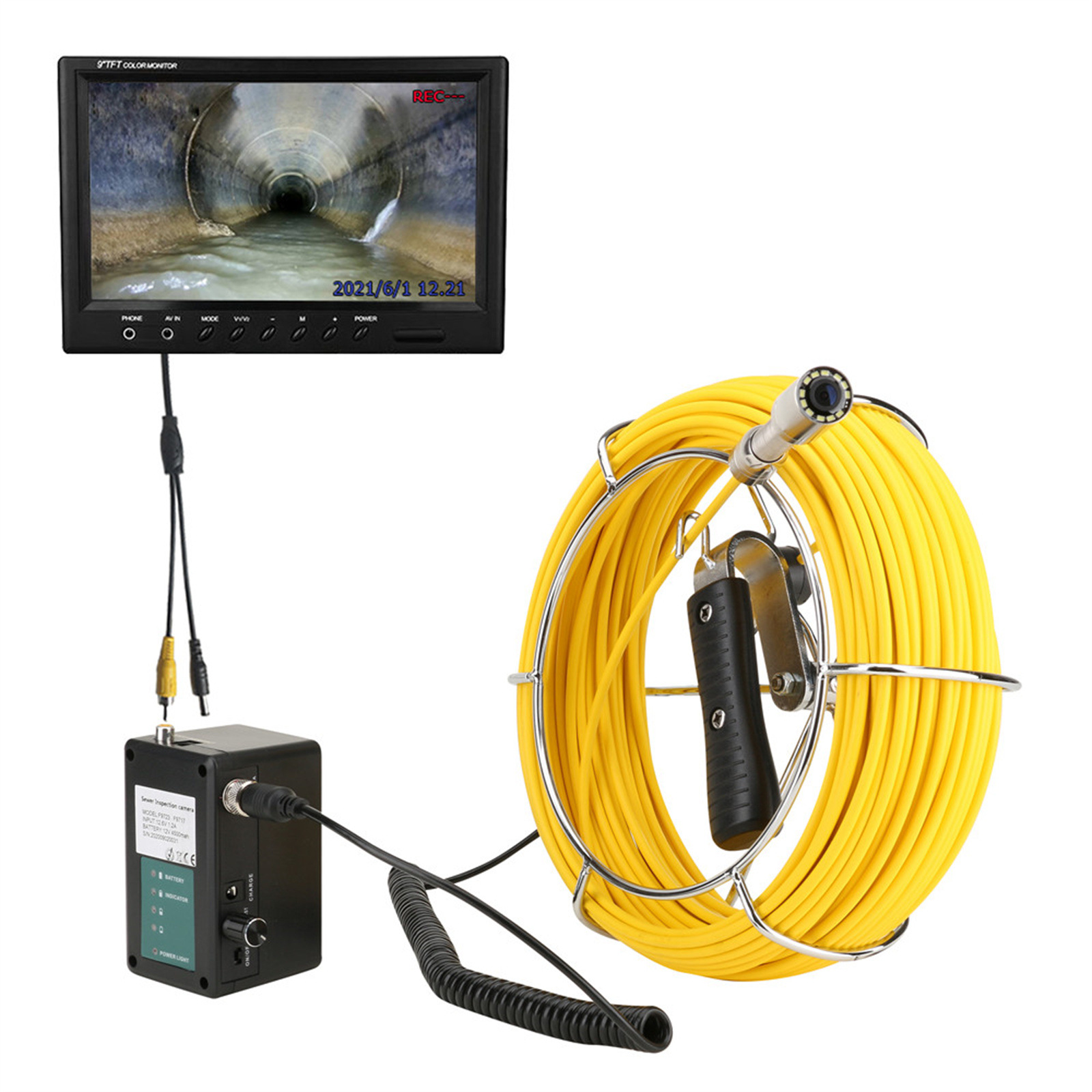

Pipe Inspection Video Camera, 20M/30M IP68 Waterproof Drain Pipe Sewer Inspection Camera System 9"LCD DVR 1000TVL Camera with 6W LED Lights 16GB SD Card

The pipe inspection camera combines a camera-tipped probe with 7" LCD monitor for viewing hard-to-reach inspection area. The deluxe leather sun visor provides clear viewing in outdoor inspection and extra protection for the monitor. It comes with a fully padded case which stores all kits for easy transport and use.  It eliminates the needs of tearing drywall to locate leaks and helps to solve pipe problems. It is a must have for any homeowner, contractor and even professional plumbers!

Applications:

 Blocked / slow draining plumbing.

 Wall / wire inspection.

 Home owners inspection.

Attentions

1.Read the instructions seriously prior to utilization.

2.No throwing or pressure with strength.

3.No guarantee repair for users’ voluntary unpacking or spoilage.

4.Copy your materials prior to connection of SD card, for any results caused by material loss, the factory bears no responsibility. (for recording type)

5.No sudden outage in video and play, this may destroy products and video files. (for recording type)

Range of Application

1.Use it with mini-video camera with the tube diameter as 23-120MM

2.Water-supply pipe

3.Air-conditioner pipe

4.Cable pipe

5.Pipeline vacuum system

6.PLUNBIN pipe

7.Buildings

8.Sunken pipe

Product Specification

Item: parameter

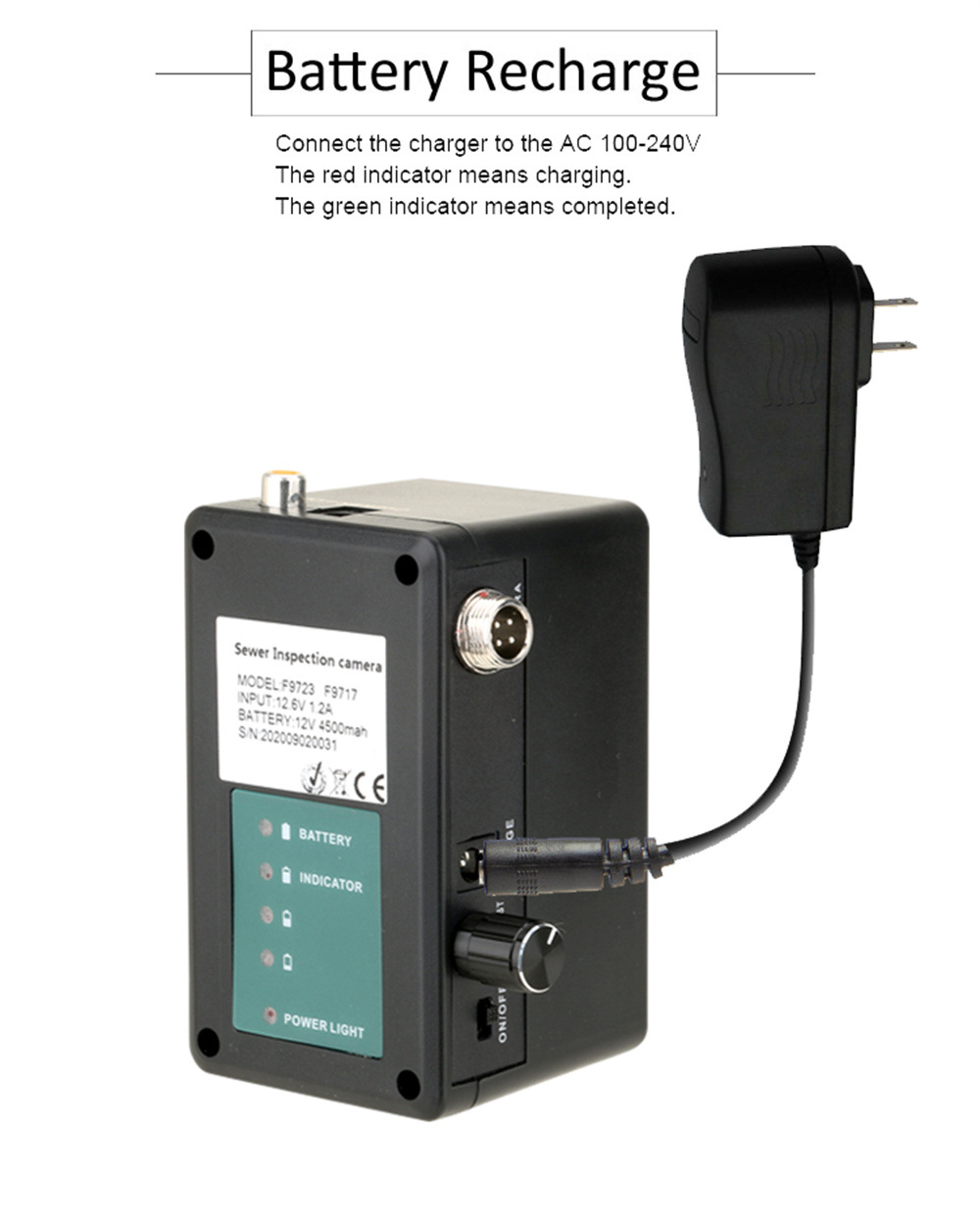

1.Charger: AC100-240V   DC12.6V  1000MA

2.Battery: Luminal-cell arrester 4.5AH

3.continuous use time for battery: approximate 8h

4.investigation depth: 20M( selectable line length)

5.material: fiber tube with /high intensity

6.camera light source: 6 PCS 1W LED with high while light(adjustable)

7.camera viewing angle: 145°

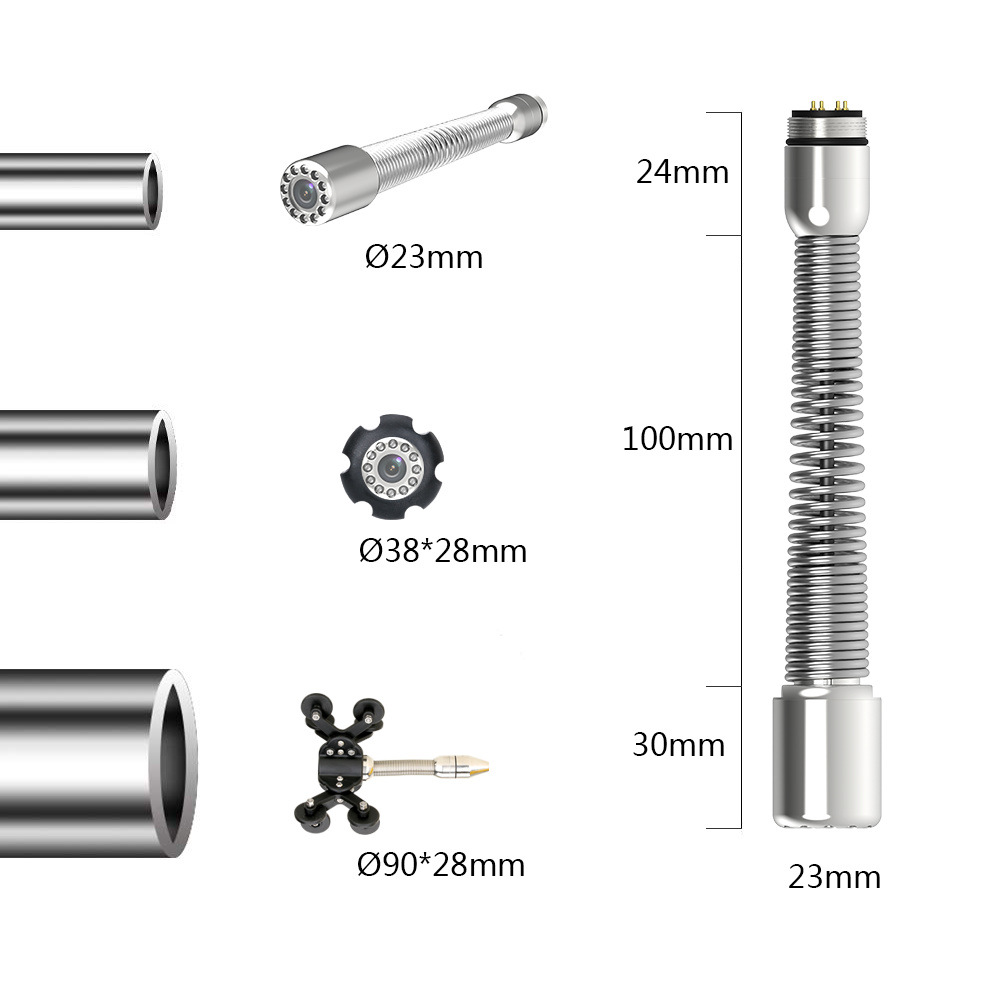

8.camera size/material: 120MM* 23MM /stainless steel

9.camera protective cover parts size/material:38MM* 28MM /plastic-steel

10.camera depth: 400MM (approximate)

11.camera picture: color

12.SD card: max. support 32G, factory configuration 8G (for recording type)

13.Operating temperature: -20-60°

14.Storage temperature: -50-60°

15.Aluminum box size: 490*335*200mm

16.Package size: 495*450*215mm

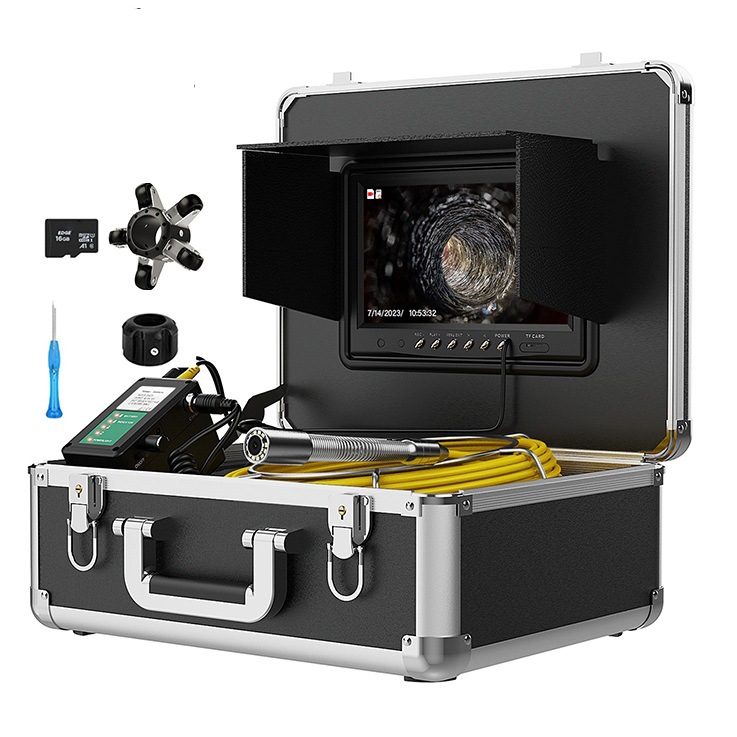

Package List:

 1 * 9inch LCD Monitor(DVR)

 1 * HD 1000TVL Camera

 1 * 20M Fiberglass Cable

 1 * Camera Proof Cover

 1 * 4500mah Battery Box

 1 *  Charger

 1 * Connection Cable

 1 * Set of Fixed Rings

 1 * Screw Driver

 1 * 16GB SD Card

 1 * User Manual (English)
