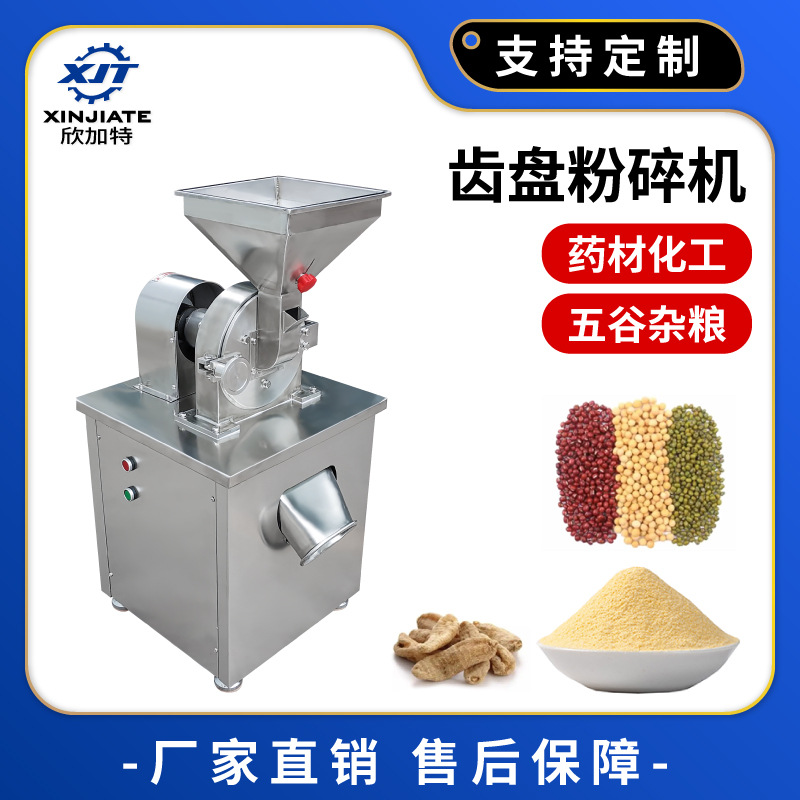

产品推荐
-Product recommendations-
粉碎机可配合撕碎机后续研磨加工,可咨询客服了解!
The crusher can be used in conjunction with the shredder for subsequent grinding and processing. You can consult customer service for more information!
机器参数-Machine parameter | |||
型号-Model | XJT-HYS300 | XJT-HYS400 | XJT-HYS500 |
电压-Voltage | 380V | 380V | 380V |
功率-Power | 3kw | 5.5kw | 7.5kw |
转速-Rotational speed | 16rpm | 12rpm | 15rpm |
扭矩-Torque | 1628Nm | 2919Nm | 4574Nm |
轴直径-Shaft Diameter | Φ50 | Φ60 | Φ70 |
刀片规格-Blade specifications | Φ180*10mm | Φ180*15mm | Φ200*20 |
刀片数量-Number of blades | 30片 | 26片 | 24片 |
进料口尺寸-Feed opening | 500*500*300mm | 600*500*300mm | 700*700*350mm |
出料口尺寸-Discharge port size | 450mm | 420mm | 490mm |
出料口高度-Height of discharge outlet | 200mm | 200mm | 200mm |
机器尺寸-Machine size | 1081*1329*570mm | 1181*650*1434mm | 1350*700*1600mm |
机器重量-Machine weight | ≈400kg | ≈500kg | ≈750kg |
机器介绍-Machine description
-机器用途-
撕碎机主要功能是将大块的物料撕碎成符合要求的小颗粒物体,方便后续使用粉碎机继续加工研磨。可用于撕碎塑料、橡胶、薄金属、木头、大骨头等硬壳物体。使用多片多爪式刀具,低速高扭力的特点,轻松完成破碎,同时加大了进料口和出料口的尺寸,大大提高了生产效率。
The main function of a shredder is to shred large pieces of material into small particles that meet the requirements, making it easier to continue processing and grinding with the crusher in the future. Can be used to shred hard shell objects such as plastic, rubber, thin metal, wood, and large bones. By using multi blade and multi claw cutting tools, with the characteristics of low speed and high torque, crushing can be easily completed. At the same time, the size of the feeding and discharging ports has been increased, greatly improving production efficiency

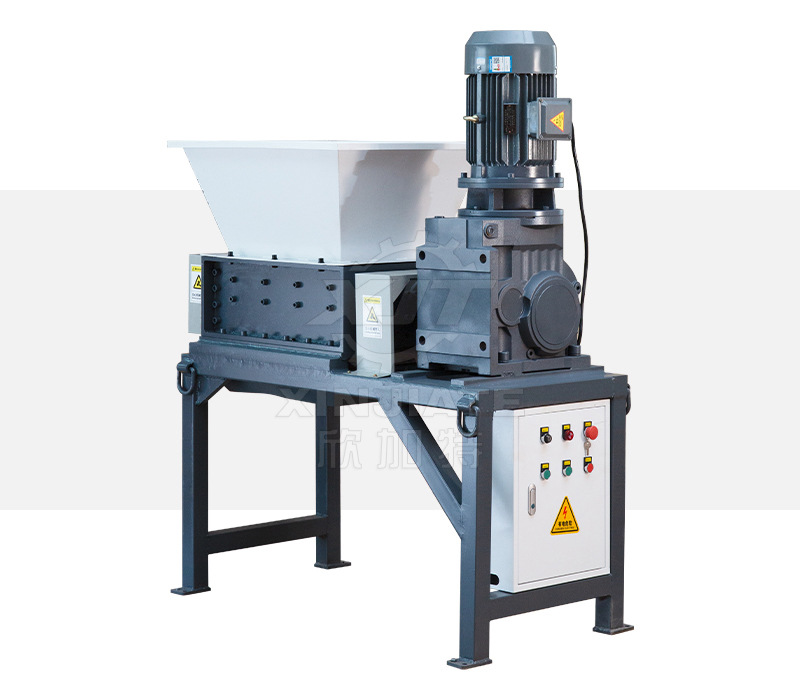

机器展示-Machine display
-机器实拍 拒绝过度美化-
Refuse to over-beautify the Machine
~更多详细内容,请咨询客服了解~
公司简介-Company Profile
-关于我们-
About us
广州欣加特机械设备有限公司成立于2007年,是广州一家专业生产及销售肉类加工设备、磨粉粉碎加工设备、果蔬加工设备、面制品烘培加工系列等食品机械的公司。可根据客户提供非标定制、OEM代加工、并且提供相应流水线的配套应供方案。也许我们不是业内做得最大,但是一定做得用心,您的需求和想法,就是我们前行的方向和动力!
广州欣加特机械设备有限公司实力雄厚,重信用,守合同、保证产品质量,赢得了广大客户的信任。期盼您的随时垂询,早日成为您食品加工行业的合作伙伴!
Guangzhou Xinjiate Machinery Equipment Co., Ltd., founded in 2007, is a company specializing in the production and sales of meat processing equipment, milling and crushing processing equipment, fruit and vegetable processing equipment, flour products baking and processing series and other food machinery in Guangzhou. We can provide non-standard customization, OEM co processing, and supporting supply solutions for corresponding assembly lines according to customers. Perhaps we have not done the most in the industry, but we must do it carefully. Your needs and ideas are our direction and motivation!
Guangzhou Xinjiate Machinery Equipment Co., Ltd. has a strong strength, values credit, abides by contracts, and guarantees product quality, which has won the trust of customers. We look forward to your inquiry at any time and becoming your partner in the food processing industry as soon as possible!
