商品详情

注意：本店标价都不含税，开票需要另外添加税点，详情请联系客服沟通，谢谢

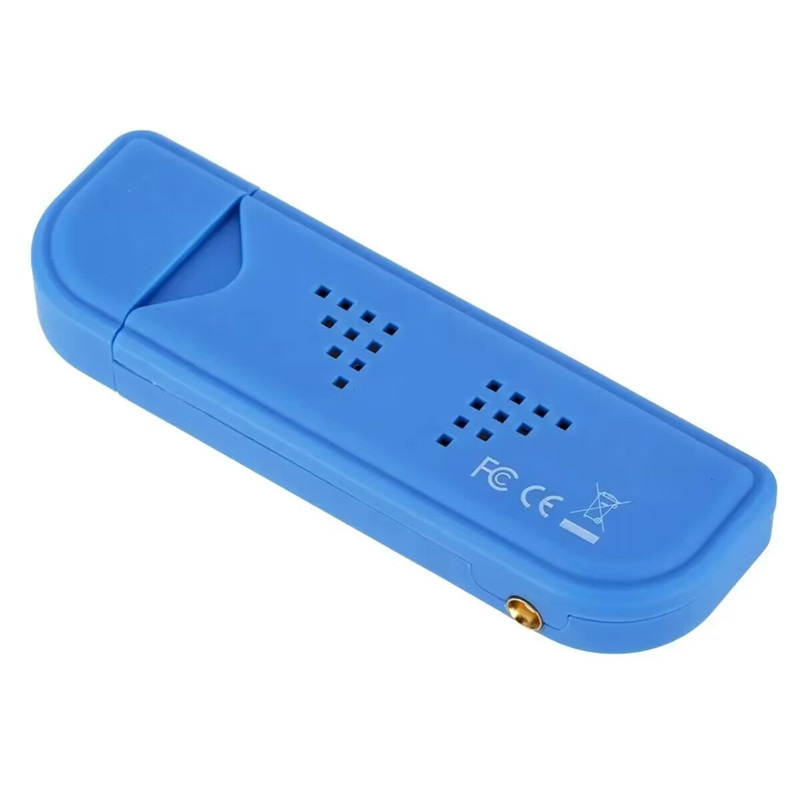

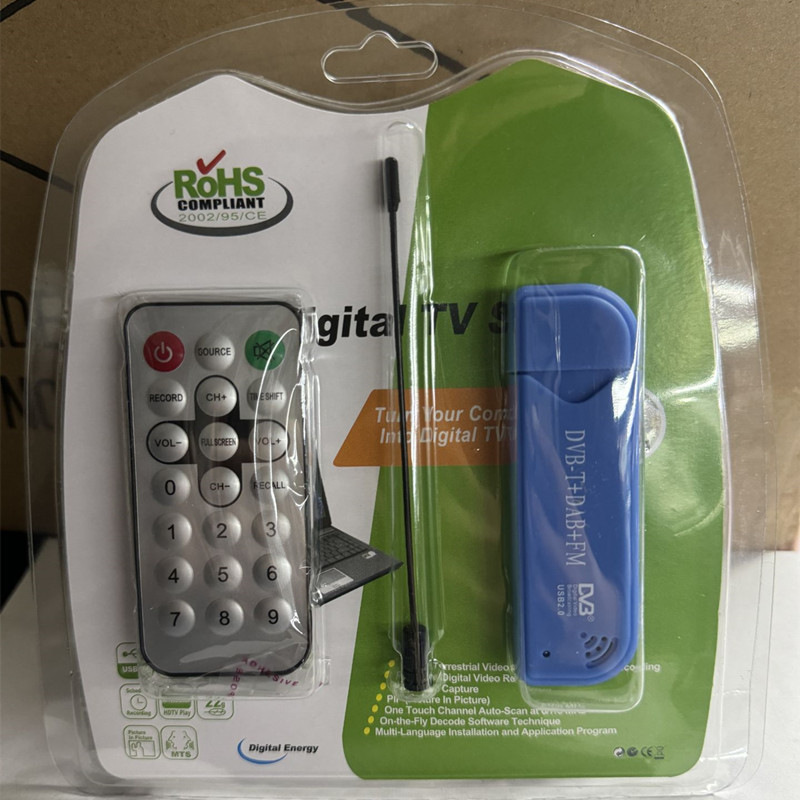

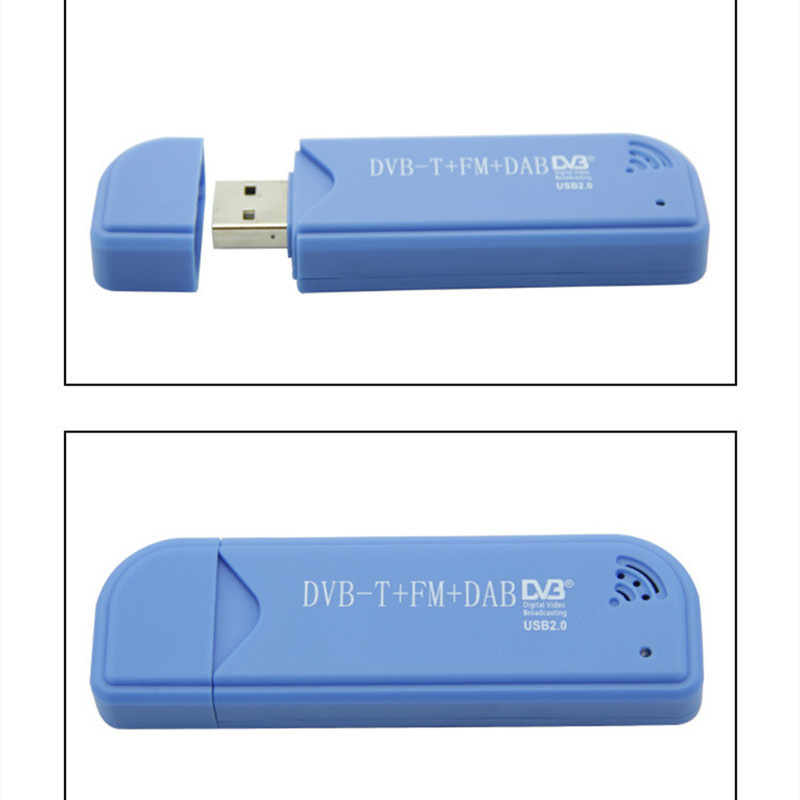

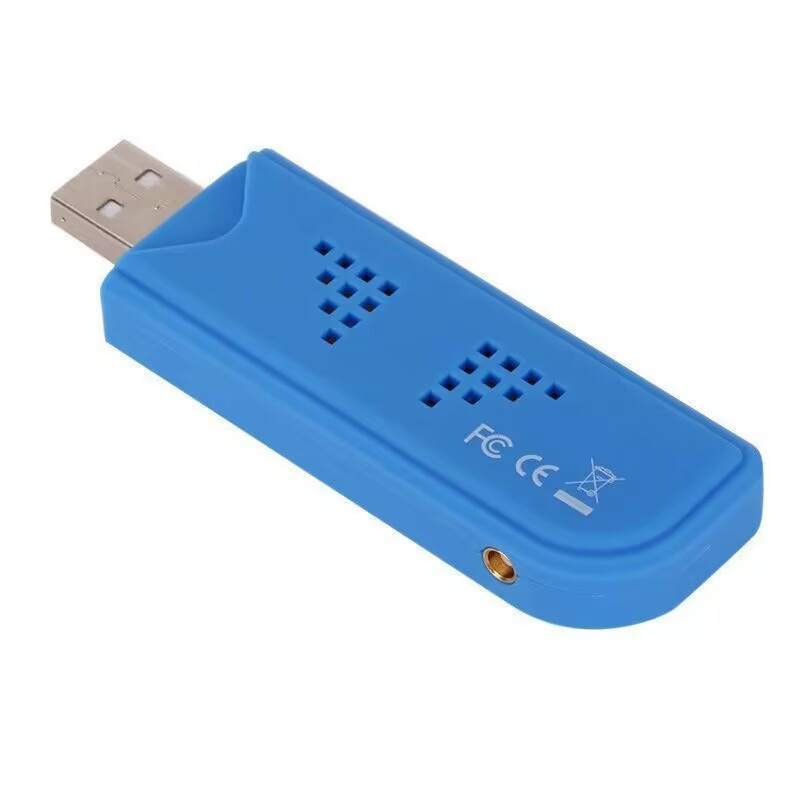

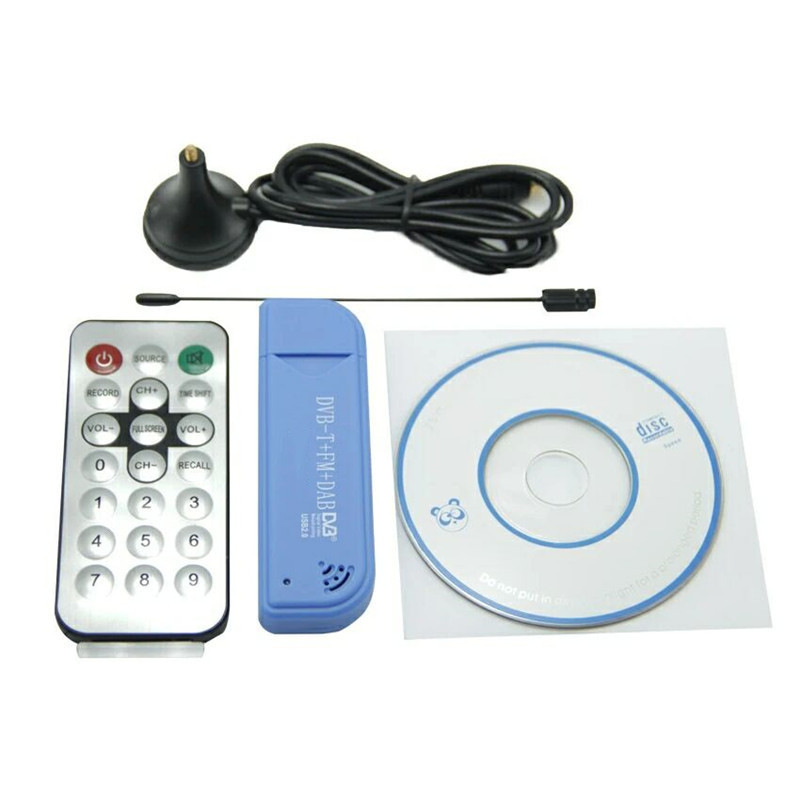

 第一款  蓝色 DVB-T+FM+DAB 820T2

These units are based on the R820T2 tuner IC made by Rafael Micro. As such, they have a frequency capability of approximately 25MHz-1750MHz, though this can vary somewhat from unit to unit. There is also an RTL2832U IC on board of course, which acts as the demodulator and USB interface.

The connector type on the antenna and USB board is MCX--male MCX on the antenna, female MCX on the SDR.

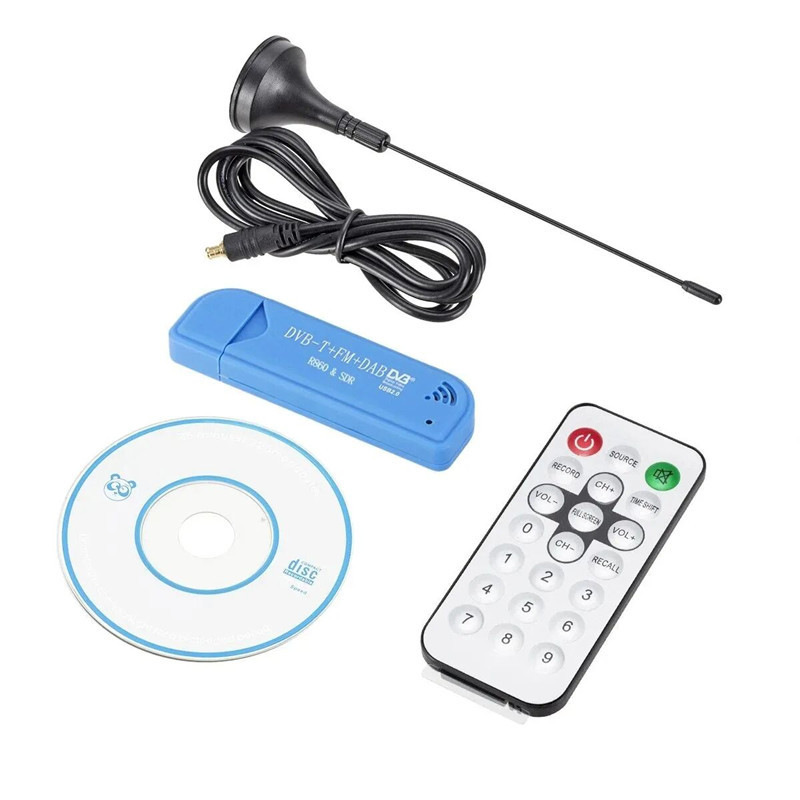

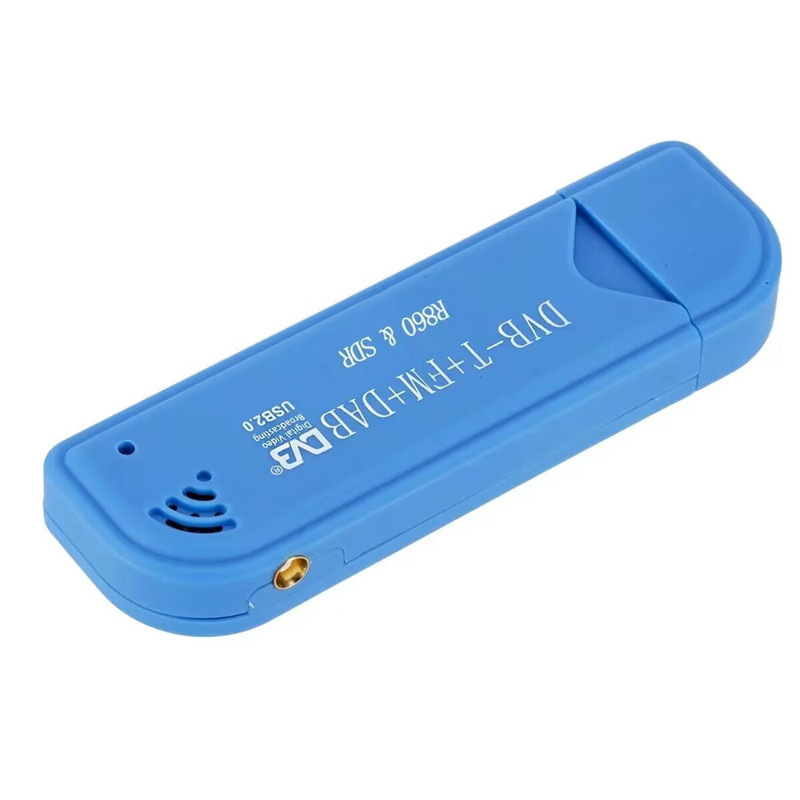

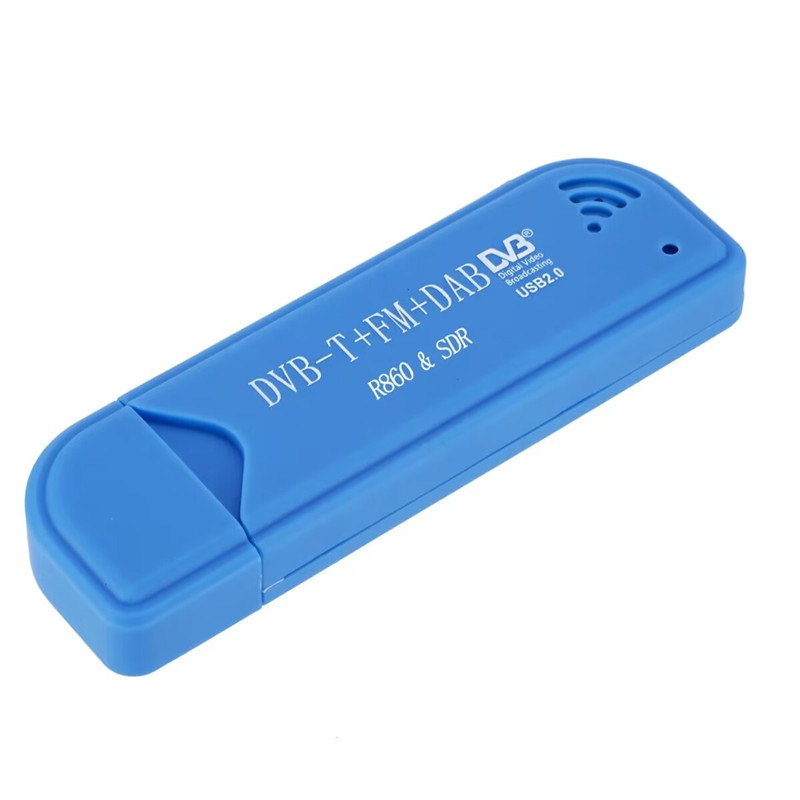

第二款 蓝色 DVB-T+FM+DAB R860

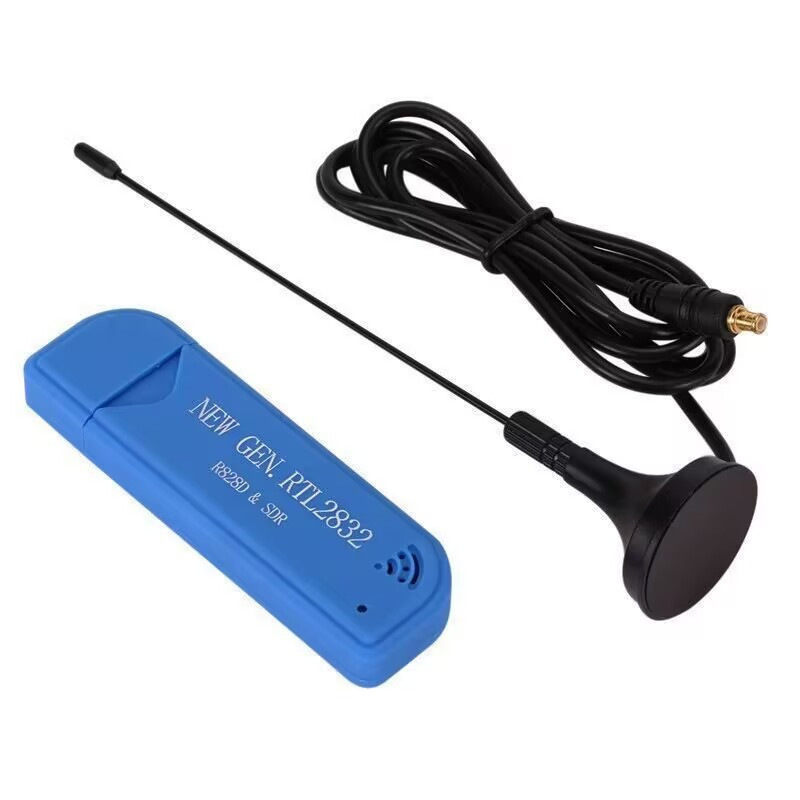

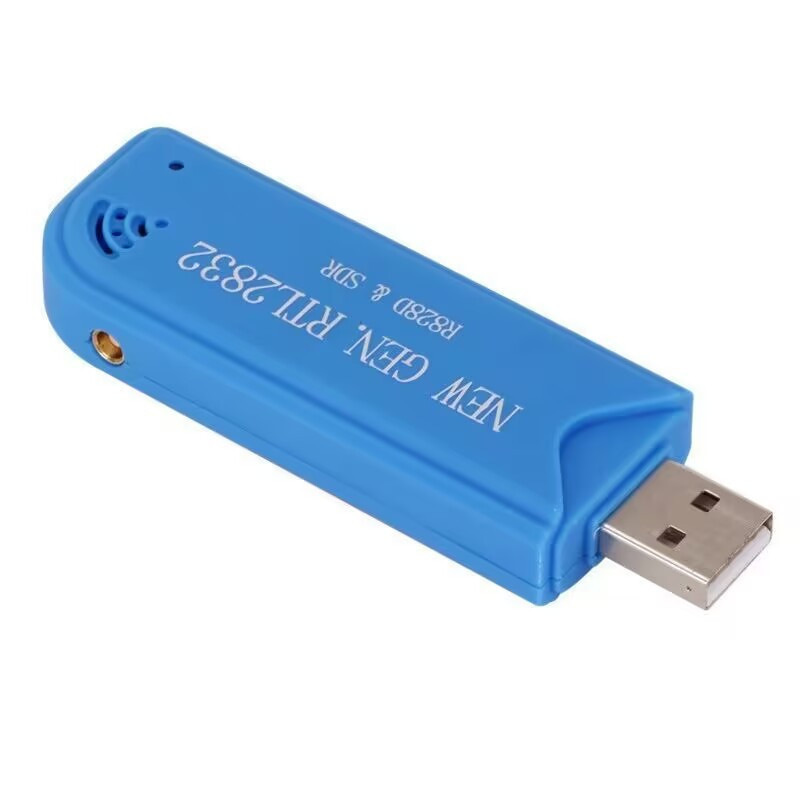

第三款 蓝色 DVB-T+FM+DAB R828D

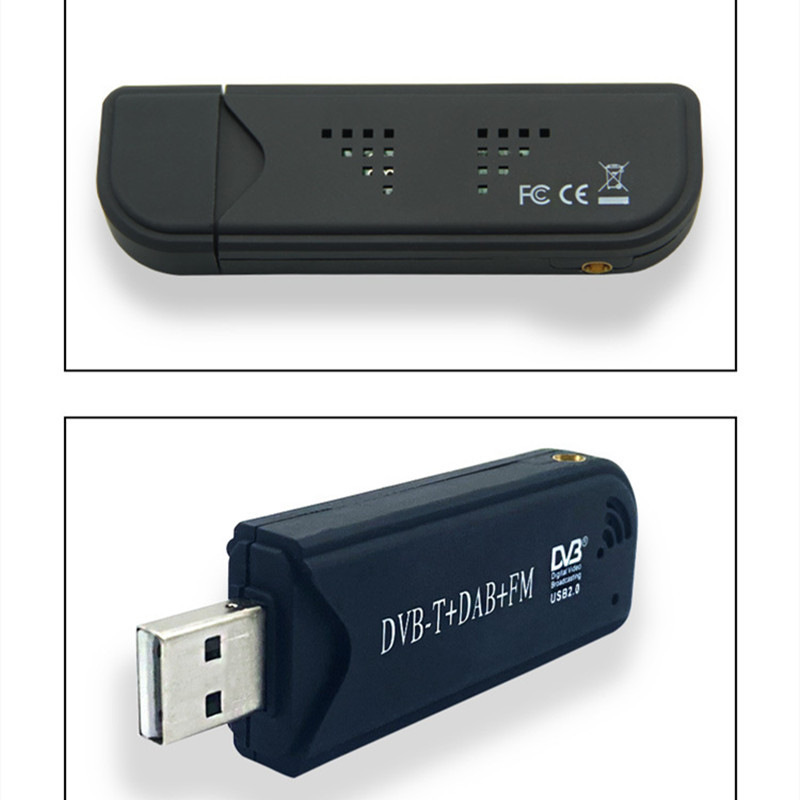

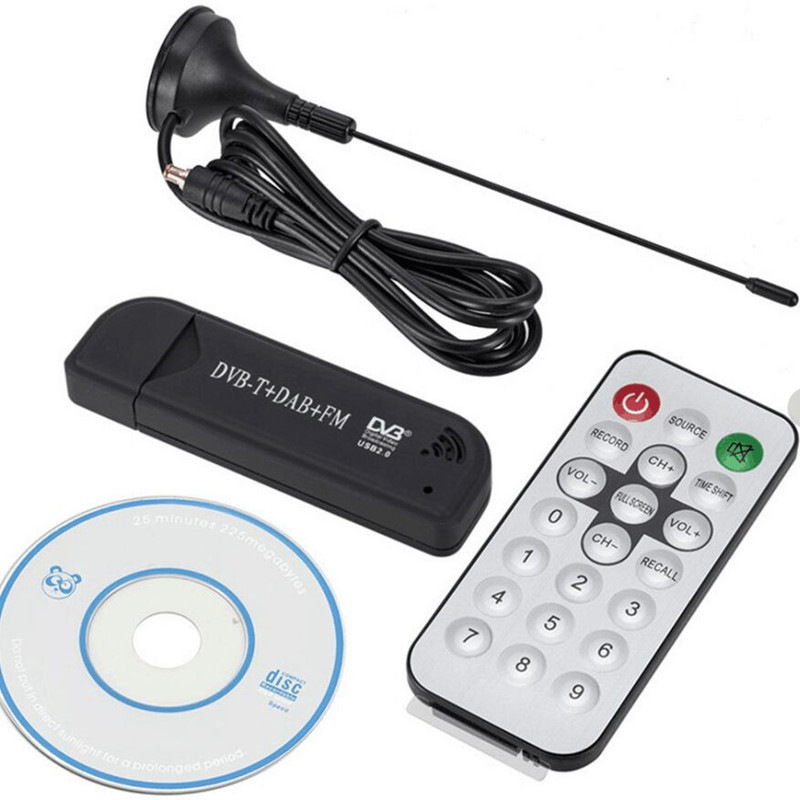

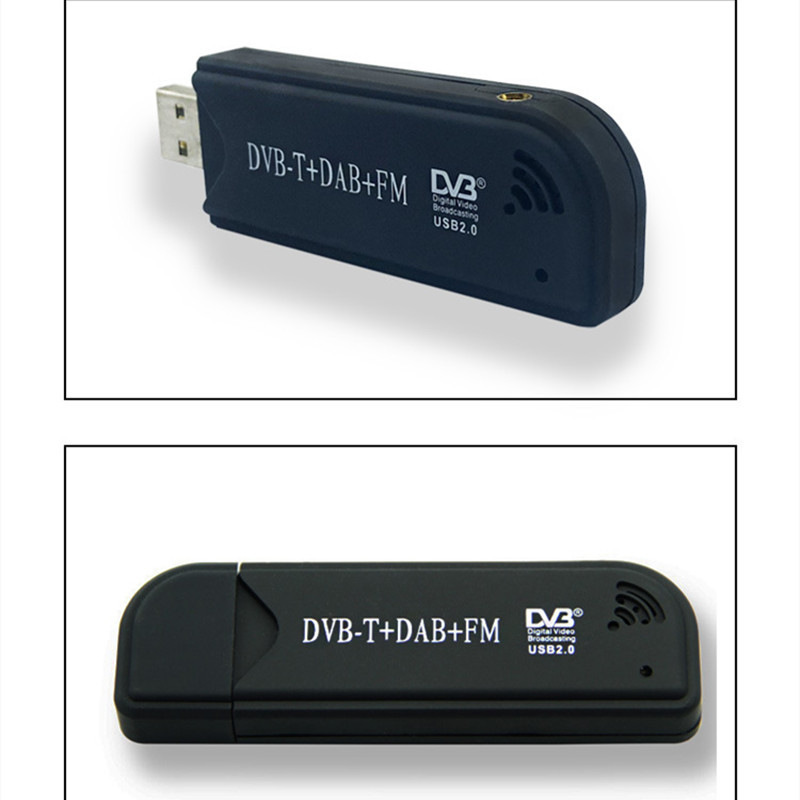

第四款  黑色 DVB-T+FM+DAB 0012

Features:

Watch and record digital terrestrial TV on PC or Laptop

Watch DVB-T digital TV and listen to DAB+ digital +FM + radio

DVB-T bandwidth reception (6/7/8 MHz)

Still image snapshots

Time-shifting

Scheduled recording

Digital TV recording and playback as DVD quality

Support multi-picture display

Support EPG (Electronic Program Guide)

Support Teletext

Support Microsoft BDA drivers

Remote control

Support Windows 2000/XP/Vista/WIN7/8

Support both MPEG-2, MPEG-4(H.264) encoding

Specifications:

USB2.0 Interface

Terrestrial Antenna Input

Dimensions: 90mm*32mm*12mm

Weight: 32g

System Requirements:

CPU: Pentium IV 1.8 GHz or above

Operation System: Windows2000 ,xp/vista/w7/8

DirectX9.0c or above

500M of available hard disk space or above

CD-ROM Drive

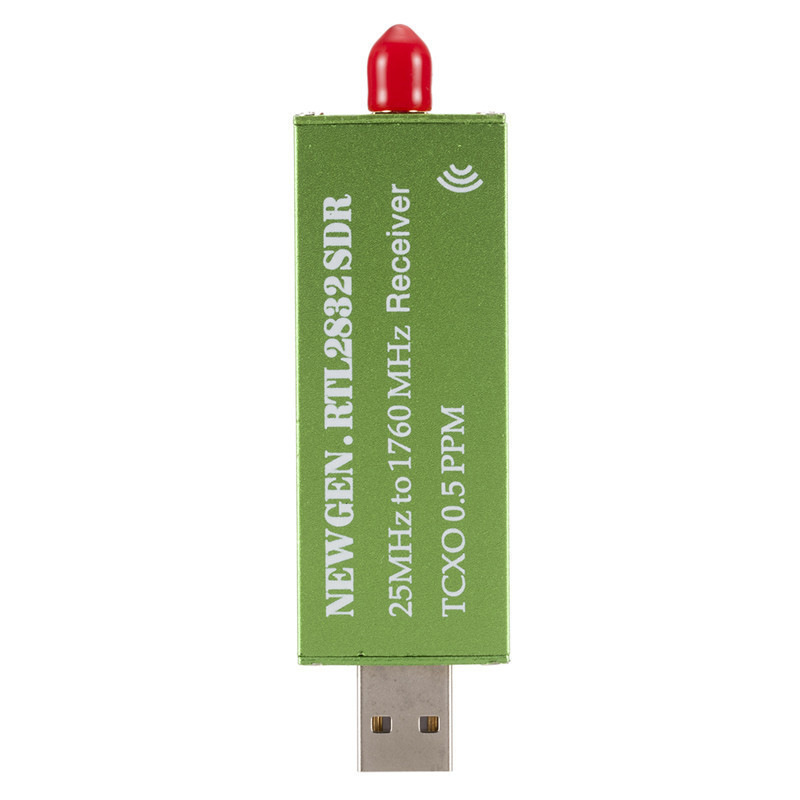

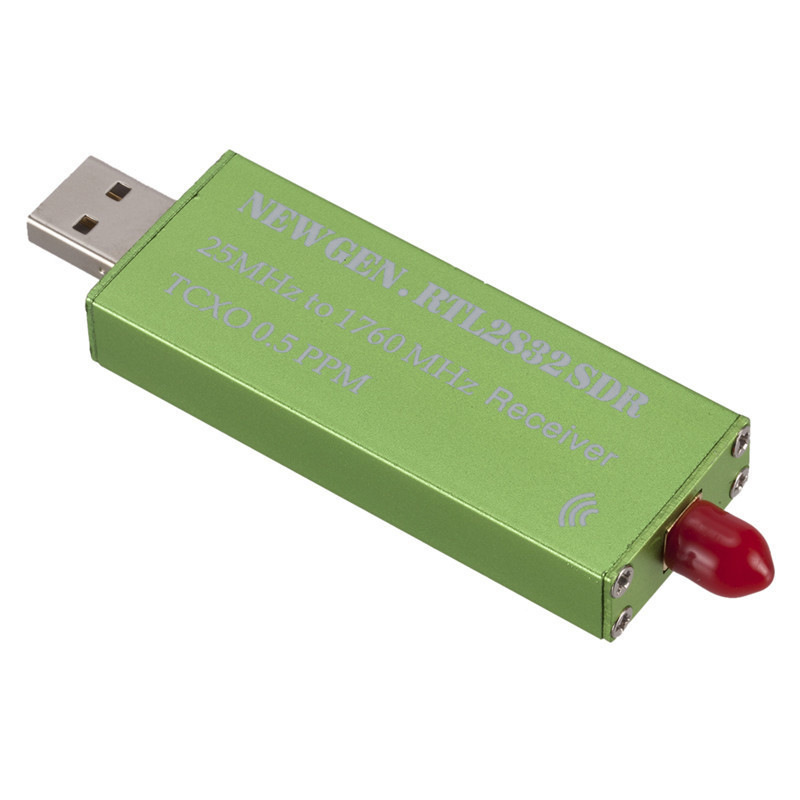

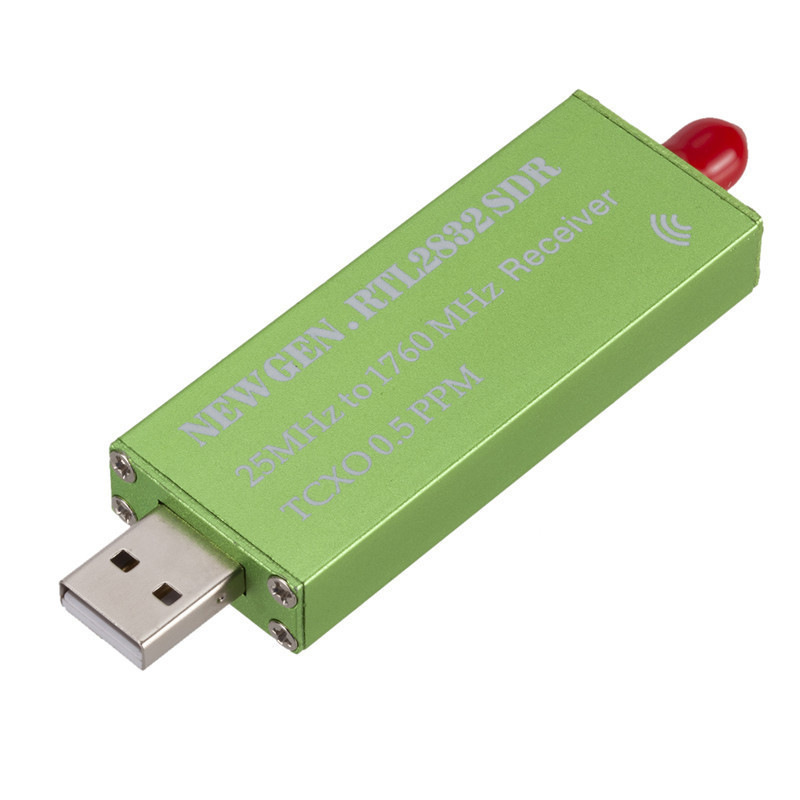

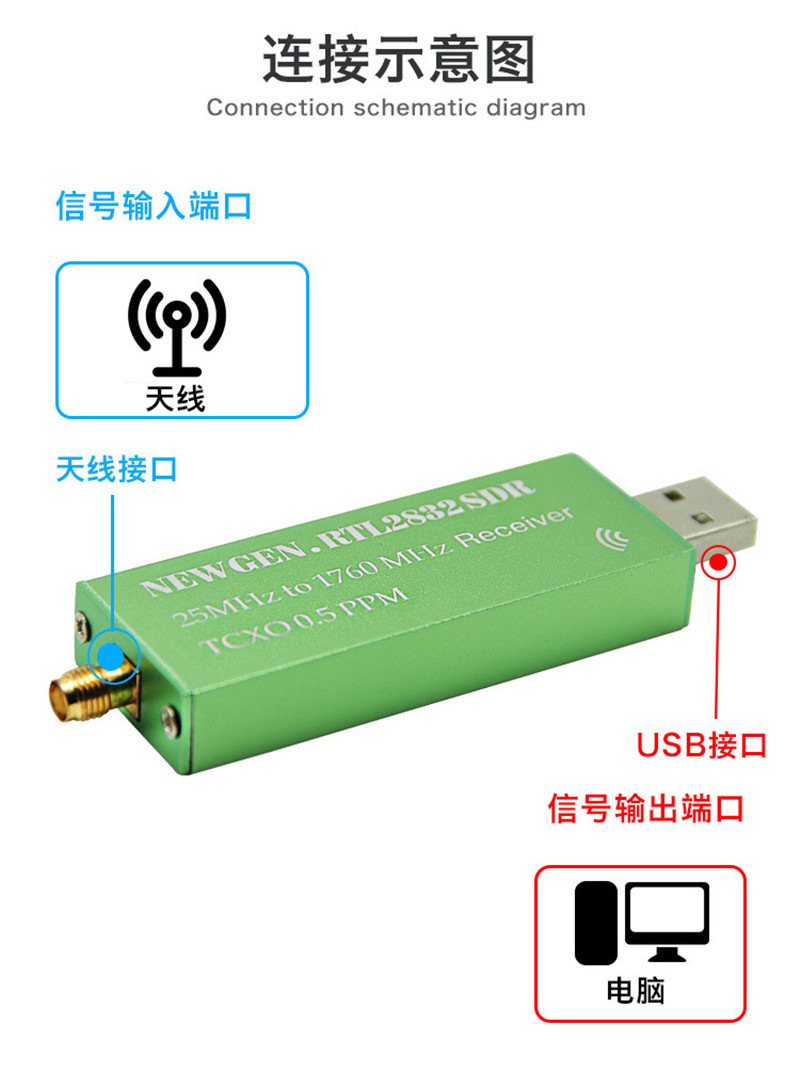

第五款 绿色 DVB-T SDR RTL2832SDR五金壳

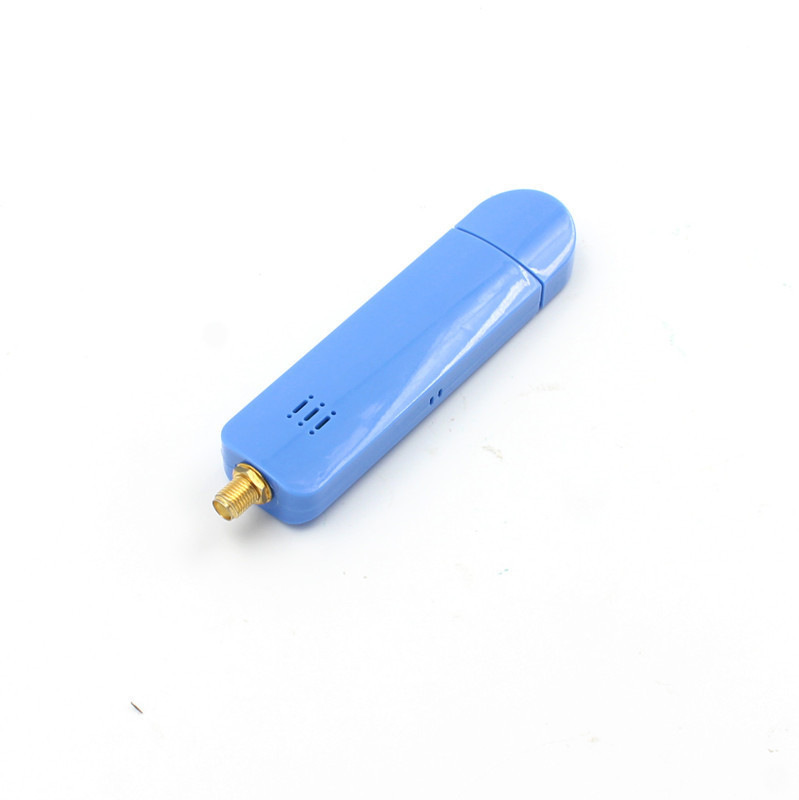

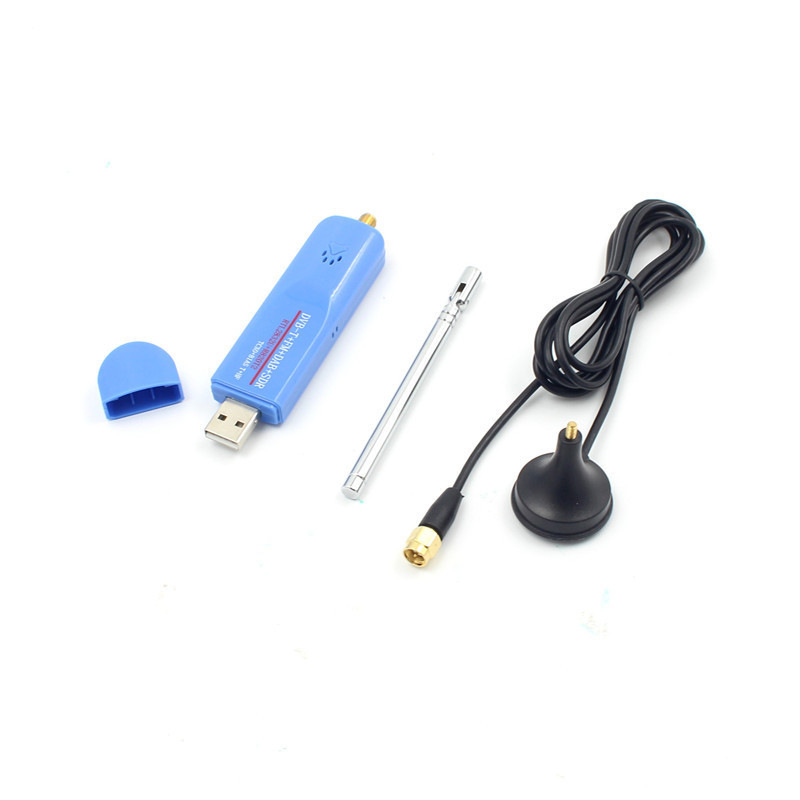

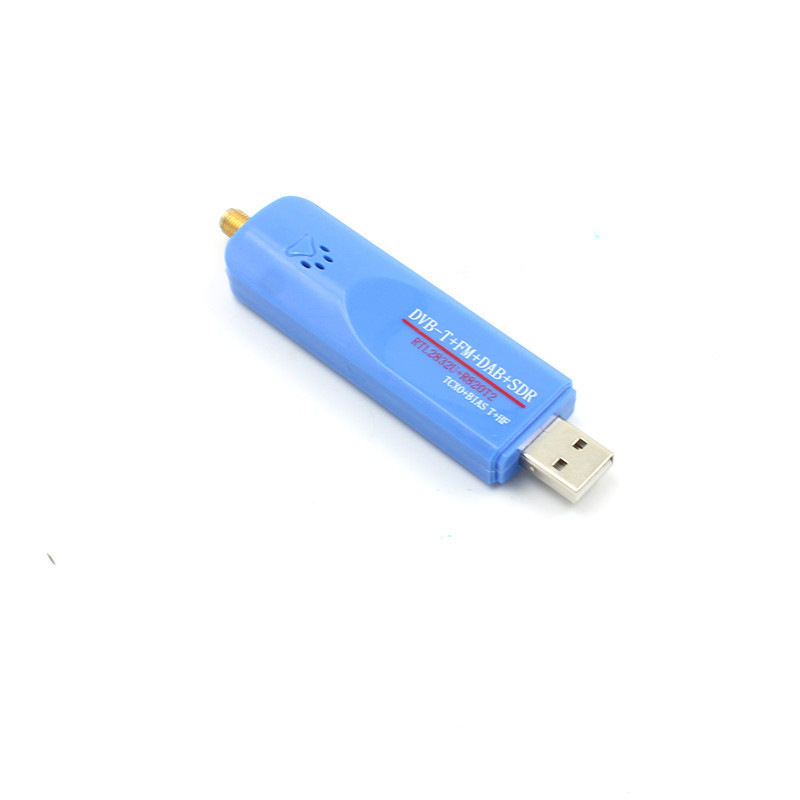

第六款 蓝色 DVB-T+FM+DAM+SDR

This is an RTL-SDR software defined radio receiver with RTL2832U ADC chip, R820T2 tuner, 1PPM TCXO, SMA F connector and aluminium case with passive cooling. Tunes from 500 kHz to 1.7 GHz with up to 3.2 MHz of instantaneous bandwidth (2.4 MHz max stable, 3.2 MHz if your application is tolerant to USB drops). (HF works in direct sampling mode - V.3 models and above only). for use as a computer based radio scanner with free software like SDR#, HDSDR, SDR-Radio, Linrad, GQRX or SDR Touch on Android. Works on Windows, MacOS, Linux, Android

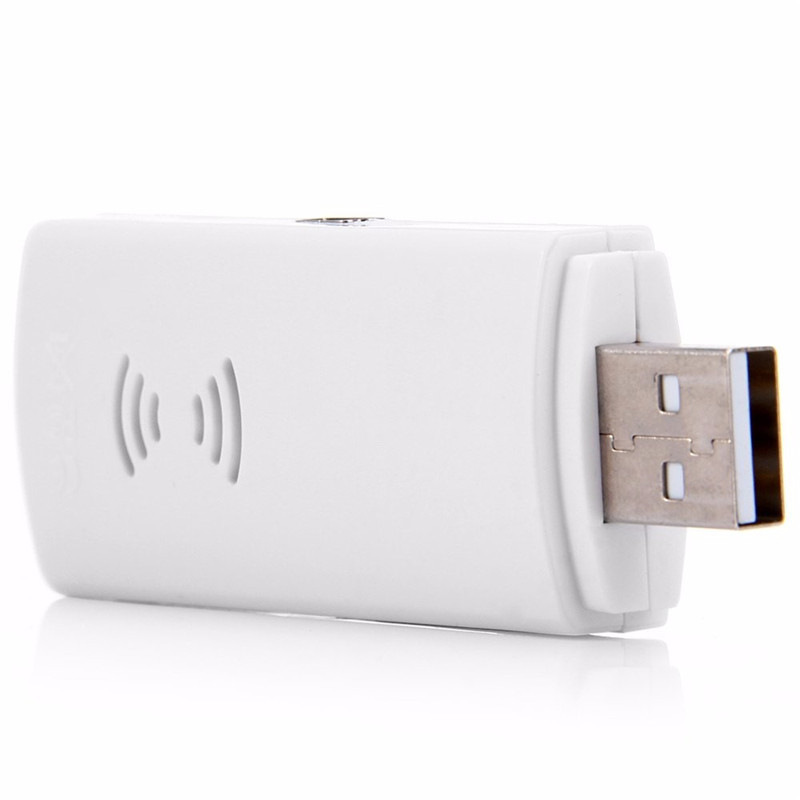

第七款 白色 DVB-T

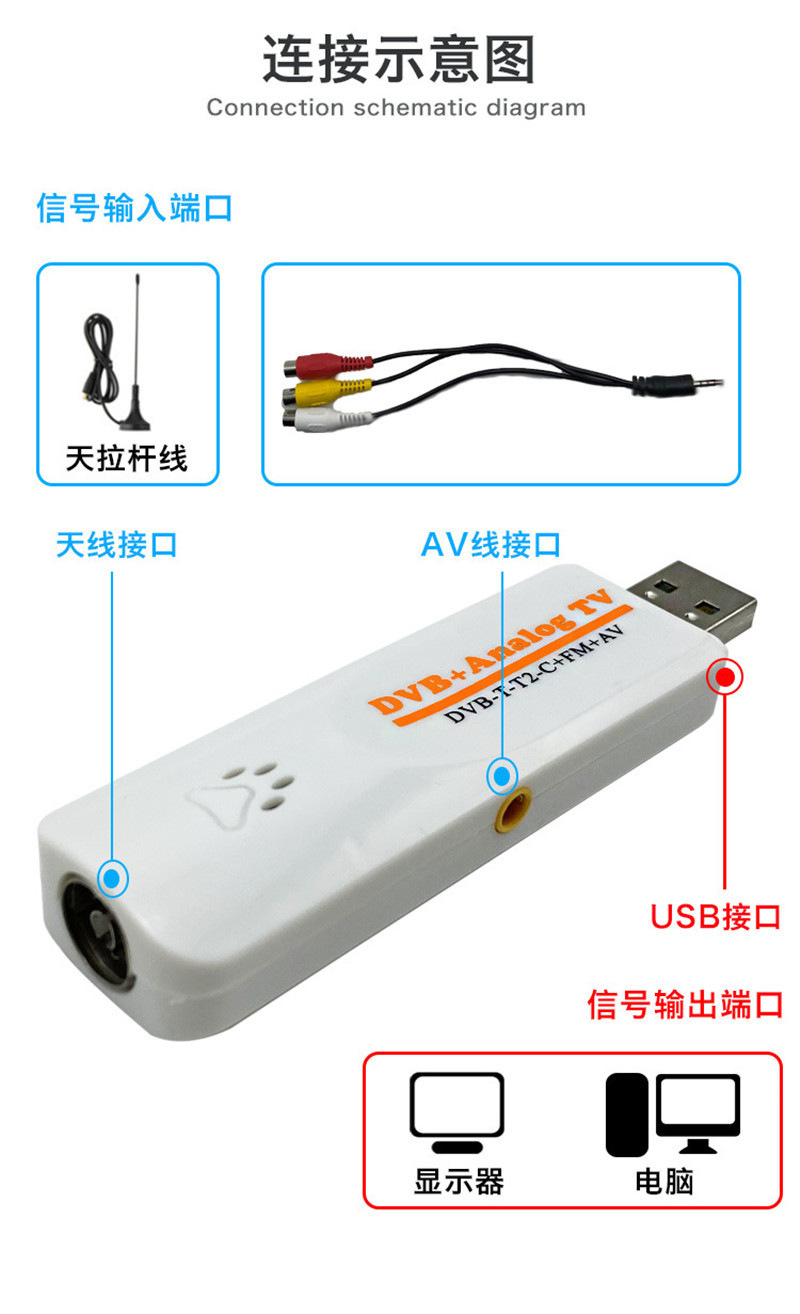

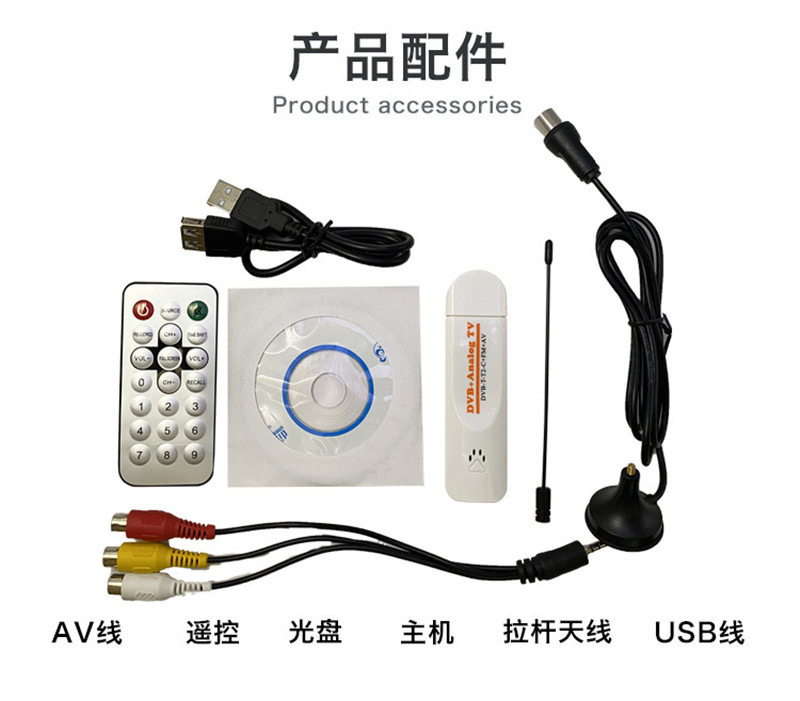

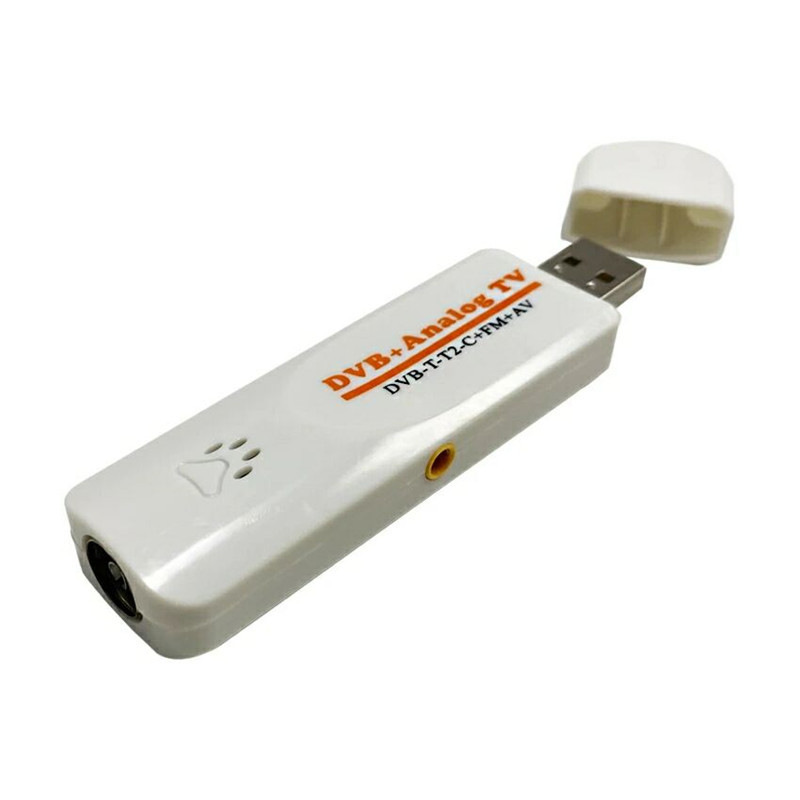

第八款  白色 DVB-T-T2-C+FM+AV双用数字模拟一体

Supported TV standards:

DVB-T2, DVB-T, DVB-C, Analog TV, AV, FM

VHF-/UHF band

Stereo / dual channel sound

Antenna input: IEC connector

PC-interface: USB 2.0 (Hi-Speed)

TV recording formats

MPEG-2 transport stream

MPEG-4 H.264 (AVC)

Analog TV PAL-BG/DK/I, SECAM, NTSC

System Requirement

Microsoft, Windows 8, or Windows Vista with latest Service Pack, 1 GB RAM

Or Windows XP (32 bit) with latest Service Pack, 512 MB RAM

Intel Pentium 4 2.0 GHz, Pentium M 1.3 GHz or equivalent AMD Athlon XP

For HDTV: 2 GHz processor

Hard disk with min. 300MB free capacity (1 GB free capacity recommended)

Sound and graphics with support for DirectX 9 or higher

USB 2.0 port

CD/DVD drive for software installation

Recommended: Internet connection for software updates and activations

CD with application, drivers and user manual
