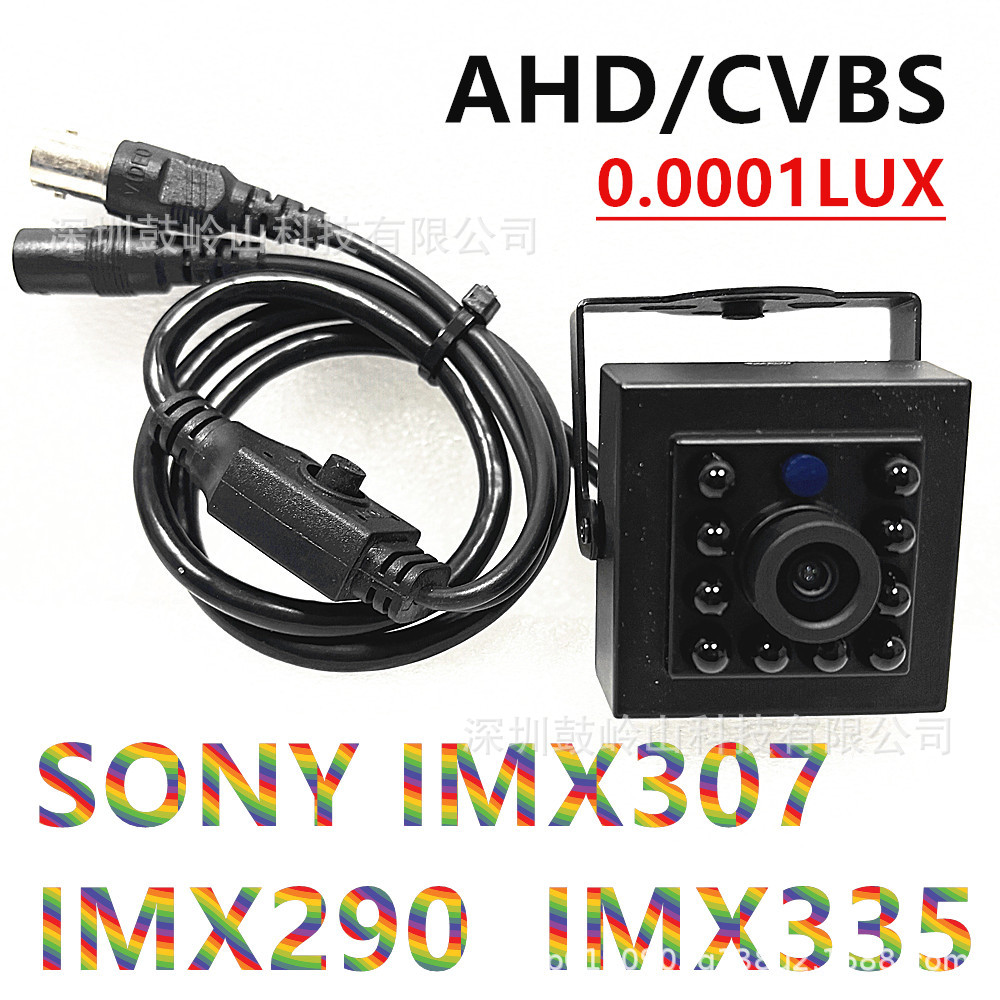

Features:
4-in-1 AHD/CVBS
1/2.8" Sony IMX307 CMOS sensor
IR CUT (ICR), double-filter switch, more natural color at day time and clearer images at night
Minimum illumination: Color 0.01lux, B/W 0.001lux
Default 1200TVL CVBS analog output, CVBS AHD optional in OSD
Default PAL, NTSC optional in OSD menu
Lower power consumption, current low to about 100mA
Specifications:
|
Effective Pixel |
1920(H)x1080(V) |
|
|
Horizontal esolution |
1080P optional |
|
|
Minimum Illumination |
Color: 0.01Lux, B/W: 0.001Lux |
|
|
Sync System |
Internal sync |
|
|
Focus Length |
3.6mm |
|
|
Optical Zoom |
NA |
|
|
Focus |
Auto/Manual/Auto Zoom |
|
|
Gain Control |
Auto/Manual |
|
|
White Balance |
Auto |
|
|
Iris |
Auto/Manual |
|
|
S/N Ratio |
>50dB (Enhanced) |
|
|
Electronic Shutter |
PAL: 1/25s~1/10,000s, NTSC: 1/30~1/100,000s |
|
|
Video Output |
1.0Vp-p 75 Ω |
|
|
Language |
Chinese/English |
|
|
OSD Menu |
AWB, Digital Noise Reduction, Highlight Compensation, Mirror |
|
|
Control |
Pelco-D, 2400/4800/9600 |
|
|
Gama Correction |
0.45 |
|
|
Interface Mode |
6-pin/9-pin connector |
|
|
Power Supply |
DC 12V, 70~100mA |
|
|
Working Temperature |
-20°C ~ +50°C |
|
|

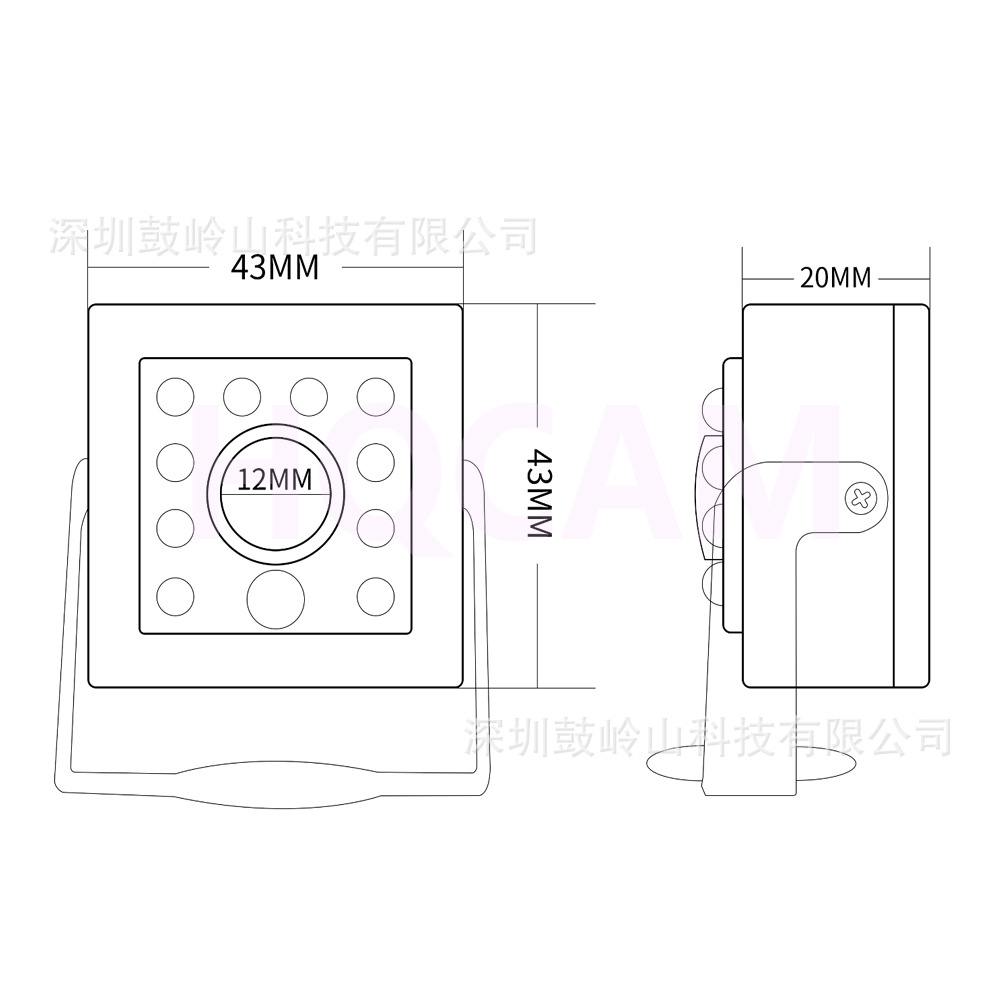

Dimension |
|
|
|
Weight |
About 100g |
|
