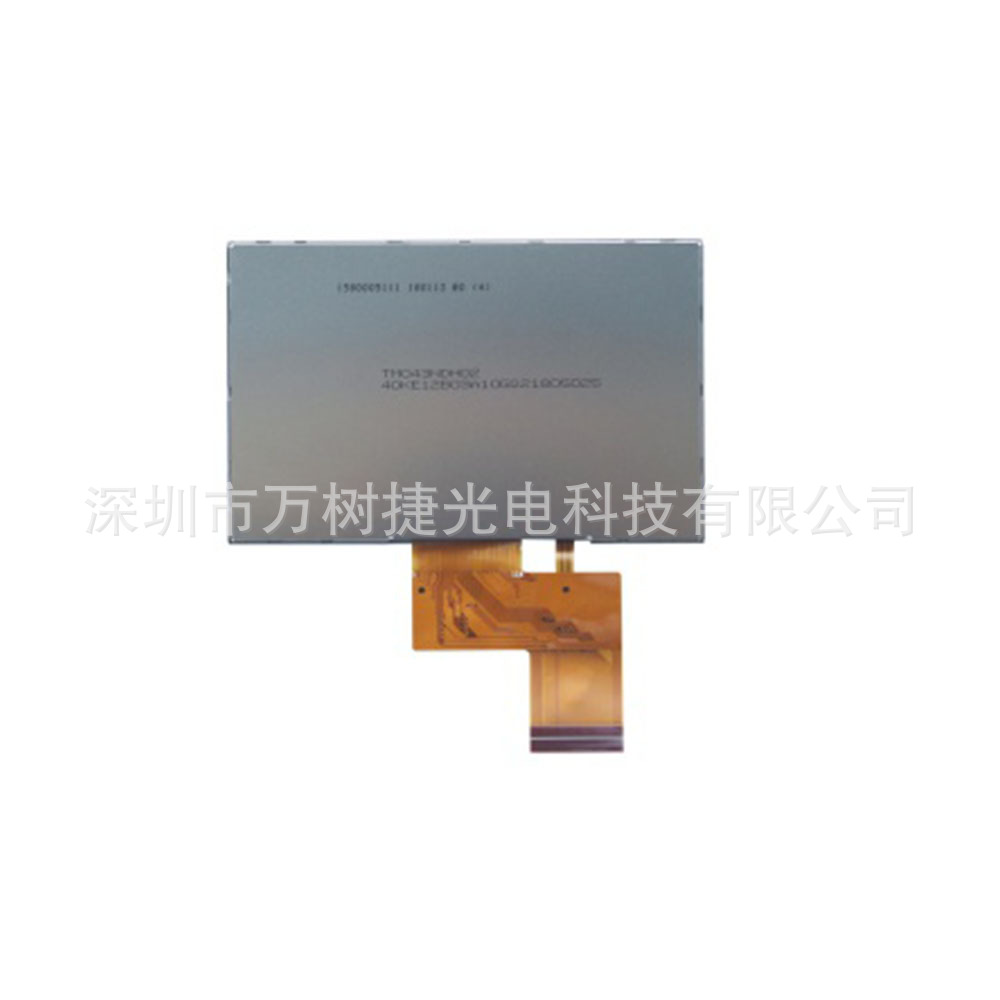

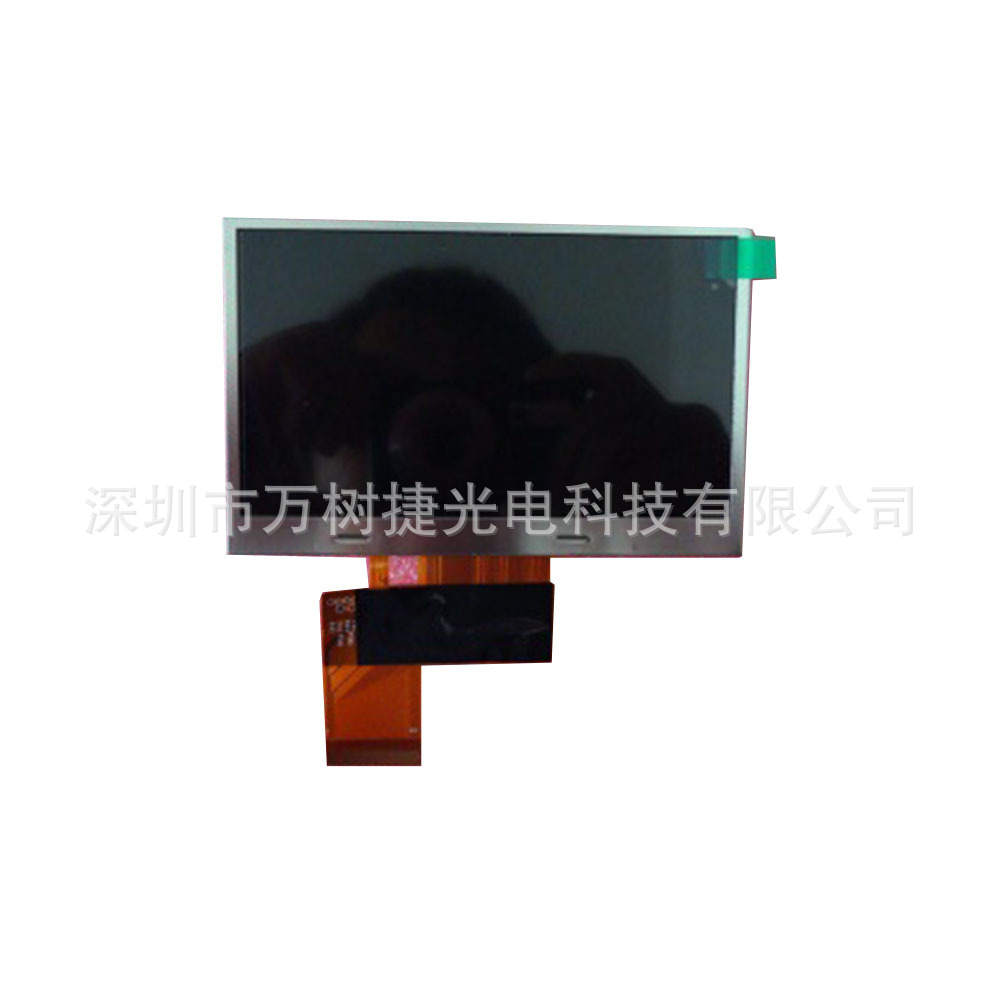

| TM043NDH02-00 4.3" 320(RGB)×240 (QVGA) , a-Si TFT-LCD , LCM |
|||
| WLED Backlight，Matte 2 in1 FPC, Down side FPC (46.05mm length) | |||
| Panel Model | TM043NDH02-00 | Panel Brand | Tianma |
| Size (inch ) | 4.3inch | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 320(RGB)×240 (QVGA) | Pixel Format | RGB Vertical Stripe |
| Module Outsize(mm) | 105.5(W)×67.2(H) ×3.2(D) mm | Display Mode | TN, Normally White, Transmissive |
| LCD Active area(mm) | 95.04(W)×53.856(H) mm | Response Time | 20 (Typ.)(Tr+Td) |
| Support Color | 16.7M 50% NTSC | Light Source | 5S2P WLED , 20K hours , Without Driver |
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥10) | TouchScreen | Without |
| Brightness | 300 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) | Used for | Portable Navigation, MP3 PMP |
| Frame Rate | 60Hz | Enviroment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| LCM Interface Type | Parallel RGB (1 ch, 8-bit) , 40 pins , FPC | FPC connector | Pitch 0.5mm |
| Packaging & Delivery | |||
| Packaging Details | 112pcs/Box | ||
| Port | ShenZhen / HongKong | ||
| Lead Time : | 1-3 working days after payment | ||
| Warranty | 12 Months | ||
|
Please contact the seller before you release the order, thanks!
|
|||
