NO. |
Item |
Specification |
Condition |
||
|
1 |

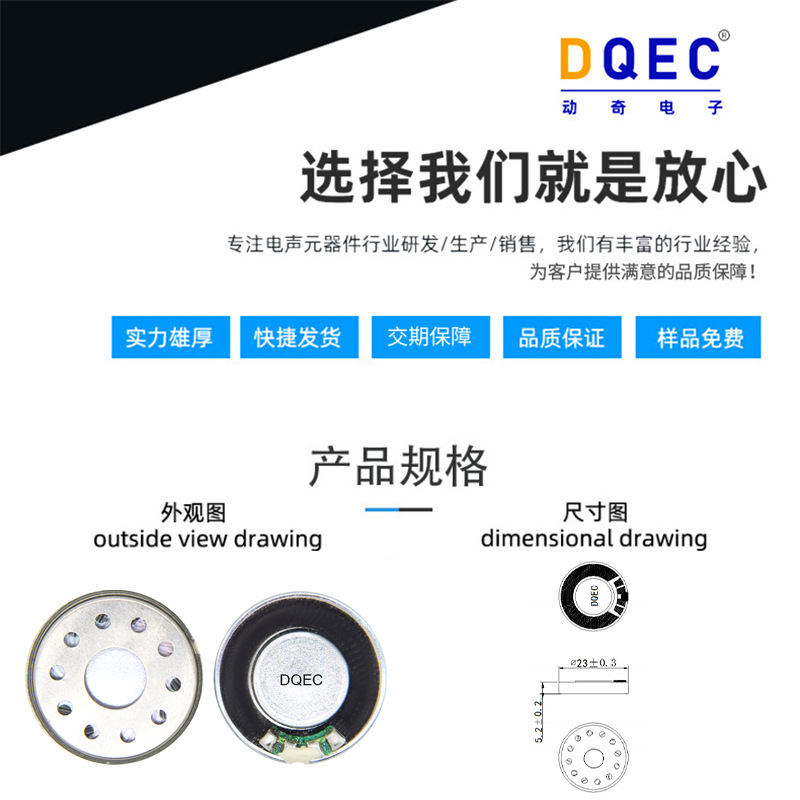

Dim
尺寸 |
Φ23*5.2H mm |
|||
|
2 |
Anomia Impedance 标称阻抗 |
150±15% OHM |
At 1.0KHz / 1.79Vrms |
||
|
3 |
Input power
输入功率 |
Rated:20MW/ Max：30MW |
|
||
|
4 |
ResonanceFrequency
最低共振周波数 |
190±20%Hz |
At1.79V |
||
|
5 |
S．P．L．
音压位准 |
101±3 dB(0.01W/0.01M) |
At/1KHz (Average) | ||
|
6 |
Frequencies Range
有效频宽 |
F0~20KHz |
Output S.P.L. -10dB |
||
|
7 |
Distortion
失真 |
5%Max |
At 1.0KHz 0.1W/0.1M | ||
|
8 |
Buzz & Rattle
异常音 |
Not be audible sine wave between at 1.73V /F0~5KHz.
(输入1.73V正弦波从F0到5KHz无异常音) |
|||
|
9 |
Polarity
极性 |
Diaphragm shall move forward.
(端子的正极通入电流，振膜振动方向向前)
|
|||
|
10 |
Load test
连续负荷测试 |
Must be normal after load test:white noise 48 hours.
(白噪声连续 48 小时试验后无异常的不良)
|
|||
|
11 |
High TEMP test
耐热试验 |
After having been in a test chamber for 48 hours at the condition of +60 ℃
20~25%R.H and keep 2 hours.(+60℃ 20~25%R.H，48 小时试验常温 2 小时后，无异常的
不良)
|
|||
|
12 |
Cold TEMP test
耐寒试验 |
After having been in a test chamber for 48 hours at the condition of －25℃±3℃
and keep 2 hours.(－25℃±3℃，48 小时试验常温 2 小时后，无异常的不良)
|
|||
|
13 |
Humidity test
耐湿试验 |
After having been in a test chamber for 48 hours at the condition of +40 ℃
90~95%R.H and keep 4 hours. （+40℃ 90~95%R.H,48 小时试验常温 4 小时后，无异常的不良）
|
|||
|
14 |
Drop test
跌落试验 |
The speak shall be dropped 2 times
 as shown the figure, clause 8 shallbe satisfied.
(如右图示 2 次跌落满足异常音试验无异常)
|
|||
|
15 |
Weld
焊接条件 |
terminal weld: 350℃/≤2~3sec*2bit.（端子焊接不超过 2~3 秒）
|
|||
|
16 |
Store temp
储存温度 |
－25℃ To +60℃ |
|||
